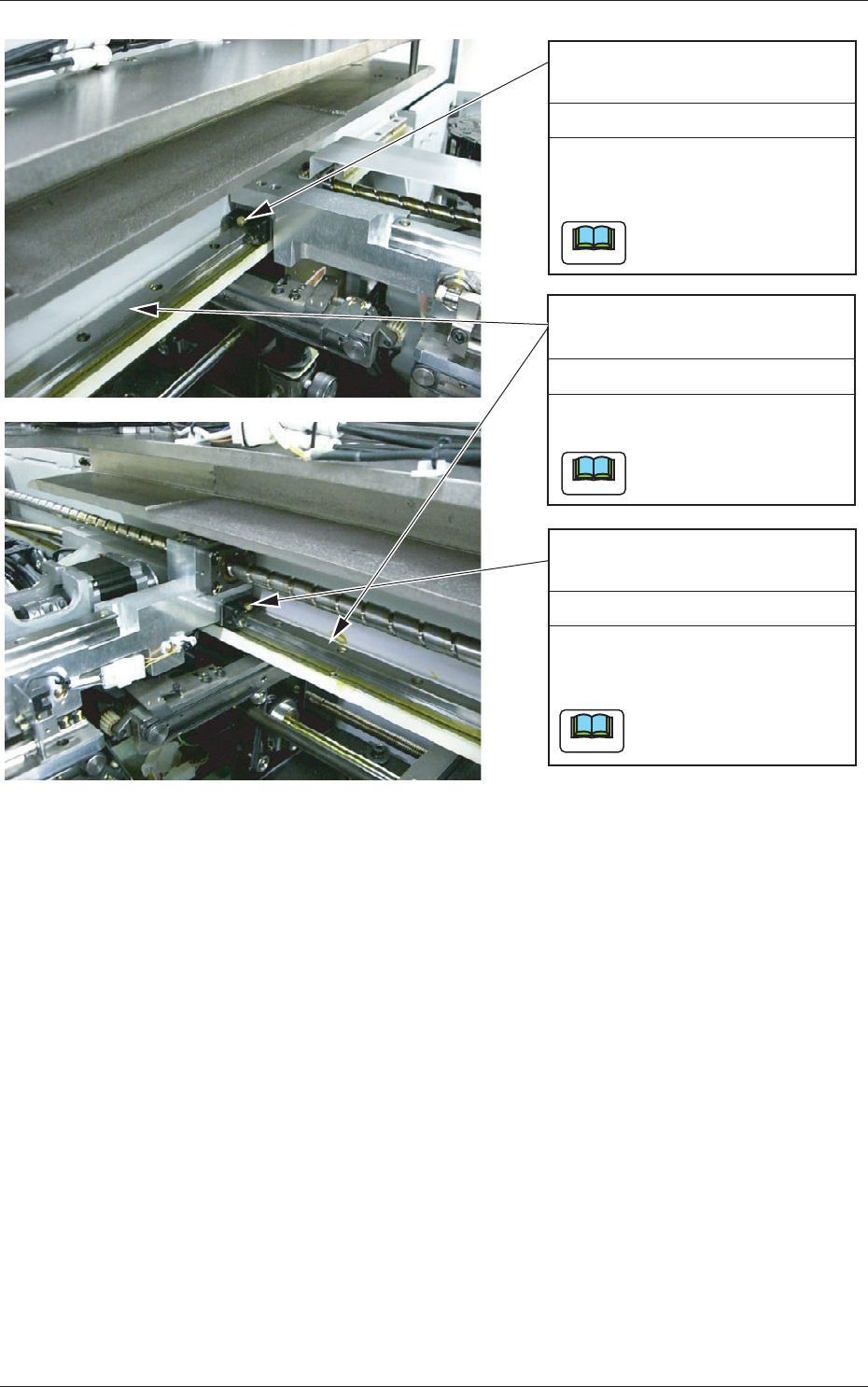

Screen Y-Axis Linear Guide
Every Month Cleaning
Clean the stopper with an oiled
rag.
Do not leave any waste
threads after cleaning.
Screen Y-Axis Linear Guide
(Rear Side)
Every 6 Months Cleaning
Inject new grease from the grease
nipple with a grease gun or a brush.
The used attachments should
be the U- and P-types or the
SPK-3C.
Screen Y-Axis Linear Guide
(Front Side)
Every 6 Months Cleaning
Inject new grease from the grease
nipple with a grease gun or a brush.
The used attachments should
be the U- and P-types or the
SPK-3C.
Fig. 4A15
0609-002
3.3 Inspection, Cleaning, and Lubrication Spots
1-22 AKOEMT-ID
3.3.4 PEC Recognition Section
Remove dirt and dust with an ari
blow brush for camera.
Camera (Lens)
PEC Recognition Lighting Glass
Surface
Every Month Cleaning
PCB Warpage Top Holder
(Outer Circumference of Roller)
Every Week Cleaning
Wipe off dirt and dust
accumulated on the outer
circumference of the roller with
a rag.
PCB Stopper
Every Week Cleaning
Clean the stopper with an oiled
rag.
Do not leave any waste
threads after cleaning.
Note

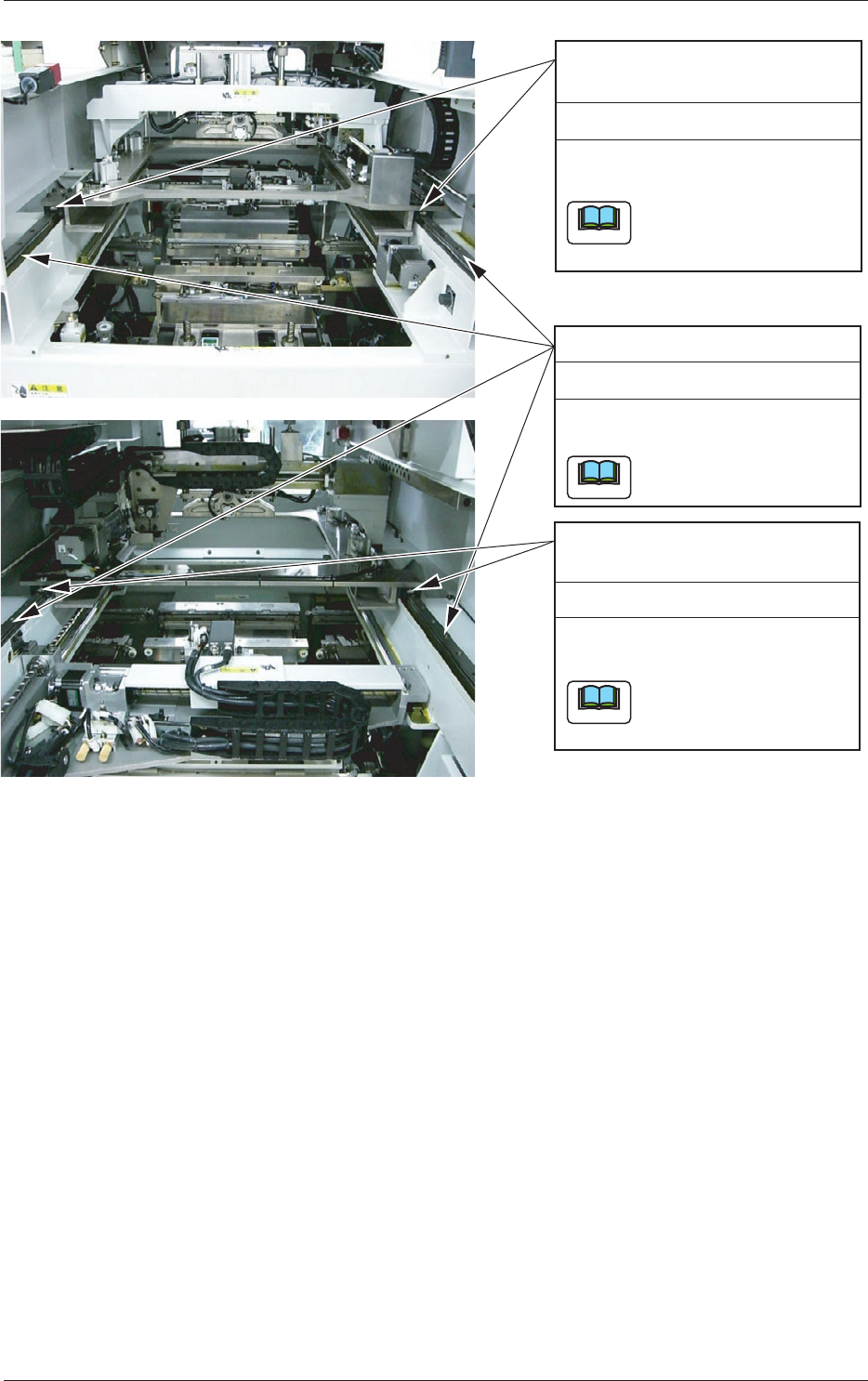

PEC Recognition
X-Axis Linear Guide
Every Month Cleaning
Clean the stopper with an oiled
rag.
Do not leave any waste
threads after cleaning.
PEC Recognition
X-Axis Linear Guide
Every 6 Months Lubrication
Apply grease with a brush or a
spatula.
Note
Note
PCB Stopper Guide Bushing
Every 6 Months Lubrication
Apply grease with a brush or a
spatula.
Apply grease to the surface
of the shaft thinly.
Fig. 4A16
0609-002
3.3 Inspection, Cleaning, and Lubrication Spots
1-23 AKOEMT-ID
Note
Note
Note

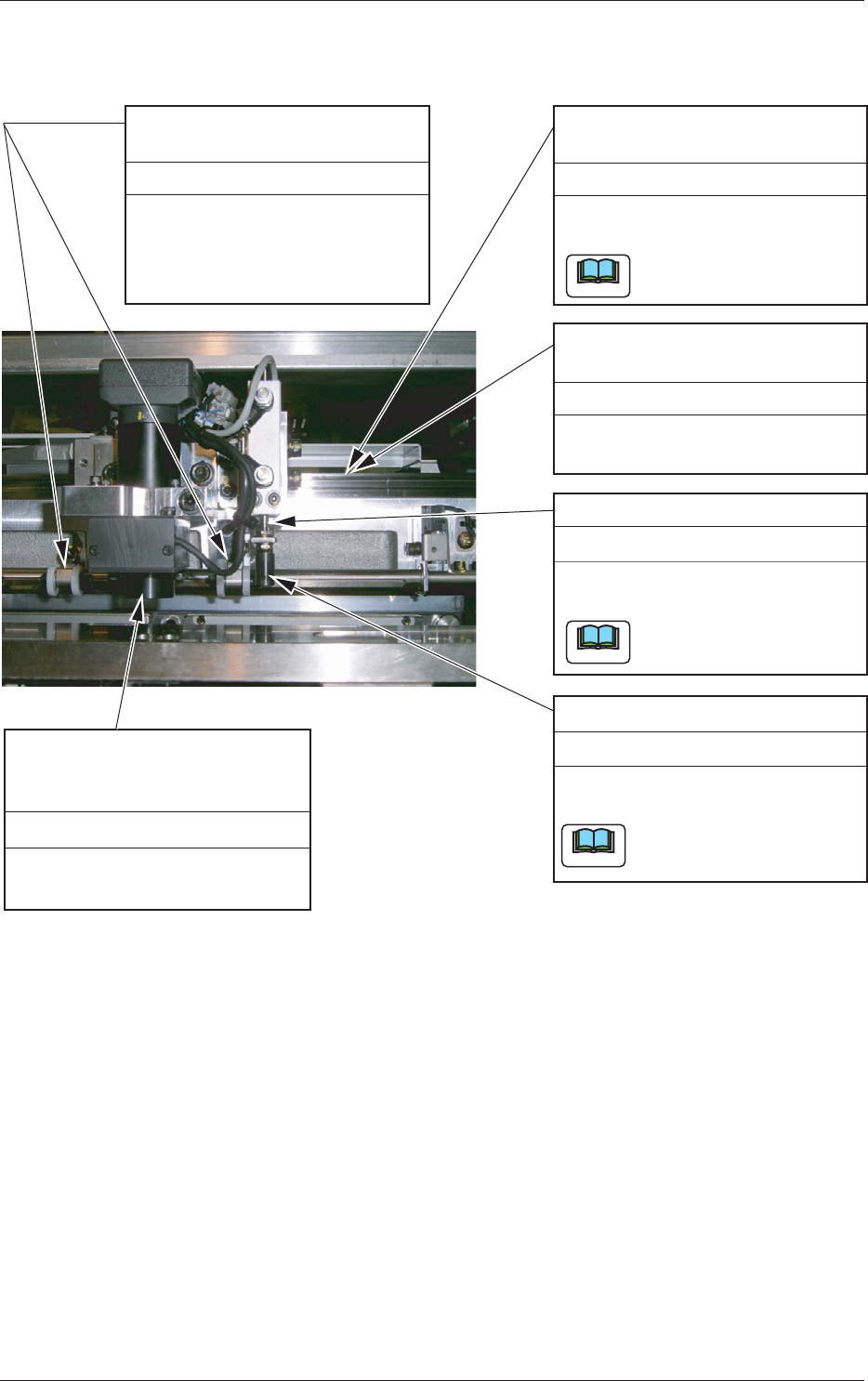

PEC Recognition Y-Axis
Linear Guide (Front Right Side)
Every 6 Months Lubrication
Inject new grease from the grease
nipple with a brush or a grease
gun.
Use the H-type attachment.
PEC Recognition Y-Axis
Linear Guide (Front Left Side)
Every 6 Months Lubrication
Inject new grease from the grease
nipple with a brush or a grease
gun.
Use the H-type attachment.
PEC Recognition
Y-Axis Linear Guide
Every Month Cleaning
Clean the stopper with an oiled
rag.
Do not leave any waste
threads after cleaning.
Fig. 4A17
0609-002
3.3 Inspection, Cleaning, and Lubrication Spots
