1-24 AKOEMT -ID PEC Recognition Y -Axis Ball Screw Every 6 Months Lubrication Apply grease with a brush or a spatula. If a large amount of grease is applied, it may be dispersed over a PCB and the screen. After applying …
1-23 AKOEMT-ID
Note
Note
Note
PEC Recognition Y-Axis
Linear Guide (Front Right Side)
Every 6 Months Lubrication
Inject new grease from the grease
nipple with a brush or a grease
gun.
Use the H-type attachment.
PEC Recognition Y-Axis
Linear Guide (Front Left Side)
Every 6 Months Lubrication
Inject new grease from the grease
nipple with a brush or a grease
gun.
Use the H-type attachment.
PEC Recognition
Y-Axis Linear Guide
Every Month Cleaning
Clean the stopper with an oiled
rag.
Do not leave any waste
threads after cleaning.
Fig. 4A17
0609-002
3.3 Inspection, Cleaning, and Lubrication Spots
1-24 AKOEMT-ID
PEC Recognition
Y-Axis Ball Screw
Every 6 Months Lubrication
Apply grease with a brush or a
spatula.
If a large amount of grease is
applied, it may be dispersed
over a PCB and the screen.
After applying grease, brush
the surface or scrape with a
spatula until a small amount
of grease remains on the
surface of the ball screw.
Note
PEC Recognition
Y-Axis Linear Guide
Every Month Cleaning
Clean the stopper with an oiled
rag.
Do not leave any waste
threads after cleaning.
Note
Note
PEC Recognition
Y-Axis Linear Guide (Rear Side)
Every 6 Months Lubrication
Inject new grease from the grease
nipple with a brush or a grease
gun.
Use the H-type attachment.
PEC Recognition
X-Axis Ball Screw
Every 6 Months Lubrication
Apply grease with a brush or a
spatula.
If a large amount of grease is
applied, it may be dispersed
over a PCB and the screen.
After applying grease, brush
the surface or scrape with a
spatula until a small amount
of grease remains on the
surface of the ball screw.
Note
Fig. 4A18
0609-002
3.3 Inspection, Cleaning, and Lubrication Spots
1-25 AKOEMT-ID

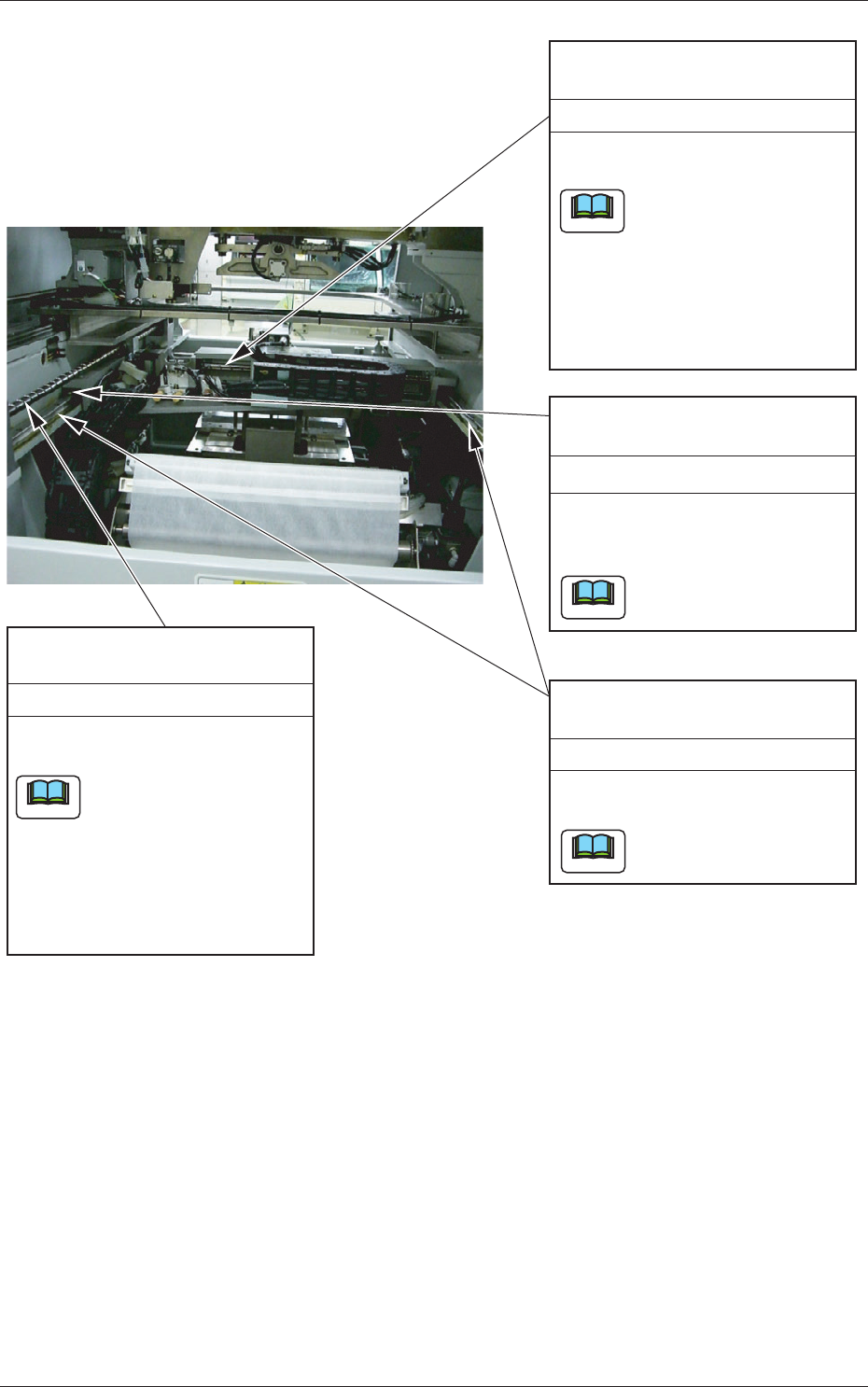

3.3.5 Conveyor Section

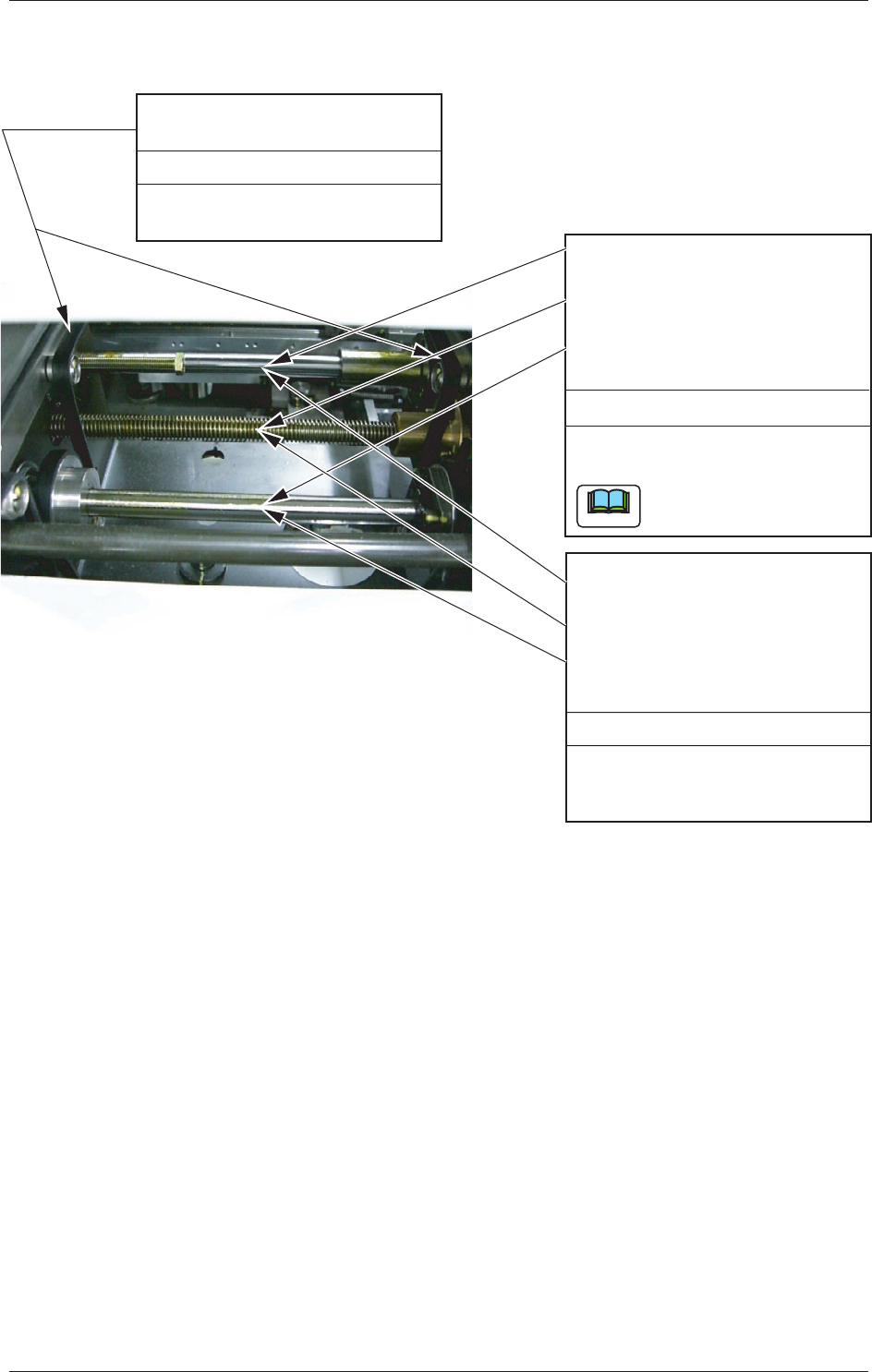

L Conveyor
Note
Upper Surface of PCB Transfer
Belt
Every Day Cleaning
Remove solder paste and dust
with a vacuum cleaner.
Guide Bushing for Conveyor
Width Change
Trapezoid Screw for Conveyor
Width Change
Spline Axis for Conveyor Width
Change
Every Month Cleaning
Clean the stopper with an oiled
rag.
Do not leave any waste
threads after cleaning.
Guide Bushing for Conveyor
Width Change
Trapezoid Screw for Conveyor
Width Change
Spline Axis for Conveyor Width
Change
Every 6 Months Lubrication
Apply grease with a brush or a
spatula.
Fig. 4A19
0609-002
3.3 Inspection, Cleaning, and Lubrication Spots
