1-32 AKOEMT-ID
Table �-Axis Movable Bearing
Outer Circumference
Every 3 Months after Initial One
Lubrication (NM1)
Apply grease with a brush or a
spatula.
T
abel �-Axis Linear Guide
Every Month Cleaning
Clean the stopper with an oiled rag.
Do not leave any waste
threads after cleaning.
Note
Tabel �-Axis Ball Screw
Every 6 Months Lubrication
Apply grease with a brush or a
spatula.
Fig. 4A30
Tabel �-Axis Linear Guide
Every 6 Months Lubrication
Inject new grease from the
grease nipple with a grease gun
from the rear side of the machine.
Use the H-type attachment.
Note
Fig. 4A31
0609-002
3.3 Inspection, Cleaning, and Lubrication Spots
1-33 AKOEMT-ID
Note
Table X-Axis Linear Guide
(Front Left Side)
Every 6 Months Lubrication
Inject new grease from the grease
nipple with a brush or a grease
gun.
Use the U- and P-type
attachments.
Note
Table X-Axis Linear Guide
(Front Right Side)
Every 6 Months Lubrication
Inject new grease from the grease
nipple with a brush or a grease
gun.
Use the U- and P-type
attachments.

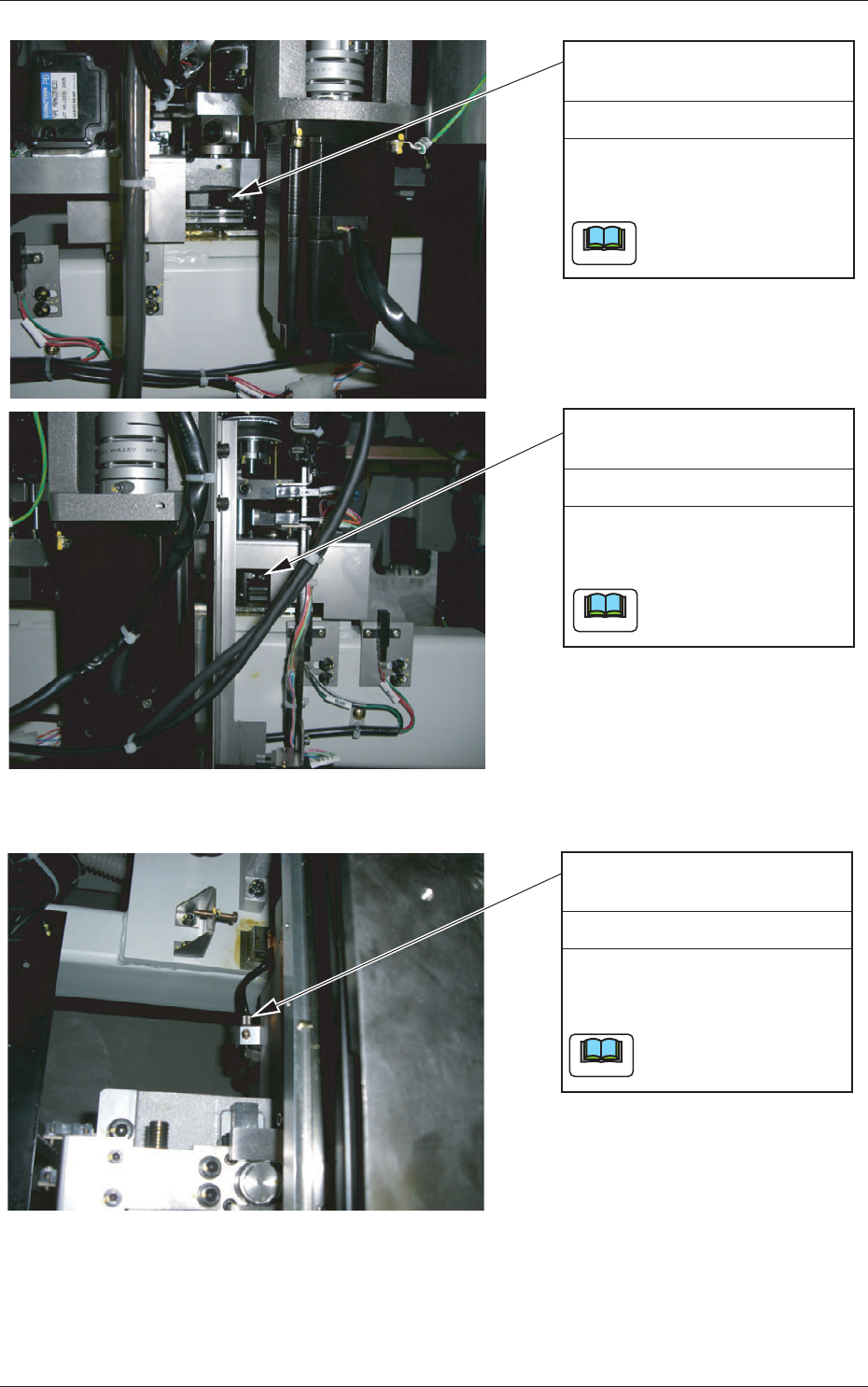

Fig. 4A32
Note
Table X-Axis Linear Guide
(Rear Side)
Every 6 Months Lubrication
Inject new grease from the grease
nipple with a brush or a grease
gun.
Use SPK-3C attachment.
Fig. 4A33
0609-002
3.3 Inspection, Cleaning, and Lubrication Spots
1-34 AKOEMT-ID
3.3.8 Cleaning Section
Sample Usage
of Mirror
Hose and Hose Joint
Every Day Cleaning
When the industrial alcohol (solvent)
is leaking, remove the bolt and wipe
off the alcohol with a rag.
If loosened, tighten it after removing
the bolt once.
Hose and Hose Joint
Every Day Check
Confirm that the industrial alcohol
(solvent) is not leaking and the bolt is
not loosened with a mirror.
And also, check the joints and the
packing.
Move the mirror horizontally to check
the four joints.
Fig. 4A34
0609-002
3.3 Inspection, Cleaning, and Lubrication Spots
