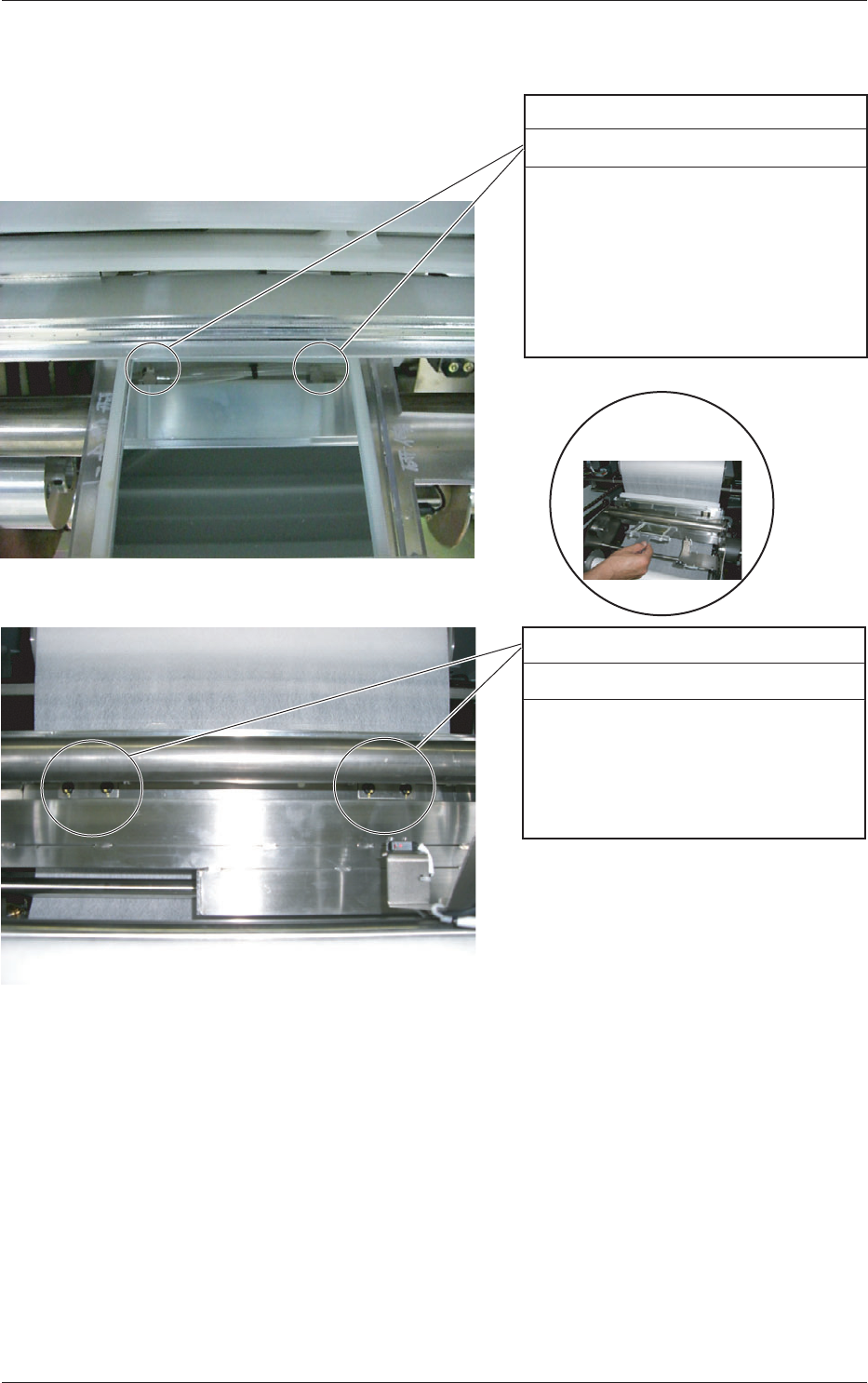

3.3.8 Cleaning Section

Sample Usage

of Mirror

Hose and Hose Joint

Every Day Cleaning

When the industrial alcohol (solvent)

is leaking, remove the bolt and wipe

off the alcohol with a rag.

If loosened, tighten it after removing

the bolt once.

Hose and Hose Joint

Every Day Check

Confirm that the industrial alcohol

(solvent) is not leaking and the bolt is

not loosened with a mirror.

And also, check the joints and the

packing.

Move the mirror horizontally to check

the four joints.

Fig. 4A34

0609-002

3.3 Inspection, Cleaning, and Lubrication Spots

1-35 AKOEMT-ID

Needle Valve

Solenoid Valve (Left Side View)

Hose and Hose Joint

Every Day Check and Cleaning

Check if industrial alcohol is leaking

or not.

If leakage is found, wipe off the

alcohol with a rag.

Check the joint and packing.

Fig. 4A35

Solvent Tank and Pan

Solvent Tank, Solvent Pan,

and Hose Joint

Every Day Check and Cleaning

Check if industrial alcohol is leaking

or not.

If leakage is found, wipe off the

alcohol with a rag.

Check the joint and packing.

Fig. 4A36

0711-003

3.3 Inspection, Cleaning, and Lubrication Spots

1-36 AKOEMT-ID

3.3.9 Door Section

Front Door Gas Damper (Upper)

Every 6 Months Lubrication

Apply grease with a brush and

grease gun.

Front Door Gas Damper (Lower)

Every 6 Months Lubrication

Apply grease with a brush and

grease gun.

Fig. 4A37

Rear Door Gas Damper (Upper)

Every 6 Months Lubrication

Apply grease with a brush and

grease gun.

Rear Door Gas Damper (Lower)

Every 6 Months Lubrication

Apply grease with a brush and

grease gun.

Fig. 4A38

0711-003

3.3 Inspection, Cleaning, and Lubrication Spots
