1-69
System Messages of the MMI and Solutions
Warning Please check the movement of the sensor and cylinder in
the ‘Diagnosis I/O’ of MMI.
As it is dangerous to check the sensor during the operation
of the equipment, be sure to check the equipment in stop
status (idle mode) after releasing “Ready”.
$3046 Check the sensor for upward movement of the stopper. [EMER LEVEL]
[Problem]
When the stopper upward movement sensor failed to detect the upward movement of
the stopper..
[Solution]
Take measures same as those against the error code "$3045”.
$3047 Check the stopper downward movement sensor. [EMER LEVEL]
[Problem]
When the stopper downward movement sensor failed to detect the downward
movement of the stopper.
[Solution]
Take measures same as those against the error code "$3045”.
$3048 Check the state of the edge fixer. [EMER LEVEL]
[Problem]
When the edge fixer is not turned on or off due to mechanical interference.
When pneumatic pressure is not supplied to the cylinder of the edge fixer properly.
A problem occurred in the wiring of the sensor related to the turning on/off of the edge
fixer.
[Solution]
Turn off the Buzzer by pressing the “STOP” button.
Switch the machine to “IDLE” mode by pressing the “RESET” button.
If there is mechanical interference related to turning on/off the edge fixer, remove it.

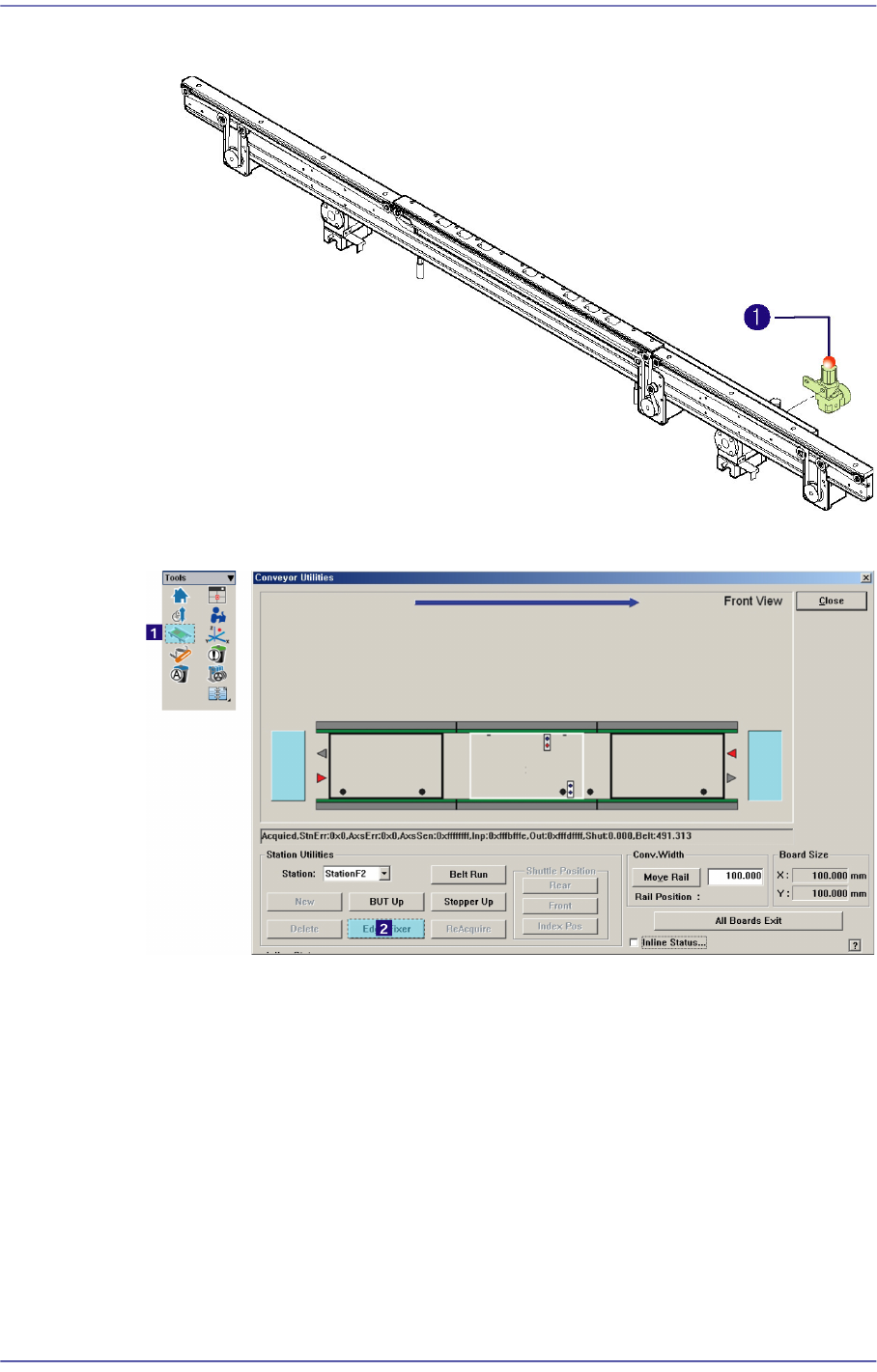

Watch the gage of the Conveyor Regulator to check if pneumatic pressure is supplied
properly.
Turning the handle of the Conveyor Regulator clockwise will increase the pressure
while turning it counterclockwise will reduce the pressure.
0.38t ~ 1.5t = 1.0kg / cm
2
(0.15Mpa)
1-70
Advanced Chip Shooter DECAN S2 Troubleshooting Guide
1.5t ~ 4t = 2.0kg / cm
2
(0.2Mpa)
Check if the solenoid related to the corresponding edge fixer works normally.
Check the wiring of the sensor related to the upward or downward movement of the
corresponding edge fixer.
For further details, refer to section “Axis Sensor Board Interface (1/2)” in the
Technical Reference.
1-71
System Messages of the MMI and Solutions
Warning Please check the movement of the sensor and cylinder in
the ‘Diagnosis I/O’ of MMI.
As it is dangerous to check the sensor during the operation
of the equipment, be sure to check the equipment in stop
status (idle mode) after releasing “Ready”.
$3049 Failed to turn the edge fixer on. [EMER LEVEL]
[Problem]
The edge fixer does not turn on normally.
[Solution]
Take measures same as those against the error code "$3048”.
$304a Failed to turn the edge fixer off. [EMER LEVEL]
[Problem]
The edge fixer does not turn off normally..
[Solution]
Take measures same as those against the error code "$3048”.
$304e An error occurred to the belt controller. [EMER LEVEL]
[Problem]
The conveyor belt does not run normally.
[Solution]
Turn off the Buzzer by pressing the “STOP” button.
Switch the machine to “IDLE” mode by pressing the “RESET” button.
Supply power to the motor of the machine by pressing the “READY” button.
Drive the belt again.
$304f There is no response from the belt controller. [EMER LEVEL]
[Problem]
The conveyor belt does not run normally.
[Solution]
Take measures same as those against the error code "$304e”.
Check the state of the corresponding step control board and driver
