11 Modular machine concept SIPLACE SX1/SX2 Example of SIPLACE SX2 PLEASE NOTE: For all po ssible head config- urations pleas e refer to section Mach ine Per- formance SIPLACE SX1/SX2 from page 13. COT 60 In Component tro…
10
Modular Machine Concept SIPLACE SX1/SX2
Step 1: Machine without gantry SIPLACE SX+
Step 2: Selection of gantries
SIPLACE SX1 with one gantry
SIPLACE SX2 with two gantries
Step 3: Selection of placement heads
SpeedStar (C&P20)
MultiStar (CPP)
TwinStar (TH)
Step 4: Selection of conveyor
Single conveyor
Flexible dual conveyor
Step 5: Selection of component trolley, WPC
Component trolley SIPLACE SX
WPC5 or WPC6
Step 6: Selection of feeder modules
X tape feeder modules
linear dipping unit X
Label presenter
Reject conveyor
11
Modular machine concept SIPLACE SX1/SX2

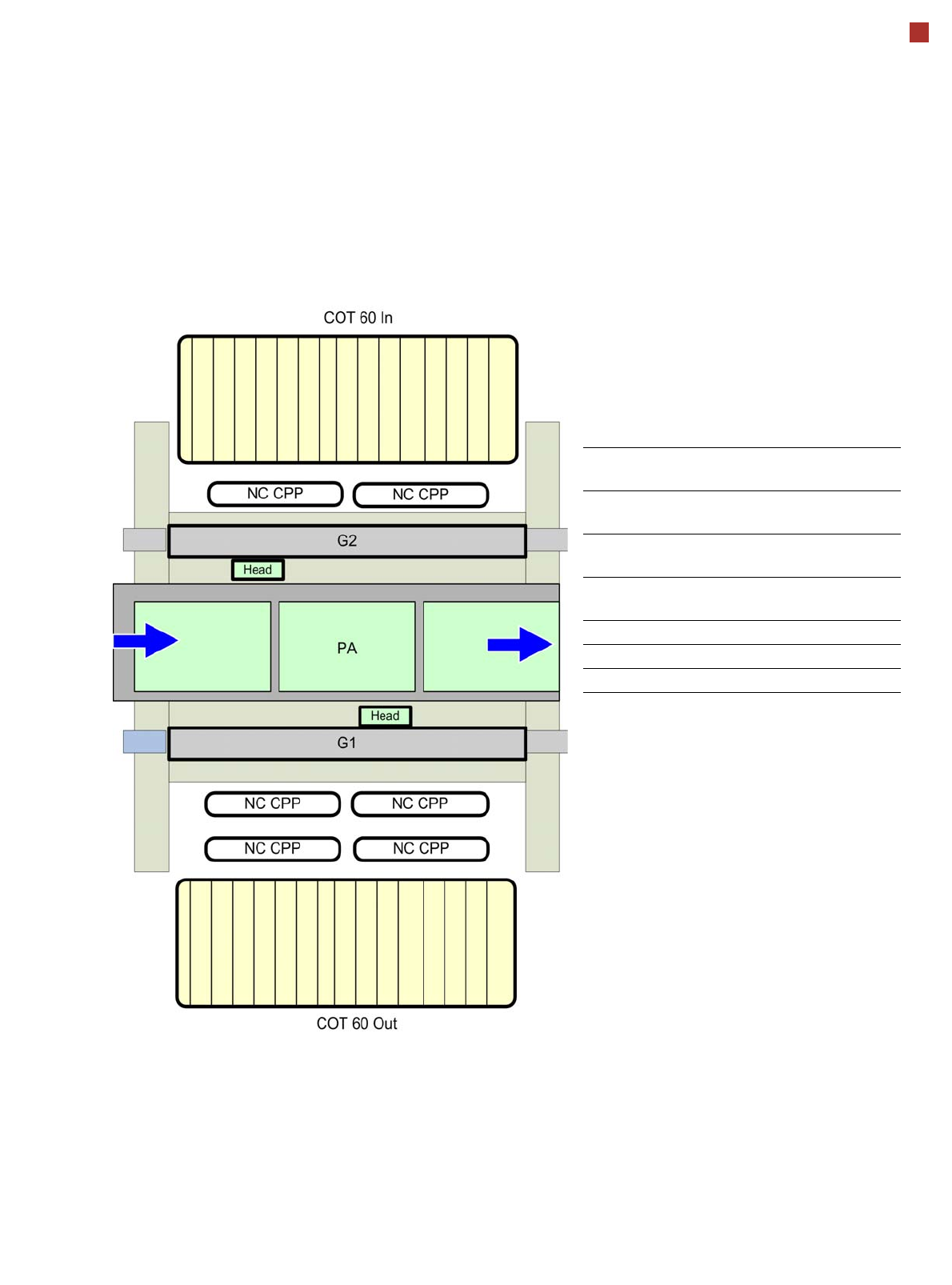

Example of SIPLACE SX2
PLEASE NOTE: For all possible head config-
urations please refer to section Machine Per-
formance SIPLACE SX1/SX2 from page 13.
COT 60 In Component trolley with 60
tracks in the inner position
COT 60 Out Component trolley with 60
tracks in the outer position
Head Placement head in acc.
with head configuration
NC Nozzle changer in acc.
with head configuration
G1 Gantry 1
G2 Gantry 2
PA Placement area
12
Modular machine concept SIPLACE SX1/SX2

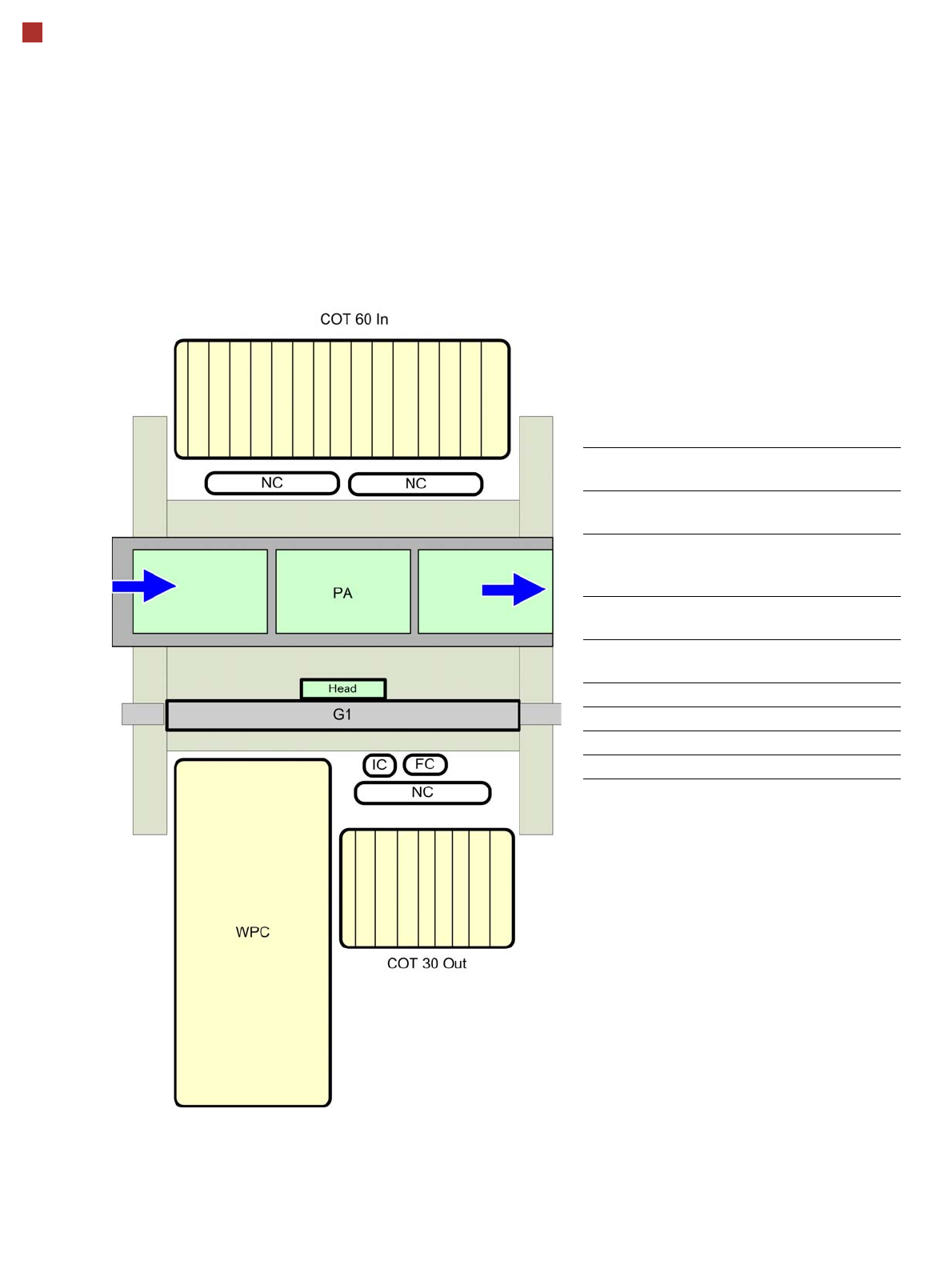

Example of SIPLACE SX1 with WPC5/WPC6
PLEASE NOTE: For all possible head config-
urations please refer to section Machine Per-
formance SIPLACE SX1/SX2 from page 13.
COT 30 Out Component trolley with 30
tracks in the outer position
COT 60 In Component trolley with 60
tracks in the inner position
WPC Waffle Pack Changer,
type
5 or type 6
Head Placement head in acc.
with head configuration
NC Nozzle changer in acc.
with head configuration
IC Stationary camera
FC Flip chip camera
G1 Gantry 1
PA Placement area
