24 PCB conveyor SIPLACE SX1/SX2 Technical Data Single conveyor Flexible dual con- veyor Dual conveyor in single conveyor mode S tandard dimensions (length x width) 50 mm x 50 mm to 450 mm x 560 mm a a) When using boards …

PCB conveyor SIPLACE SX1/SX2

Flexible dual conveyor

To keep the range of PCBs to

be processed as wide as

possible - whilst maintaining

maximum productivity - the

flexible SIPLACE dual con-

veyor allows you to choose

between single conveyor

mode and dual conveyor

mode. In the dual conveyor,

two boards are moved into

the placement machine and

placed either at the same

time (synchronous mode) or

alternatively (asynchronous

mode). This makes it possi-

ble to process the top and

bottom sides of a board in

one line.

Synchronous mode

In synchronous mode, two

PCBs are moved into the

placement position at the

same time. They are pro-

cessed as a common panel.

When using products with

widely differing placement

contents, common optimiza-

tion of the entire placement

content for both boards can

enhance performance.

Asynchronous mode

In asynchronous mode, only

one PCB is processed per

conveyor lane. At the same

time, another PCB in the sec-

ond conveyor lane is moved

into the placement position.

This saves the full conveying

time of one PCB, thus con-

siderably increasing perfor-

mance, particularly for PCBs

with a short cycle time. The

placement process starts as

soon as one PCB is trans-

ported into the processing

area.

I-Placement

In addition to synchronous

and asynchronous conveyor

mode, a new placement con-

cept has been developed for

the SIPLACE SX: I-Place-

ment. In this mode, the two

heads work simultaneously

and populate a PCB totally

independently of one

another. This further

increases the output.

The background: the place-

ment heads and component

feeder modules of the

SIPLACE SX have acceler-

ated component pickup to

such a degree that it is now

the transport path to the

board and not the pickup pro-

cedure which has become

the speed-restricting factor.

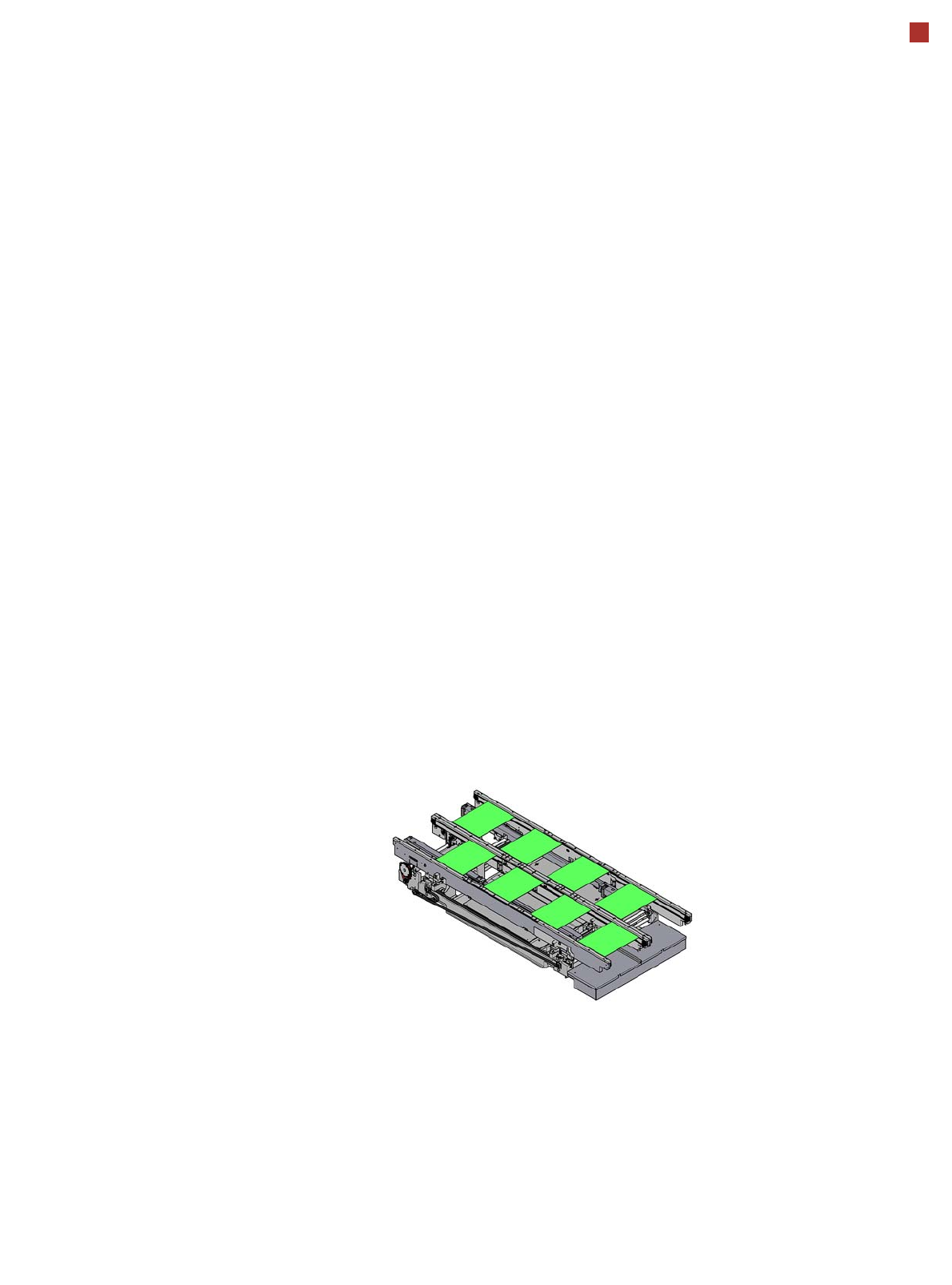

Flexible dual conveyor

Asynchronous placement mode

or I-Placement

PCB conveyor SIPLACE SX1/SX2

Technical Data

Single conveyor Flexible dual con-

veyor

Dual conveyor in single

conveyor mode

Standard dimensions

(length x width)

50 mm x 50 mm to

450 mm x 560 mm

a) When using boards with a width > 450 mm, make sure the peripheral module can also process the PCB width

concerned.

50 mm x 50 mm to

450mm x 260mm

50 mm x 50 mm to

450 mm x 460 mm

Dimensions with “Long

Board”option

(length x width)

50 mm x 50 mm to

850 mm x 560 mm

50 mm x 50 mm to

850mm x 260mm

50 mm x 50 mm to

850 mm x 460 mm

Stationary conveyor side Right, left or outer

Automatic electrical width

adjustment?

Yes

PCB thickness

Standard

"Thick board" option

0.3 mm to 4.5 mm

2.0 mm to 6.5 mm

Clamping length of board 450 mm

Space for positioning

support pins

440 mm

PCB warpage see page 26

PCB weight

Standard

b) The board weight value refers to the weight of the board plus the weight of the components.

max. 2.0 kg max. 1.0 kg max. 2.0 kg

Clearance on PCB

underside

c) The free positioning of board supports is limited by the stop bar.

25 mm

PCB transport height

Option

Standard

SMEMA option

900 mm

930 mm

950 mm

Interface type

Standard

Option

SMEMA

Siemens

Component-free PCB

handling edge

3 mm

PCB changeover time

Single conveyor

Dual conveyor

d) 0 seconds in asynchronous mode, otherwise 1.5 seconds.

< 1.5 seconds

0 seconds

Important information for machines in combination with SIPLACE SX2/SX1:

When setting up a machine (S; F, HS, HF, X or D series) next to a SIPLACE SX1/SX2, take note of the limited space

between the two machines. In these cases, you will need a 0.5 m conveyor between the SIPLACE SX1/SX2 and the

adjacent machines.

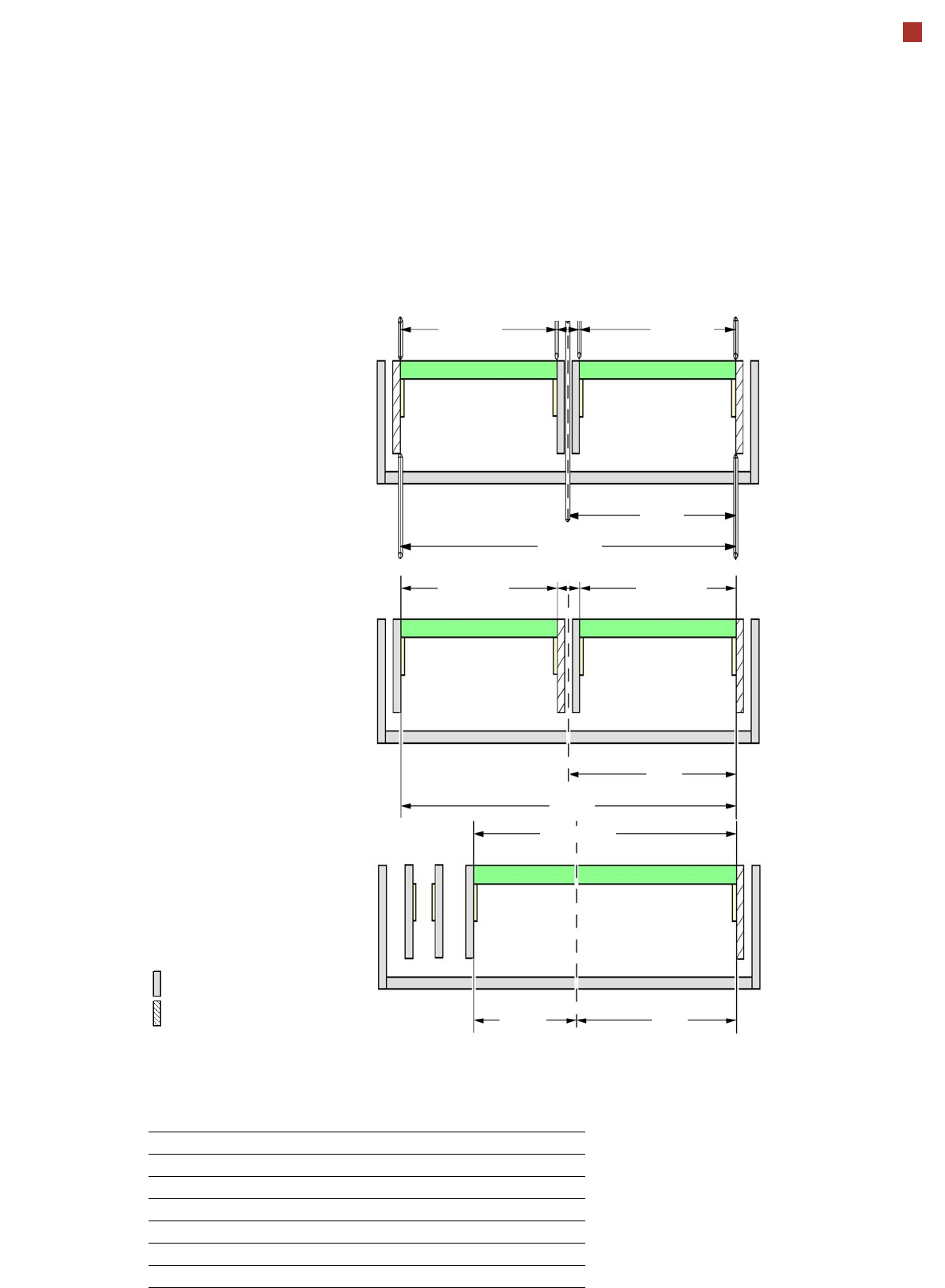

SIPLACE SX PCB Conveyor

I-Placement

Alternating placement mode

Alternating or

I-Placement mode

Distance of outer conveyor

edges: 560 mm, 2 lanes, outer

conveyor edges fixed

Alternating placement mode

Distance of outer conveyor

edges: 560 mm, 2 lanes, right

conveyor edges fixed

Alternating placement mode

Distance of outer conveyor

edges: 560 mm, dual conveyor

in single conveyor mode, right

conveyor edge fixed

max. 260

Movable conveyor side

Stationary conveyor side

a) Only the settings with fixed conveyor edge on the right are shown. A setting with the stationary conveyor edge

on the left is also possible. All dimensions in millimeters.

max. 260

281

560

min. 35

281

179

max. 260

281

min. 35

max. 260

560

max. 460

Adjustable side position and max. board width

Side position Max. board width

234.2 mm 216 mm

254 mm 236 mm

259.7 mm 242 mm

268 mm 250 mm

281 mm 260 mm

Customized (anything up to max. 281 mm) 260 mm
