32 Component Provision SIPLACE SX1/SX2 Waffle Pack Changer (WPC5/WPC6) If you need to prepare com- ponents in multiple waffle pack trays for the placement process, w e recomm end the use of a Waffle Pack Changer (WPC5 or…

Component Provision SIPLACE SX1/SX2

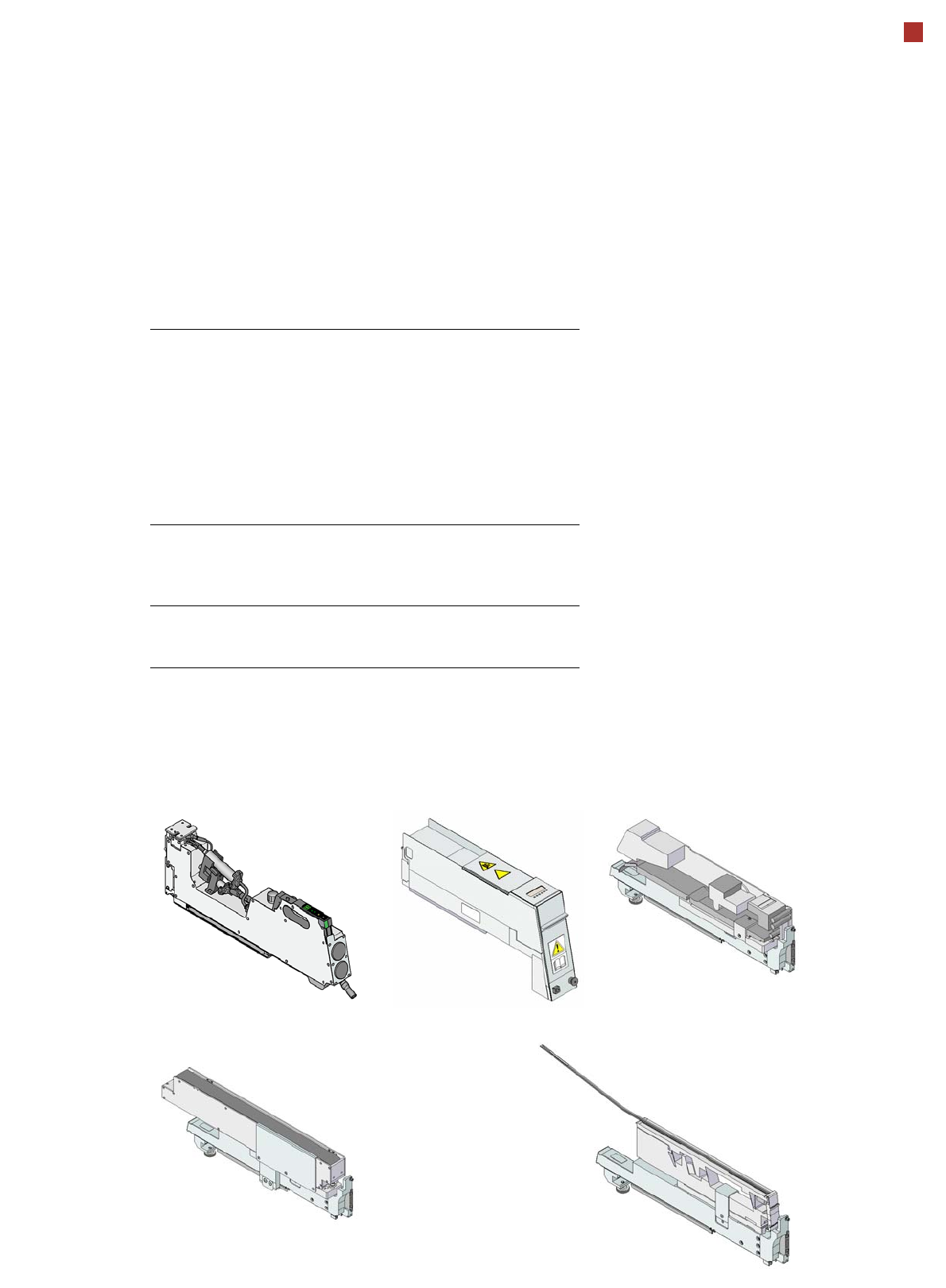

Alternative SIPLACE Feeder Modules

Technical Data

Linear vibratory feeder,

type 3

Packaging style

track number and width of

tracks

Stick magazines

Component trolley

SIPLACE SX

3 x  9.5 mm

2 x  15 mm

1 x  30 mm

Occupies 3 locations of an

8 mm X feeder module

Linear Dipping Unit

(LDU X)

for SIPLACE SX compo-

nent trolley

Occupies 9 locations of an

8 mm X feeder module,

max. 1 per head

SIPLACE Glue Feeder Occupies 5 locations of an

8 mm X feeder module,

max. 1 per head

a) with X adapter

Reject conveyor

with X adapter

Glue Feeder

Linear vibratory feeder, type 3

with X adapter

Linear Dipping Unit

(LDU X)

Label presenter

with X adapter

Description

Linear vibratory feeders pro-

cess components in stick mag-

azines. These can be easily

configured with the X adapter

for use with the SIPLACE SX

component trolley. They can

be refilled without stopping the

machine. The X adapter also

allows you to set up the label

presenter and the reject con-

veyor on the SIPLACE SX

component trolley.

The LDU X is suitable for dip

fluxing of flip chips, CSP (Chip

Scale/Size Packages) and for

coating flip chip bumps with

isotropic conductive adhesive.

The SIPLACE Glue Feeder

allows you to position dots of

adhesive on a component,

before it is placed.

Component Provision SIPLACE SX1/SX2

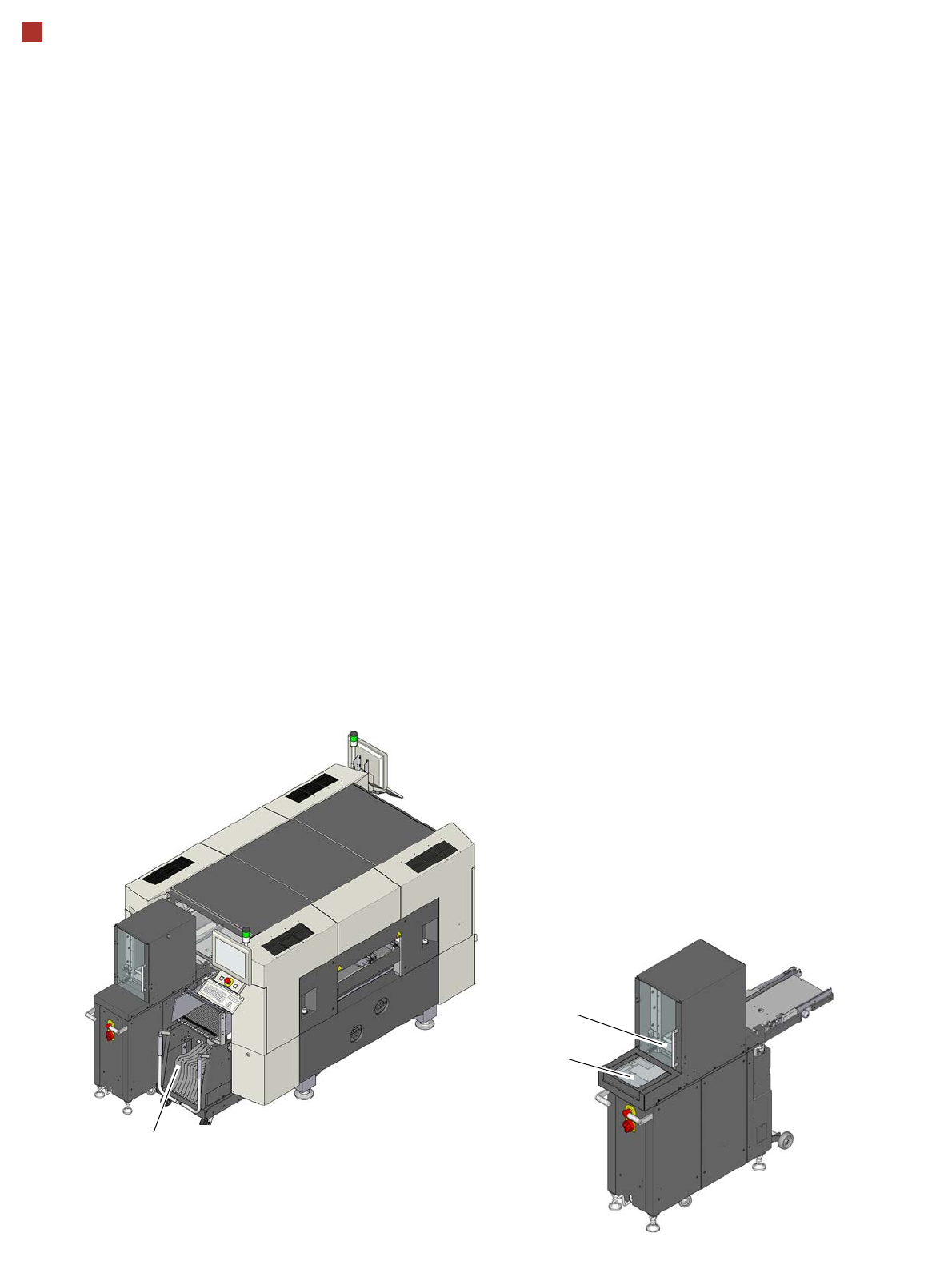

Waffle Pack Changer (WPC5/WPC6)

If you need to prepare com-

ponents in multiple waffle

pack trays for the placement

process, we recommend the

use of a Waffle Pack

Changer (WPC5 or WPC6)

for automatic magazine

(tray) changing.

The WPC setup is coordi-

nated with the placement

sequence to ensure optimum

use of distances and time.

The magazine storage unit

with waffle pack trays moves

in a vertical direction, until

the required magazine is in

the access range of the feed

axis.

The horizontal feed axis

transports the waffle pack

tray from the tower into the

access range of the place-

ment head. The first maga-

zine is made available as

soon as a PCB moves onto

the PCB conveyor, and valid

panel and setup data is avail-

able. All magazine changes

are performed within the

placement cycle time. Jedec

magazines can be refilled

without machine stoppages.

Faulty components are sim-

ply placed back in the origi-

nal magazine.

The Waffle Pack Changer

can be used together with

the (C&P20).

WPC6

However, the WPC6 also

has a nonstop module. This

enables the user to refill waf-

fle pack trays during ongoing

operations. The nonstop

module facilitates opening of

the loading flap during opera-

tion, for insertion of waffle

pack trays. Additional func-

tions in SC version 704 and

higher allow component fill-

ing levels to be updated or

individual levels to be manu-

ally refilled.

Location for the component trolley

with 30 tracks next to the WPC.

Waffle pack tray

storage unit

WPC5

Nonstop module

WPC6

Component Provision SIPLACE SX1/SX2

Waffle Pack Changer (WPC5/WPC6)

Technical Data

Electrical ratings

WPC5/WPC6 dimensions

Length x width

Height

For 900 mm PCB conveyor height

For 930 mm PCB conveyor height

For 950 mm PCB conveyor height

1520 mm x 360 mm

1430 mm

1460 mm

1480 mm

WPC5 weight

Basic configuration (with cassettes and waffle pack tray carriers)

Fully configured (with WPTC and cassette with components)

approx. 270 kg

approx. 320 kg

WPC6 weight

Basic configuration (with cassettes and waffle pack tray carriers)

Fully configured (with WPTC and cassette with components)

approx. 280 kg

approx. 330 kg

WPC5/WPC6 surface load  25 N/cm²

Weight of the waffle pack tray carrier 0.8 kg

Dimensions of waffle pack tray carrier (LxWxH) 360 mm x 260 mm x 6 mm

Dimensions of waffle pack tray (LxWxH) 347 mm x 235 mm x 15 mm

Height of waffle-pack tray, including component

Standard (all levels occupied)

WPC5

WPC6

High components (levels omitted)

WPC5

WPC6

High components

(on request with Very High Force Pick&Place (VHF)- 30mm/70N)

WPC5

WPC6

a) From serial number B1485 (WPC5) / C1486 (WPC6)

b) Level 1-3 and use of nonstop module (load axis) up to 29mm max. 35mm is for use with the feed axis.

15 mm

29 mm

35 mm

Distance from level to level 17 mm (± 2 mm)

Storage capacity 28 waffle pack tray carrier

Changeover time for waffle pack tray carrier

over 1 level

over 10 levels

over 27 levels

1.9 s

2.3 s

2.8 s

Supply voltage 3 x 200 V~ ± 10 %; 50/60 Hz (Japan)

3 x 208 V~ ± 10 %; 50/60 Hz (U.S.A)

3 x 230 V~ ± 10 %; 50/60 Hz

3 x 380 V~ ± 10 %; 50/60 Hz

3 x 400 V~ ± 10 %; 50/60 Hz (Europe)

3 x 415 V~ ± 10 %; 50/60 Hz

Nominal apparent power 1.5 kVA

Nominal active power 1.0 kW

Fuses 3 x 10 or 3 x 16 A
