58 Technical Data SIPLACE SX1/SX2 Maneuvering Radii for the Component Trolleys Component trolley Location 1 (outside) Location 2 (inside) Maneuvering ra dius R Handles folded out 1200 mm 1200 mm Distance L1: Machine cent…
57
Technical Data SIPLACE SX1/SX2
Placement System Dimensions

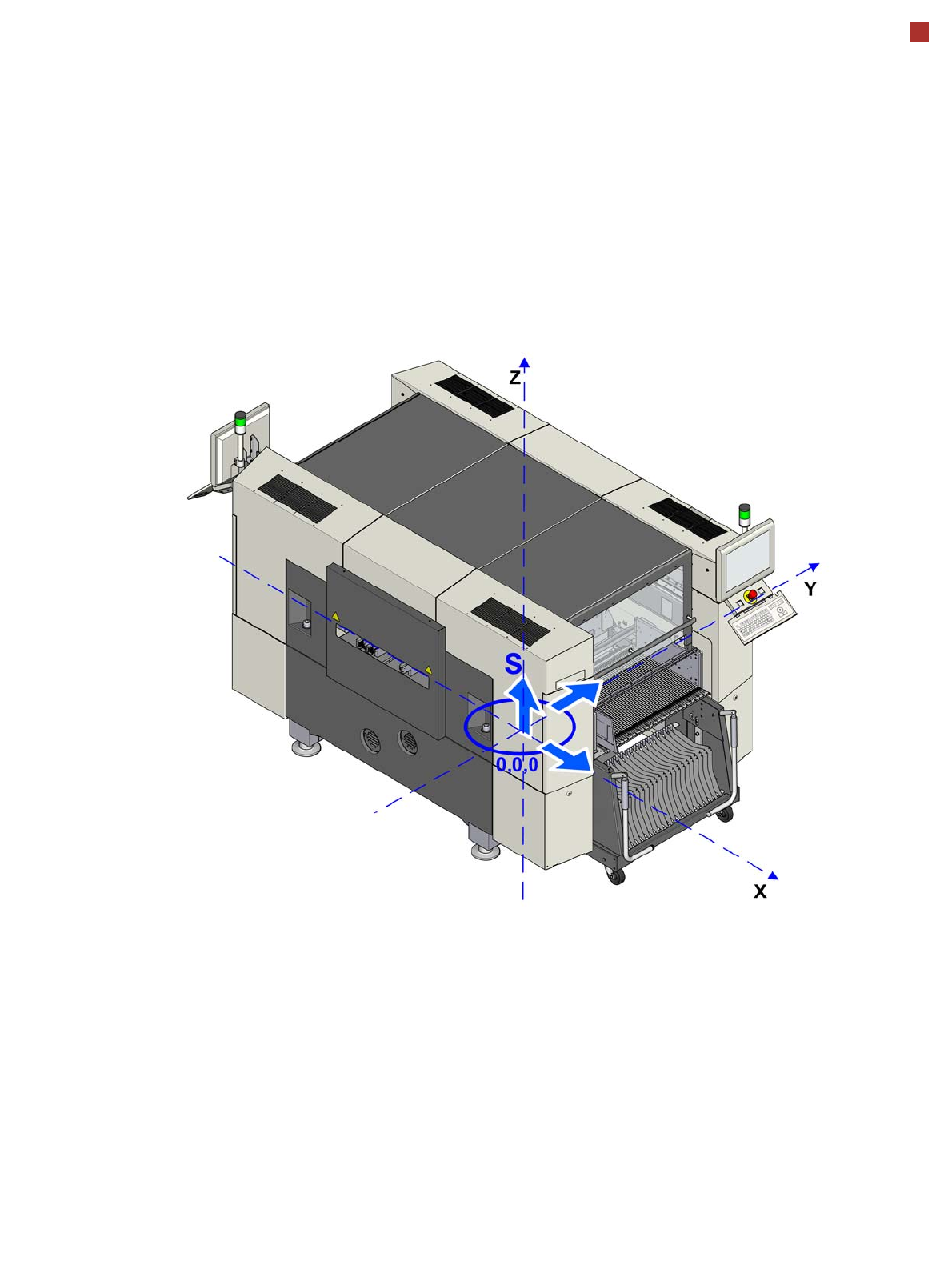

Placement System Center of Gravity
X = 0 mm
Y = 0 mm
Z = 738.5 mm
58
Technical Data SIPLACE SX1/SX2
Maneuvering Radii for the Component Trolleys
Component trolley Location 1 (outside) Location 2 (inside)
Maneuvering radius R
Handles folded out 1200 mm 1200 mm
Distance L1: Machine center to outer edge of component
trolley
Handles folded in 1300 mm 1175 mm
Handles folded out 1750 mm 1625 mm
Distance L2: Machine center to wall
Handles folded in 2060 mm 1935 mm
Handles folded out 2950 mm 2825 mm
59
Technical Data SIPLACE SX1/SX2
Maneuvering Radii of WPC5/WPC6
Machine Location 1 Location 2
Maneuvering radius R
SX1/SX2 1400 mm 1400 mm
Distance L1: Machine center to WPC outer edge
SX1/SX2 1860 mm 1860 mm
Distance L2: Machine center to wall
SX1/SX2 3260 mm 3260 mm
