60
Technical Data SIPLACE SX1/SX2
Spacing Distances for the Single Conveyor
Fixed conveyor side at maxi-
mum right position
a
.
Fixed conveyor side
at maximum left position
a
.
a) The value depends on the position of the fixed side. All dimensions in millimeters.
61
Technical Data SIPLACE SX1/SX2

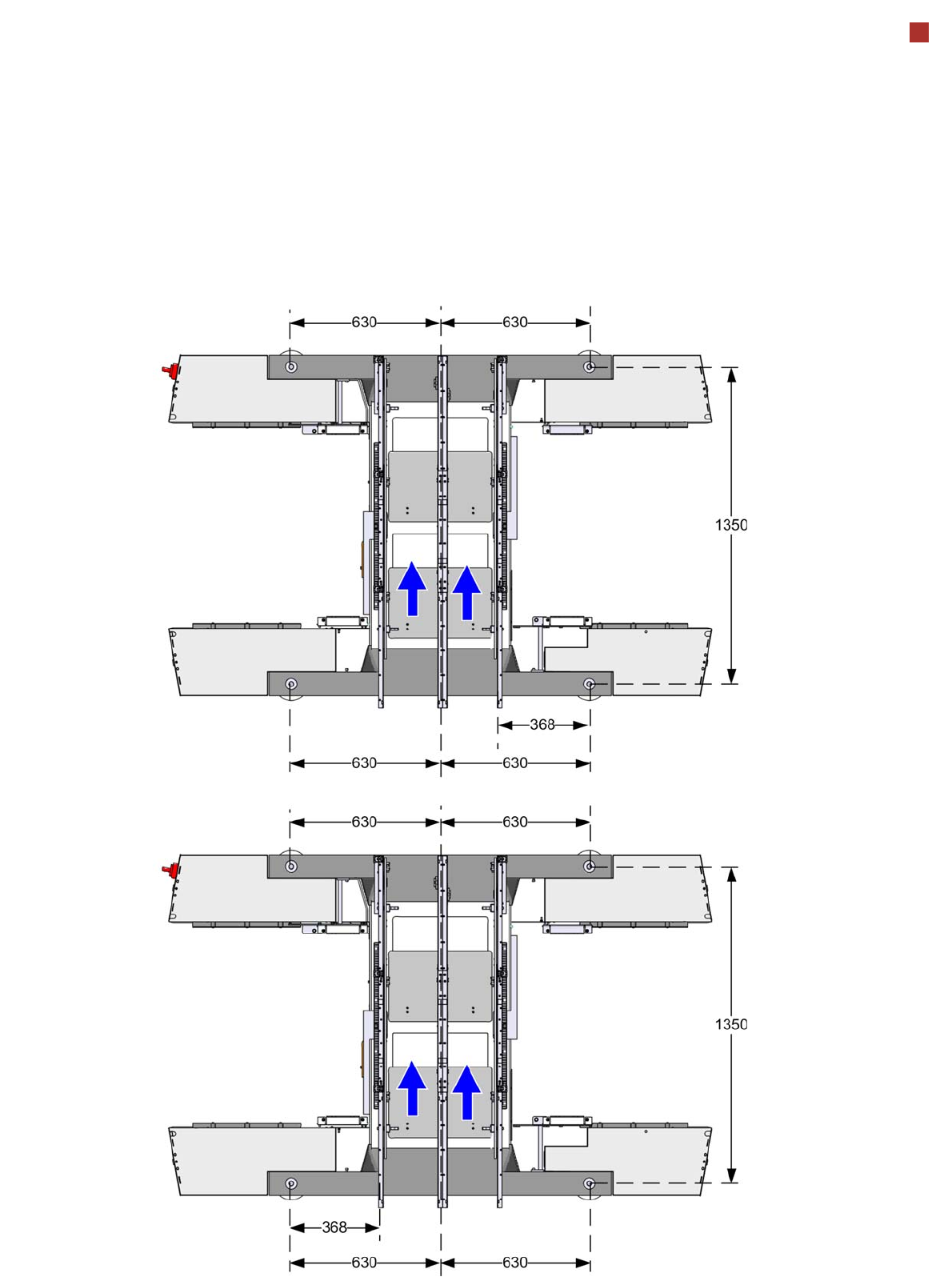

Spacing Distances for the Flexible Dual Conveyor
Fixed conveyor side at maxi-
mum right position
a
.
Fixed conveyor side at maxi-
mum left position
a
.
a) The value depends on the position of the fixed side. All dimensions in millimeters.
62
Technical Data SIPLACE SX1/SX2

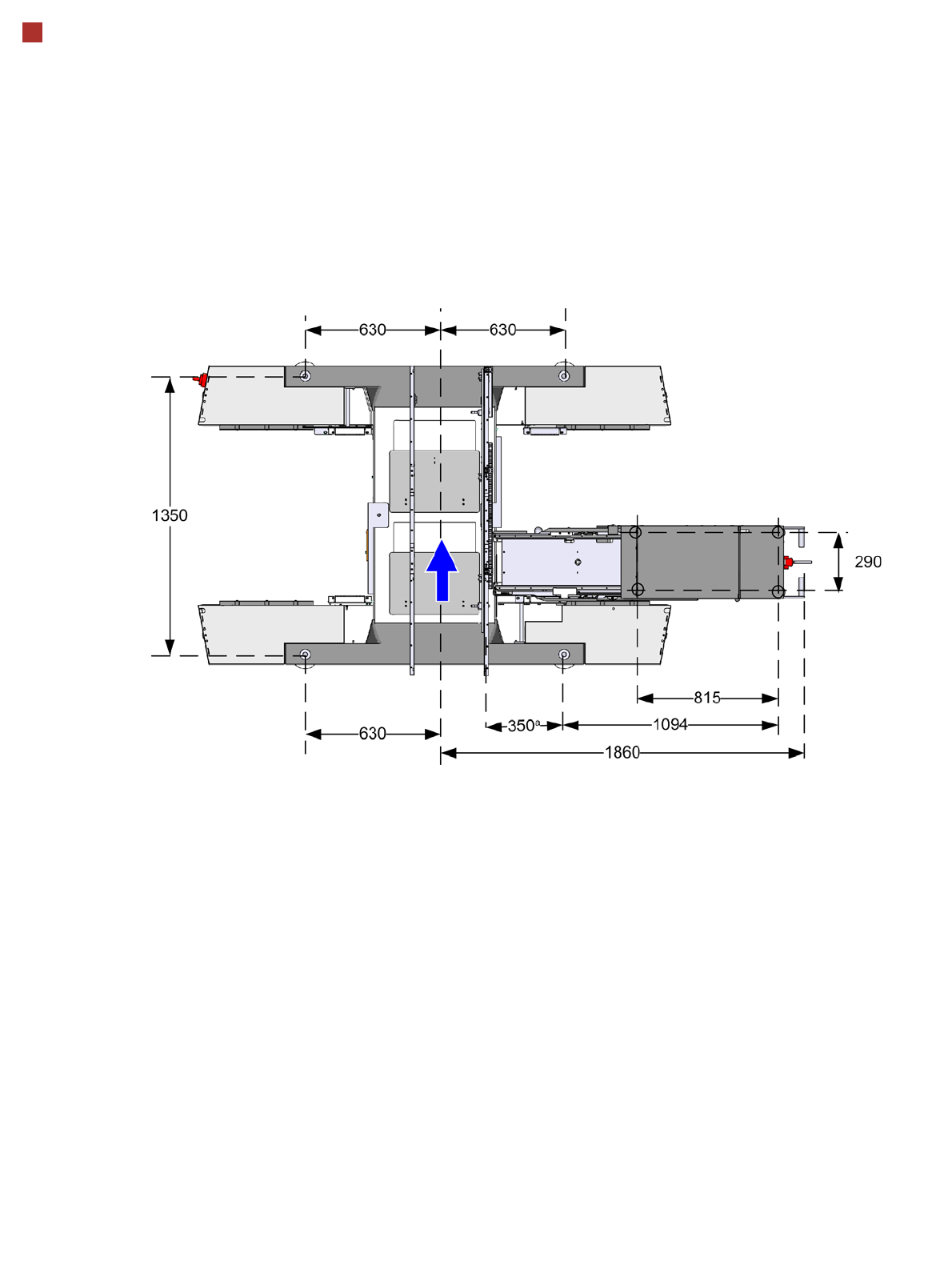

Distances for Machine with WPC5/WPC6
a) Fixed conveyor side at maximum right position. The value depends on the position of the fixed side. All dimensions in mil-
limeters.
