63
Technical Data SIPLACE SX1/SX2
Transport and Delivery Configuration
Description
Within Europe, the machine
is delivered on a robust
wooden pallet. If sent over-
seas, the machine is pack-
aged in a wooden crate.
Configuration when deliv-
ered
• The lane on the single con-
veyor is set to a width of
210 mm. On the dual con-
veyor, the preset width of
lane 1 is 100mm, of lane 2
is 210mm.
• Both keyboards, the oper-
ating panel and the moni-
tors are dismantled.
• The indicator lamp is dis-
mantled.

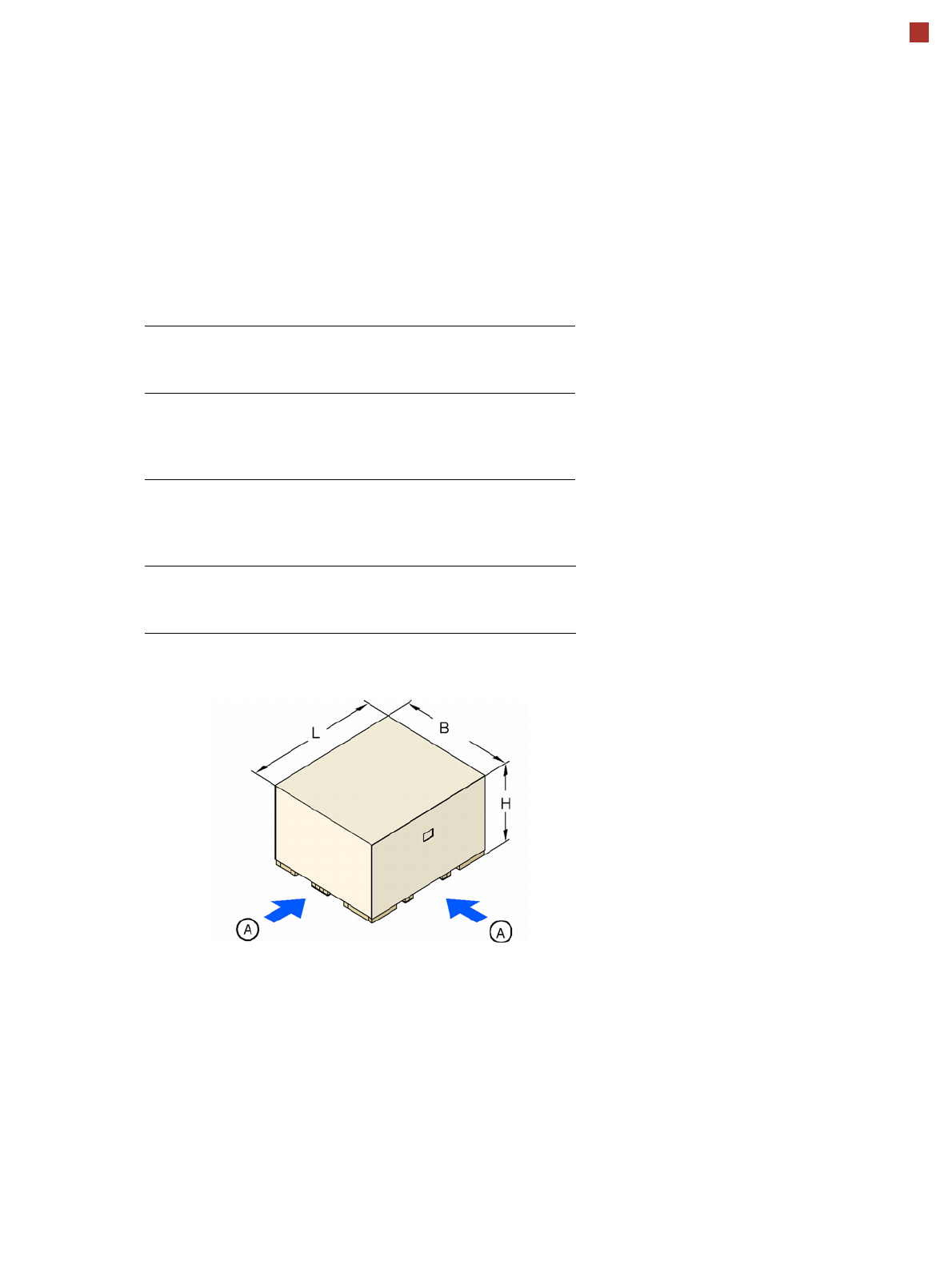

Transport dimensions and weight
Means of transport
A fork-lift truck with the following specification will be needed
to carry the machine in its crate:
Length
Width
Height
2630 mm
1840 mm
1880 mm
Weight
SX1/SX2
Dispatch Dispatch
within Europe overseas
2500 kg 2800 kg
Fork length
Lifting power
Clear fork width
min. 1800 mm
min. 6000 kg
min. 350 mm
Attachment point
for the fork-lift
Attachment point
for the fork-lift
64
Standard List SIPLACE SX1/SX2
The following functions are included in the standard SIPLACE SX package:
Standard features SX1 SX2
Vacuum sensor X X
Force measurement X X
Force sensor X X
Fiducial & ink spot detection X X
Nozzle changer for the TwinStar X X
Set of TwinStar nozzles X X
Set of standard nozzles per head X X
Service box X X
Single conveyor, fixed edge right X X
Single conveyor, fixed edge left X X
Wide board
configuration
XX
Automatic electrical PCB width adjustment X X
Operation on both sides X X
LCD monitors X X
Touch-screen monitor X X
Indicator lamps X X
Tape cutter with reject bin X X
Tape separating plates X X
01005 Placement X X
Support pins X X
65
Options List SIPLACE SX1/SX2
Available options SX1 SX2 Notes
Flexible dual conveyor
fixed side right
XX
Flexible dual conveyor
fixed side left
XX
SpeedStar C&P20 X X In the two gantry area, only available in
combination with a second SpeedStar
Component camera, type 41 For the SpeedStar C&P20
Reconfiguration kit for SpeedStar X X
MultiStar CPP X X
Reconfiguration kit for MultiStar X X
Stationary component camera, type 33, 55 x 45
digital
X X For the MultiStar CPP
TwinStar X X
High-Force Head X X
Reconfiguration kit for TwinStar or High-Force
head
XX
Stationary component camera, type 25, 16 x 16
digital
X X Only for TwinStar or high force head
Very High Force Pick&Place (VHF) available on
request
On request
12 segment Collect&Place (C&P12) On request
Vision teaching station X X
Nozzle changer X X Depending on the placement head
Nozzle changer, row 2 X X Depending on the placement head
Sensor for the component reject bin X X
Component trolley SIPLACE SX 60 X X
Smart Feeder, 2x8 mm, 12 mm and 16 mm All X feeder modules can be used without
restrictions on the SIPLACE SX.
X feeder modules, 4 mm to 88 mm X X
Splice point recognition for X feeder modules X X
Linear Dip Module LDU X X X Not in combination with SpeedStar
Support for an additional tape reel,
SIPLACE SX
XX
