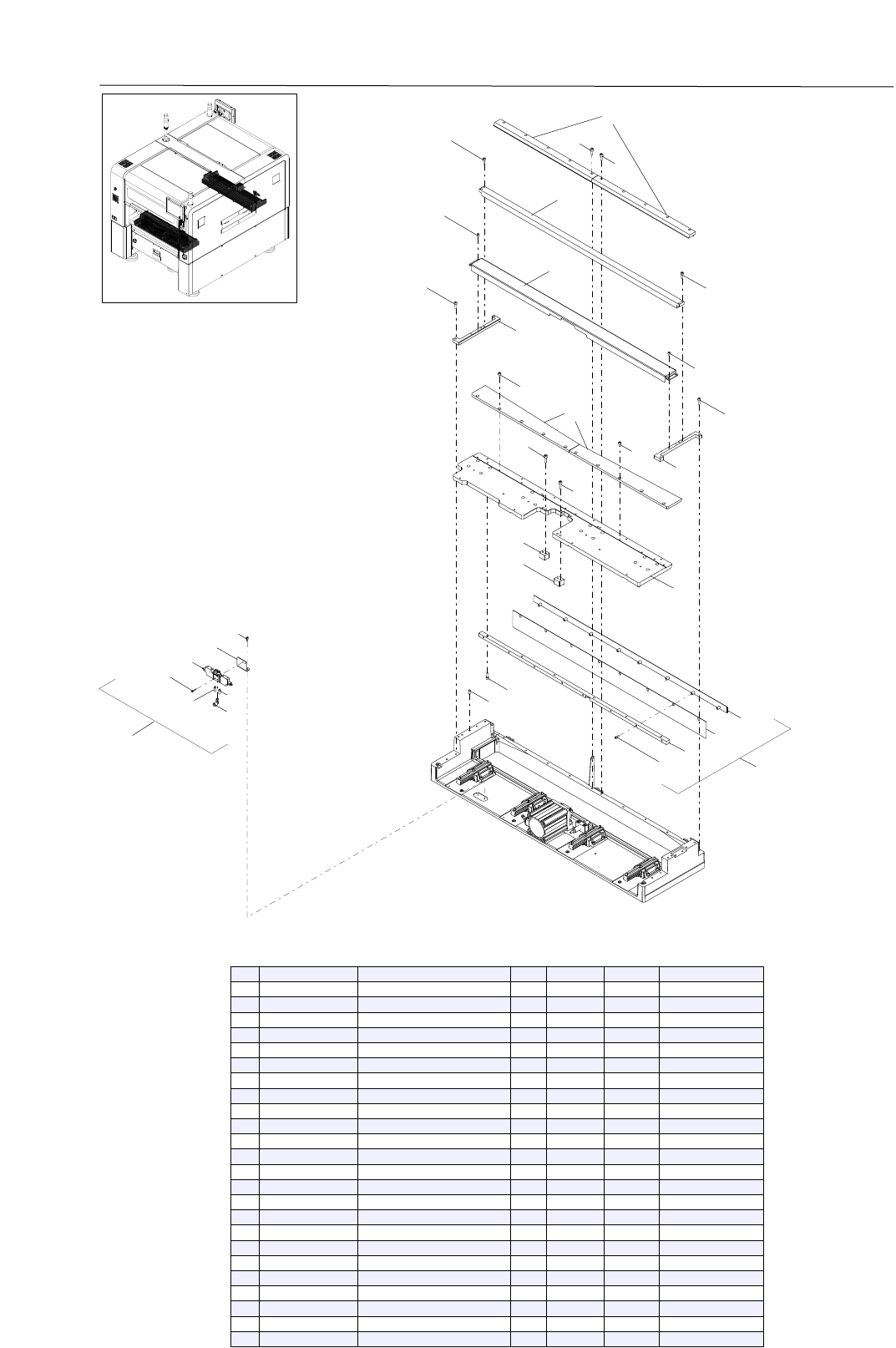

Slope 32 (New)
Tape Cutter
KLW-1702
12-8
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KMC-M3T20-00
COVER UPR.32 ASSY.
2
2
KMC-M3T20-10
COVER UPR.32 ASSY.
2
3
KMC-M3T2B-00
DUCT,CUTTER L
2
4
KMC-M3T2C-00
DUCT,CUTTER R
2
5
KMC-M3T2D-00
STAY,DUCT
4
6
KMC-M3T2E-00
COVER,BASE 32A
2
7
KMC-M3T2F-01
COVER,BASE 32B
2
8
91312-04006
BOLT HEX,SOCKET HEAD
34
9
91312-04008
BOLT HEX,SOCKET HEAD
8
10
91312-05010
BOLT HEX,SOCKET HEAD
20
12
21
8
11
21
8
6
11
1
15
6
6
20
4
13
2
7
9
3
6
6
17
4
3
19
2
6
5
10
20
7
9
6
18
16
1
12
6
3
14
3
5
10
3
12
21
8
11
21
8
6
11
1
15
6
6
20
4
13
2
7
9
3
6
6
17
4
3
19
2
6
5
10
20
7
9
6
18
16
1
12
6
3
14
3
5
10
3

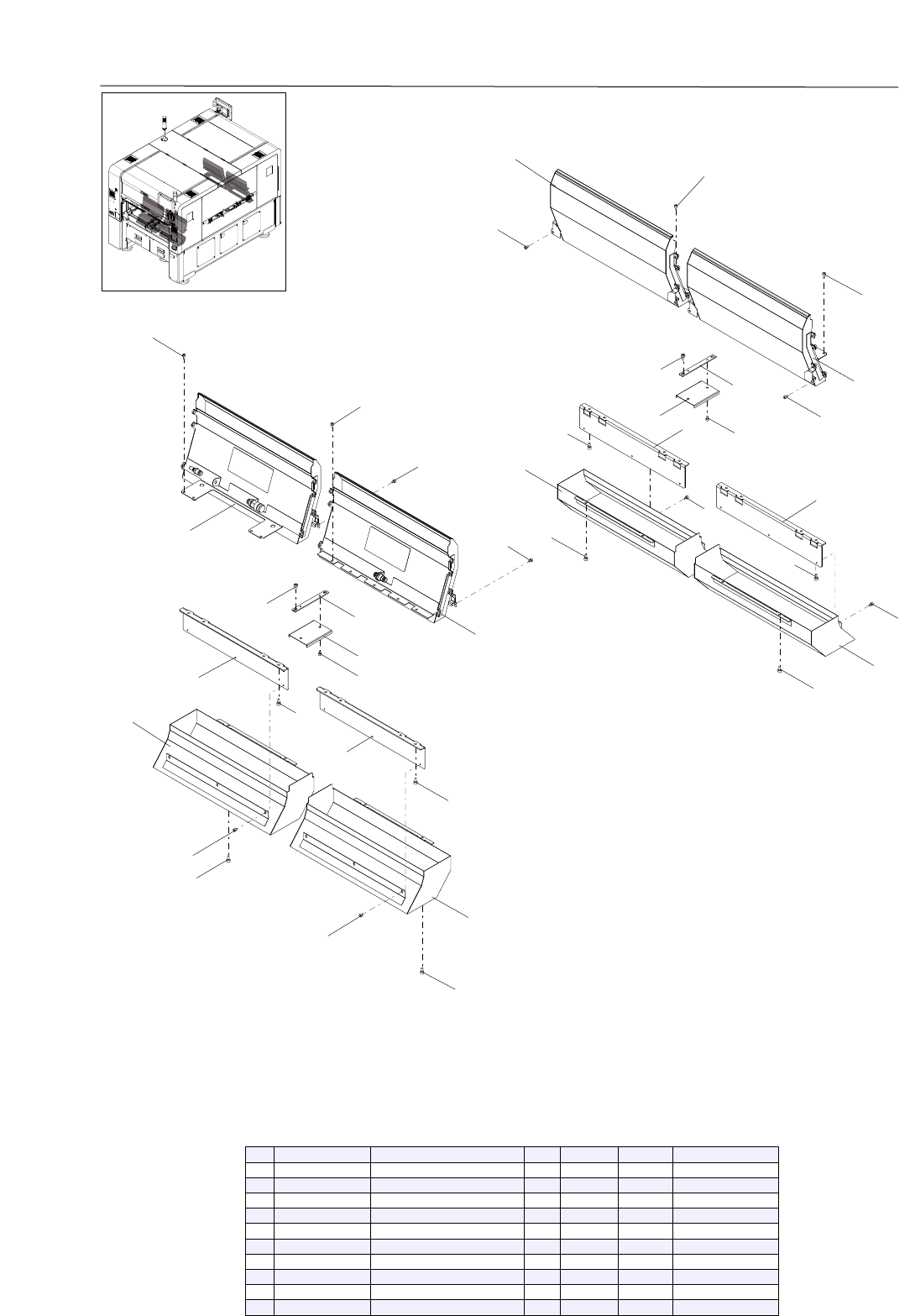

Safety Cover 32 (New)
Tape Cutter
KLW-1702
12-9
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-3N
NYLON CLIP
2
2
90990-12J001
SCREW, BIN. HEAD W/W
4
3
90990-12J004
SCREW, BIN. HEAD W/W
9
4
90K41-001260
LABEL,WARNING
2
5
90K41-001410
LABEL,WARNING
2
6
90990-12J006
SCREW, BIN. HEAD W/W
10
7
91312-04025
BOLT HEX,SOCKET HEAD
4
8
92902-04200
WASHER,PLAIN
4
9
KGS-M1360-00
BOLT
4
10
KHU-M1117-00
PULL
2
11
KMC-M11C2-00
DUCT 2
2
12
KJJ-M5127-00
SAFETY SWITCH KEY
2
13
KMC-M11C6-00
COVER,SAFETY L
1
14
KMC-M11C7-00
COVER,SAFETY R
1
15
KLW-M11C8-00
BRKT.,COVER SAFETY L
1
16
KLW-M11C9-01
BRKT.,COVER SAFETY R
1
17
KLW-M11CA-00
PLATE,COVER SAFETY
1
18
KLW-M1324-00
COVER,FRONT
1
19
KLW-M1325-00
BRKT.,SWITCH
1
20
KLW-M5126-C0
SAFETY SW UNIT ASSY
2
21
98902-04006
SCREW BINDING HEAD
4
14
18
23
4
9
1
24
21
6
5
19
3
7
9
7
20
2
23
21
18
11
8
20
21
10
12
15
16
13
18
16
21
17
22
22
21
14
18
23
4
9
1
24
21
6
5
19
3
7
9
7
20
2
23
21
18
11
8
20
21
10
12
15
16
13
18
16
21
17
22
22
21

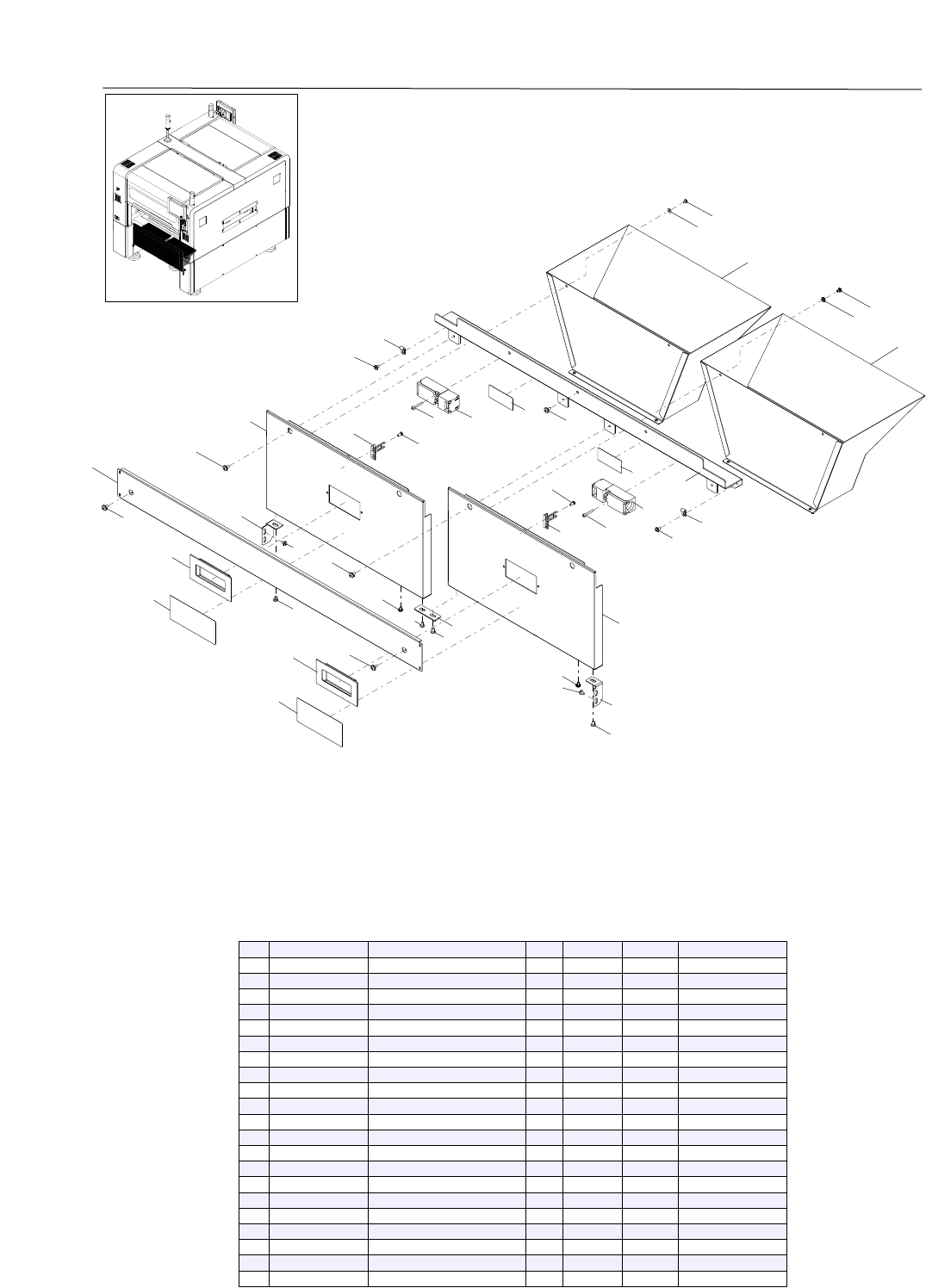

Main Cutter 70 (New)
Tape Cutter
KLW-1701
12-10
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KLW-M3T55-A0
CUTTER,UPPER 70
1
2
KLW-M3T57-A0
CUTTER,LOWER 70
1
3
KMC-M3T0N-10
BLOCK
1
4
KMC-M3T0N-B0
PLATE 70 ASSY.
1
5
KMC-M3T0S-10
PLATE,SUS
1
6
KMC-M3T0T-10
BRKT.,CLAMP
1
7
KMC-M3T30-00
DAMPER STOPPER
2
8
KMC-M3T59-00
BASE,BLADE
1
9
KMC-M3T5A-00
PLATE,SIDE
2
10
KMC-M3T5D-00
STAY,DUCT
1
11
KMC-M3T5P-00
COVER,CUTTER UPR.
1
12
KMC-M3T5R-00
BRKT.,VALVE
1
13
KMC-M3TV1-A0
CUTTER VALVE ASSY
1
14
KMC-M3T0K-10
CUT VALVE SUB ASSY.
1
15
90990-42J052
JOINT
1
16
90990-65J003
SILENCER
2
17
91312-03014
BOLT HEX,SOCKET HEAD
2
18
91312-04008
BOLT HEX,SOCKET HEAD
6
19
91312-04010
BOLT HEX,SOCKET HEAD
8
20
91312-05008
BOLT HEX,SOCKET HEAD
10
21
91312-05016
BOLT HEX,SOCKET HEAD
14
22
91312-06016
BOLT HEX,SOCKET HEAD
10
23
91312-06020
BOLT HEX,SOCKET HEAD
4
24
99480-06014
PIN,PARALLEL
1
