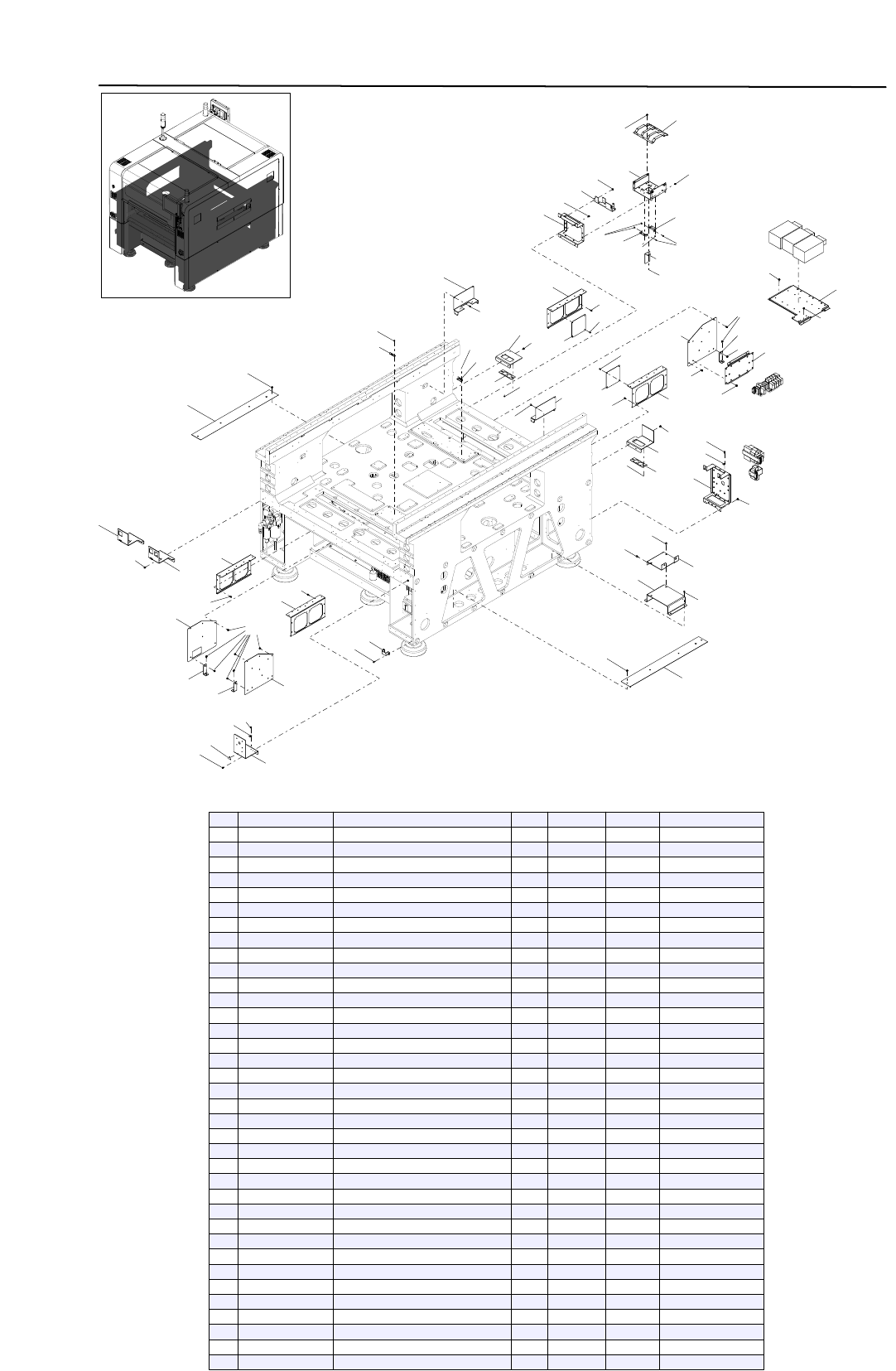

Base
Base
KLW-1410
1-1
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-3N
NYLON CLIP
2
2
90990-11J003
SCREW, PAN HEAD W/W
13
3
90K41-001450
LABEL,CAUTION
1
4
91312-04006
BOLT HEX,SOCKET HEAD
4
5
91312-04008
BOLT HEX,SOCKET HEAD
14
6
91312-05008
BOLT HEX,SOCKET HEAD
4
7
91312-05010
BOLT HEX,SOCKET HEAD
22
8
91312-06012
BOLT HEX,SOCKET HEAD
4
9
KKE-M111M-00
PLATE,CLAMP
1
10
KLW-M111L-00
BRKT.,POWER SUPPLY 1
1
11
KLW-M1125-00
PLATE,25
1
12
KLW-M1126-00
PLATE,26
1
13
KLW-M1128-00
PLATE,CONV.
1
14
KLW-M112A-00
BASE,BOARD
1
15
KLW-M112B-00
COVER,BOARD
1
16
KLW-M112C-00
PLATE,BAT.
1
17
KLW-M112D-00
HOLDER,BOARD
2
18
KLW-M112E-00
PLATE,BASE
1
19
KLW-M1133-00
STAY, TRANSFORMER
1
20
KLW-M1134-00
BRKT.,TRANS. 1
1
21
KLW-M1136-00
PLATE,SIDE INNER 1
2
22
KLW-M1137-00
PLATE,SIDE INNER 2
1
23
KLW-M1138-00
BRKT.,FAN INSIDE
4
24
KLW-M1139-00
BRKT.,SIDE PLATE
3
25
KLW-M113D-00
PLATE,BASE 5
2
26
KLW-M113F-00
BRKT.,CONNECTOR
2
27
KLW-M113M-00
PLATE,FAN
2
28
KLW-M113N-00
BRKT,DUCT
4
29
KLW-M1336-00
BRKT.,REAR LEFT
1
30
KLW-M1337-00
BRKT.,REAR RIGHT
1
31
KLW-M1338-00
BRKT.,MAIN SWITCH
1
32
KLW-M1339-00
BRKT.,FL
1
YSM20-2
33
KLW-M1339-10
BRKT.,FL
1
YSM20-1
34
KLW-M133A-00
BRKT.,GATE IN OUT
2
35
97602-05310
SCREW PAN HEAD W/WASHER
50
36
98702-03006
SCREW,FLAT HEAD
4
27
25
32
32
9
16
30
16
2
3
19
19
19
11
19
12
19
13
10
12
19
14
18
17
13
8
15
8
15
26
32
32
1
26
20
26
31
28
37
35
5
22
40
41
39
38
24
29
34
36
23
7
33
21
4
6
7
26
28
6
27
25
32
32
9
16
30
16
2
3
19
19
19
11
19
12
19
13
10
12
19
14
18
17
13
8
15
8
15
26
32
32
1
26
20
26
31
28
37
35
5
22
40
41
39
38
24
29
34
36
23
7
33
21
4
6
7
26
28
6

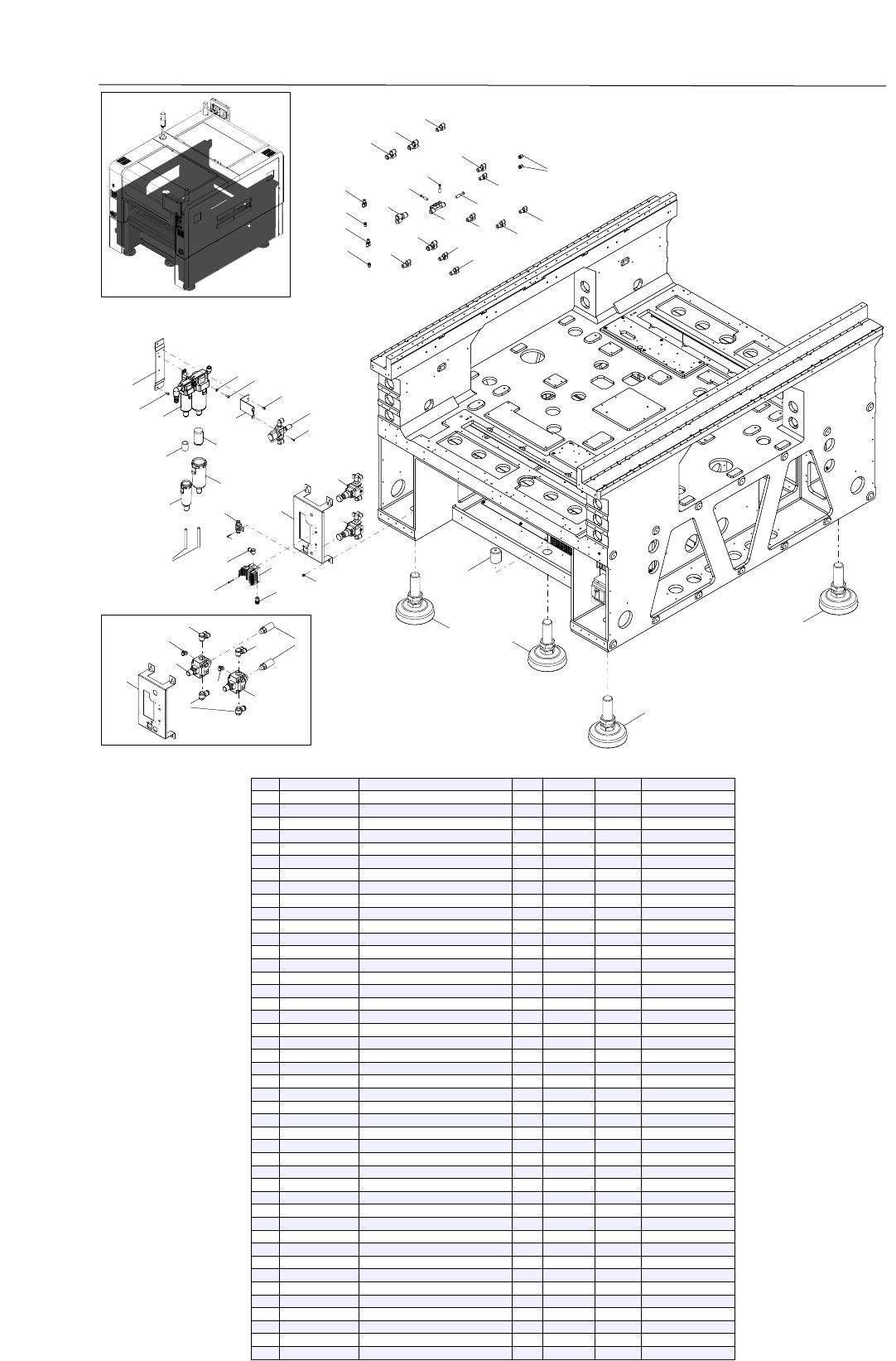

Sub Assy
Base
KLW-1410
1-2
OLD
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$FVU8-8
JOINT
1
2
$KM-11
MUFFLER
1
3
$KM-31
MUFFLER
2
4
$SL12-03
JOINT
2
5
$SL8-01
JOINT
1
6
$SLY10-03
JOINT
2
7
$TL4-02
JOINT
2
8
$UC4
JOINT
2
9
$UC6
JOINT
2
10
$UEDW10-8
JOINT
1
11
$UP10
JOINT
1
12
$UP8
JOINT
2
13
$UY10
JOINT
2
14
$UY12
JOINT
1
15
$UY4
JOINT
2
16
$UY6
JOINT
2
17
$UY8
JOINT
1
18
$UYD10-8
JOINT
1
19
$UYD8-6
JOINT
6
20
91312-03020
BOLT HEX,SOCKET HEAD
2
21
91312-04014
BOLT HEX,SOCKET HEAD
2
22
91312-04025
BOLT HEX,SOCKET HEAD
2
23
91312-05008
BOLT HEX,SOCKET HEAD
2
24
91312-05012
BOLT HEX,SOCKET HEAD
2
25
91312-06010
BOLT HEX,SOCKET HEAD
2
26
KHY-M8504-01
REGULATOR
2
26-1
KMC-M8504-00
REGULATOR
2
NG
MMY0195-2016/1/6
27
$UB1065-BK
URETHANE TUBE
2
L=250mm
28
KLW-M1111-00
PLATE,REG.
1
28-1
KMC-M1111-00
PLATE,REG.
1
NG
MMY0195-2016/1/6
29
KLW-M1124-00
PLATE,FILTER
1
30
KLW-M1127-00
PLATE,EXT.VALVE
1
31
KLW-M113P-00
CAP
2
32
KLW-M1180-00
LEVELING BOLT ASSY.
6
33
KLW-M8501-00
VALVE,EXHAUST
1
34
KLW-M8502-00
FILTER ASSY.
1
34-1
KLW-M8502-01
FILTER ASSY.
1
OK
MN20144-2016/3/3
35
KLW-M8582-A0
VALVE ASSY.
1
36
92902-06200
WASHER,PLAIN
2
37
97602-05310
SCREW PAN HEAD W/WASHER
4
38
KLF-M8502-50
FILTER ELEMENT
1
39
KLF-M8502-70
MIST FILTER ELEMENT
1
40
KLW-M8502-61
CASE,AIR FILTER
1
Nylon
MN20144-2016/3/3
41
KLW-M8502-81
CASE,MIST FILTER
1
Nylon
MN20144-2016/3/3
48
4
14,18
35
31
52
7
19
17
51
24
3
45
56
50
3
55
25
30
3
54
3
8
44
32
33
42
9
36
23
3
9
21
2
16
2
26
10
49
30
6
53
47
28
32
27
1
22
29
5
46
50
13
41
15
11
43
3
40
38
32
39
12
34
3
37
20
48
4
14,18
35
31
52
7
19
17
51
24
3
45
56
50
3
55
25
30
3
54
3
8
44
32
33
42
9
36
23
3
9
21
2
16
2
26
10
49
30
6
53
47
28
32
27
1
22
29
5
46
50
13
41
15
11
43
3
40
38
32
39
12
34
3
37
20

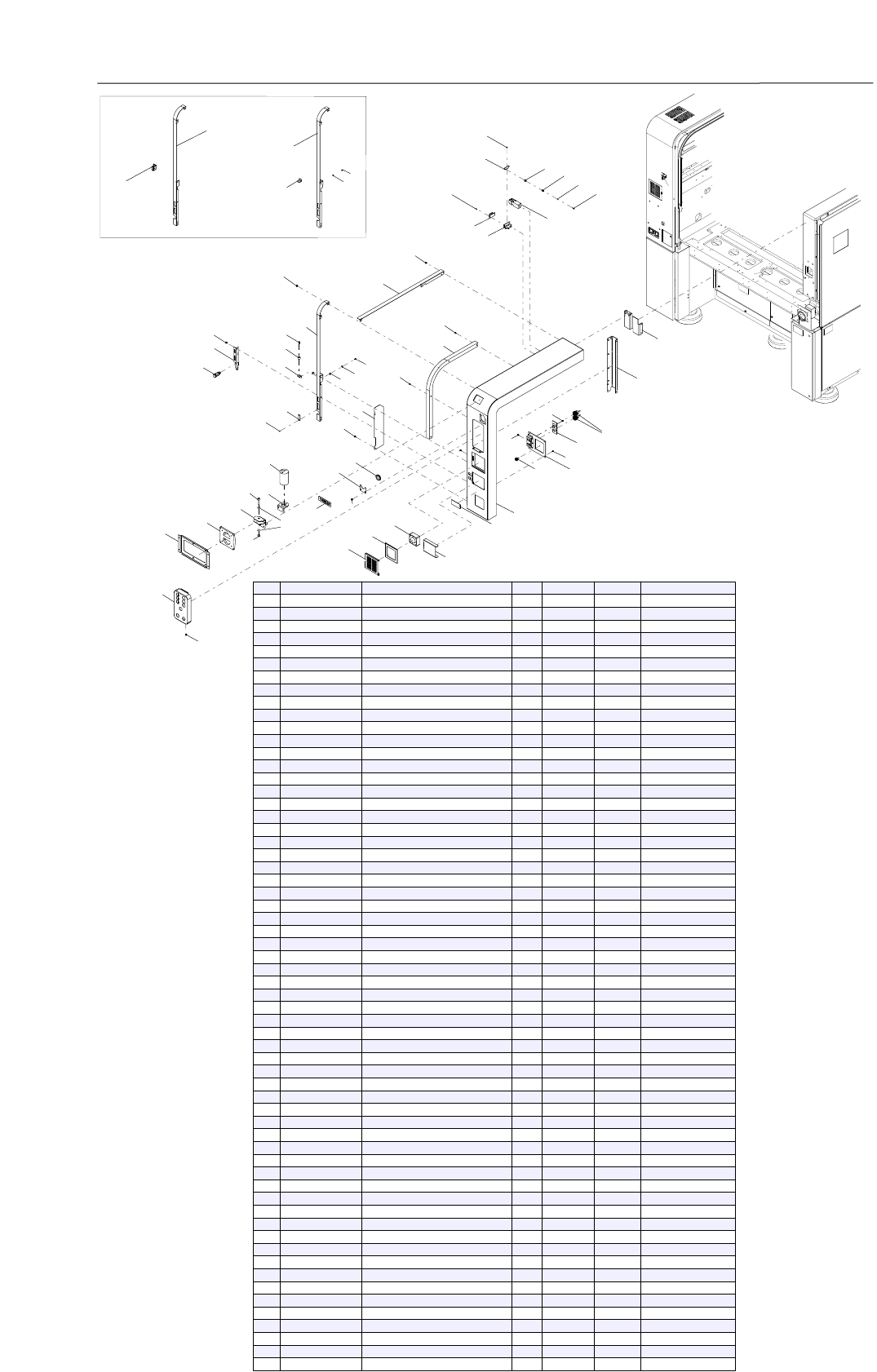

Top Cover 1
