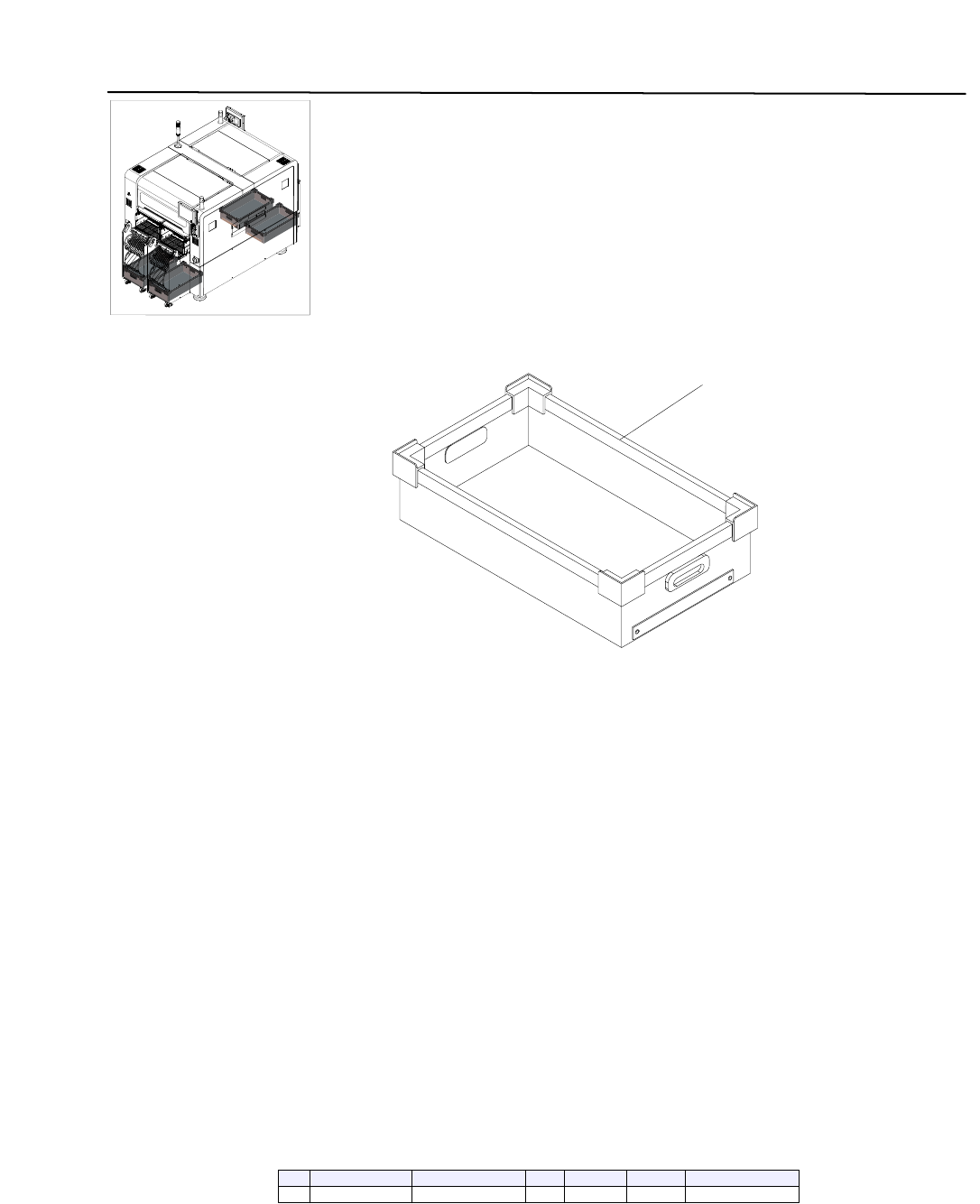

YSM20_KLW_pl - 第113页
18 17 19 4 16 15 21 2 2 2 3 4 21 24 20 6 6 14 23 5 23 5 2 13 12 8 25 10 11 9 7 25 11 25 1 1 22 1 25 25 18 17 19 4 16 15 21 2 2 2 3 4 21 24 20 6 6 14 23 5 23 5 2 13 12 8 25 10 11 9 7 25 11 25 1 1 22 1 25 25 Controller Con…
18
17
19
4
16
15
21
2
2
2
3
4
21
24
20
6
6
14
23
5
23
5
2
13
12
8
25
10
11
9
7
25
11
25
1
1
22
1
25
25
18
17
19
4
16
15
21
2
2
2
3
4
21
24
20
6
6
14
23
5
23
5
2
13
12
8
25
10
11
9
7
25
11
25
1
1
22
1
25
25

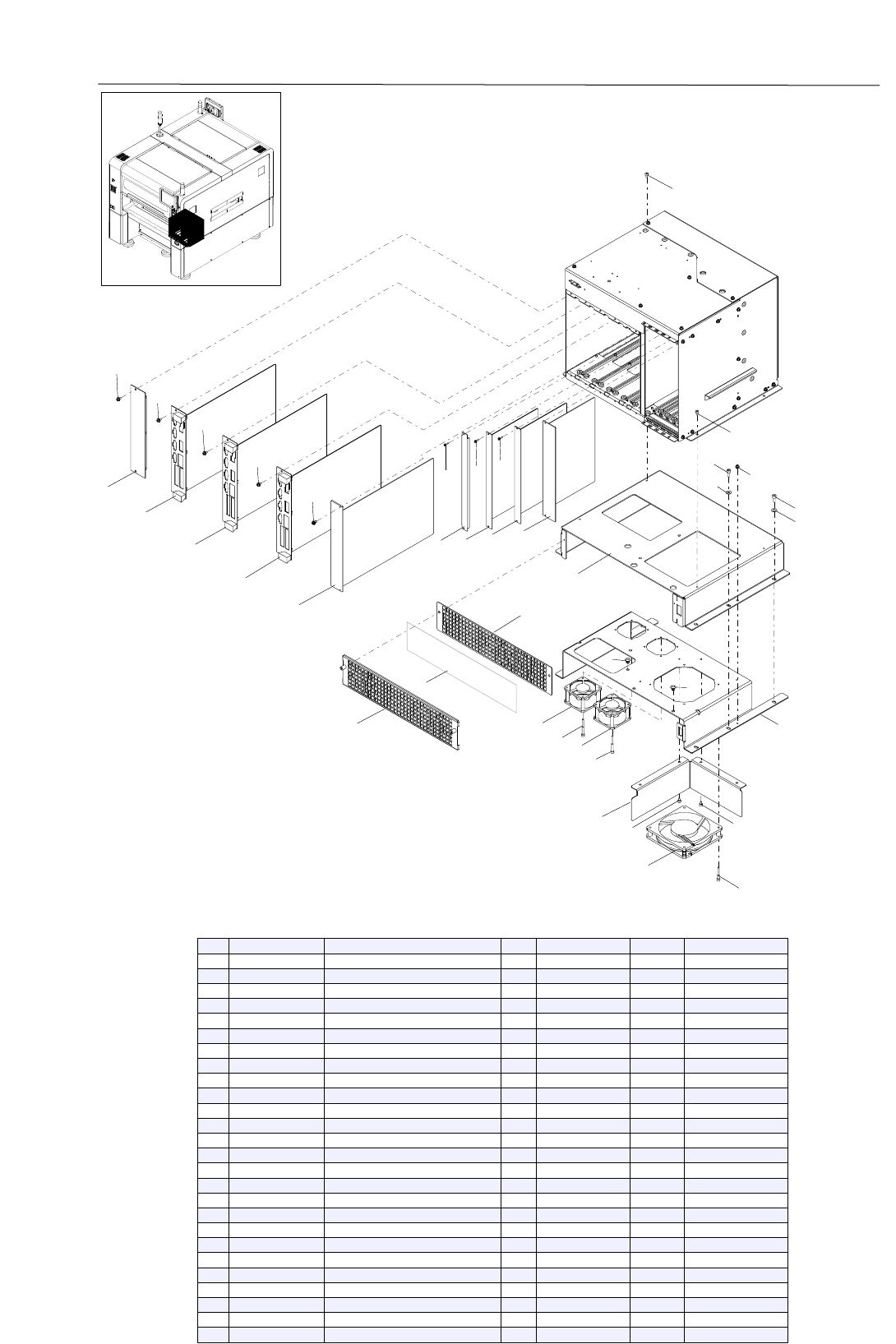

Controller
Controller
KLW-1410
14-1
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90166-12JA10
SCREW, PAN HEAD
4
2
91312-04006
BOLT HEX,SOCKET HEAD
8
3
91312-04030
BOLT HEX,SOCKET HEAD
4
4
91312-04040
BOLT HEX,SOCKET HEAD
8
5
91312-05012
BOLT HEX,SOCKET HEAD
5
6
KJJ-M412B-00
CLAMP 2
4
7
KKE-M4141-00
DUMMY PANEL SYS
1
STD
8
KLA-M4209-70
SYSTEM UNIT ASSY
1
9
KLA-M441H-20
VISION BOARD ASSY
1
10
KLA-M4530-10
REMOTE IF BOARD ASSY
1
-2016 August
10-1
KLW-M4530-10
REMOTE IF BOARD ASSY
1
2016 September -
NG
MN50175-2016/6/2
11
KLA-M5840-03
SERVO BOARD ASSY
2
12
KLA-M5840-33
SERVO BOARD ASSY
1
13
KLR-M4111-00
PANEL,DUMMY
1
STD
14
KLV-M4131-00
BASE,C/R BOX
1
15
KLV-M4132-00
BRKT.,FAN
1
16
KLV-M4133-00
GUIDE,FLOW 2
1
17
KLV-M4134-00
COVER,FILTER 1
1
18
KLV-M4135-00
COVER,FILTER 2
1
19
KLV-M4136-00
FILTER
1
20
KLW-M53L6-00
FAN MOTOR ASSY.
1
21
KLW-M53M4-00
FAN MOTOR ASSY.
2
22
KLW-M5880-00
CONVERTER BOARD ASSY
1
23
92902-05200
WASHER,PLAIN
5
24
97602-04306
SCREW PAN HEAD W/WASHER
2
25
97602-04308
SCREW PAN HEAD W/WASHER
12
37
30-31
2-13
1
35
38
34
38
33
14-29
32
36
39-41

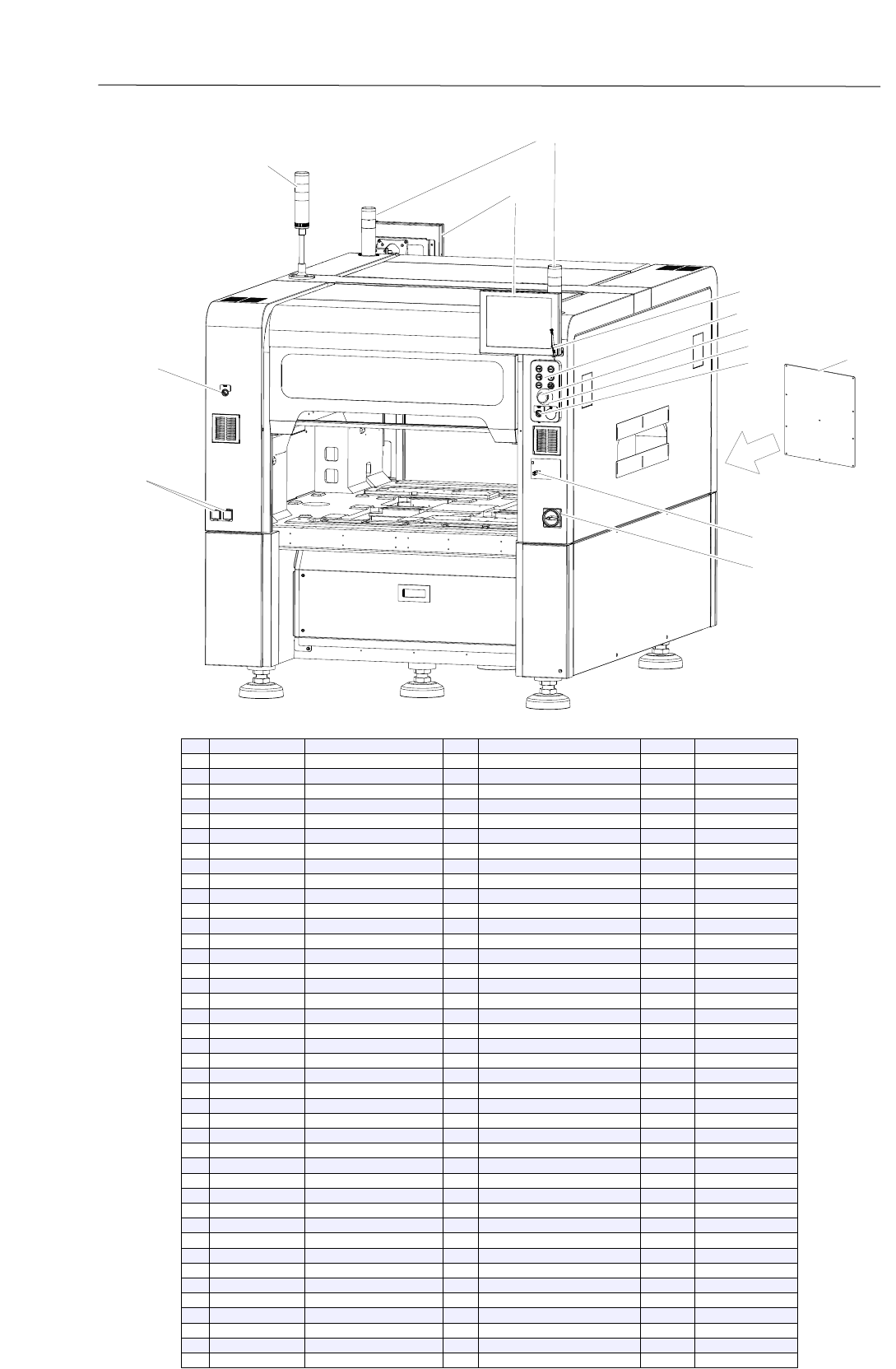

Exterior,etc
Exterior,etc
KLW-1411
15-1
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KLF-M5119-01
TOUCH LCD ASSY
2
2
KKE-M4899-00
LIGHT 1 ASSY
1
405MM RYG
3
KKE-M4899-10
LIGHT 1 ASSY
1
455MM RYG
4
KKE-M4899-20
LIGHT 1 ASSY
1
555MM RYG
5
KKE-M4899-30
LIGHT 1 ASSY
1
655MM RYG
6
KKE-M4899-40
LIGHT 1 ASSY
1
755MM RYG
7
KKE-M4899-50
LIGHT 1 ASSY
1
855MM RYG
8
KKE-M4899-60
LIGHT 1 ASSY
1
405MM WBG
9
KKE-M4899-70
LIGHT 1 ASSY
1
455MM WBG
10
KKE-M4899-80
LIGHT 1 ASSY
1
555MM WBG
11
KKE-M4899-90
LIGHT 1 ASSY
1
655MM WBG
12
KKE-M4899-A0
LIGHT 1 ASSY
1
755MM WBG
13
KKE-M4899-B0
LIGHT 1 ASSY
1
855MM WBG
14
KLW-M669V-00
HNS,SWITCH ACTIVE
1
ACTIVE
15
KLW-M669V-10
HNS,SWITCH ACTIVE
1
READY
16
KLW-M669V-20
HNS,SWITCH ACTIVE
1
START
17
KLW-M669V-30
HNS,SWITCH ACTIVE
1
STOP
18
KLW-M669V-40
HNS,SWITCH ACTIVE
1
ERROR CLEAR
19
KLW-M669V-50
HNS,SWITCH ACTIVE
1
RESET
20
KLW-M669V-60
HNS,SWITCH ACTIVE
1
STOP (CE)
21
KLW-M669V-70
HNS,SWITCH ACTIVE
1
ERROR CLEAR (CE)
22
KLW-M669V-80
HNS,SWITCH ACTIVE
1
ACTIVE_Chinese
23
KLW-M669V-90
HNS,SWITCH ACTIVE
1
READY_Chinese
24
KLW-M669V-A0
HNS,SWITCH ACTIVE
1
START_Chinese
25
KLW-M669V-B0
HNS,SWITCH ACTIVE
1
STOP_Chinese
26
KLW-M669V-C0
HNS,SWITCH ACTIVE
1
ERROR CLEAR_Chinese
27
KLW-M669V-D0
HNS,SWITCH ACTIVE
1
RESET_Chinese
28
KLW-M669V-E0
HNS,SWITCH ACTIVE
1
STOP_Chinese (CE)
29
KLW-M669V-F0
HNS,SWITCH ACTIVE
1
ERROR CLEAR _Chinese (CE)
30
KGS-M4897-01
LIGHT,ERROR
2
S.T.D
31
KHG-M4896-01
LIGHT,ERROR
2
CE
32
LC1-M13H2-00
SWITCH,EMG ASSY
1
33
KGK-M5381-00
EMG PLATE
1
34
KKE-M6554-A0
MAIN SWITCH ASSY
1
35
KKX-M8596-A0
PRESSURE GAUGE
2
36
KLF-M4267-10
USB MEMORY
1
8GB
37
KLF-M4580-00
I/O CONV.BOARD ASSY
1
38
KLF-M3992-00
SWITCH,SELECT
2
39
KLF-M138J-01
BALL CHAIN
1
40
KLF-M138K-00
RING
1
41
KLF-M516A-00
TOUCH PEN
1
