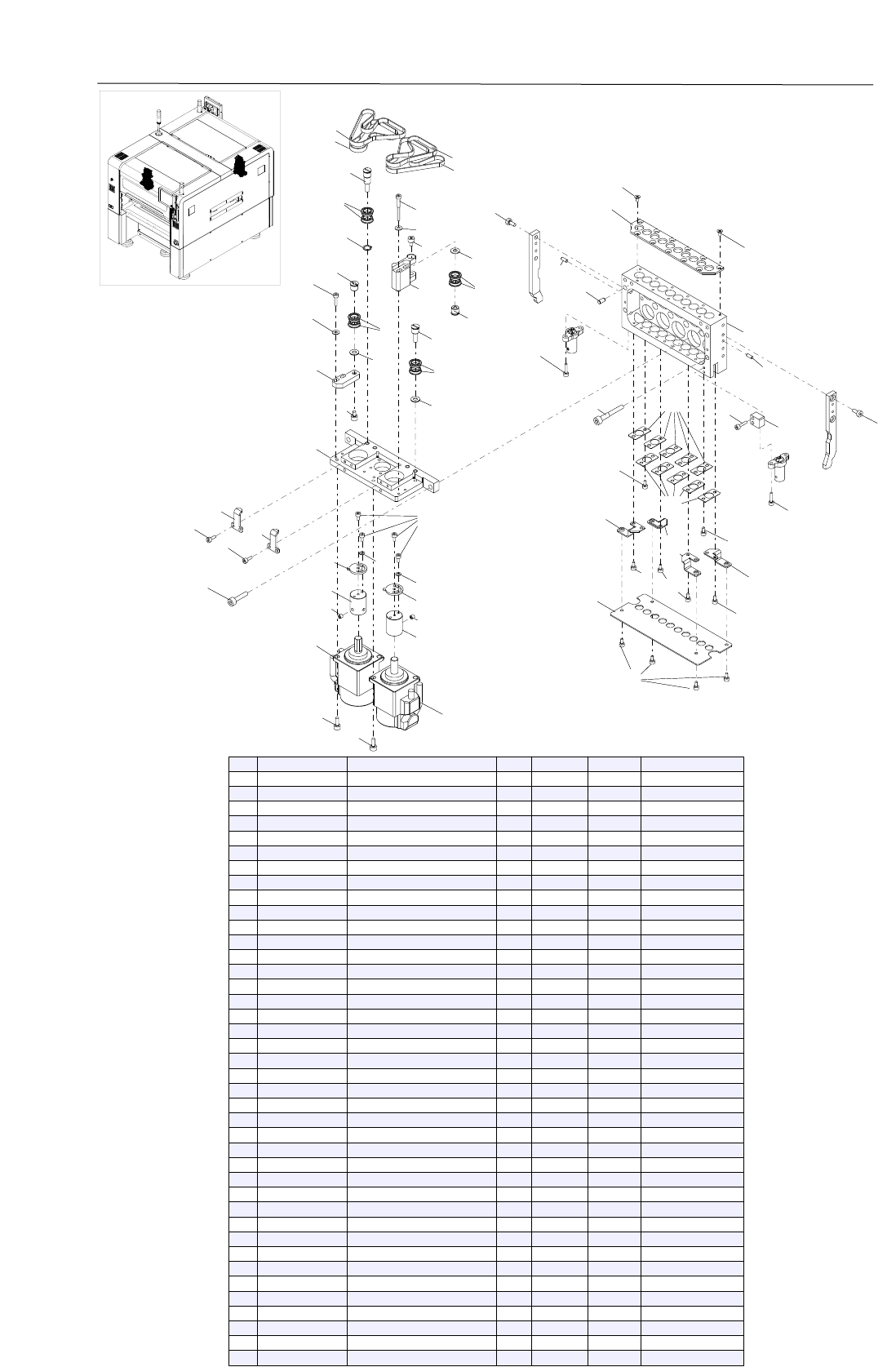

YSM20_KLW_pl - 第47页
26 18 24 3 23 31 35 30 5 22 32 34 22 1 5 29 15 5 5 15 5 40 21 39 37 14 38 40 2 10 37 5 10 7 35 4 12 39 27 34 28 27 28 32 9 16 33 33 2 13 31 2 25 7 6 36 20 2 25 33 6 19 11 9 17 13 18 17 8 26 18 24 3 23 31 35 30 5 22 32 34…
23
7
9
11
13
14
8
6
8
18
26
25
19
16
4
8
29
7
8
21
22
8
8
20
7
15
6
7
27
32
28
24
31
30
12
10
2
7
17
7
1
5
3
FID Camera / Stay (HM)
Head
KLW-1410
5-7
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-2N
NYLON CLIP
4
2
90563-04J100
SPACER
2
3
90990-11J003
SCREW, PAN HEAD W/W
4
4
90990-41J123
COLLAR
3
5
90K41-001320
LABEL,CAUTION
2
6
91312-03008
BOLT HEX,SOCKET HEAD
12
7
91312-04006
BOLT HEX,SOCKET HEAD
14
8
91312-04008
BOLT HEX,SOCKET HEAD
10
9
KHT-M76B0-00
LENS FID.
2
10
KJX-M7210-00
CCD CAMERA
2
11
KLW-M7117-00
STOPPER
1
12
KLW-M71C1-00
BRACKET,RIGHT
1
13
KLW-M71C2-00
BRACKET,LEFT
1
14
KLW-M71C3-00
STAY,EJECTOR
1
15
KLW-M71C4-00
STAY,HOSE
1
16
KLW-M71C5-00
BRACKET,CABLE
1
17
KLW-M71C6-00
COVER,CAMERA R
1
18
KLW-M71C7-00
BRACKET,CABLE
1
19
KLW-M71C8-00
COVER,CAMERA L
1
20
KLW-M71C9-00
PLATE 2,HARNESS
1
21
KLW-M71CB-00
PLATE,HARNESS
1
22
KLW-M71Y0-00
LABEL,HEAD SERIAL
1
23
KLW-M740C-00
HOLDER,TUBE
2
24
KLW-M7601-00
HOLDER,CAMERA
2
25
KLW-M7610-00
VISION ATTACHMENT L
1
26
KLW-M7620-00
VISION ATTACHMENT R
1
27
KLW-M76A0-00
FIDUCIAL LIGHT ASSY.
2
28
KLW-M76L4-00
STAY,FID. LIGHT
2
29
91312-04012
BOLT HEX,SOCKET HEAD
3
30
91312-04025
BOLT HEX,SOCKET HEAD
4
31
91312-04040
BOLT HEX,SOCKET HEAD
4
32
99480-04010
PIN,PARALLEL
4
26
18
24
3
23
31
35
30
5
22
32
34
22
1
5
29
15
5
5
15
5
40
21
39
37
14
38
40
2
10
37
5
10
7
35
4
12
39
27
34
28
27
28
32
9
16
33
33
2
13
31
2
25
7
6
36
20
2
25
33
6
19
11
9
17
13
18
17
8
26
18
24
3
23
31
35
30
5
22
32
34
22
1
5
29
15
5
5
15
5
40
21
39
37
14
38
40
2
10
37
5
10
7
35
4
12
39
27
34
28
27
28
32
9
16
33
33
2
13
31
2
25
7
6
36
20
2
25
33
6
19
11
9
17
13
18
17
8
R Axis Assy (HM)
Head
KLW-1410
5-8
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90990-01J040
BOLT,HEX.SOCKET HEAD
4
2
90990-25J016
BEARING
16
3
90KB0-112503
MOTOR
1
4
90KB0-112504
MOTOR
1
5
91312-03006
BOLT HEX,SOCKET HEAD
24
6
91312-03008
BOLT HEX,SOCKET HEAD
4
7
91312-03012
BOLT HEX,SOCKET HEAD
6
8
91312-03030
BOLT HEX,SOCKET HEAD
4
9
91312-04006
BOLT HEX,SOCKET HEAD
4
10
91312-04010
BOLT HEX,SOCKET HEAD
4
11
91312-05020
BOLT HEX,SOCKET HEAD
2
12
91312-05035
BOLT HEX,SOCKET HEAD
4
13
92902-03200
WASHER,PLAIN
8
14
KHY-M7113-00
PLATE 2,BRG.
1
15
KHY-M7114-00
PLATE 3,BRG.
10
16
KHY-M7127-00
BLOCK 1,ADJUST
2
17
KHY-M7131-00
BELT 1
2
18
KHY-M7132-00
BELT 2
2
19
KKE-M7126-00
SHAFT 2,TENSION
2
20
KKE-M7128-00
SHAFT 3,TENSION
2
21
KKE-M7134-00
PLATE,SCREEN
2
22
KKE-M7135-00
PLATE,SCREEN
2
23
KLW-M7101-00
HOUSING,HEAD
1
24
KLW-M7102-00
PLATE,R MOTOR
1
25
KLW-M7125-00
STOPPER,R AXIS
2
26
KLW-M7129-00
BLOCK 2,ADJUST
2
27
KLW-M7131-00
PULLEY,R MOTOR
2
28
KLW-M7132-00
STOPPER 2,R AXIS
2
29
KLW-M7133-00
SHEET,SCREEN
1
30
KLW-M7138-00
PLATE
1
31
KV8-M7115-00
SHAFT 1,TENSION
4
32
92902-03600
WASHER,PLAIN
2
33
92902-04200
WASHER,PLAIN
6
34
92A08-04304
SCREW SET
4
35
98702-03006
SCREW,FLAT HEAD
11
36
99009-07800
CIRCLIP
2
37
99480-03008
PIN,PARALLEL
4
38
99480-04008
PIN,PARALLEL
2
39
90990-01J020
BOLT HEX,SOCKET HEAD
4
40
91317-03012
BOLT HEX,SOCKET HEAD
4
13
14
8
6
5
10
10
2
6
2
16
2
5
2
5
7
3
5
15
3
2
6
15
16
2
6
2
2
9
9
10
9
11
10
9
12
4
4
16
1
1
1
1
16
13
14
8
6
5
10
10
2
6
2
16
2
5
2
5
7
3
5
15
3
2
6
15
16
2
6
2
2
9
9
10
9
11
10
9
12
4
4
16
1
1
1
1
16
Shaft Head Assy (HM)
Head
KLW-1411
5-9
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$PF-M3
PLUG
20
2
90990-08J016
SCREW, PAN HEAD
40
3
90990-17J053
O-RING
20
4
91312-03006
BOLT HEX,SOCKET HEAD
20
5
KG7-M7137-A0
LEAF SPRING
20
6
KGS-M714W-03
PLATE,SPRING
20
7
KHY-M7105-00
HOLDER,NOZZLE
8
8
KKS-M7105-00
HOLDER,NOZZLE
2
With V slot Holder
9
KLW-M7107-A0
HEAD SHAFT 1 ASSY.
4
Under a pulley
10
KLW-M7107-B0
HEAD SHAFT 2 ASSY.
4
On a pulley
11
KLW-M7107-C0
HEAD SHAFT 1B ASSY.
1
Under a pulley .With V slot Holder
12
KLW-M7107-D0
HEAD SHAFT 2B ASSY.
1
On a pulley . With V slot Holder
13
KLW-M711S-A0
SHAFT 1,SPARE
1
Spare for H1,2,4,5,6,7,9,10
14
KLW-M711S-B0
SHAFT 2,SPARE
1
Spare for H3,8 _With V slot Holder
15
KHY-M7108-00
COLLAR,BRG.
10
16
90990-25J026
BEARING
20
MM60004-2015/6/17
