YSM20_KLW_pl - 第65页
23 27 50 49 40 6 29 30 12 46 24 38 31 22 51 21 16 10 32 9 13 44 31 16 5 12 15 12 4 36 29 7 47 39 20 28 21 26 46 40 24 45 19 17 8 48 41 7 45 41 21 21 33 12 25 30 17 6 46 14 26 42 1 5 46 35 16 12 43 13 44 9 37 7 27 48 18 7…
2
16
27
4
13
25
33
32
1
2
2
26
31
17
5
9
29
18
18
15
14
29
17
11
31
24
8
22
5
20
30
12
19
3
19
7
12
23
28
6
20
21
10

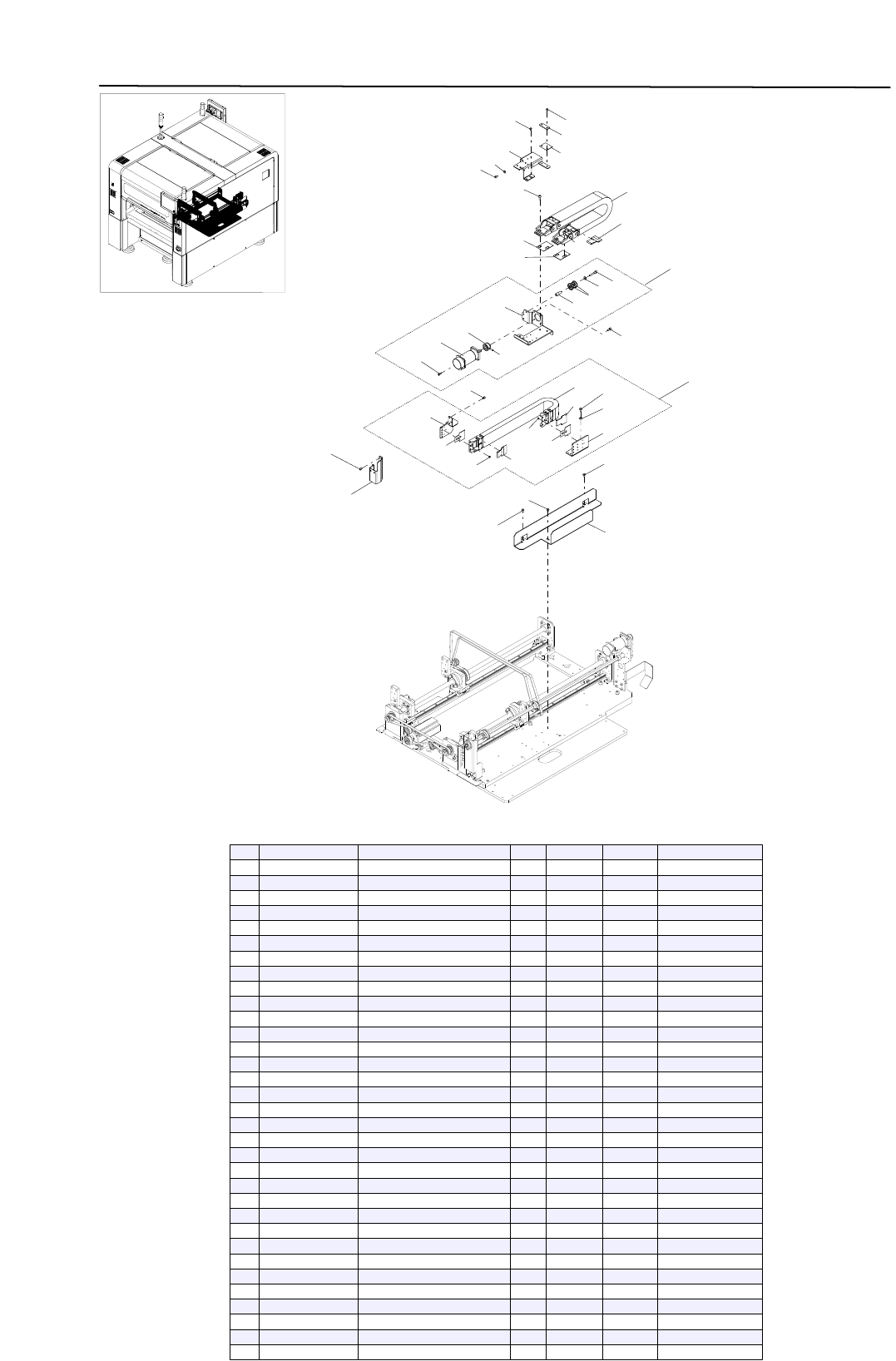

Width Duct (UR)
Conveyor
KLW-1409
7-10
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90990-25J024
BEARING
2
2
90990-46J010
BOLT, THIN HEAD
3
3
90KC1-011B07
AC SERVO MOTOR
1
4
91312-04005
BOLT HEX,SOCKET HEAD
2
5
91312-04006
BOLT HEX,SOCKET HEAD
5
6
91312-04008
BOLT HEX,SOCKET HEAD
2
7
91312-04010
BOLT HEX,SOCKET HEAD
4
8
91312-05010
BOLT HEX,SOCKET HEAD
2
9
91312-05030
BOLT HEX,SOCKET HEAD
1
10
92012-04006
BOLT, BOTTON HEAD
2
11
92012-05010
BOLT BUTTON HEAD
2
12
92012-06012
BOLT BUTTON HEAD
4
13
KKE-M918S-01
COVER,DUCT
1
14
KKE-M919C-00
COLLAR 2,BRG.
1
15
KKE-M919E-11
BRKT.1,DUCT
1
16
KKE-M919G-11
BRKT.2,DUCT
1
17
KLW-M914B-00
TAPE,U2 DUCT 1
1
18
KLW-M914C-00
TAPE,U2 DUCT 2
1
19
KLW-M914D-00
TAPE,W2 DUCT 1
1
20
KLW-M914E-00
TAPE,W2 DUCT 1
1
21
KLW-M914F-00
PLATE
1
22
KLW-M914S-00
GUIDE,HNS.
1
23
KLW-M914T-00
GUIDE,HNS.
1
24
KLW-M918T-00
BRKT.,W MOTOR
1
25
KLW-M918U-00
DUCT,CABLE
1
26
KLW-M919F-00
DUCT,CABLE
1
27
KLW-M91P6-00
PULLEY:P25-3GT
1
28
92902-04200
WASHER,PLAIN
2
29
92902-05200
WASHER,PLAIN
3
30
92A08-04303
SCREW SET
1
31
98702-03005
SCREW,FLAT HEAD
8
32
KLW-M91U8-A0
DUCT SUB ASSY.
1
33
KLW-M91M3-A0
W MOTOR SUB ASSY.1
1
23
27
50
49
40
6
29
30
12
46
24
38
31
22
51
21
16
10
32
9
13
44
31
16
5
12
15
12
4
36
29
7
47
39
20
28
21
26
46
40
24
45
19
17
8
48
41
7
45
41
21
21
33
12
25
30
17
6
46
14
26
42
1
5
46
35
16
12
43
13
44
9
37
7
27
48
18
7
48
8
3
2
34
47
11
23
27
50
49
40
6
29
30
12
46
24
38
31
22
51
21
16
10
32
9
13
44
31
16
5
12
15
12
4
36
29
7
47
39
20
28
21
26
46
40
24
45
19
17
8
48
41
7
45
41
21
21
33
12
25
30
17
6
46
14
26
42
1
5
46
35
16
12
43
13
44
9
37
7
27
48
18
7
48
8
3
2
34
47
11
Trasport (R)
Conveyor
KLW-1409
7-11
R-L
L-R
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90990-25J016
BEARING
2
2
90990-28J070
WASHER,PLAIN
1
3
90990-28J110
WASHER,PLAIN
1
4
90KC1-011402
AC SERVO MOTOR
1
5
91312-03006
BOLT HEX,SOCKET HEAD
4
6
91312-03008
BOLT HEX,SOCKET HEAD
6
7
91312-03010
BOLT HEX,SOCKET HEAD
16
8
91312-03014
BOLT HEX,SOCKET HEAD
4
9
91312-04005
BOLT HEX,SOCKET HEAD
4
10
91312-04006
BOLT HEX,SOCKET HEAD
4
11
91312-04008
BOLT HEX,SOCKET HEAD
1
12
91312-04010
BOLT HEX,SOCKET HEAD
11
13
KH2-M9121-00
BEARING
2
14
KHW-M9137-00
COLLAR,BRG.
1
15
KKE-M918N-00
BRACKET 1,COLLAR
1
16
KLW-M653P-20
SENSOR DS CV3 ASSY
1
KLW-M653R-20(Amp)KLC-M9192-00(Fiber)
17
KLF-M9150-A0
PULLEY,CONV. ASSY
2
18
KLV-M917S-00
GUIDE
1
19
KLV-M917T-00
GUIDE
1
20
KLW-M911F-A0
SPLINE PULLEY ASSY.
1
21
KLW-M913A-A0
PULLEY ASSY.
4
22
KLW-M9149-00
PLATE,GUIDE
1
R-L
23
KLW-M9151-00
PLATE,GUIDE
1
L-R
24
KLW-M915U-00
BRKT.,TENSIONER
2
25
KLW-M915V-00
BRKT.,TENSIONER
1
26
KLW-M9177-00
FRAME,CONVEYOR
2
27
KLW-M9178-00
PLATE,GUIDE
2
Common
28
KLW-M9179-00
PLATE,GUIDE
1
29
KLW-M917B-00
PLATE,GUIDE
2
30
KLW-M917E-00
STAY,PULLEY
2
31
KLW-M917F-00
STAY,SENSOR
2
32
KLW-M917H-00
BELT,CONVEYOR
2
33
KLW-M917K-00
SPLINE 1
1
34
KLW-M917L-00
BELT 297-3GT-9
1
35
KLW-M917U-00
PULLEY 1,MOTOR
1
36
KLW-M919B-00
GUIDE B
1
37
KLW-M919H-00
GUIDE C
1
38
KLW-M91P5-00
PULLEY:P50-3GT
1
39
KLW-M91P6-00
PULLEY:P25-3GT
1
40
KV7-M9140-A0
PULLEY CONV. ASSY
2
41
91312-05008
BOLT HEX,SOCKET HEAD
2
42
91312-05014
BOLT HEX,SOCKET HEAD
2
43
91312-05020
BOLT HEX,SOCKET HEAD
1
44
92012-04010
BOLT, BOTTON HEAD
4
45
92902-04600
WASHER,PLAIN
4
46
92902-05200
WASHER,PLAIN
5
47
92A08-04303
SCREW SET
3
48
95302-03700
NUT HEXAGON
8
49
KLW-M91FE-A0
FRAME ASSY.E
1
R-L
50
KLW-M91FF-A0
FRAME ASSY.F
1
51
KLW-M91FL-A0
FRAME ASSY.L
1
L-R (Only different parts are published.)
28
30
16
14
26
2
22
18
23
25
30
27
1
12
15
19
7
3
26
26
7
31
10
3
10
31
5
2
11
5
11
16
26
30
10
31
26
30
4
17
8
9
20
9
20
6
29
21
11
5
11
5
13
30
26
13
24
30
26
24
Width Screw (R)
Conveyor
KLW-1409
7-12
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90990-25J024
BEARING
2
2
90990-28J058
WASHER,PLAIN
2
3
90990-28J070
WASHER,PLAIN
2
4
90KC1-011306
AC SERVO MOTOR
1
5
91312-04005
BOLT HEX,SOCKET HEAD
8
6
91312-04006
BOLT HEX,SOCKET HEAD
2
7
91312-04008
BOLT HEX,SOCKET HEAD
2
8
91312-04010
BOLT HEX,SOCKET HEAD
4
9
91312-04014
BOLT HEX,SOCKET HEAD
8
10
KG7-M9111-01
PULLEY 1
3
11
KH2-M9121-00
BEARING
4
12
KHW-M9137-00
COLLAR,BRG.
1
13
KLW-M9155-00
PLATE
2
14
KLW-M9157-00
BRKT.,SENSOR
1
L-R
15
KLW-M915V-00
BRKT.,TENSIONER
1
16
KLW-M9175-00
STAY,CONVEYOR
2
17
KLW-M9176-00
STAY,CONVEYOR
1
18
KLW-M917D-A0
BRG.ASSY.
1
19
KLW-M917J-00
BELT 417-3GT-9
1
20
KLW-M917V-00
BALL SCREW
2
21
KLW-M917W-00
BRKT.,SENSOR
1
R-L
22
KLW-M91M9-A0
CV MOTOR SUB ASSY.3
1
23
KLW-M91MA-A0
W MOTOR SUB ASSY.3
1
24
91312-05006
BOLT HEX,SOCKET HEAD
2
25
91312-05008
BOLT HEX,SOCKET HEAD
2
26
91312-05014
BOLT HEX,SOCKET HEAD
19
27
91312-05020
BOLT HEX,SOCKET HEAD
1
28
91312-06010
BOLT HEX,SOCKET HEAD
2
29
92902-04200
WASHER,PLAIN
2
30
92902-05200
WASHER,PLAIN
11
31
92A08-04303
SCREW SET
5
