KGM_YGD_PL - 第7页
2 3 Y -axis Moving-axis KGM-081 1 18 28 8 45 49 49 23 1 2 8 25 38 26 27 50 43 56 51 51 47 44 54 13 6 5 14 15 15 9 1 1 52 36 37 32 45 46 24 19 57 53 42 4 44 3 6 40 59 54 44 58 13 6 5 14 15 15 9 1 1 52 19 57 56 53 42 4 3 6…
1
3

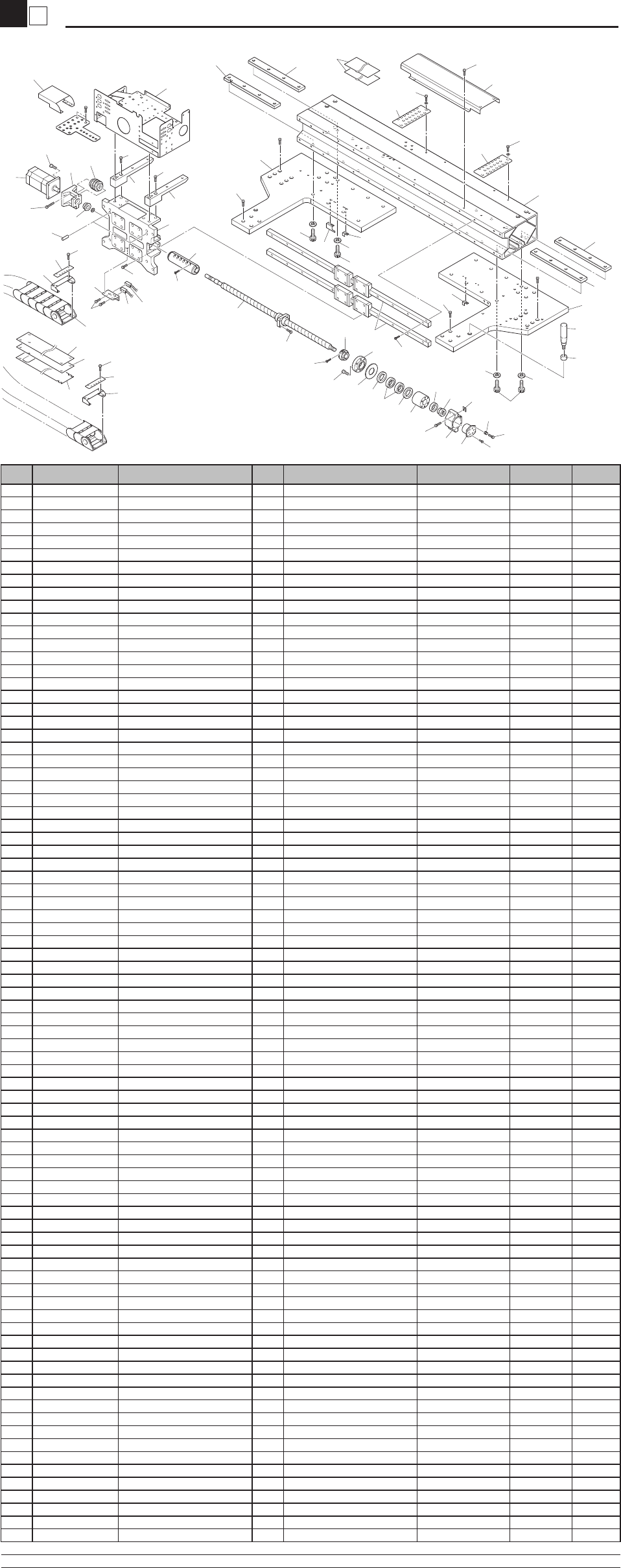

X-axis
Moving-axis
KGM-081118
5
4
12
15
24
25
20
28
28
30
42
33
41
32
30
30
17
18
13
16
19
22
23
59
23
29
62
38
40
51
56
59
57
58
56
59
53
55
54
52
48
39
16
10
14
11
7
9
1
2
21
26
27
6
3
8
31
29
34
44
45
45
37
60
60
61
35
34
35
34
35
35
46
50
47
47
49
57
58
58
36
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGM-M2211-00X FRAME X AXIS 1 Black
1-1 KGM-M2211-01X FRAME X AXIS 1 White (2008/4/8) ME30234 OK
2 KM0-M2220-00X COUPLING, X-AXIS 1
3 KM0-M2241-00X HOLDER, MOTOR X AXIS 1 Black
3-1 KM0-M2241-01X HOLDER, MOTOR X AXIS 1 White (2008/4/8) ME30234 OK
4 KV7-M2242-00X HOLDER, BRG X AXIS 1 Black
4-1 KV7-M2242-01X HOLDER, BRG X AXIS 1 White (2008/4/8) ME30234 OK
5 KV7-M2645-00X BRG.,ANGULAR 1
5-1 90990-25J005 BEARING 1 (2007/12/4) MDX0031 OK
5-2 90990-26J014 BEARING 1 (2008/4/24) ME40191 OK
6 KV7-M2261-01X HOLDER, HEAD 1
7 KGM-M2271-00X SCREW BALL X AXIS 1
8 90K63-511403 AC SERVO MOTOR 1
9 KGM-M2276-S0X X-AXIS GUIDE SET 1
9-1 KGM-M2276-A0X X-AXIS GUIDE SET 1 (2007/5/14) MD50039 OK
10 KGA-M2651-11X DAMPER 14 ASSY 1
11 KGA-M2651-61X DAMPER 105 ASSY 1
12 KV7-M2240-00X SLEEVE, BRG. 1
13 KV7-M2243-00X HOUSING, BRG. X 1
14 KV7-M2244-00X COVER, BRG. HOUSING 1
15 KV7-M2246-00X COIL SPRING 6
16 KV7-M2647-00X OIL SEAL 2
17 KV7-M2648-00X SPACER 3
17-1 90990-41J100 COLLAR 3 (2008/4/11) ME30019 OK
18 KG2-M9173-00X LOCK NUT 1
19 KV7-M224S-XXX SHIM, RING SEL. 1
20 KV8-M224S-10X SHIM, PLATE(0. 01) 1
21 KV7-M2604-00X SUPPORT UNIT 1
22 91317-04010 BOLT HEX. SOCKET HEAD 22
23 KV7-M2251-00X NYLOCK BOLT(M4X16) 30
23-1 91317-04016 BOLT HEX.SOCKET HEAD 30 (2005/2/7) MB20025 OK
24 91317-05014 BOLT HEX. SOCKET HEAD 4
25 91317-05020 BOLT HEX. SOCKET HEAD 4
26 91317-05035 BOLT HEX. SOCKET HEAD 4
27 91317-06018 BOLT HEX. SOCKET HEAD 4
28 KV7-M2213-S0X PLATE X AXIS SET 1 Black
28-1 KV7-M2213-S1X PLATE X AXIS SET 1 White (2008/4/8) ME30234 OK
29 KV7-M2663-00X NYLOCK BOLT(M5X16) 16
29-1 90990-01J030 BOLT,HEX.SOCKET HEAD 16 (2007/10/29) MD00030 OK
30 KV7-M2231-00X SPACER R, NUT 3
31 99480-06014 PIN, PARALLEL 2
32 KGM-M2235-00X PLATE A ASSY 1
33 KV7-M2233-00X SPACER R2, NUT 1
34 KM0-M2251-00X NYLOCK BOLT : M8X22L 16
34-1 90990-01J024 BOLT,HEX.SOCKET HEAD 16 (2007/10/29) MD00030 OK
34-2 90990-01J179 BOLT,HEX.SOCKET HEAD 16 (2020/1/24) MT10096 OK
35 KV7-M2253-00X WASHER,SPRING 16
35-1 90990-38J001 WASHER,SPRING 16 (2008/4/15) ME20075 OK
36 91317-04030 BOLT HEX. SOCKET HEAD 6
37 KV7-M2239-00X BRACKET 1 2
37-1 KV7-M2239-00X BRACKET 1 1 (2004/6/1) MA60001 SET
38 KGK-M2205-00X SENSOR, ORG(L=850) 1
39 KGK-M2206-01X SENSOR, OT(L=850) 1
40 KGK-M2267-00X CABLE DUCT 1
40-1 KGK-M2267-A0X CABLE,DUCT 1 (2004/3/31) M430131 OK
40-2 KGT-M2678-A1X GUIDE,CABLE Y 1 (2004/7/12) MA70035 OK
41 KV7-M221A-A0X COVER, DUCT ASSY 1
42 K94-M220A-00X TAPE X-AXIS 1
42-1 K94-M220A-00X TAPE X-AXIS 2 (2008/11/7) MEX0015 OK
43 K94-M220A-10X TAPE X-AXIS 1
43-1 Delete (2008/11/7) MEX0015
44 KV7-M2282-00X DOG, ORG 1
45 KV7-M2283-00X DOG, 2ND LIMIT 2
46 KV7-M2256-00X GRIP 2
47 KV7-M226B-00X PLATE 2
48 KV7-M2291-00X BRACKET, SENSOR 1
49 KGK-M226A-00X COVER CABLE 1
50 KV7-M2257-00X SPACER, GRIP 2
51 KV7-M2268-00X BRACKET 1, TAPE 1
52 KV7-M2269-00X BRACKET 2, TAPE 1
53 KGK-M220A-00X TAPE , X DUCT 1
54 KGK-M220B-00X TAPE 2, X DUCT 1
55 KGK-M220C-00X TAPE 3, X DUCT 1
56 KV7-M2266-00X PLATE, NUT 2
57 91317-04008 BOLT HEX.SOCKET HEAD 12
57-1 91317-04008 BOLT HEX.SOCKET HEAD 6 (2008/3/28) ME30100 OK
58 91317-04010 BOLT HEX. SOCKET HEAD 4
59 91317-06012 BOLT HEX. SOCKET HEAD 8
60 91317-06018 BOLT HEX. SOCKET HEAD 8
61 KGM-M2239-00X BRACKET 1 1 (2004/6/1) MA60001 SET
62 KGA-M2649-00X NYLOCK BOLT(M2.6X10) 24
62-1 90990-01J023 BOLT,HEX.SOCKET HEAD 24 (2007/10/29) MD00030 OK
2
3

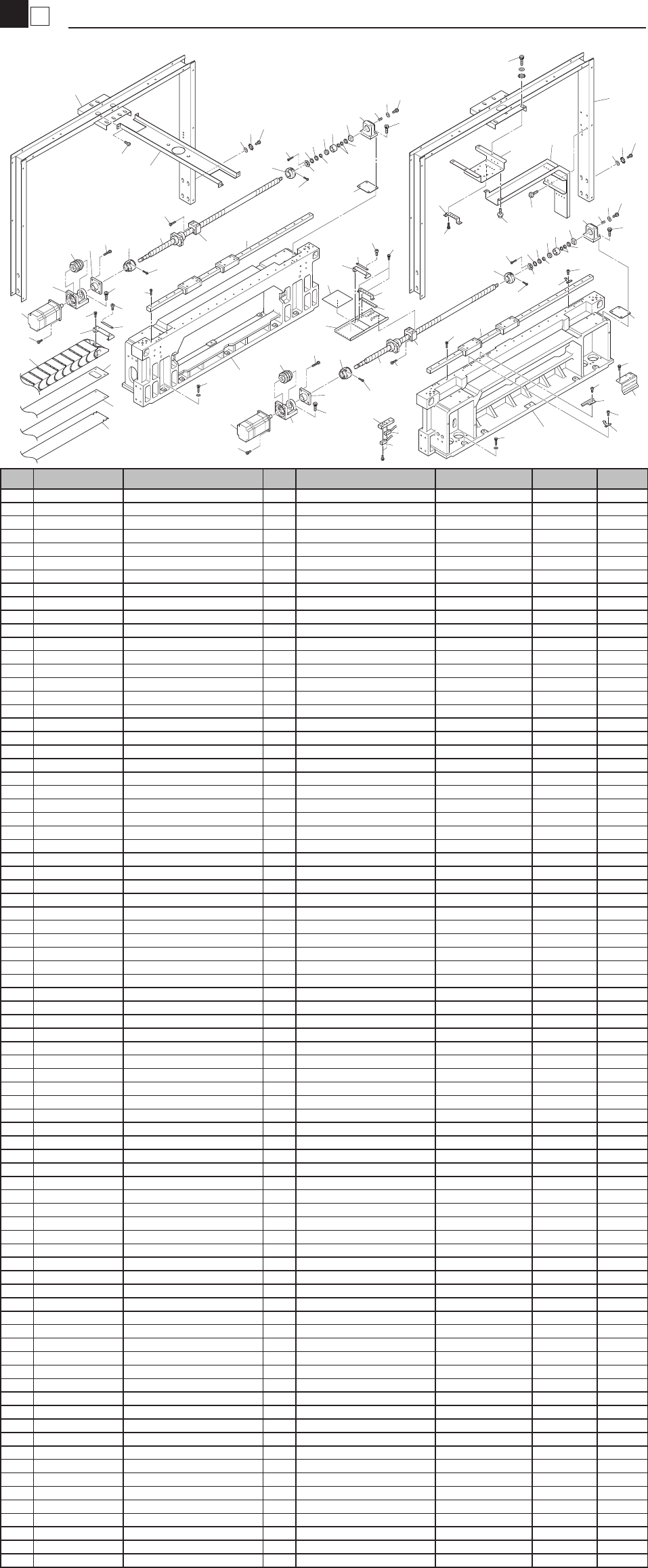

Y-axis
Moving-axis
KGM-081118
28
8
45
49
49
23
1
2
8
25
38
26
27
50
43
56
51
51
47
44
54
13
6
5
14
15
15
9
11
52
36
37
32
45
46
24
19
57
53
42
4
44
3
6
40
59
54
44
58
13
6
5
14
15
15
9
11
52
19
57
56
53
42
4
3
6
40
59
58
39
33
34
55
29
48
20
21
48
22
30
31
35
10
10
41
36
47
43
14
12
16
18
14
12
44
48
21
41
60
60
58
62
61
58
62
61
17
18
17
18
16
18
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M2611-02X FRAME R Y AXIS 1
1-1 KV7-M2611-S0X FRAME,Y AXIS SET 1 (2007/2/8) MD10036 OK
2 KV7-M2612-02X FRAME L Y AXIS 1
2-1 Delete (2007/2/8) MD10036
3 KV7-M2671-03X SCREW BALL Y AXIS 2
4 KV7-M2604-00X SUPPORT UNIT 2
5 KG2-M9173-00X LOCK NUT 2
6 KV7-M264A-01X HOLDER SET, Y AXIS 2
7
8 KV7-M264S-XXX SHIM, PLATE SEL. 1
9 KV7-M2243-00X HOUSING, BRG. X 2
10 KV7-M2244-00X COVER, BRG. HOUSING 2
11 KV7-M2645-00X BRG.,ANGULAR 2
11-1 90990-25J005 BEARING 2 (2007/12/4) MDX0031 OK
11-2 90990-26J014 BEARING 2 (2008/4/24) ME40191 OK
12 KV7-M224S-XXX SHIM, RING SEL. 1
13 KV7-M2646-00X COIL SPRING 12
14 KV7-M2647-00X OIL SEAL 4
15 KV7-M2648-00X SPACER 6
15-1 90990-41J100 COLLAR 6 (2008/4/11) ME30019 OK
16 KGA-M2651-31X DAMPER 16 ASSY 2
17 KGA-M2651-41X DAMPER 24 ASSY 2
18 KGA-M2649-00X NYLOCK BOLT 24 M2.6X10
18-1 90990-01J023 BOLT,HEX.SOCKET HEAD 24 (2007/10/29) MD00030 OK
19 KV7-M2666-01X HOLDER, NUT Y AXIS 2
20 KV7-M2682-01X DOG, ORG. 1
21 KV7-M2683-01X DOG, 2ND LIMIT 2
22 KV7-M2691-01X BRACKET SENSOR 1
22-1 KV7-M2691-02X BRACKET,SENSOR 1 (2004/9/1) MA90006 OK
23 KV7-M2694-00X BRACKET A, GUIDE 1
24 KV7-M2695-01X BRACKET B, GUIDE 1
25 KGA-M26F1-00X FRAME 1 1
26 KGA-M26F2-00X FRAME 2 1
27 KGK-M26F3-00X FRAME 3 1
28 KV7-M26F4-00X DUCT, HARNESS 1
29 KV7-M26F5-01X BRACKET, HARNESS 1
30 KGA-M260A-00X SENSOR, ORG(L=300) 1
31 KGA-M260B-00X SENSOR, OT(L=300) 1
32 KV7-M260A-00X TAPE, Y AXIS 1
33 KV7-M260B-00X TAPE, Y DUCT 1
34 KV7-M260C-00X TAPE 2, Y DUCT 1
35 KV7-M260D-00X TAPE 3, Y DUCT 1
36 KV7-M2667-00X PLATE 2
37 KV7-M2668-00X BRACKET 1, TAPE Y 1
38 KV7-M2669-00X BRACKET 2, TAPE Y 1
39 KV7-M2678-00X GUIDE, CABLE Y 1
40 90K63-511404 AC SERVO MOTOR 2
41 KV7-M2676-S2X Y-AXIS GUIDE SET 1
42 KM0-M2220-00X COUPLING, X-AXIS 2
43 KV7-M2661-00X NYLOCK BOLT 20 M12X50
43-1 90990-01J028 BOLT,HEX.SOCKET HEAD 20 (2007/10/29) MD00030 OK
44 KV7-M2662-01X NYLOCK BOLT 16 M6X30
44-1 90990-01J029 BOLT,HEX.SOCKET HEAD 16 (2007/10/29) MD00030 OK
45 KV7-M2698-00X PLATE 1, CLAMP 2
46 KV7-M2699-00X PLATE 2, CLAMP 1
47 98903-03004 SCREW BINDING HEAD 4
47-1 98502-03004 SCREW PAN HEAD 4 (2006/2/17) MBY0200 OK
47-2 98902-03004 SCREW BINDING HEAD 4 (2007/7/19) MD70057 OK
48 98904-04006 SCREW BINDING HEAD 6
48-1 98902-04006 SCREW BINDING HEAD 6 (2006/1/9) MBY0166 OK
49 90990-12J001 SCREW BIN. HEAD W/W 6
50 98904-05010 SCREW BINDING HEAD 4
50-1 98902-05010 SCREW BINDING HEAD 4 (2006/1/9) MBY0166 OK
51 91314-04008 BOLT HEX. SOCKET HEAD 10
51-1 91312-04008 BOLT HEX.SOCKET HEAD 10 (2006/1/16) MBY0158 OK
52 91314-04010 BOLT HEX. SOCKET HEAD 12
52-1 91312-04010 BOLT HEX.SOCKET HEAD 12 (2006/1/16) MBY0158 OK
53 91317-04014 BOLT HEX. SOCKET HEAD 8
54 91317-04030 BOLT HEX. SOCKET HEAD 12
55 91317-05010 BOLT HEX. SOCKET HEAD 2
56 KV7-M2663-00X NYLOCK BOLT 40 M5X16
56-1 90990-01J030 BOLT,HEX.SOCKET HEAD 40 (2007/10/29) MD00030 OK
57 91317-05018 BOLT HEX. SOCKET HEAD 8
58 91314-06010 BOLT HEX. SOCKET HEAD 28
58-1 91312-06010 BOLT HEX.SOCKET HEAD 28 (2006/1/26) MBY0159 OK
59 91317-06018 BOLT HEX. SOCKET HEAD 16
60 92907-04200 WASHER PLAIN 12
61 92903-06200 WASHER PLAIN 20
62 92990-06400 WASHER EXTL.TOOTHED 20
62-1 90172-00J060 WASHER,EXTL.TOOTHED 20 (2008/4/15) ME40115 OK
1
4

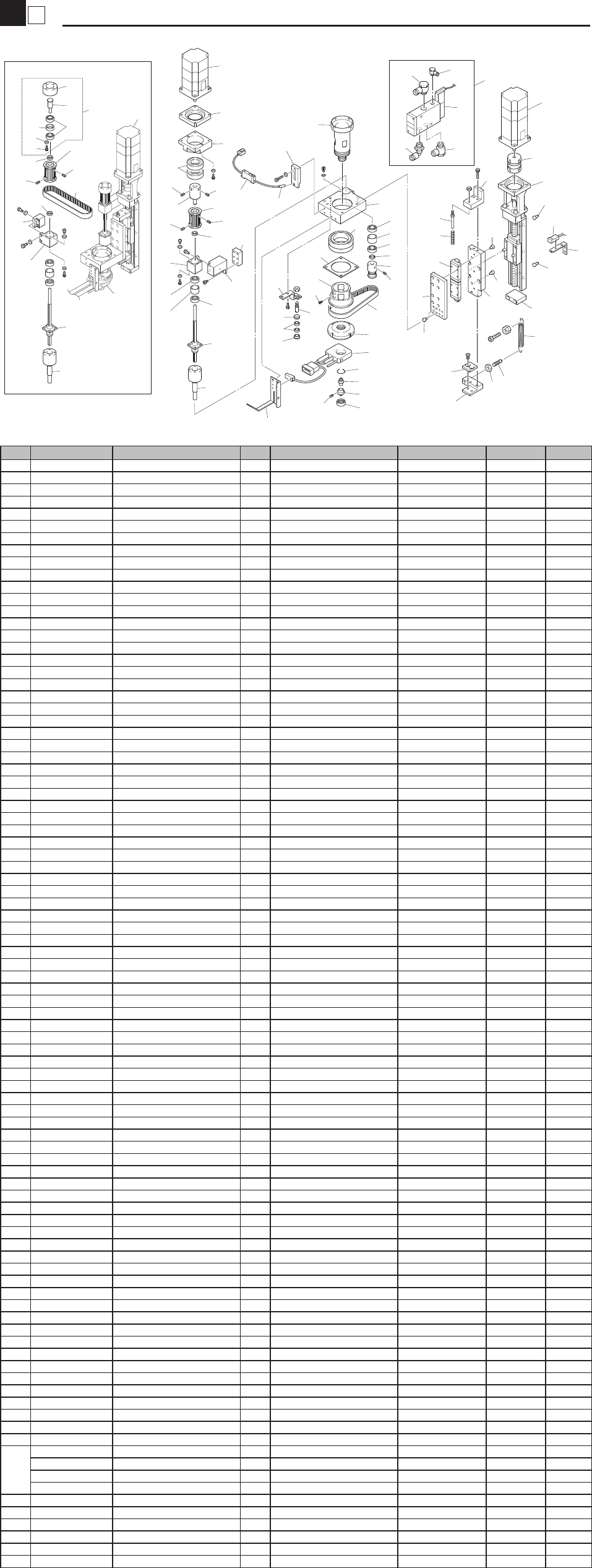

Body Head
Head
KGM-1107
52
50
51
49
40
40
14
11
16
12
15
74
13
47
67
25
29
27
29
24
65
64
66
48
71
2
26
1
53
21
21
22
23
39
41
18
17
20
19
20
57
46
45
38
4
35
36
37
43
9
41
41
41
41
7
44
42
5
8
10
6
3
58
28
54
60
77
62
31
Head 2
30
70
61
63
61
3233
34
57
69
28
76
75
57
55
56
59
63
61
61
61
61
72
68
18
17
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV6-M71C0-XXX NOZZLE SEL. 1
2 KU4-M7114-00X NUT, NOZZLE 1
3 KGM-M7102-00X PLATE 1,Z AXIS 1
4 KGM-M7103-00X PLATE 2, Z AXIS 1
5 KV6-M7104-00X PLATE 3, Z AXIS 1
6 KV6-M7105-00X GUIDE, LINEAR 1
7 KV6-M7107-00X STOPPER, Z AXIS 1
8 KV6-M7106-00X PLATE 4, Z AXIS 1
9 KV6-M7109-00X BRKT, LOWER SENSOR 1
10 KV6-M7121-00X PLATE 1, R AXIS 1
11 KV6-M7122-01X HOLDER, BEARING 1
12 KV6-M7123-00X BEARING 1 1
12-1 90990-26J009 BEARING 1 (2007/12/6) MDX0068 OK
13 KV6-M7124-00X PLATE 1, BEARING 1
14 KV6-M7125-02X SHAFT, NOZZLE 1
15 KV6-M7128-01X PULLEY 1, R AXIS 1
16 KV6-M7129-00X BRACKET, ORG. SENSOR 1
17 KV6-M7131-00X SPLINE, BALL 1
18 KV6-M7132-00X SHAFT, R AXIS 1
19 KV6-M7135-00X COLLAR 1,R AXIS 1
19-1 90990-41J051 COLLAR 1 (2008/4/17) ME20197 OK
20 90933-02J625 BEARING 2
21 KV6-M7137-00X BEARING 2,R AXIS 2
21-1 90933-02J689 BEARING 2 (2007/9/24) MD80067 OK
22 KV6-M7138-00X COLLAR 2,R AXIS 1
22-1 90990-41J052 COLLAR 1 (2008/4/17) ME20197 OK
23 KV6-M7139-00X COLLAR 3,R AXIS 1
23-1 90990-41J053 COLLAR 1 (2008/4/17) ME20197 OK
24 KV6-M7141-00X SHAFT 1, TENSION 1
25 KV6-M7143-00X BRACKET, TENSION 1
26 KV6-M7144-00X BELT, R AXIS 1
27 90933-02J106 BEARING 2
28 KV6-M7147-10X HOLDER 2, BEARING 1
29 90933-03J106 BEARING 2
30 KGM-M7132-00X SHAFT 2, R AXIS 1 Head 2
31 KGM-M7147-00X HOLDER 3, BRG. 1 Head 2
32 KV6-M7137-00X BEARING 2, R AXIS 2 Head 2
33 KGM-M7148-00X COLLAR 4,R AXIS 1 Head 2
33-1 90990-41J020 COLLAR 1 Head 2 (2008/4/15) ME20075 OK
34 91317-03006 BOLT HEX. SOCKET HEAD 2 Head 2
35 KV6-M7161-00X SHAFT 1, SPRING 1
36 KV6-M7162-00X SPRING, FLOATING 1
37 KV7-M8103-00X Z AXIS ASSY.(NSK) 1
37-1 KGK-M8103-00X Z AXIS ASSY 1 (2005/10/28) MB00127 OK
38 KV7-M8123-00X COUPLING, MOTOR 1
39 KV7-M8132-00X PULLEY, MOTOR R 1
40 KV6-M7171-A0X VALVE ASSY SPARE 1
40-1 KV6-M7171-106 VALVE ASSY 1 SI 0904001 (2008/10/21) ME90107 NG
41 KM4-M7173-00X LOCATING PIN 7
41-1 KM4-M7173-00X LOCATING PIN 6 (2006/9/20) MC90066 OK
42 KM1-M7127-00X SPRING POST 1
43 KGM-M655B-00X SENSOR, 1-2(GXL-8HU) 1
44 KG2-M2284-00X SPG. MAIN 1
45 90K63-201F09 AC SERVO MOTOR 1 Z1
46 90K63-001F07 AC SERVO MOTOR 1 R
47 90185-06J000 NUT U : FU06SS(M30) 1
48 99009-15400 CIRCLIP : 1
49 $SL10-02 JOINT 1
50 $SL8-02 JOINT 1
51 $TL4-02 JOINT 1
52 $TL4-M5 JOINT 1
52-1 $SL4-M5 JOINT 1 (2006/2/1) MC10168 OK
53 92A90-03103 SCREW, SET 2
54 KV6-M7168-10X STAY 1, HOLDER 2 1
55 KGM-M7123-00X BEARING,R MOTOR 2
55-1 90933-01J903 BEARING 2 (2007/9/24) MD80067 OK
56 KGM-M7124-00X SHAFT, R MOTOR AXIS 1
57 KGM-M7105-00X COLLAR, R AXIS 1
58 KGM-M7125-00X FLANGE, MOTOR 1
59 KGM-M7146-00X HOLDER 4, BRG. 1
60 KV6-M7169-00X STAY 3, HOLDER 2 1
61 92A08-03303 SET SCREW M3X3 6
62 92A08-04305 SET SCREW M4X5 2
63 KGM-M7129-00X PULLY 3, R AXIS 1
64 KGK-M7186-A0X SENSOR AMP ASSY 1 Option
65 KV6-M7181-00X BRKT. 1, LVL. SENSOR 1 Option
66 KV6-M7187-00X FIBER 1 Option
67 KGM-M7110-A0X HEATER HEAD 1 ASSY 1
68 KGM-M7110-B0X HEATER HEAD 2 ASSY 1 Head 2
69 KV6-M7167-00X STAY 2, HOLDER 2 1 Head 2
70 KGM-M7126-10X BELT, R MOTOR 1 Head 2
71
KV6-M7114-011 JOINT NOZZLE 1 IEI MUSASHI H=15mm
KV6-M7114-012 JOINT NOZZLE 30,20 1
IEI MUSASHI FED20cc H=12mm
KV6-M7114-21X JOINT NOZZLE EFD 30 1 EFD 30cc H=27mm
KV6-M7114-30X JOINT NOZZLE EFD 10 1 EFD 10cc H=29.5mm
72 90K63-201310 AC SERVO MOTO (Z2) 1 Z2
73
74 98903-03005 SCREW, BIN. HEAD 1
75 92907-03200 WASHER PLAIN 2
76 KGM-M7130-00X SHAFT 2,R AXIS ASSY 1
77 95307-06600 NUT HEXAGON 1
