Tg0409-PM-SO Fig. 72 0410-002 44 5.3 Maintenance Method T ape Guide Roller Every week Cleaning Clean it with a rag soaked in alcohol.

Tg0409-PM-SO

Fig. 70

Fig. 71

0410-002 43

5.3 Maintenance Method

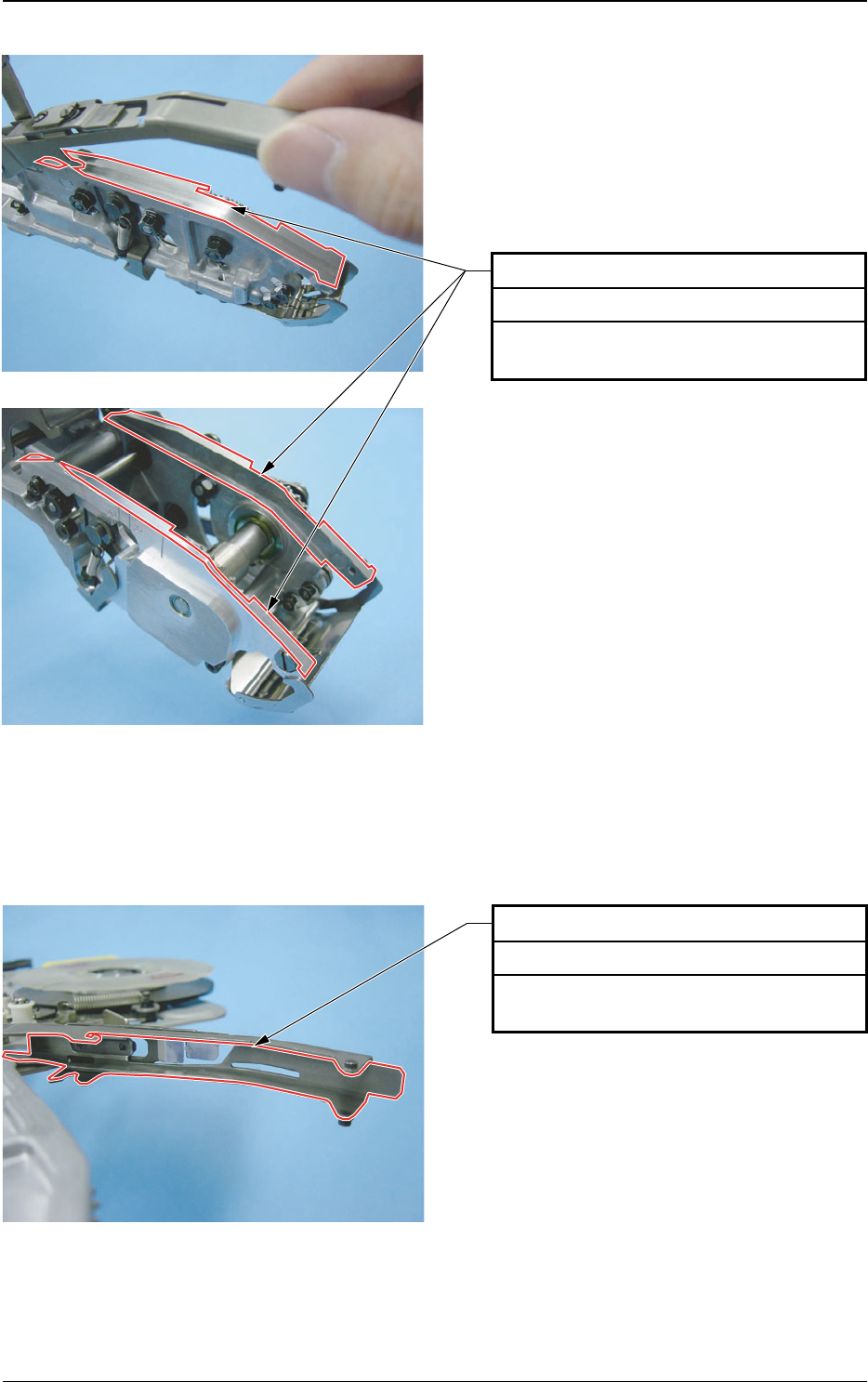

Suppressor (Rear Side)

Every week Cleaning

Lift the suppressor and clean it with a rag

soaked in alcohol.

For Tape Feeder of 32 or 44 mm Width

(Photo of TF-4411)

Chute Section

Every week Cleaning

Lift the suppressor and clean it with a rag

soaked in alcohol.

Tg0409-PM-SO

Fig. 72

0410-002 44

5.3 Maintenance Method

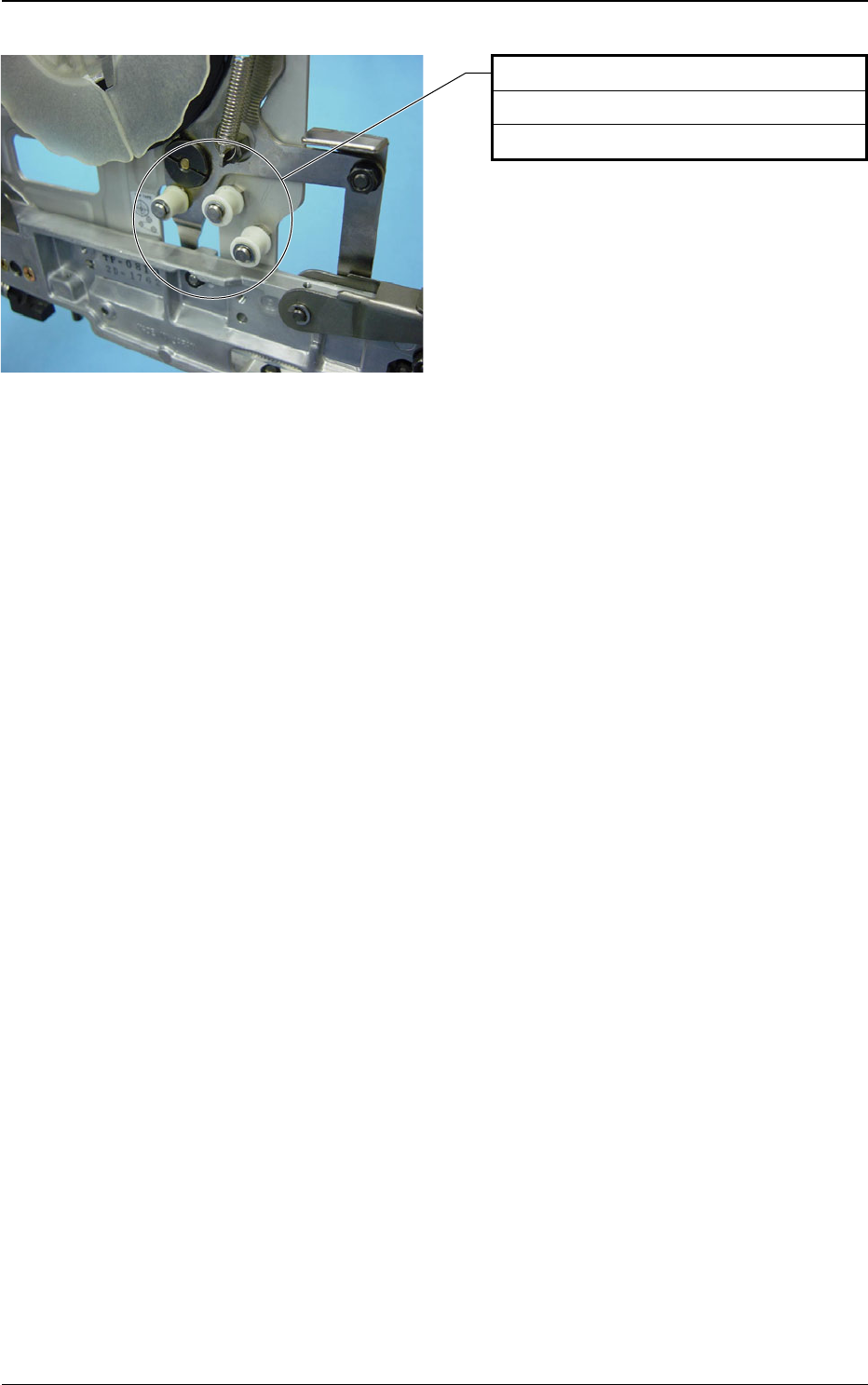

Tape Guide Roller

Every week Cleaning

Clean it with a rag soaked in alcohol.

Tg0409-PM-SO

5.3.4 Monthly Maintenance

0410-002 45

5.3 Maintenance Method

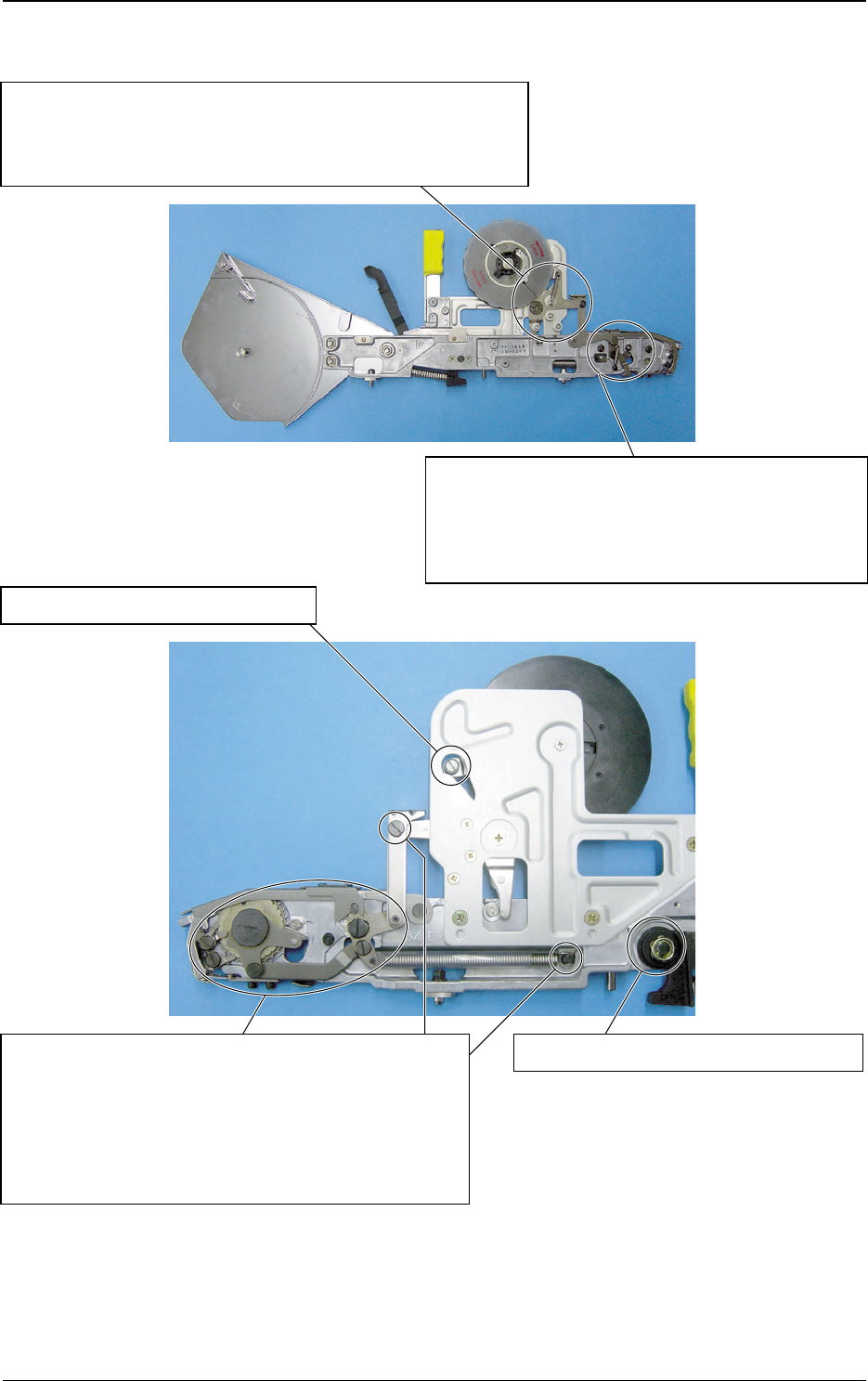

Fig. 73

Take-up Reel Feed Spring (Fig. 75)

Feed Lever Fulcrum Pin (Fig. 75)

Fulcrum Pin Sliding Section of Tape Take-up Link (Fig. 76)

Slack Link Selection Section (Fig. 76)

Tape Feed Link Assembly Fulcrum Section (Fig. 77)

Pick-up Position Adjustment Section (Fig. 77)

Suppressor Holding Lever Fulcrum Pin (Fig. 77)

Transfer Claw Fulcrum Section (Fig. 77)

Shutter Sliding Guide (Fig. 84)

Take-up Reel Feed Roller (Fig. 82)

Locating Lever Fulcrum Section (Fig. 81)

Overrun Stopper Fulcrum Pin (Fig. 78)

Locating Notch Fulcrum Pin (Fig. 78)

Overrun Stopper (Fig. 78)

Pick-up Position Adjustment Pin (Fig. 79)

Shutter Driving Pin (Fig. 79)

Tape Feed Link Assembly Fulcrum Pin (Fig. 79)

Tape Feed Spring (Fig. 81)
