(1) Attach the reel by the reel fulcrum pin.
Make sure that there is no dirt (or powder
caused by reel abrasion) on the reel fulcrum
pin.
If dirty, clean it with a rag or air gun.
If the tape is fed while soiled by reel
abrasion, it might stick to the greased
section and so cause a pick-up error.
0410-002 8
2.1 Attachment of Tapes

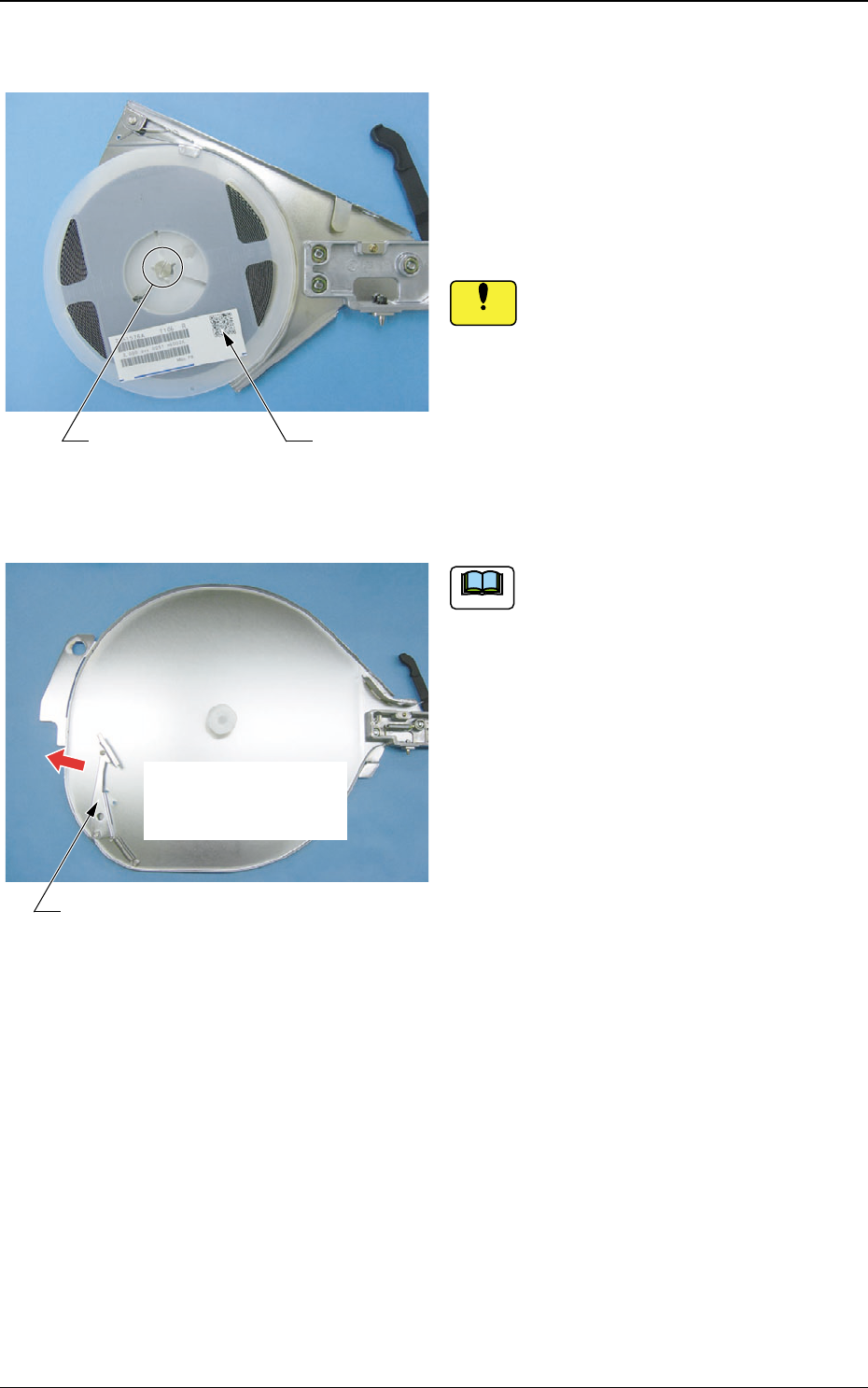

Fig. 4 Reel Attachment
2.1 Attachment of Tapes
Reel Fulcrum Pin Reel
Reel Holding Lever
Move it in the direction
of the arrow, according
to the size of the reel.
Fig. 5
Notice
With large reel holders, change the reel
holding lever position, depending on the
size of the reel.
Note
Tg0409-PM-SO
Fig. 6 Tape End Detection Reflector
(2) Make sure there is no dirt on the tape
end detection reflector.
Clean any adhered foreign substance, using
air-blow or brush.
Refer to "5.3.2 Maintenance in Tape Attach-
ment and Product Change" for details of
cleaning.
If there is any dirt on the tape end detection reflector, the tape
end might not be detected.
0410-002 9
2.1 Attachment of Tapes
Reference
(4) Detach the suppressor holding lever
from the suppressor hook section.
At that time, slide the suppressor holding
lever while pressing on its lower part.
Fig. 7 Detachment of Front Hook
(3) Detach the front hook from the pin.
At that time, slide the hook while pushing
the lower part of the hook.
Fig. 8 Detachment of Suppressor Holding Lever
Pin
Front Hook
Press
Suppressor Holding Leve
r
Slide it
Tape End Detection Reflector
Notice
Tg0409-PM-SO0410-002 10
2.1 Attachment of Tapes
Fig. 9 Foreign Substance on the Chute
(5) Make sure there is no foreign substance
sticking on the chute section or the rear
side of the suppressor.
If dirty, clean it.
If there is any foreign substance (such as chip component or
dust) on the chute and rear surface of the suppressor when the
tape is attached, then it might cause a suppressor distortion or
pick-up error.
Refer to "5.3.2 Maintenance in Tape Attachment and Product Change"
for details of cleaning.
Reference
Chip Component
Chip Component
Notice
Fig. 10 Foreign Substance on the Rear
Surface of the Suppressor
