Tg0409-PM-SO 0410-002 20 2.2 T ape Detachment Procedure (1) Detach the front hook from the pin. At the same time, slide the hook while pushing the lower part of the hook. (2) Detach the suppressor holding lever from the …

Tg0409-PM-SO0410-002 19

2.1 Attachment of Tapes

If there is any slack, it might cause cover tape take-up error or

feed error.

(16) To feed the tape, press the feed lever as

if there was a component on the pick-up

position.

Refer to "2.3 Component Pick-up Position

Alignment" for details.

(17) The tape should be released from the

suppressor by 10 mm or less. If neces-

sary, cut any excess portion of the tape,

using scissors.

Do not tear the tape with your hand

because the pick-up position might be

deviated.

(15) Turn the take-up reel socket and pull the

cover tape so that there is no slack.

Fig. 30 No Slack on the Cover Tape

(OK)

Fig. 31 Slack on the Cover Tape

(NG)

Reference

Notice

10 mm or less

Fig. 32

Tg0409-PM-SO0410-002 20

2.2 Tape Detachment Procedure

(1) Detach the front hook from the pin.

At the same time, slide the hook while pushing the lower part of the

hook.

(2) Detach the suppressor holding lever from the suppressor hook

section.

At the same time, slide the suppressor holding lever while pressing the

lower part of the suppressor holding lever.

(3) Remove the cover tape from the take-up reel socket.

Cut the cover tape with scissors, leaving 300 mm or more of the end

from the suppressor (tape peeling section) for the preparation of next

attachment.

(4) Lift the suppressor and remove the cover tape through the slit

on the tape peeling section.

If a deformed cover tape is passed through the slit on the

tape peeling section, the tape peeling section might become

deformed leading to a pick-up error.

(5) Turn the take-up reel socket to take up the tape.

If the tape is pulled out while the cover tape is left on the

tape peeling section, the tape peeling section might become

deformed, which may cause pick-up error.

Refer to "2.1 Attachment of Tapes" for the positions of each section.

2.2 Tape Detachment Procedure

Notice

Reference

Tg0409-PM-SO

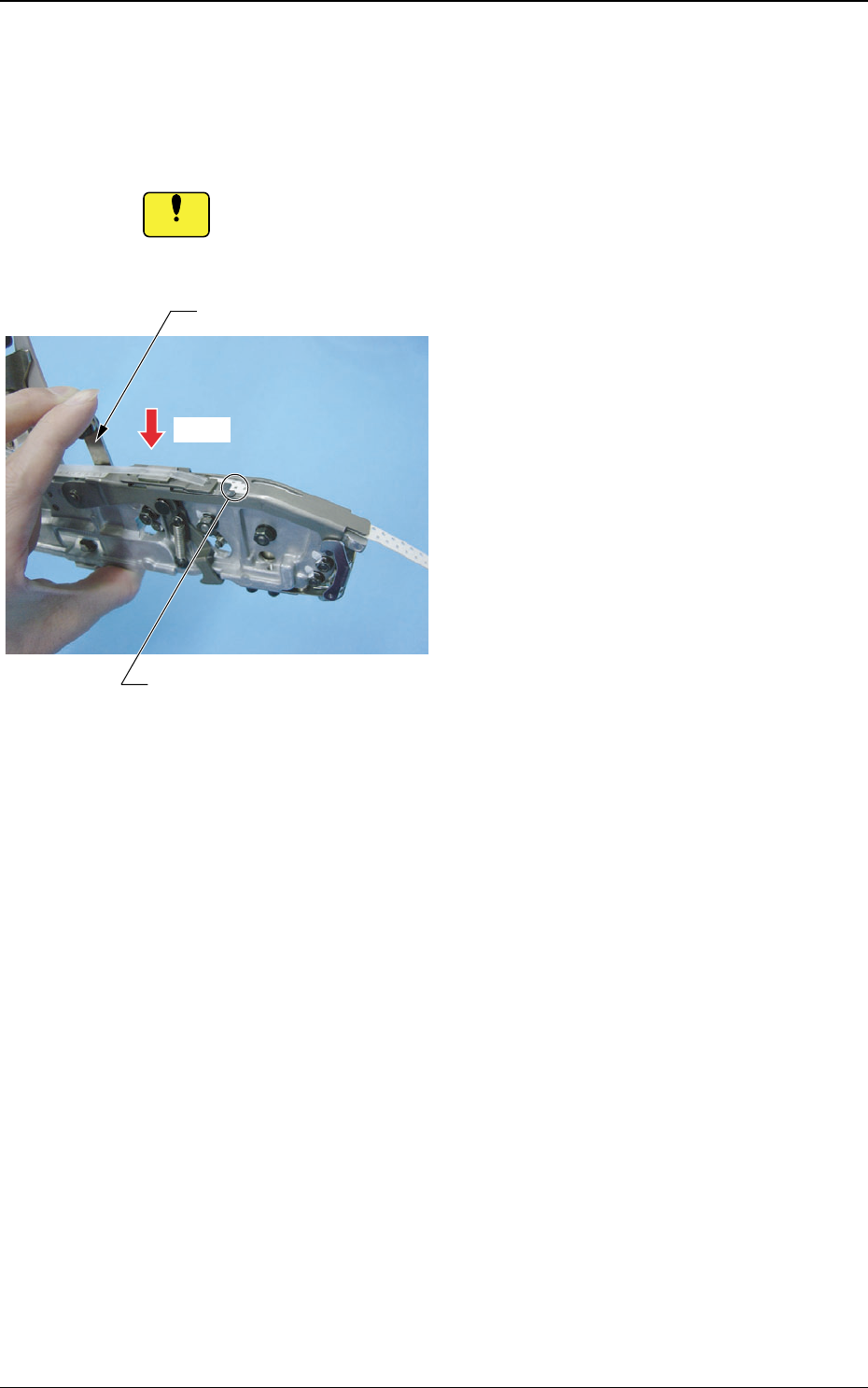

Fig. 33

Press

Feed Lever

Component

0410-002 21

2.3 Component Pick-up Position Alignment

To pick up a component correctly, the component center is aligned with the

pick-up position.

If the component center is not aligned with the pick-up position,

then the pick-up cannot proceed correctly.

Notice

• For 8 mm width tape feeder, press the

feed lever to feed the tape as if there is a

component on the pick-up position.
