Tg0409-PM-SO0410-002 33
4.1 Feed Pitch Selecting Procedure
(a) When the pitch is changed from 4 or 8
mm to 12 or 16 mm in TF-1610, it is
necessary to change the take-up spring
(Refer to Table 3).
(b) Attach and store the unused take-up
spring onto the housing spring hook in
order not to lose it (Refer to Fig. 57).
(10) Remove the set screw on the slack link
with a driver and remove the slack link
from the slack lever and the swing arm.
(11) Attach the slack link onto the position
which is correct for the pitch. Attach the
set screw together with the flat and
spring washers.
Tape Feeder of TF-1610
Slack Link
Change the
attachment
position.
Change the
attachment position.
Slack Lever
Set Screw
Swing Arm
Fig. 57 Take-up Spring Housing Condition
Fig. 58
Fig. 59 Slack Lever and Swing Arm
Table 3
Note
Identification
None
White Marking
4, 8
12, 16
Feed Pitch
(mm)
Max. Take-up Load
(gf)
2
3.6
Tg0409-PM-SO0410-002 34
5. Periodical Maintenance
5.1 Precautions before Maintenance
This describes the check, cleaning, and adjustment for tape feeders operating
in good conditions.
A full and periodical maintenance of the tape feeder is recommended.
5. Periodical Maintenance
5.2 Preparation for Maintenance
5.2.1 Preparation for Cleaning
• Rag
Use a rag made of such material (cotton, etc.) that produces
as less waste thread as possible.
A clean rag must be used depending on a spot to be cleaned.
• Air Gun
Do not use an air gun on unspecified locations.
• Brush
Use a normal brush on the market.
• Cotton Swab
Use a normal cotton swab on the market.
• Tweezers
Use normal tweezers on the market.
• Toothbrush
Use a normal toothbrush on the market.
• Alcohol
Do not use alcohol on unspecified locations.
5.2.2 Feeder Adjusting Jig
• Use the feeder adjusting jig JG-0148 (option).
Only trained persons should perform mainte-
nance, both carefully and according to the speci-
fied procedures.
CAUTION
Tg0409-PM-SO0410-002 35
5.2.3 Preparation for Lubrication
Prepare specified grease and greasing tools.
• Specified Grease
Refer to "(1) Grease".
Before lubrication, wipe off the old grease.
Otherwise, the effect of grease will decrease.
• Specified greasing tools
Refer to "(2) Thin Bar".
(1) Grease
• DAPHNE EPONEX GREASE No. 1 (IDEMITSU KOSAN)
• NEW MOLYNOC GREASE No. 1 (Nippon Oil Corporation)

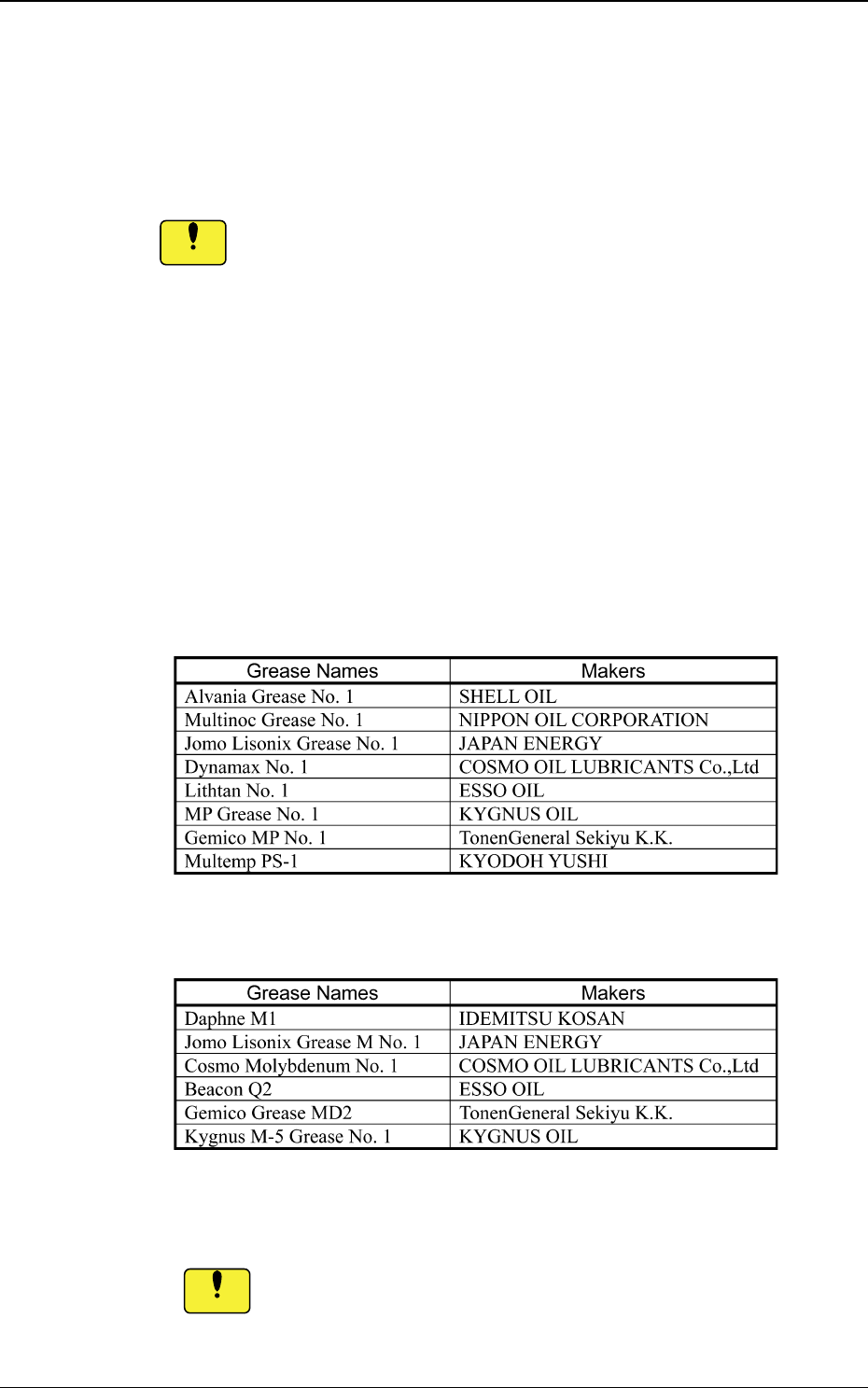

Same Type of Lubricants
• DAPHNE EPONEX GREASE No. 1 (IDEMITSU KOSAN) or its
equivalent
5.2 Preparation for Maintenance
Table 4
(2) Thin Bar
It is required for lubrication in narrow space. Prepare a bar with a
diameter of 1 mm.
Do not use a bar with a rough nap like a cotton swab.
• NEW MOLYNOC GREASE No. 1 (Nippon Oil Corporation) or its
equivalent
Table 5
Notice
Notice
