Tg0409-PM-SO
5.3.2 Maintenance in Tape Attachment and Product Change
Check and clean the tape feeder as required in tape attachment and product
change and by the condition of pick-up error.
0410-002 37
5.3 Maintenance Method

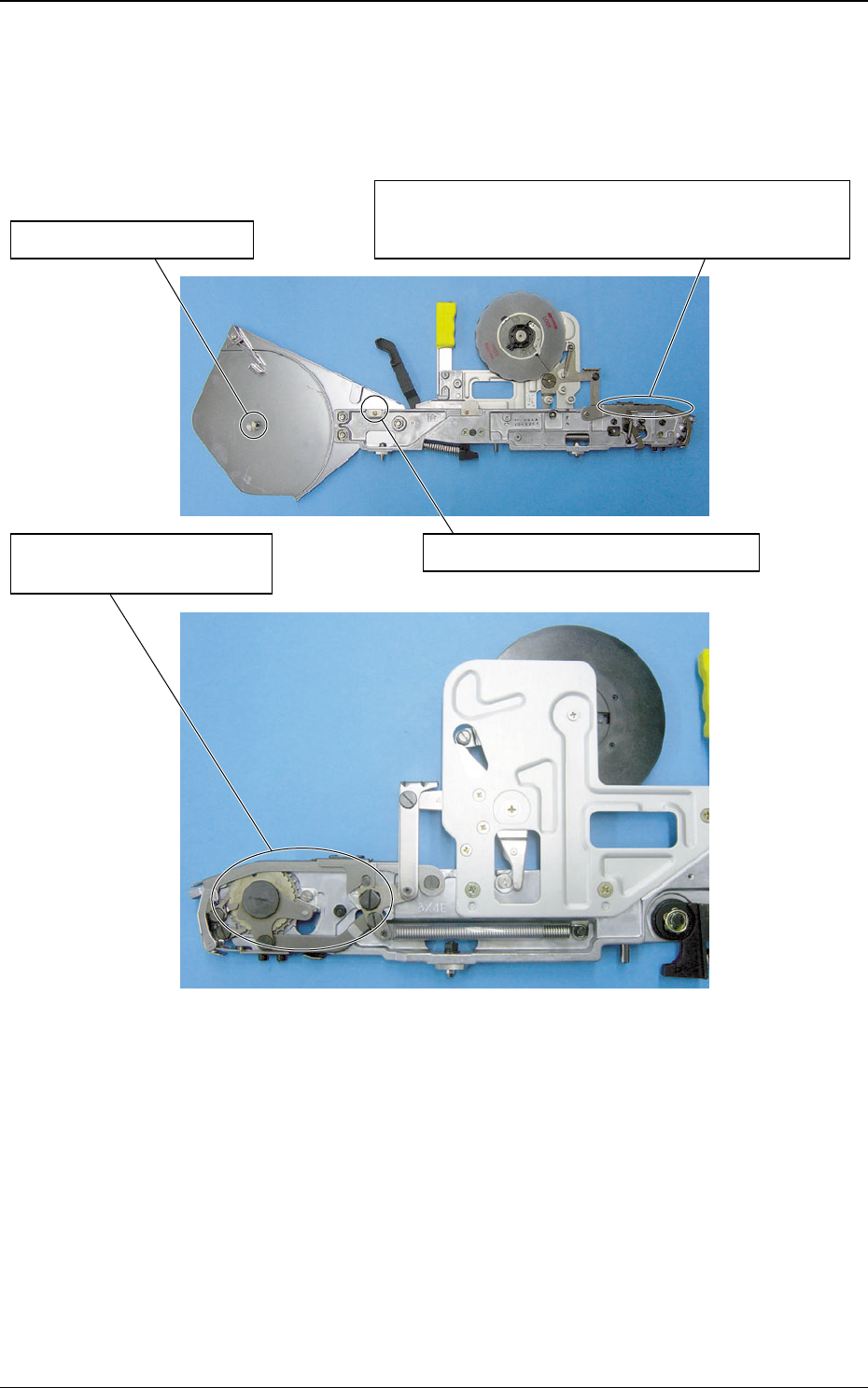

Fig. 61
Reel Fulcrum Pin (Fig. 62)
Tape End Detection Reflector (Fig. 63)
Sprocket (Fig. 67)
Shutter Driving Pin (Fig. 68)
Chute Section (Fig. 64)
Suppressor (Fig. 65)
Tape Peeling Section in Shutter Assembly (Fig. 66)
Tg0409-PM-SO

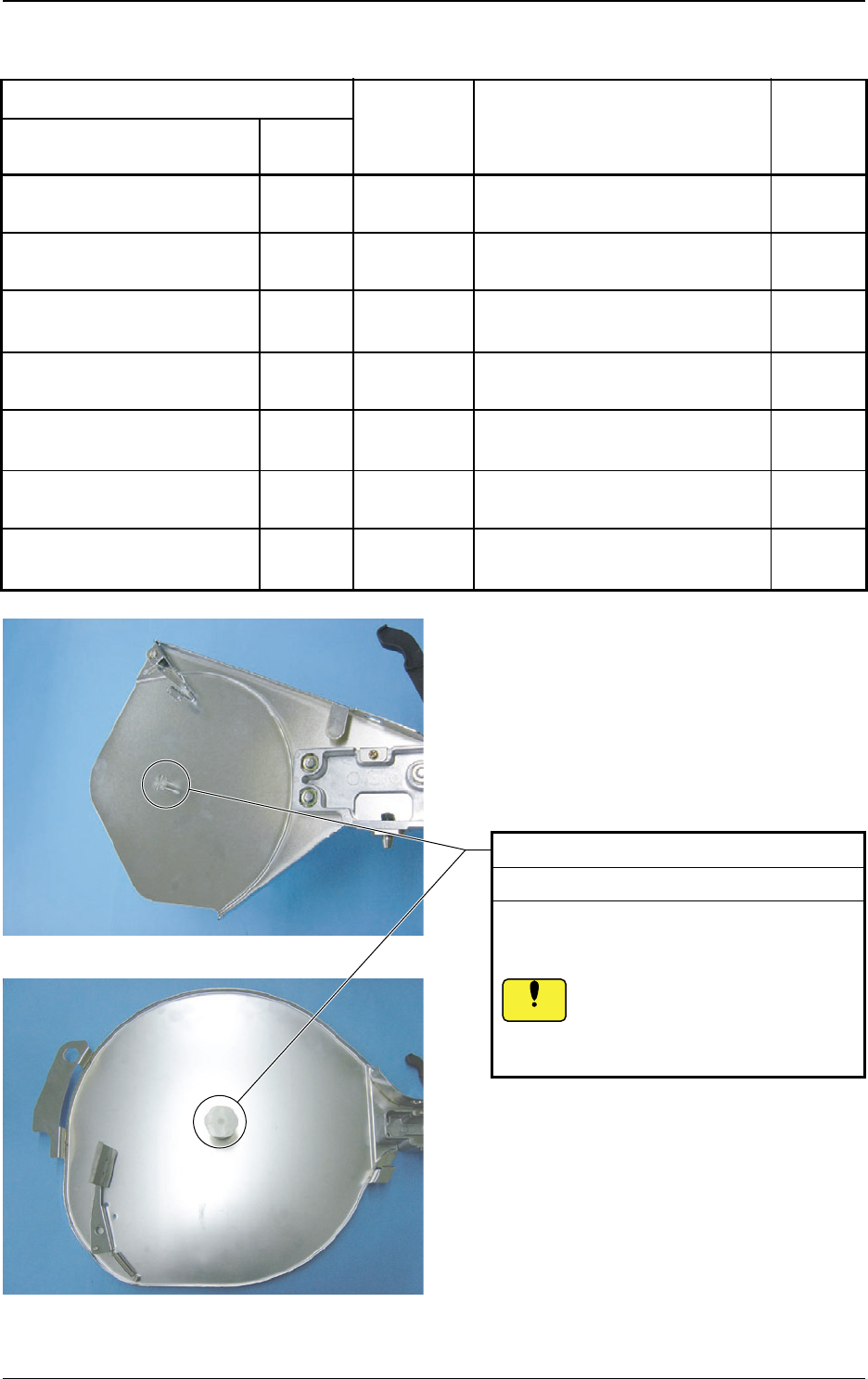

Fig. 62
0410-002 38
5.3 Maintenance Method
Table 6
Notice
Reel Fulcrum Pin
Check and Clean with Each Product Change
Make sure there is no dirt (powder caused by
reel abrasion) on the reel fulcrum pin.
If dirty, remove it with a rag or air gun.
If the tape is fed while soiled
by reel abrasion, it might stick to
the greased section and so cause
a pick-up error.
Small Reel Holder
Large Reel Holder
Reference
Drawing
Work Working Tools
Rag, Air GunFig. 62
Check,
Cleaning
Rag, Air Gun
Fig. 63 Air Gun, BrushCheck,
Cleaning
Fig. 64 Check,
Cleaning
Name
Reel Fulcrum Pin
Chute Section
Tape End Detection Reflector
Location to be maintained
Check
Fig. 65 Air Gun, Tweezers, Cotton SwabCheck,
Cleaning
Suppressor
Fig. 66 Rag, Air GunCheck,
Cleaning
Tape Peeling Section in Shutter
Assembly
Fig. 67 Rag, Air Gun, Tweezers, ToothbrushCheck,
Cleaning
Sprocket
Fig. 68 Rag, Air Gun, Tweezers
Check,
Cleaning
Shutter Driving Pin
Tg0409-PM-SO

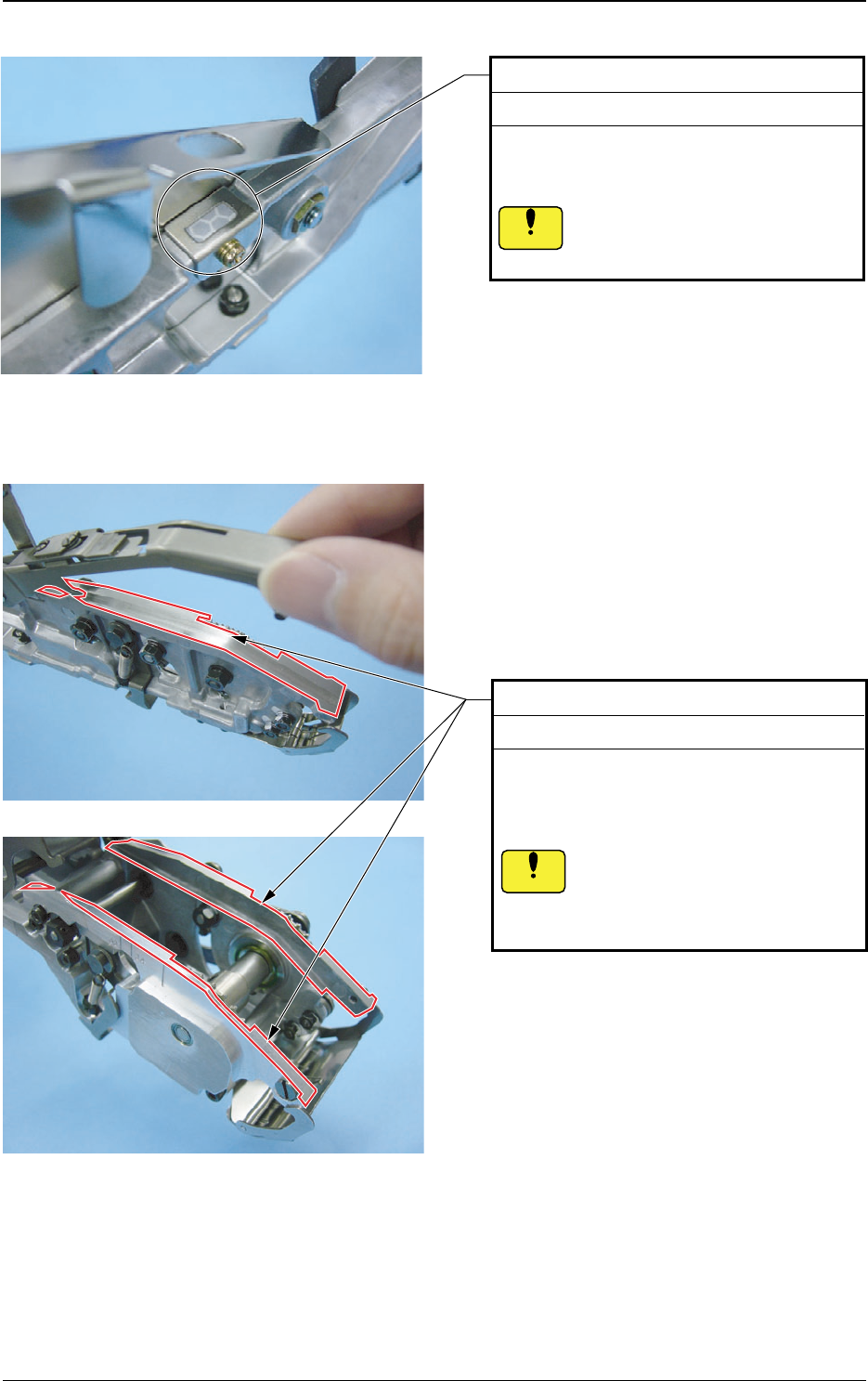

Fig. 63
0410-002 39
5.3 Maintenance Method
Fig. 64
Tape End Detection Reflector
Check and Clean with Each Product Change
Make sure that the tape end detection reflector
is not dirty.
If dirty, remove it with an air gun or brush.
If the tape end detection reflector
is dirty, the tape end might not be
detected.
Notice
For Tape Feeder of 32 or 44 mm Width
(Photo of TF-4411)
Chute Section
Check and Clean with Each Product Change
Make sure there is no foreign substance (chip
component or dust) on the chute section.
If any foreign substance is adhered, remove it
with a rag or air gun.
If the tape is set with any foreign
substance adhered, it might cause
a suppressor deformation or
pick-up error.
Notice
