Tg0409-PM-SO Fig. 77 0410-002 50 Apply grease on the section of . 5.3 Maintenance Method Note T ape Feeder of 8 mm Width T ape Feeders of 12 mm Width or more Suppressor Holding Lever Fulcrum Pin Every month Lubrication R…
Tg0409-PM-SO
Fig. 76
0410-002 49
Apply grease on the section of .
5.3 Maintenance Method
• For tape feeders of 12 mm width or more
Note
Take-up Reel Socket
Take-up Reel Feed Spring
On the other side
Sliding Section
Fulcrum Pin Sliding Section of Tape
Take-up Link (Including TF-0814)
Every month Lubrication
Work it using the following procedure.
1. Remove the take-up reel socket and take-up
reel feed spring, in that order.
2. Remove the sliding section of the tape
take-up link from the feed lever.
3. Apply New Molynoc Grease No. 1 where
needed, using a thin bar.
4. Attach the sliding section of the tape take-up
link to the feed lever.
5. Attach the take-up reel feed spring and the
take-up reel socket, in that order.

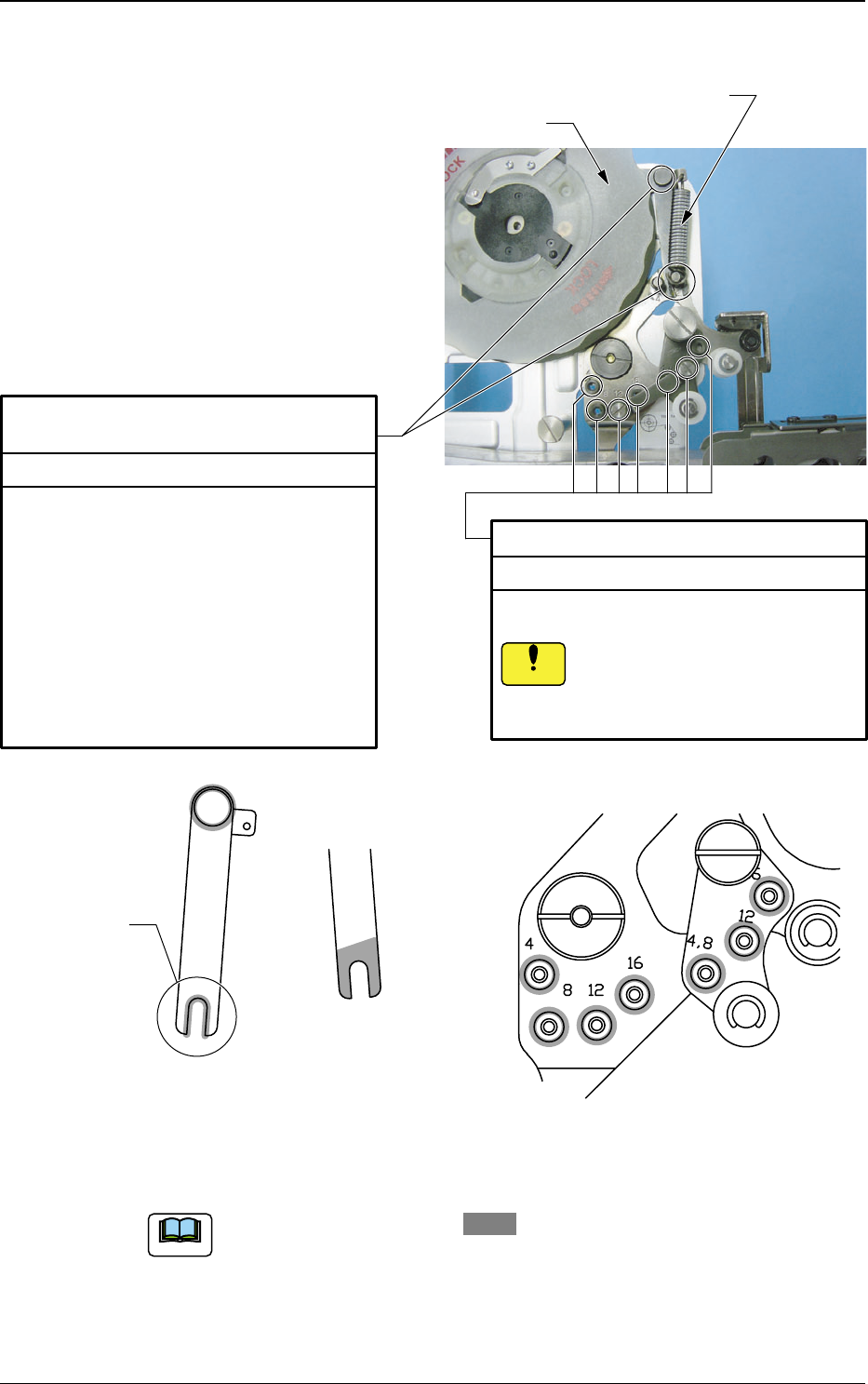

Slack Link Selection Section
Every month Lubrication
Remove the slack link, apply New Molynoc
Grease No. 1 with a thin bar.
Do not apply grease where it is
not necessary, dust or fibers might
adhere there and so might cause
a pick-up error.
Notice
Tg0409-PM-SO
Fig. 77
0410-002 50
Apply grease on the section of .
5.3 Maintenance Method
Note
Tape Feeder of
8 mm Width
Tape Feeders of
12 mm Width or more
Suppressor Holding Lever Fulcrum Pin
Every month Lubrication
Remove the fulcrum pin from the suppressor
hook section and apply New Molynoc Grease
No. 1, using a thin bar.
After so greasing, move the suppressor holding
lever several times to ensure a smooth coating.
Tape Feeder of
8 mm Width
Tape Feeders of
12 mm Width or more

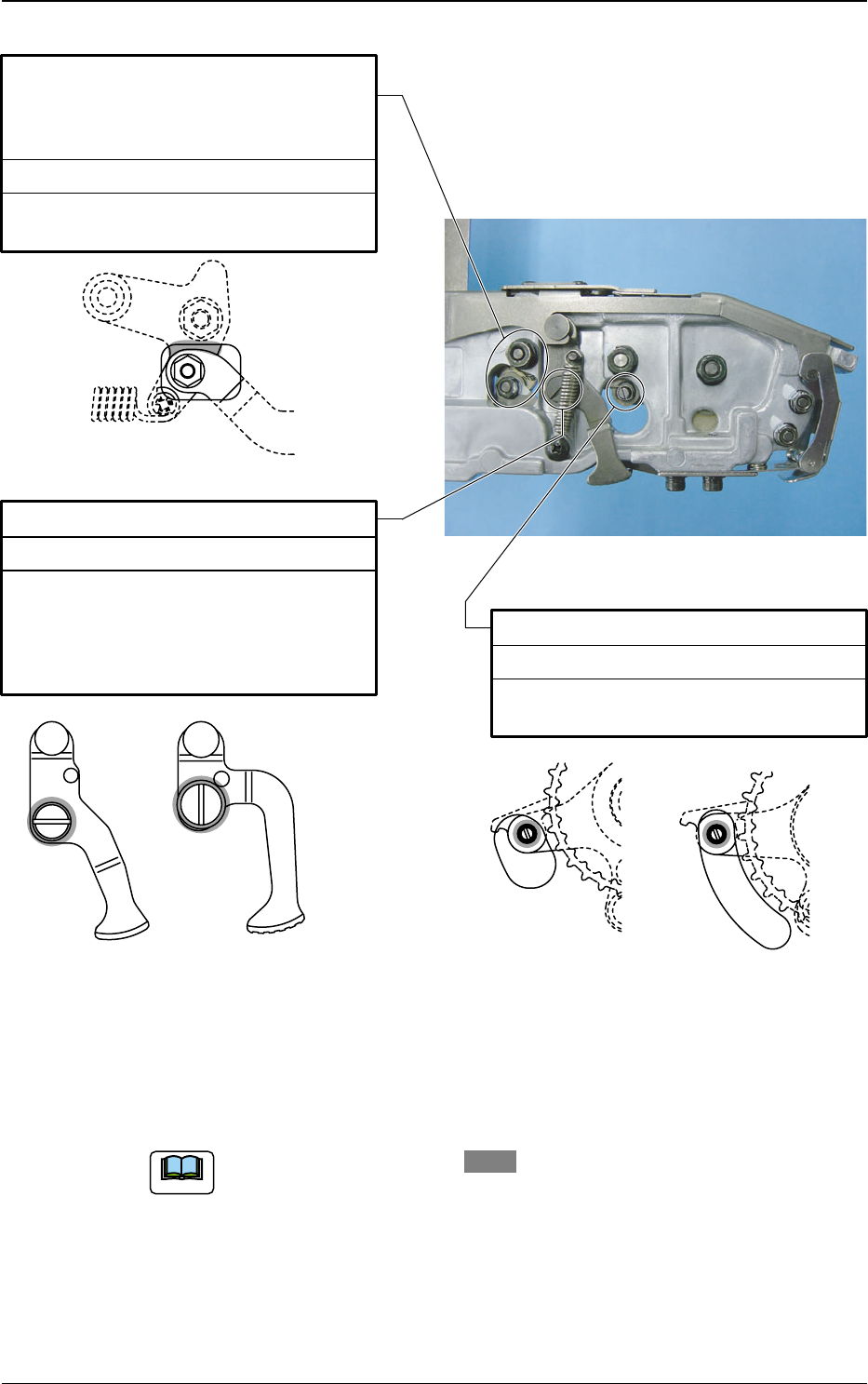

Transfer Claw Fulcrum Section
Every month Lubrication
Apply New Molynoc Grease No. 1 from
the opening, using a thin bar.
Tape Feed Link Assembly Fulcrum Section,
Pick-up Position Adjustment Section
(Only for the tape feeder of 8mm width,
except for TF-0814)
Every month Lubrication
Apply New Molynoc Grease No. 1 from
the opening, using a thin bar.
Tg0409-PM-SO0410-002 51
5.3 Maintenance Method
Fig. 78
Apply grease on the section of .
Note
Locating Notch Fulcrum Pin
Every month Lubrication
Apply New Molynoc Grease No. 1 with a thin
bar.
Overrun Stopper Fulcrum Pin
Every month Lubrication
Apply New Molynoc Grease No. 1 with a thin
bar.
Tape Feeder of
8 mm or 12 mm Width
Tape Feeders of
16 mm Width or more
Overrun Stopper
Every month Lubrication
Apply New Molynoc Grease No. 1 with a thin
bar.
