Tg0409-PM-SO • For tape feeders of 12 mm width or more 0410-002 53 5.3 Maintenance Method Oil port (Note b) T ape Feed Link Assembly Fulcrum Pin Every month Lubrication Apply New Molynoc Grease No. 1 using a thin bar . N…
Tg0409-PM-SO

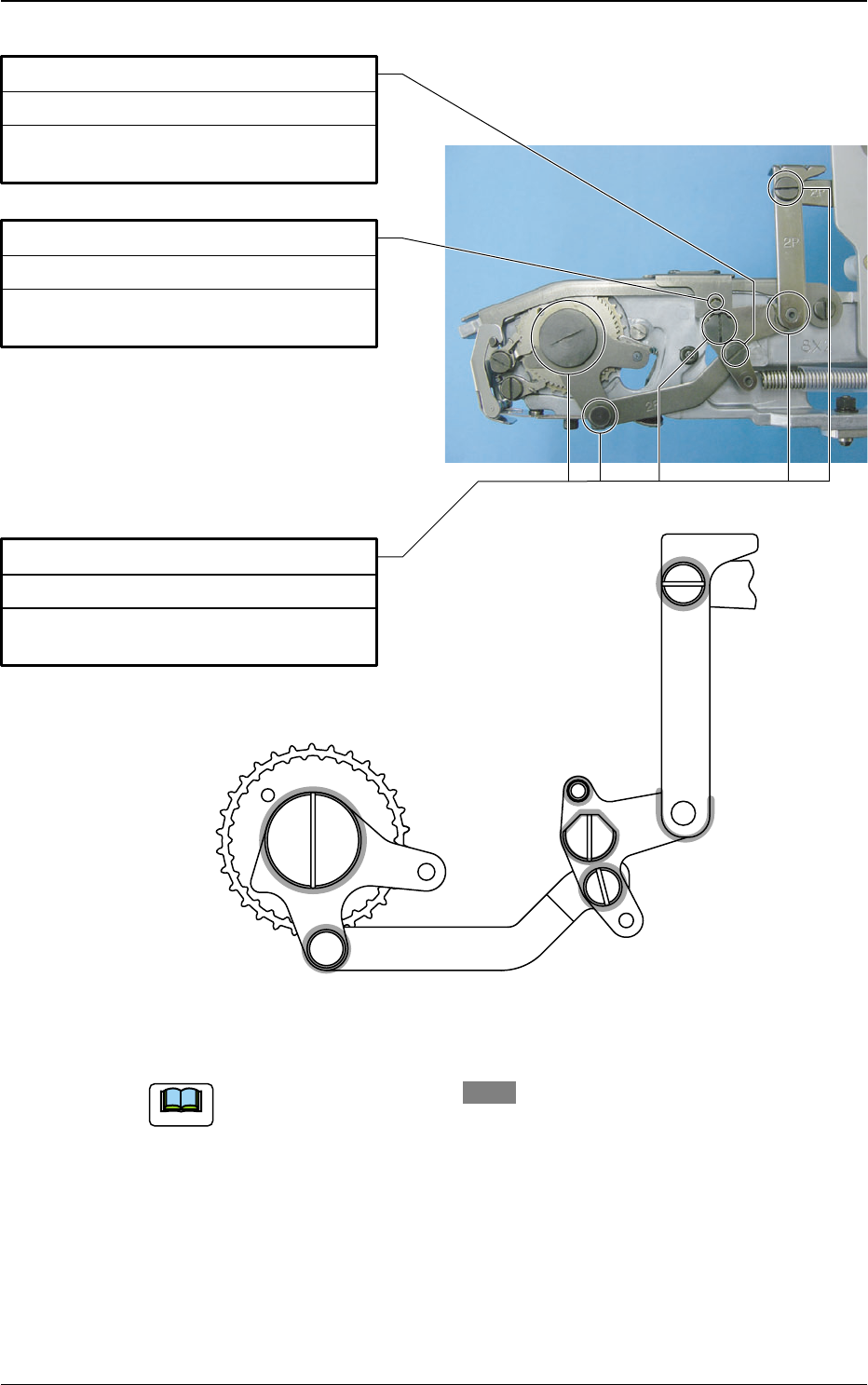

Fig. 79
0410-002 52
5.3 Maintenance Method
Shutter Driving Pin
Every month Lubrication
Open the suppressor and apply New Molynoc
Grease No. 1 using a thin bar.
Tape Feed Link Assembly Fulcrum Pin
Every month Lubrication
Apply New Molynoc Grease No. 1 using a thin
bar.
Pick-up Position Adjustment Pin
Every month Lubrication
Apply New Molynoc Grease No. 1 using a thin
bar.
Apply grease on the section of .
Note
Tg0409-PM-SO
• For tape feeders of 12 mm width or more
0410-002 53
5.3 Maintenance Method
Oil port (Note b)
Tape Feed Link Assembly Fulcrum Pin
Every month Lubrication
Apply New Molynoc Grease No. 1 using a thin
bar.
Notice
Pitch Selecting Section on Swing Arm
Every month Lubrication
Apply New Molynoc Grease No. 1 using a thin
bar.
Do not apply grease where it is
not necessary, dust or fibers might
adhere there and so might cause
a pick-up error.
Tape Feed Link (Note c)
Remove
Shutter Driving Pin
Every month Lubrication
Open the suppressor and apply New Molynoc
Grease No. 1, using a thin bar.

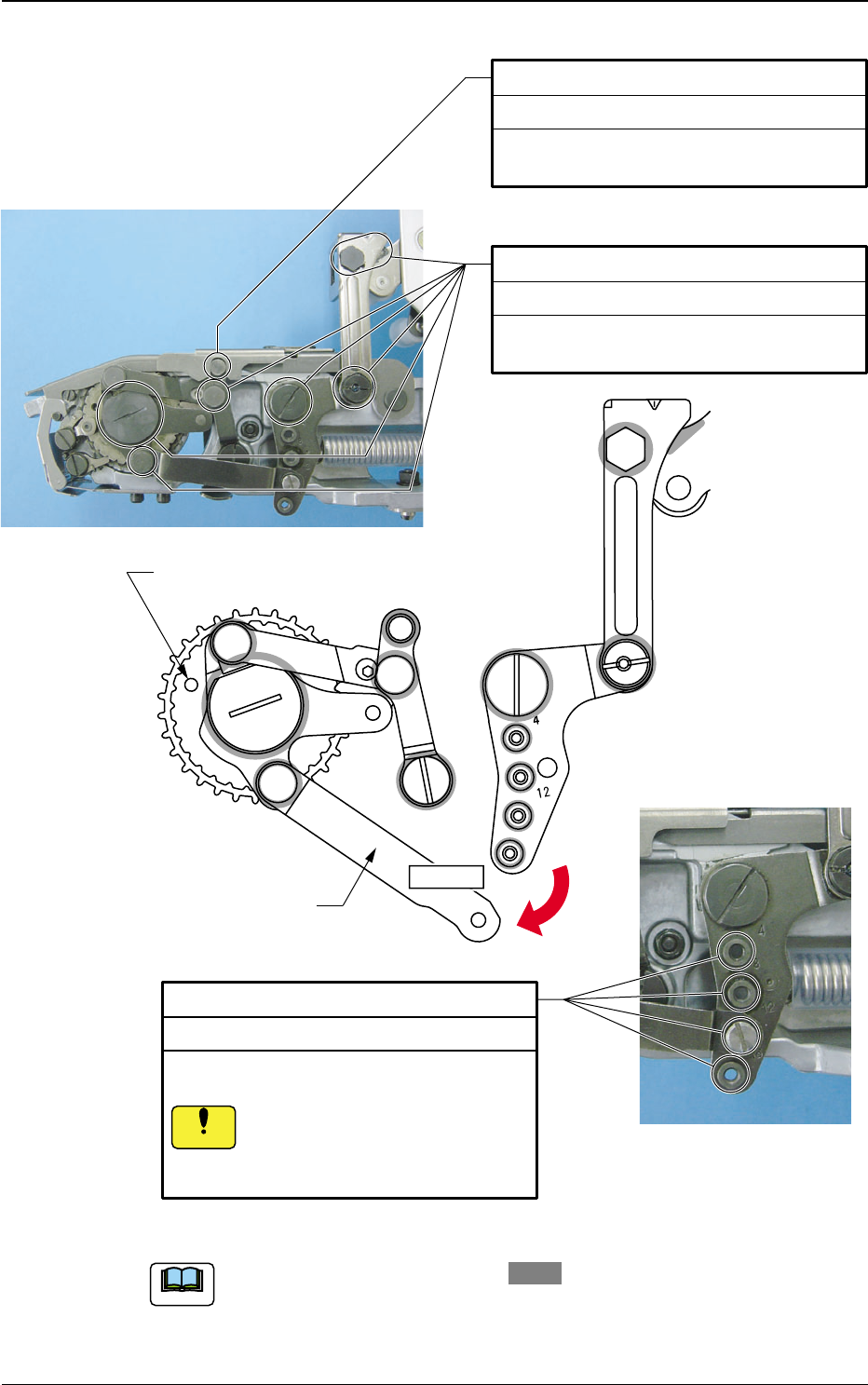

Fig. 80
(a) Apply grease on the section of .
(b) Also supply grease from the oil port.
(c) Remove the tape feed link from the swing arm pitch selecting
section, and apply grease.
Note
Tg0409-PM-SO0410-002 54
5.3 Maintenance Method

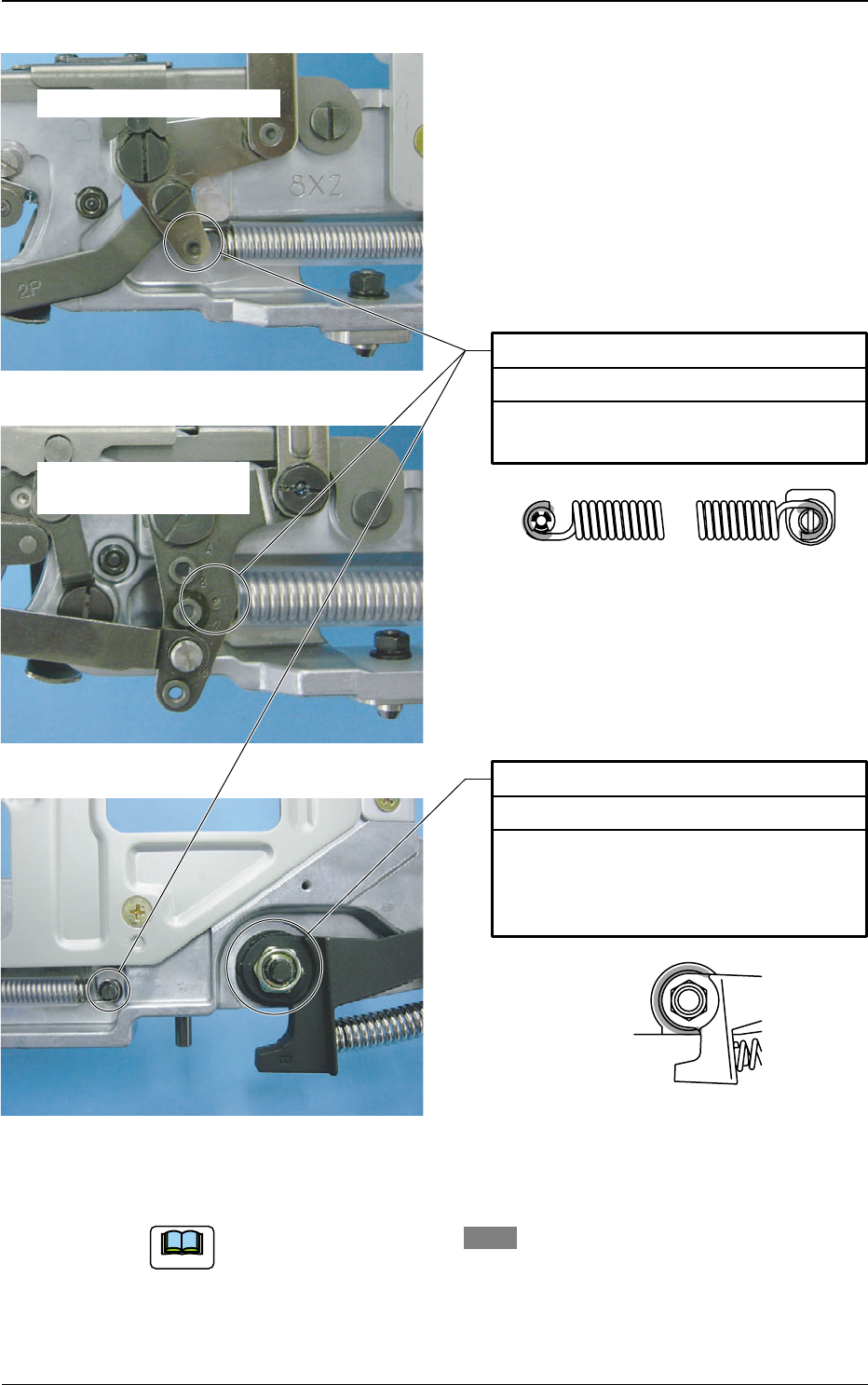

Fig. 81
Locating Lever Fulcrum Section
Every month Lubrication
Apply New Molynoc Grease No. 1 using a thin
bar.
After applying grease, move the locating lever
to ensure a smooth coating.
Tape Feeder of 8 mm Width
Tape Feeders of 12 mm
Width or more
Tape Feed Spring
Every month Lubrication
Apply New Molynoc Grease No. 1 using a thin
bar.
Apply grease on the section of .
Note
