Tg0409-PM-SO 7. T roubleshooting The main troubleshooting during the tape feeder operation is described here. In the event of trouble, confirm in which section the trouble is caused and set it right. 7.1 Component Pick-u…

Tg0409-PM-SO0410-002 70

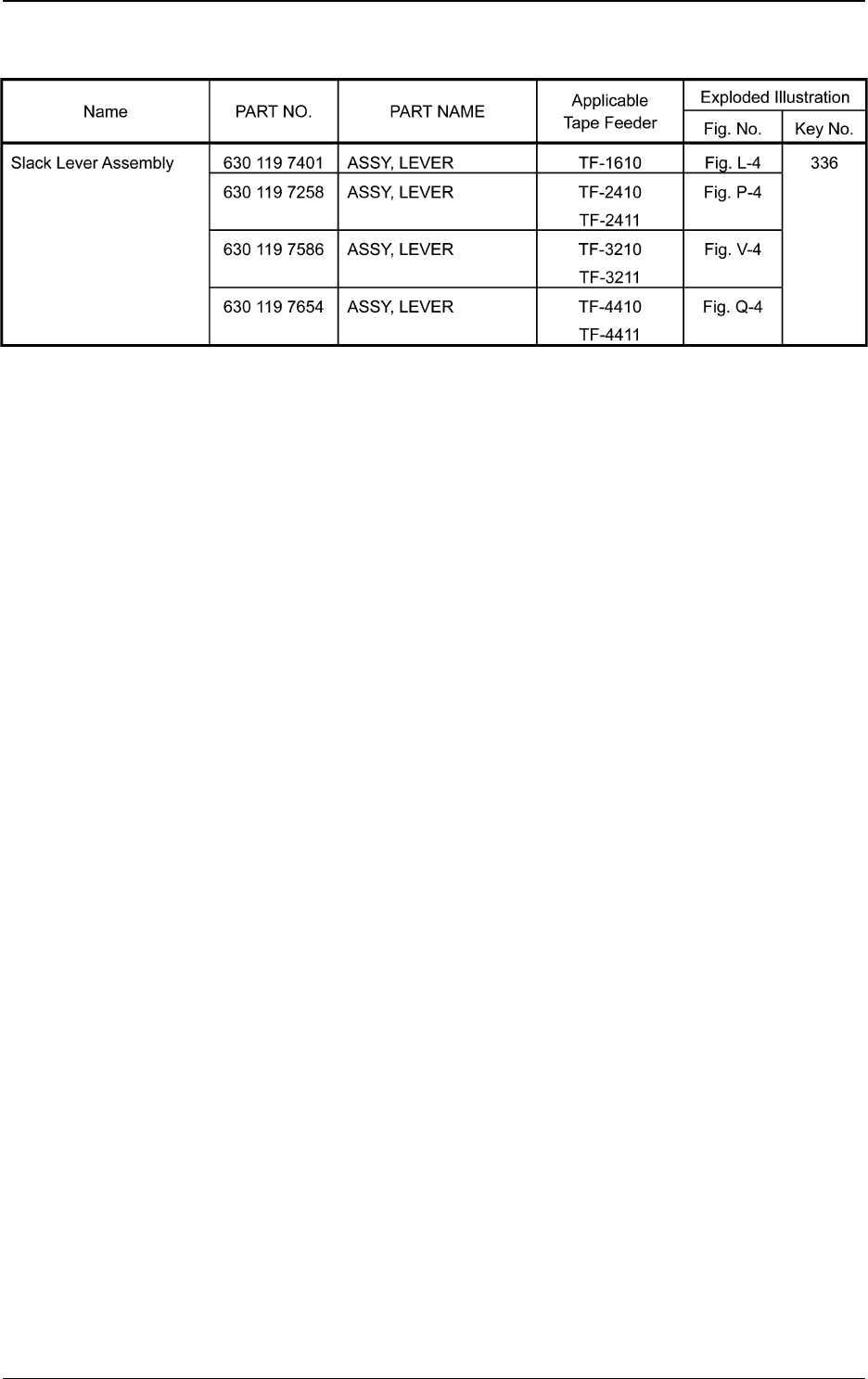

Table 10-10

6. Maintenance Component List

Tg0409-PM-SO

7. Troubleshooting

The main troubleshooting during the tape feeder operation is described here.

In the event of trouble, confirm in which section the trouble is caused and

set it right.

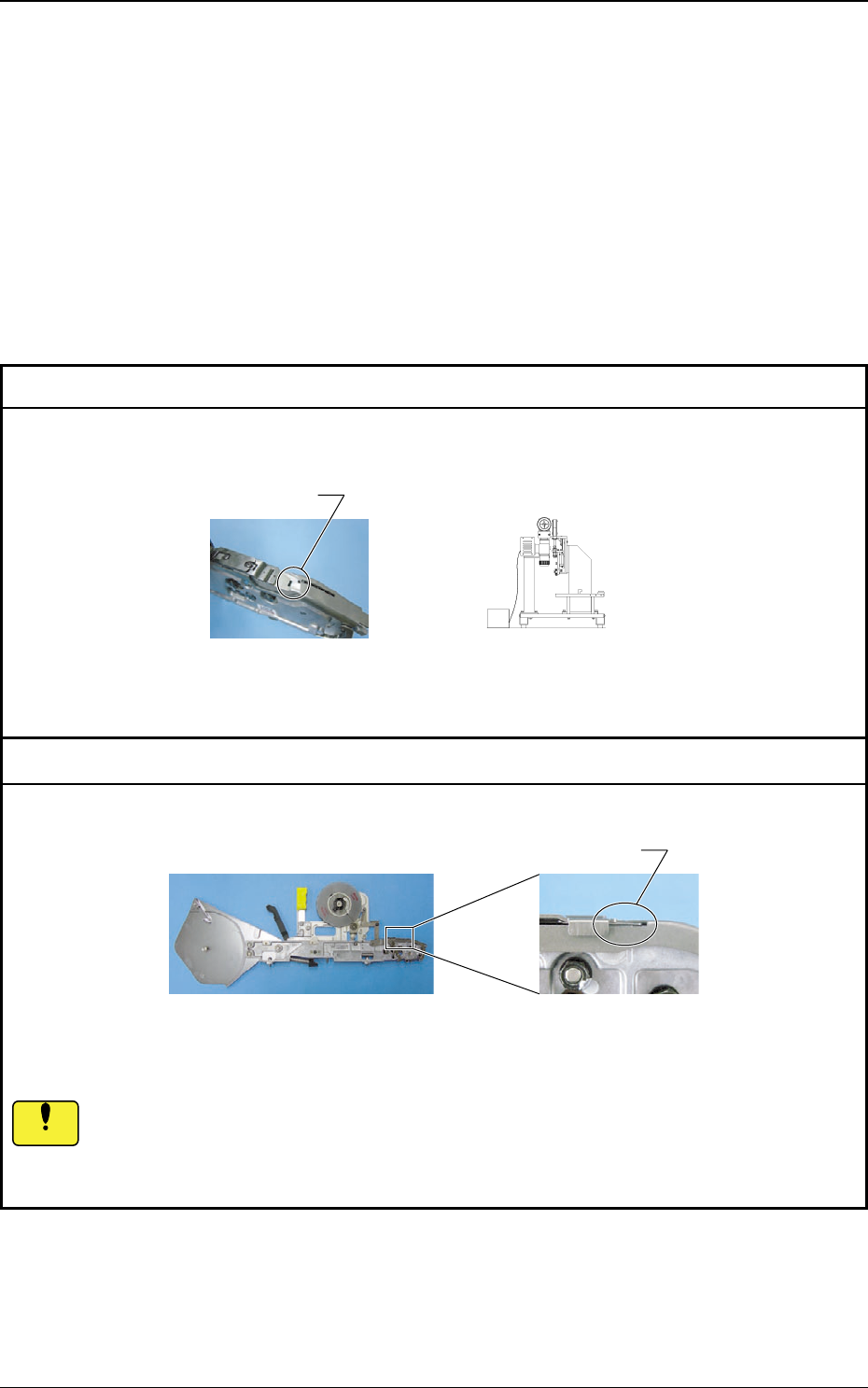

7.1 Component Pick-up Error

7.1.1 Component not correctly picked up in a certain tape feeder

0410-002 71

7. Troubleshooting

Table 11-1

Cause : Error in Pick-up Position

Cause : Shutter deformed

Remedy : Adjust the pick-up position by using the feeder adjusting jig JG-0148.

Refer to the instruction manual for the feeder adjusting jig JG-0148 for details.

Reference Page : Page 58

Feeder Adjusting Jig JG-0148

Pick-up Position

Remedy : Replace the shutter.

Reference Page : Page 13, 15, 59, and 62

If the component pick-up rate is degraded on the tape feeder during operation, the shutter

might be deformed.

If the shutter deformation (rise) is confirmed, replace the suppressor.

Notice

Shutter

Tg0409-PM-SO0410-002 72

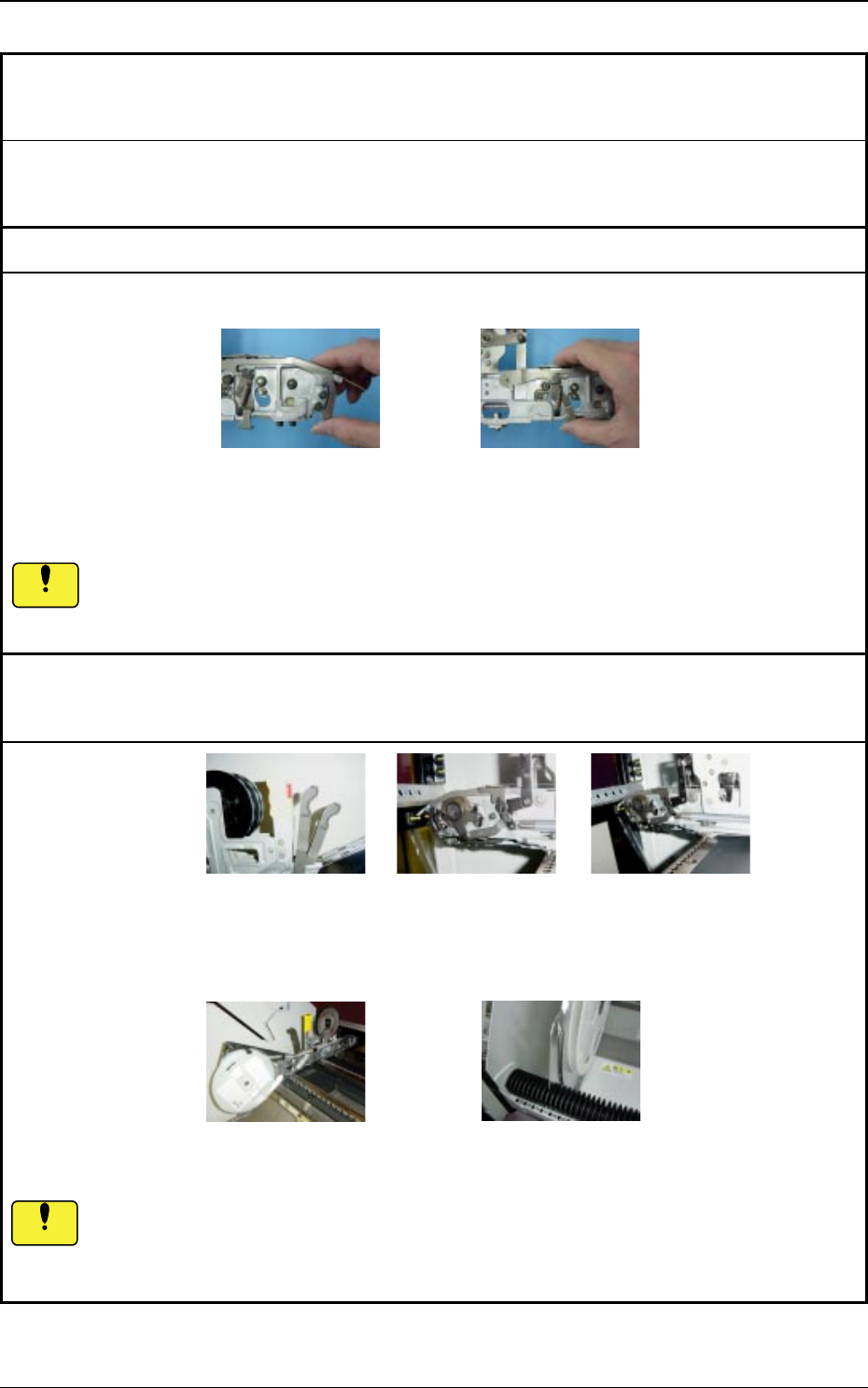

7.1 Component Pick-up Error

Table 11-2

Cause : Tape feeder not correctly set on the feeder carriage of the

chip mounter (TCM-X series)

Remedy : Set the tape feeder correctly on the feeder carriage of the chip mounter (TCM-X

series) according to the instruction manual.

Reference Page : Pages 24 to 30

If the tape feeder is used while it is rising, then that might damage the machine or lead to

pick-up error.

Attach the tape feeder securely to the feeder carriage.

(Error in locate lever attachment position, causing tape feeder to rise)

Notice

Cause : Tape feeder to be used is not matched with the compo-

nent

Cause : Suppressor not correctly set

Remedy : Use the component which is correct for the tape feeder.

Reference Pages: Pages 78 to 98

Remedy : Set the suppressor correctly, as indicated in the instruction manual.

Reference Page : Page 9 and 16

If the suppressor holding lever comes off while the tape feeder is in use, then it might cause

damage to the machine or cause a pick-up error.

Attach the suppressor holding lever correctly.

Front Hook Attachment Suppressor Holding Lever Attachment

Notice
