7.2 Tape not fed

Table 13-1

7.2 Tape not fed

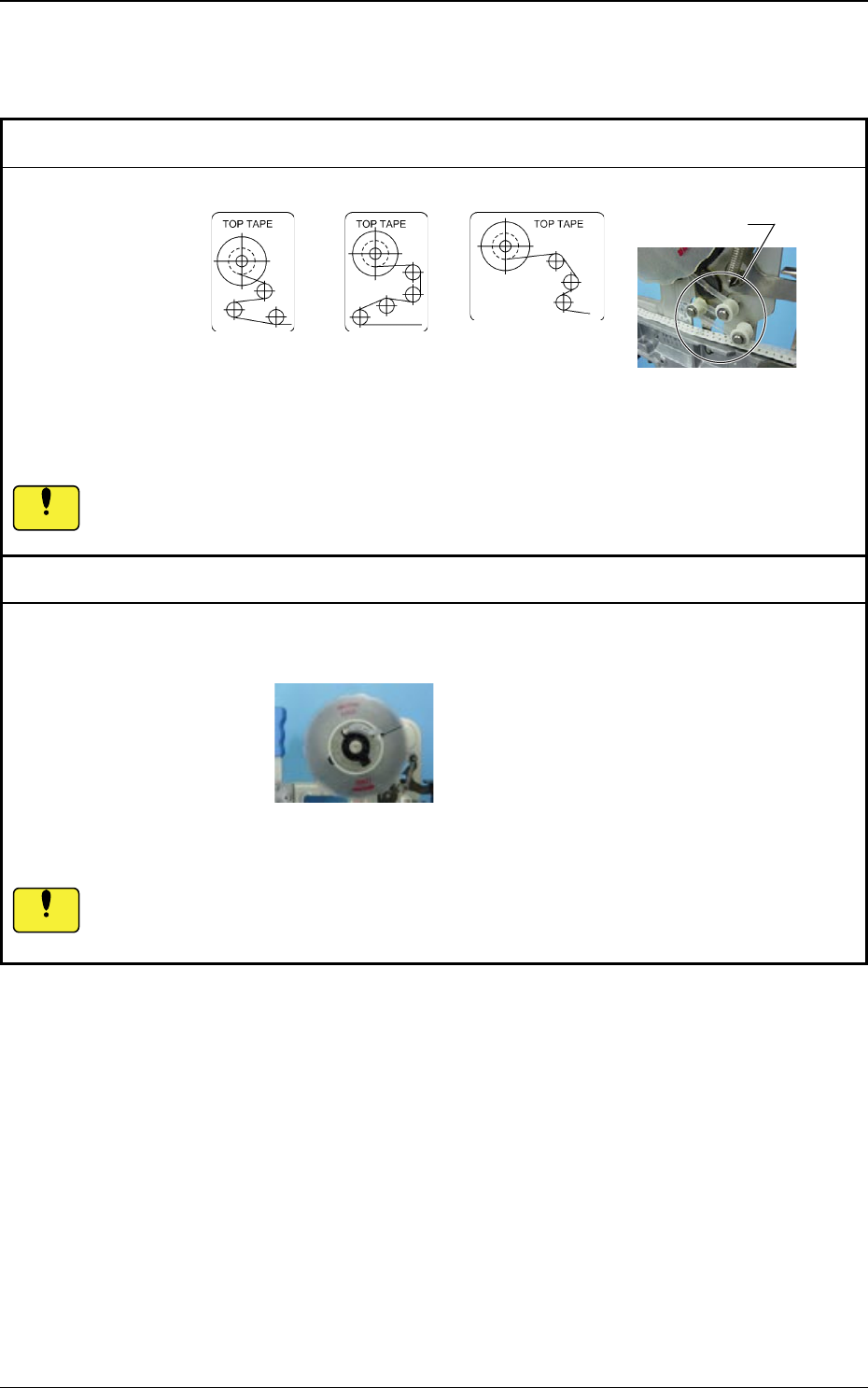

Remedy : Wind the cover tape around correctly, as in the instruction seals.

Reference Page :17

If the cover tape is not wound around correctly, it might cause a take-up error or feeding

error.

Cause : Cover tape not correctly wound around the roller section

Roller Section

Instruction Seals

Notice

Cause : Take-up reel socket not correctly set

Remedy : Align the reel drive locking position with the plate spring locking position, and

attach the take-up reel socket.

Reference Page :18

If the take-up reel socket is set incorrectly, it might come off during operation, and so might

cause malfunction.

Notice

Tg0409-PM-SO0410-002 75

Table 13-2

7.2 Tape not fed

Remedy : Replace the suppressor.

Reference Page : Pages 13, 15, 59 and 62

If the cover tape is too forcibly pulled out from the suppressor (tape peeling section), it

might be deformed.

Do not pull it so forcibly, but slowly lift the suppressor and so pull the cover tape out from it.

Take the greatest care in handling the suppressor (tape peeling section).

Cause : Loosen attached cover tape

Remedy : Turn the take-up reel to tense the cover tape.

Reference Page : Pages 19

If there is any sag on the cover tape, it might cause a pick-up error or feeding error.

Sag on the cover tape

Cause : Tape sprocket holes do not match with the sprocket pins

Cause : Tape peeling section deformed

Correctly tensed cover tape

Remedy : Align the tape sprocket holes with the sprocket pins.

Reference Page : Page 14

Cause : Tape feed spring lost its elasticity

Remedy : Replace the tape feed spring.

Reference Page : Pages 60 and 65

Tape Peeling Section

Notice

Tg0409-PM-SO0410-002 76

7.3 Cover Tape Caught

Table 14

7.3 Cover Tape Caught

Remedy : Replace the suppressor.

Reference Page : Pages 13, 15, 59 and 62

If the cover tape is too forcibly pulled out from the suppressor (tape peeling section), it

might be deformed.

Do not pull it so forcibly, but slowly lift the suppressor and so pull the cover tape out from it.

Take the greatest care in handling the suppressor (tape peeling section).

Cause : Tape peeling section deformed or scratched

Cause : Old tape is being used

Remedy : Replace with new tape.

Reference Page :-

When a tape becomes old, its characteristics are changed, e.g., its tolerance and adhesive

strength.

Tape Peeling Section

Notice
