Tg0409-PM-SO 0410-002 77 7.4 T ape cannot be set correctly T able 15 7.4 T ape cannot be set correctly Remedy : Replace the front hook. Reference Page : Pages 59 and 61 If the front hook at the tape feeder end is bumped,…

Tg0409-PM-SO0410-002 76

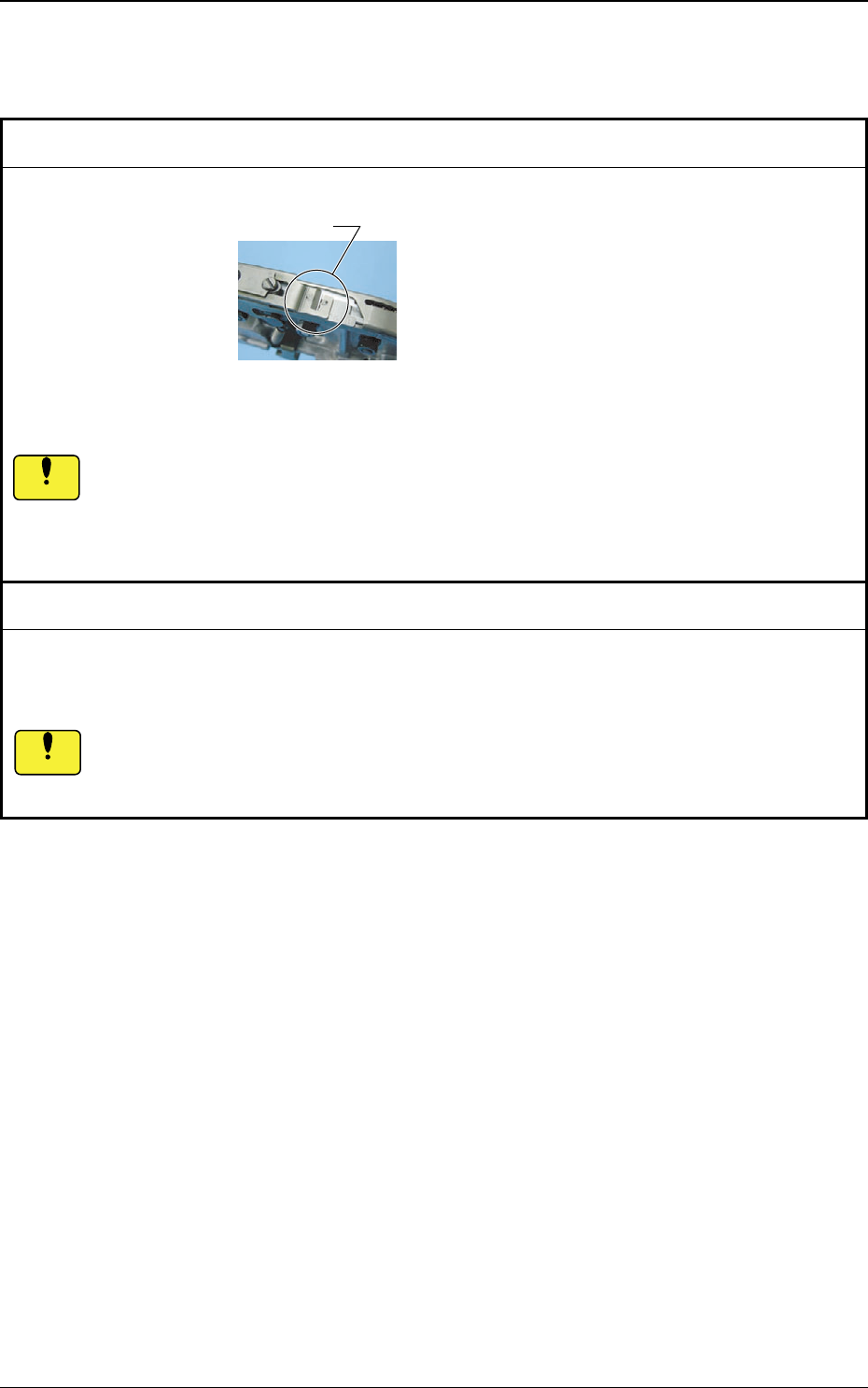

7.3 Cover Tape Caught

Table 14

7.3 Cover Tape Caught

Remedy : Replace the suppressor.

Reference Page : Pages 13, 15, 59 and 62

If the cover tape is too forcibly pulled out from the suppressor (tape peeling section), it

might be deformed.

Do not pull it so forcibly, but slowly lift the suppressor and so pull the cover tape out from it.

Take the greatest care in handling the suppressor (tape peeling section).

Cause : Tape peeling section deformed or scratched

Cause : Old tape is being used

Remedy : Replace with new tape.

Reference Page :-

When a tape becomes old, its characteristics are changed, e.g., its tolerance and adhesive

strength.

Tape Peeling Section

Notice

Tg0409-PM-SO0410-002 77

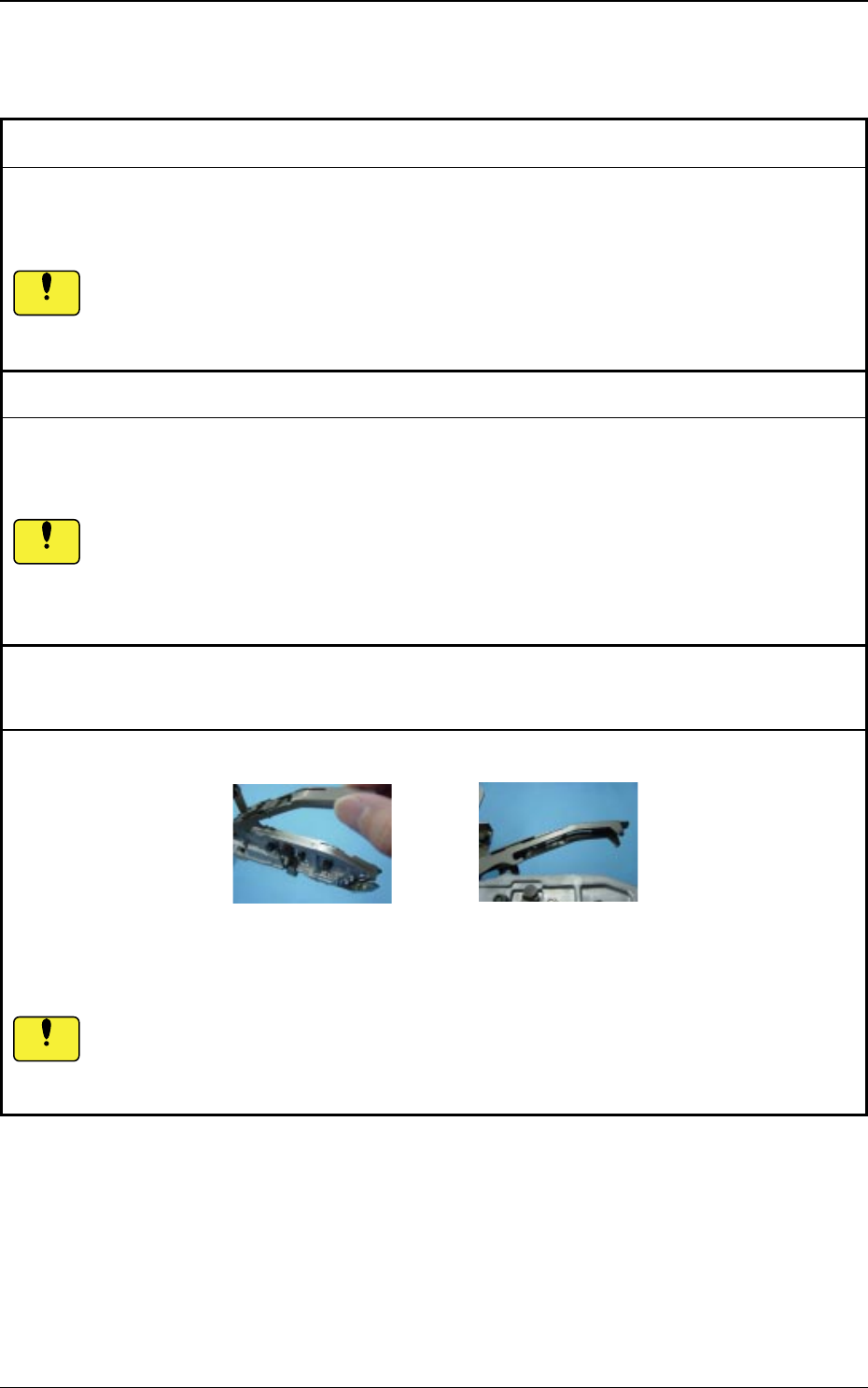

7.4 Tape cannot be set correctly

Table 15

7.4 Tape cannot be set correctly

Remedy : Replace the front hook.

Reference Page : Pages 59 and 61

If the front hook at the tape feeder end is bumped, it might be deformed.

That could lead to an insufficient holding load on the suppressor, which might in turn cause a

pick-up error. Take care not to bump the front hook.

Cause : Front hook deformed

Cause : As there is a foreign substance between the chute section

and the suppressor, the tape is not satisfactorily held.

Remedy : Clean the chute section and the suppressor and remove the foreign substance.

Reference Page : Pages 10, 39 to 40 and 43

If the tape is attached while any foreign substance is there, it might cause suppressor

deformation or pick-up error.

Always remove any foreign substance.

Chute Section Suppressor (Rear Side)

Cause :Deformed Suppressor

Remedy : Replace the suppressor.

Reference Page : Pages 59 and 62

The suppressor is an important component that can greatly affect the pick-up rate.

If the tape feeder is dropped and any excessive force falls on the suppressor, then the

suppressor might be deformed.

Take the greatest care to handle the suppressor.

Notice

Tg0409-PM-SO

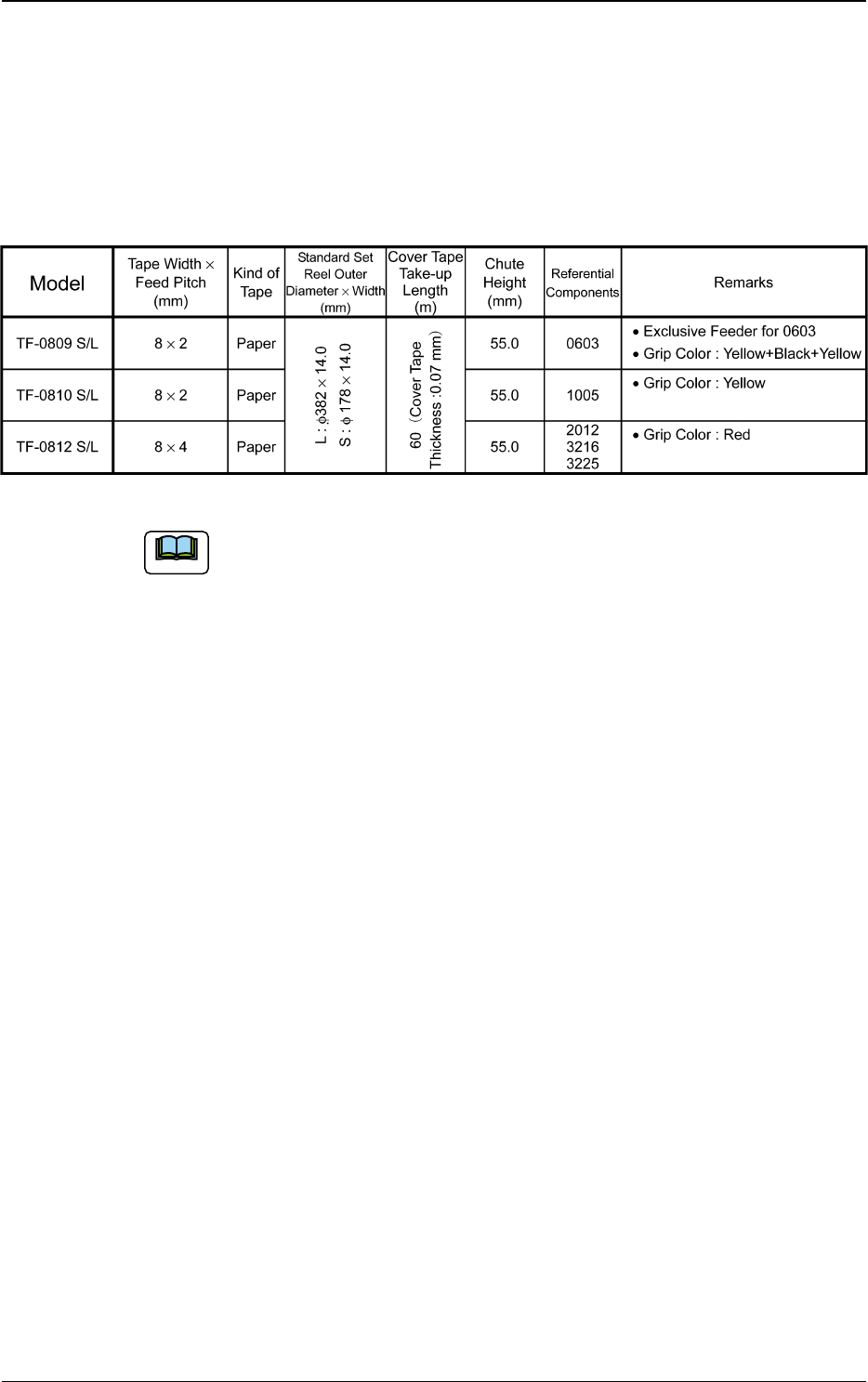

8. Specifications of Tape Feeders

8.1 Specifications of 8 mm Tape Feeders (For Paper

Tape)

0410-002 78

8. Specifications of Tape Feeders

Table 16

The sizes of the components entitled "Referential Components" differ

depending on the component makers.

The components are shown as types for your reference.

Note
