Tg0409-PM-SO 0410-002 7 2. Attachment and Detachment of T apes 2. Attachment and Detachment of T apes • T aking TF-0810 as an example, these procedures are here described. The same procedures apply to the other tape feed…

Tg0409-PM-SO0410-002 6

1.1 Types of Tape Feeders

Unit : mm

Fig. 1 8 mm Tape Feeder + Small Reel Holder

Fig. 2 8 mm Tape Feeder + Large Reel Holder

Tg0409-PM-SO0410-002 7

2. Attachment and Detachment of Tapes

• Taking TF-0810 as an example, these procedures are here described.

The same procedures apply to the other tape feeder models except for

those given special descriptions.

When proceeding with a tape feeders of 12

mm width or more, mount it onto the

attached feeder set jig.

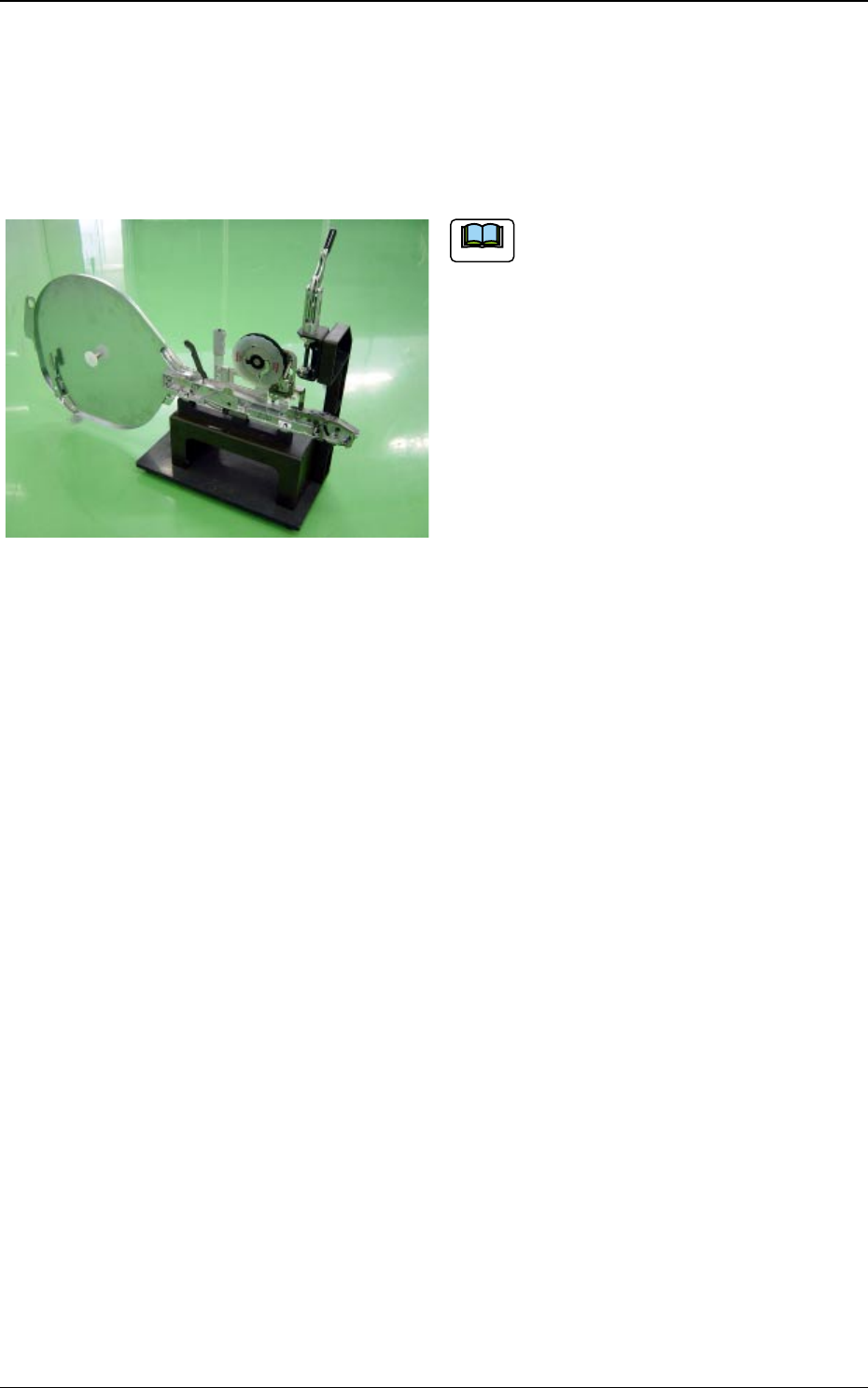

Fig. 3 Feeder Set Jig

Note

Tg0409-PM-SO

(1) Attach the reel by the reel fulcrum pin.

Make sure that there is no dirt (or powder

caused by reel abrasion) on the reel fulcrum

pin.

If dirty, clean it with a rag or air gun.

If the tape is fed while soiled by reel

abrasion, it might stick to the greased

section and so cause a pick-up error.

0410-002 8

2.1 Attachment of Tapes

Fig. 4 Reel Attachment

2.1 Attachment of Tapes

Reel Fulcrum Pin Reel

Reel Holding Lever

Move it in the direction

of the arrow, according

to the size of the reel.

Fig. 5

Notice

With large reel holders, change the reel

holding lever position, depending on the

size of the reel.

Note
