Tg0409-PM-SO T able 22 0410-002 87 8.4 Specifications of 16 mm T ape Feeder (For Embossed T ape) 8.4 Specifications of 16 mm T ape Feeder (For Embossed T ape)

100%1 / 105
Tg0409-PM-SO

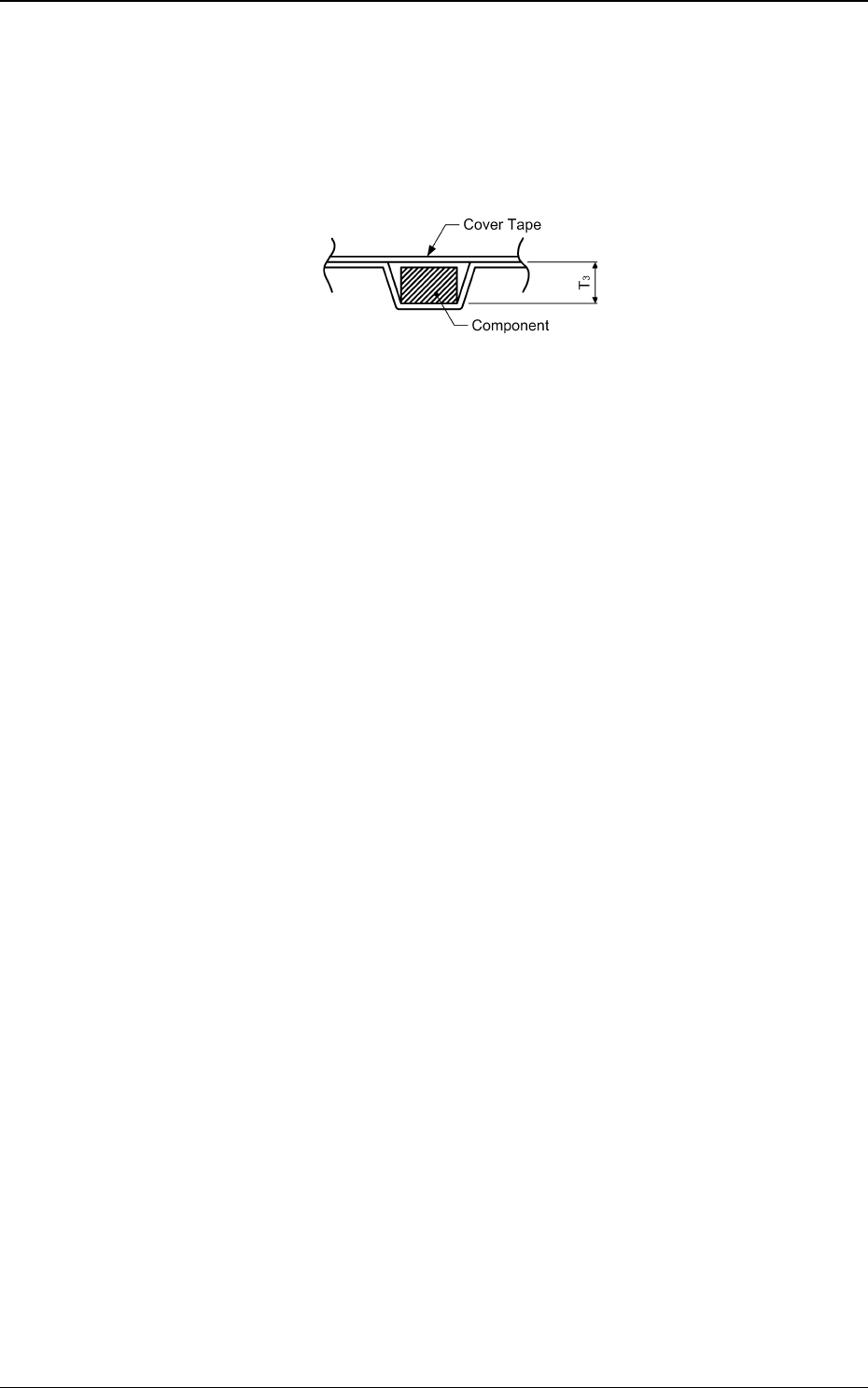

Fig. 98
(f) Use a taping on condition that the component itself or its electrical contact
is not protruded from the upper surface of tape.
Embossed Taping
"Embossed depth (T3) > Component thickness"
(g) Shown in column "t" is the gap between the component pick-up and chute
surfaces.
As the gap can be adjusted by the stroke control, set the pick-up level data
in the component library data.
If dimension "t" is big, components may not stay still or may be tilted. Be
sure to adjust the dimension for the appropriate one in the range of values
specified in the table.
(h) The shape of component pick-up surface should be wide and smooth
enough to be picked up by vacuum nozzles.
(i) Cover tapes sometimes become thicker than expected due to leafy and
fluffy leftovers produced through the production process. However, the
overall thickness should not exceed the value described as "T2" in the
table.
0410-002 86
8.3 Specifications of 12 mm Tape Feeder (For Embossed Tape)
Tg0409-PM-SO

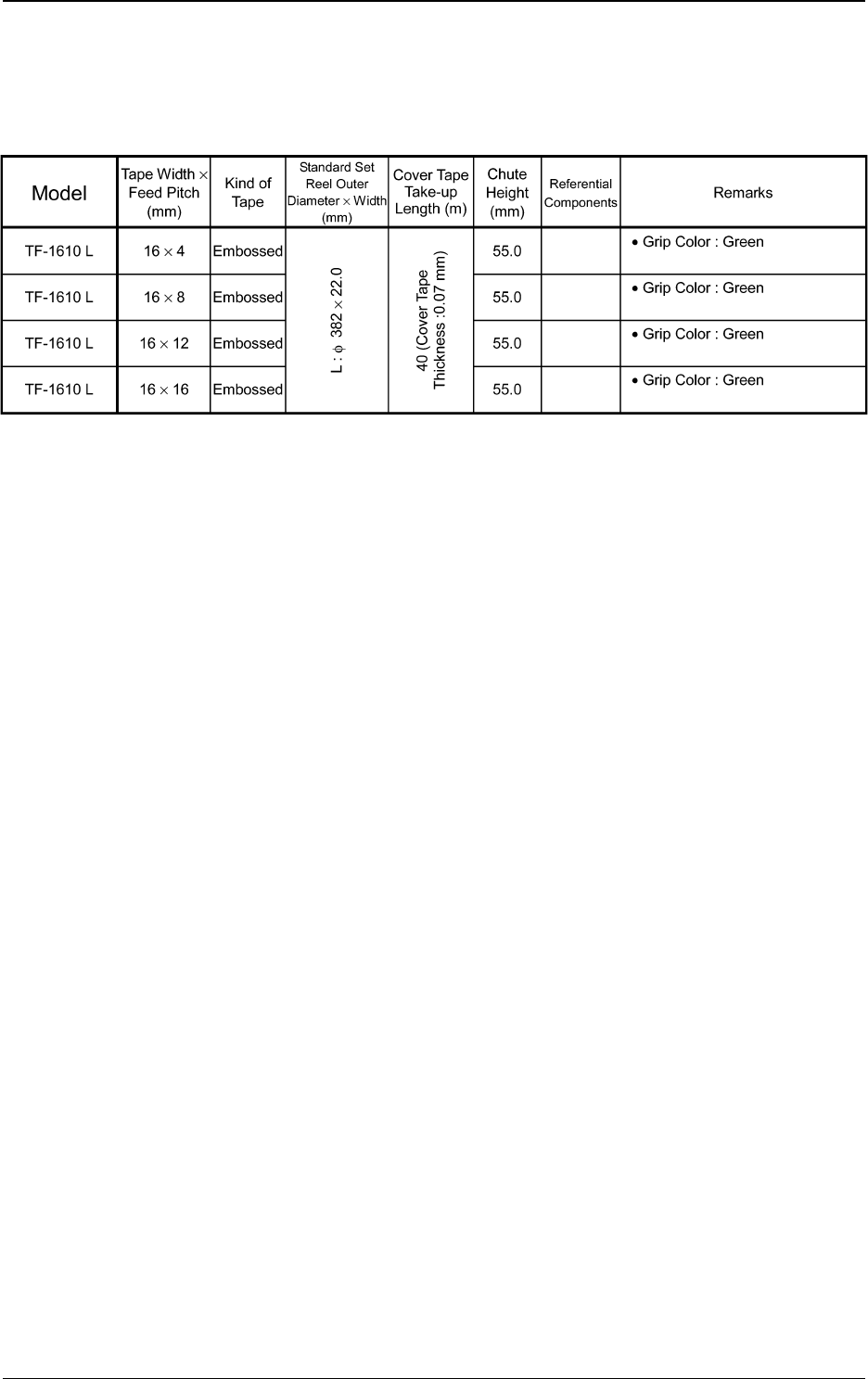

Table 22
0410-002 87
8.4 Specifications of 16 mm Tape Feeder (For Embossed Tape)
8.4 Specifications of 16 mm Tape Feeder (For Embossed
Tape)
Tg0409-PM-SO

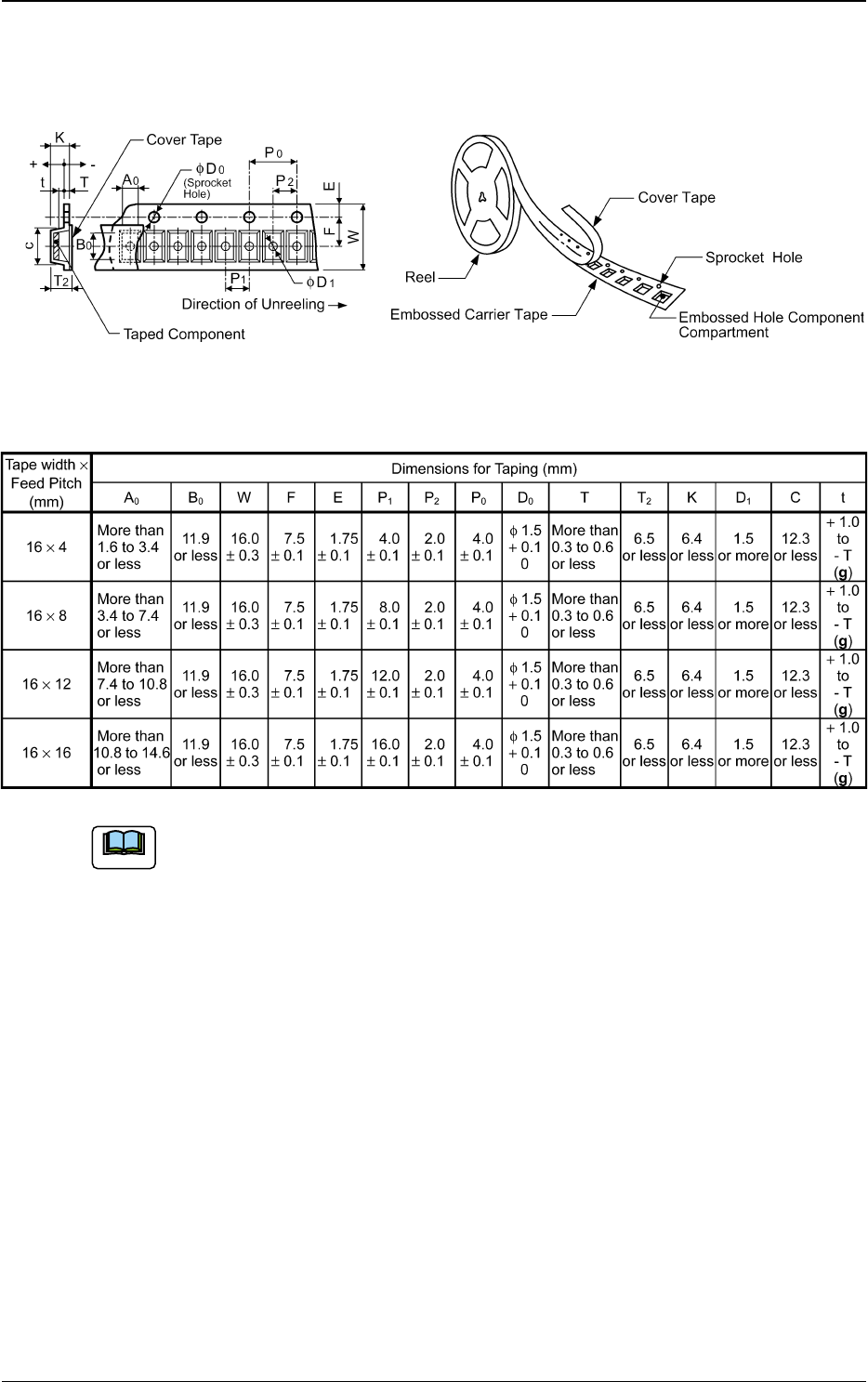

Fig. 99 Fig. 100
Table 23
Embossed Carrier Type Taping
(a) A0 × B0 stands for the rectangle hole size on the tape.
The clearance between a rectangle hole and a component affects the pick-
up rate. Use the taping component with appropriate clearance specifica-
tions.
(b) The above specifications do not imply any guarantee of pick-up rate, etc.
The pick-up rate varies depending on how the main machine is adjusted
and the combination of the main machine and the tape feeders.
(c) Make a hole (D1) in the cavity if necessary.
(d) 10 pitches cumulative tolerance P0 should be ± 0.2 mm.
(e) The cover tape should run smoothly along the sprocket holes. The edges
of the cover tape should be aligned with the carrier tape (taping).
The thickness of the cover tape should be 0.07 mm or less (including
adhesion).
0410-002 88
8.4 Specifications of 16 mm Tape Feeder (For Embossed Tape)
8.4.1 Referential Dimension for Taping
Note
