SAMSUNG TECHWIN Page 105 CP45NEO E lectric Device Ass’y (2/2) 6 16 17 18 19 10 9 11 12 25 27 A A
SAMSUNG TECHWIN
Page
104
CP45NEO
Electric Device Ass’y (1/2)
20
21
3
7
8
4
5
23
24
SAMSUNG TECHWIN
Page
105
CP45NEO
Electric Device Ass’y (2/2)
6
16
17
18
19
10
9
11
12
25
27
A
A

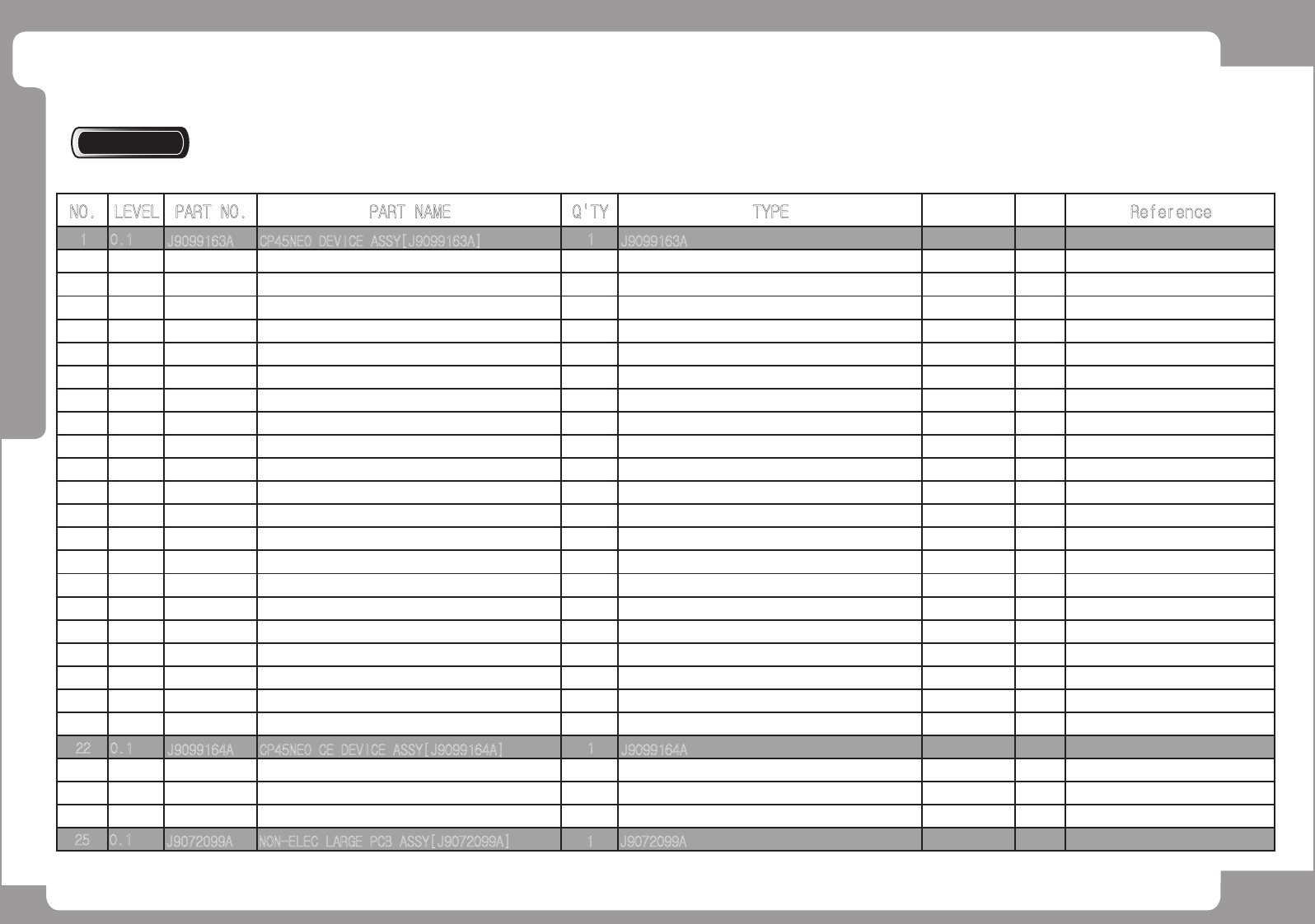

Part List
SAMSUNG TECHWIN
Page
106
CP45NEO
Electric Device Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock
Reference
1 0.1
J9099163A CP45NEO DEVICE ASSY[J9099163A]
1
J9099163A
2 ..2
J1200043 FUSE [250V/5A (30MM)]
3
250V/5A (30MM)
○
3 ..2
J1200243 RELAY [MY2N (DC 24V)]
1
MY2N (DC 24V)
○
4 ..2
J1202286 POWER SUPPLY [MR KOR4-H]
2
MR KOR4-H
○
5 ..2
J1202415 RELAY [MY-2N AC110V]
1
MY-2N AC110V
○
6 ..2
J1202425 FAN COVER [FILTER 120*120]
4
FILTER 120*120
○
7 ..2
J3152008A STEP MOTOR DRIVE [CSMD2-B440-R-CE]
3
CSMD2-B440-R-CE
○
8 ..2
J3152009A C/V STEP MOTOR DRIVE[CSMD2-LU340CON]
1
CSMD2-LU340CON
○
9 ..2
J3153032A SERVO DRIVER[MSDC5A5A3A06]
6
MSDC5A5A3A06
○
10 ..2
J3153033A SERVO DRIVER[MSDC015A3A06]
2
MSDC015A3A06
○
11 ..2
J3153034A SERVO DRIVER[MSDC045A1A06]
1
MSDC045A1A06
○
12 ..2
J1301641 OPERATION KEY [D4DS-K3]
2
D4DS-K3
○
13 ..2
J3601017A FUSE[250V,250mA(30mm)]
1
250V,250MA(30MM)
14 ..2
J6401003A KNOB BOLT [GKB-5*20]
1
GKB-5*20
○
15 ..2
J9061425B
Refer to 143, 144 page
[30] In 113 page MOUSE EXTEND CABLE ASSY[SKE0003]
1
SKE0003
○
16 ...3
J3403041A I/O SWITCH[RMQ TITAN M22]
1
RMQ TITAN M22
○
17 ....4
J4713014A I/O SWITCH LED LAMP[M22-LED]
1
M22-LED
○
18 ...3
J3406005A LOAD SWITCH[PI-25]
1
PI-25
○
19 ...3
J1202401 MAGNETIC CONTACTOR [CH-3 AC24]
5
CH-3 AC24 (4A)
○
20 ..2
J9077008A 45FV-NEO MAIN POWER PANEL MODUAL[J907700
1
J9077008A
○
21 ...3
J1202403 CIRCUIT BREAKER [DEG-32B(30A)]
1
DEG-32B(30A)
J36030005B ○
22
0.1
J9099164A CP45NEO CE DEVICE ASSY[J9099164A]
1
J9099164A
23 ...3
J36031005A CIRCUIT PROTECTOR
1
FAZ-D16/2
○
1
25 0.1
J9072099A NON-ELEC LARGE PCB ASSY[J9072099A] J9072099A
24 ...3
J36031006A CIRCUIT PROTECTOR
1
FAZ-B20/2
○
1
