SAMSUNG TECHWIN Page 23 CP45NEO C onveyor Ass’y Part Photo J1301670 FLAT BELT [S-1 200L, 7W] J2100172 SPRING CAP [0131-641042] J1301672 BEARING [6804] J2101750 STOPPER WIDTH [0135-641024] J13301671 BEARING [6901] J210176…
Part List
SAMSUNG TECHWIN
Page
22
CP45NEO
Conveyor Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock
Reference
57 ...3
J9080095A CONV SENSOR CABLE ASSY[CV11]
1
CV11 [3] In 122 page
58 ...3
J9080123B W MOTOR CABLE ASSY[MD19]
1
MD19
○
[4] In 132 page
59 ..2
J9061168E CONV SOL CABLE ASSY[J9061168E]
1
CV02
○
[32] In 120 page
61
0.1
J9053271A CP45NEO CONVEYOR ASSY(A.F.R)(NON-H/F)
1
J9053271A
62 ..2
J9075549A CONV SENSOR CABLE ASSY
1
MK-CV10-1(Right->Left)
○
[1] In 121 page
63
0.1
J9053272A CP45NEO CONVEYOR ASSY(A.F.L)
1
J9053272A
64 ...3
J1301181 BOB FITTING [M-5ALU-4]
4
M-5ALU-4
○
65 ...3
J1301361 AIR CYLINDER [CJPB6-10H4-B]
2
CJPB6-10H4-B
○
66 ....4
J1301268 HOLE FIXER SENSOR [EE-SX674A (OMRON)]
2
EE-SX674A (OMRON)
○
67
0.1
J9053273A CP45NEO CONVEYOR ASSY(A.F.R)
1
J9053273A
68 0.1
J9053274A CP45NEO CONVEYOR ASSY(A.R.L)(NON-H/F)
1
J9053274A
69 ...3
J7053203A IDLER SHAFT [J7053203A]
4
J7053203A
70 ...3
J7053222A IDLER [J7053222A]
2
J7053222A
71
0.1
J9053275A CP45NEO CONVEYOR ASSY(A.R.R)(NON-H/F)
1
J9053275A
72 0.1
J9053276A CP45NEO CONVEYOR ASSY(A.R.L)
1
J9053276A
73 0.1
J9053277A CP45NEO CONVEYOR ASSY(A.R.R)
1
J9053277A
74 0.1
J9053278A CP45NEO CONVEYOR ASSY(A.F.L)
1
J9053278A
75 ....4
J1300534 SPEED CONTROL MOTOR [S6106GA-S (SUNG-SI
2
S6106GA-S (SUNG-SIN)
○
76
0.1
J9053279A CP45NEO CONVEYOR ASSY(A.F.R)(LARGE)
1
J9053279A
77 0.1
J90531036A CP45NEO_CONV_ASSY-AFL_LONG J90531036A
1
J90531036A
SAMSUNG TECHWIN
Page
23
CP45NEO
Conveyor Ass’y
Part Photo

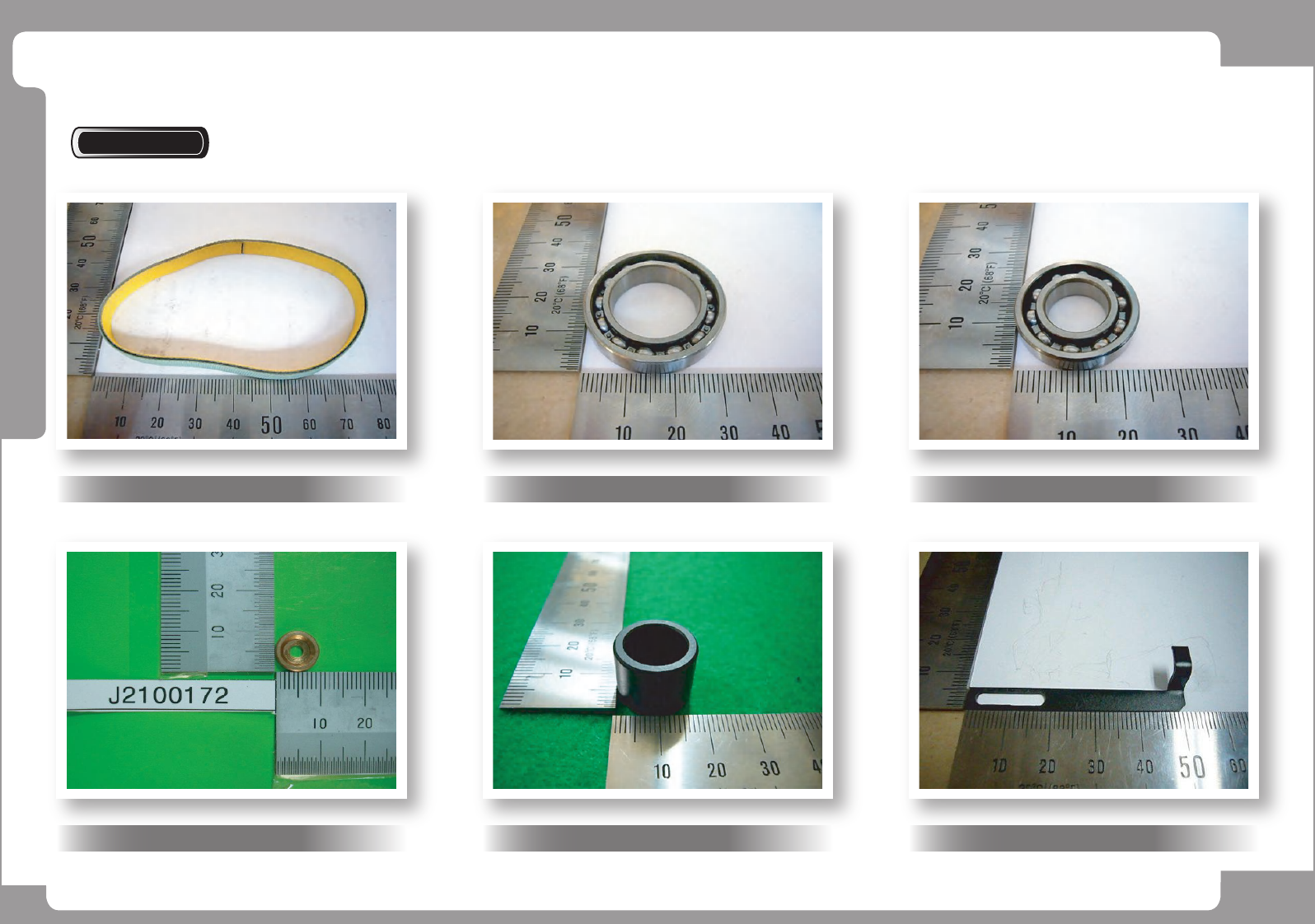

J1301670 FLAT BELT [S-1 200L, 7W]
J2100172 SPRING CAP [0131-641042]
J1301672 BEARING [6804]
J2101750
STOPPER WIDTH [0135-641024]
J13301671 BEARING [6901]
J2101767
SENSOR DOG-L [0135-641041-P1]
SAMSUNG TECHWIN
Page
24
CP45NEO
Conveyor Ass’y
Part Photo

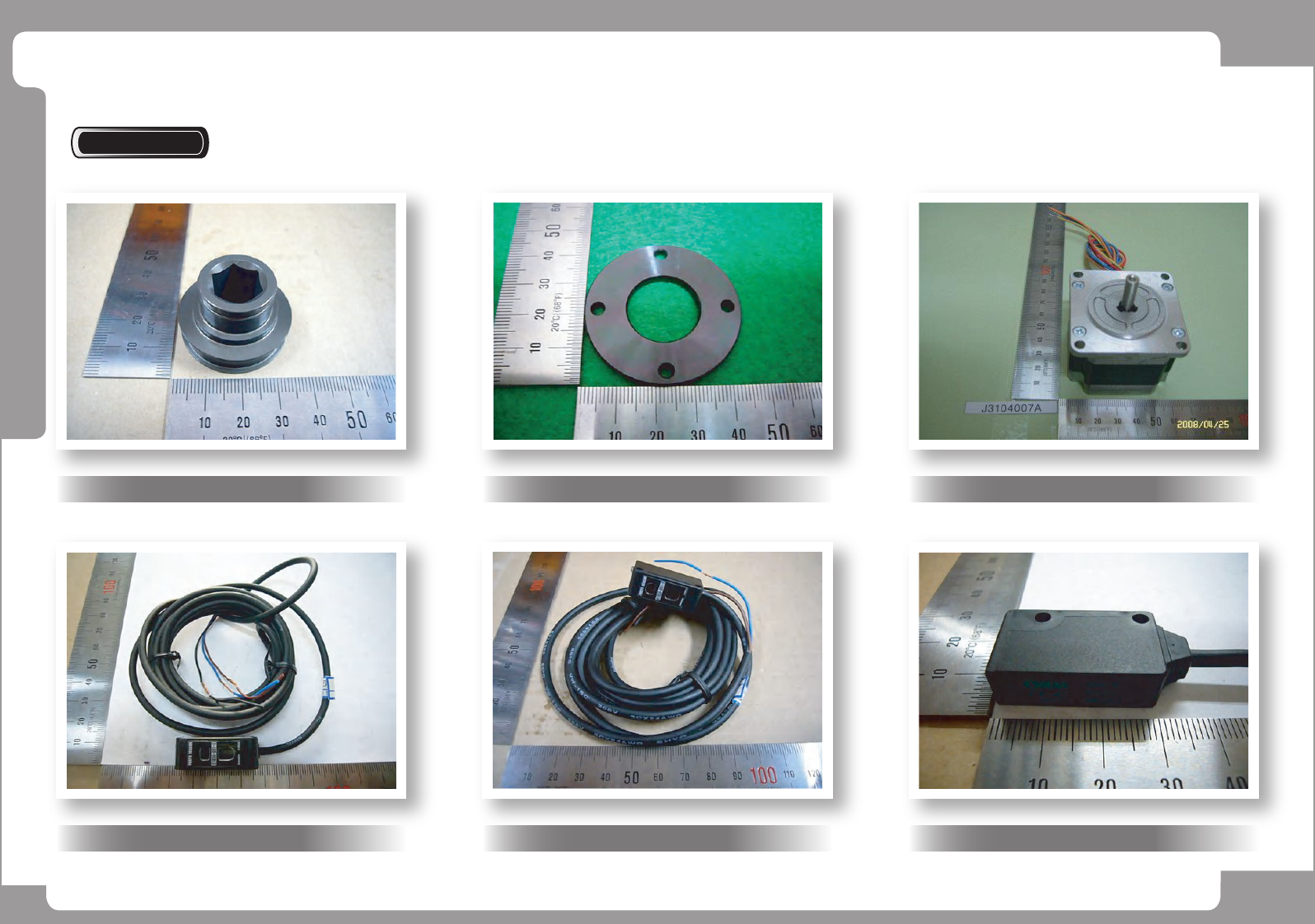

J2101793 SPLINE PULLEY
J3211032A PHOTOELECTRIC SENSOR [BYD30-DDT]
J2101795
BEARING NUT-SF [0135-641077]
J3211033A PHOTOELECTRIC SENSOR [BYD50-DDT]
J3104007A
STEP MOTOR [103H7121-5040]
J3212025A SENSOR [EX-42]
