SAMSUNG TECHWIN
Page
2
CP45NEO

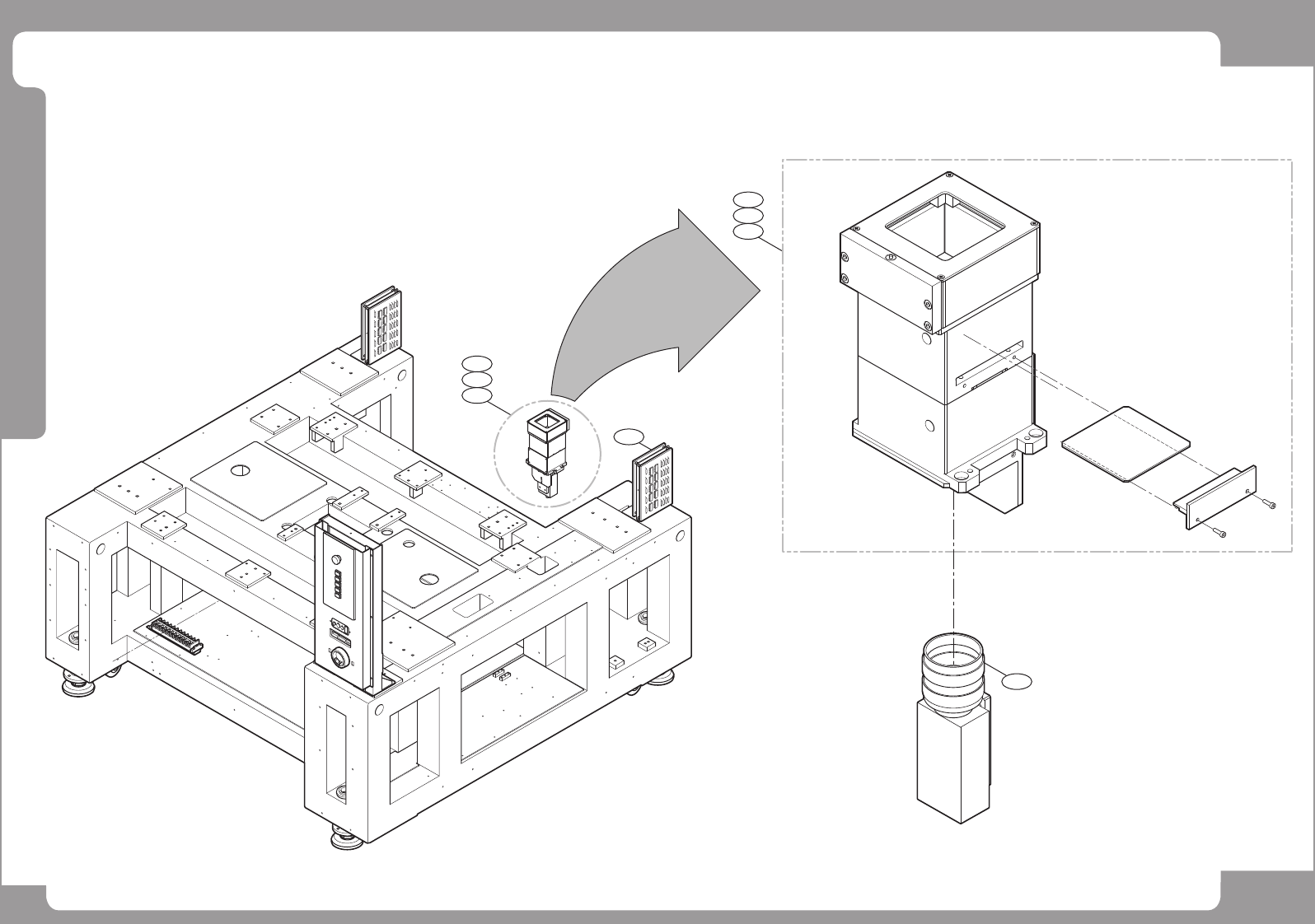

Stage Camera Ass’y
Part List
SAMSUNG TECHWIN
Page
3
CP45NEO
Stage Camera Ass’y

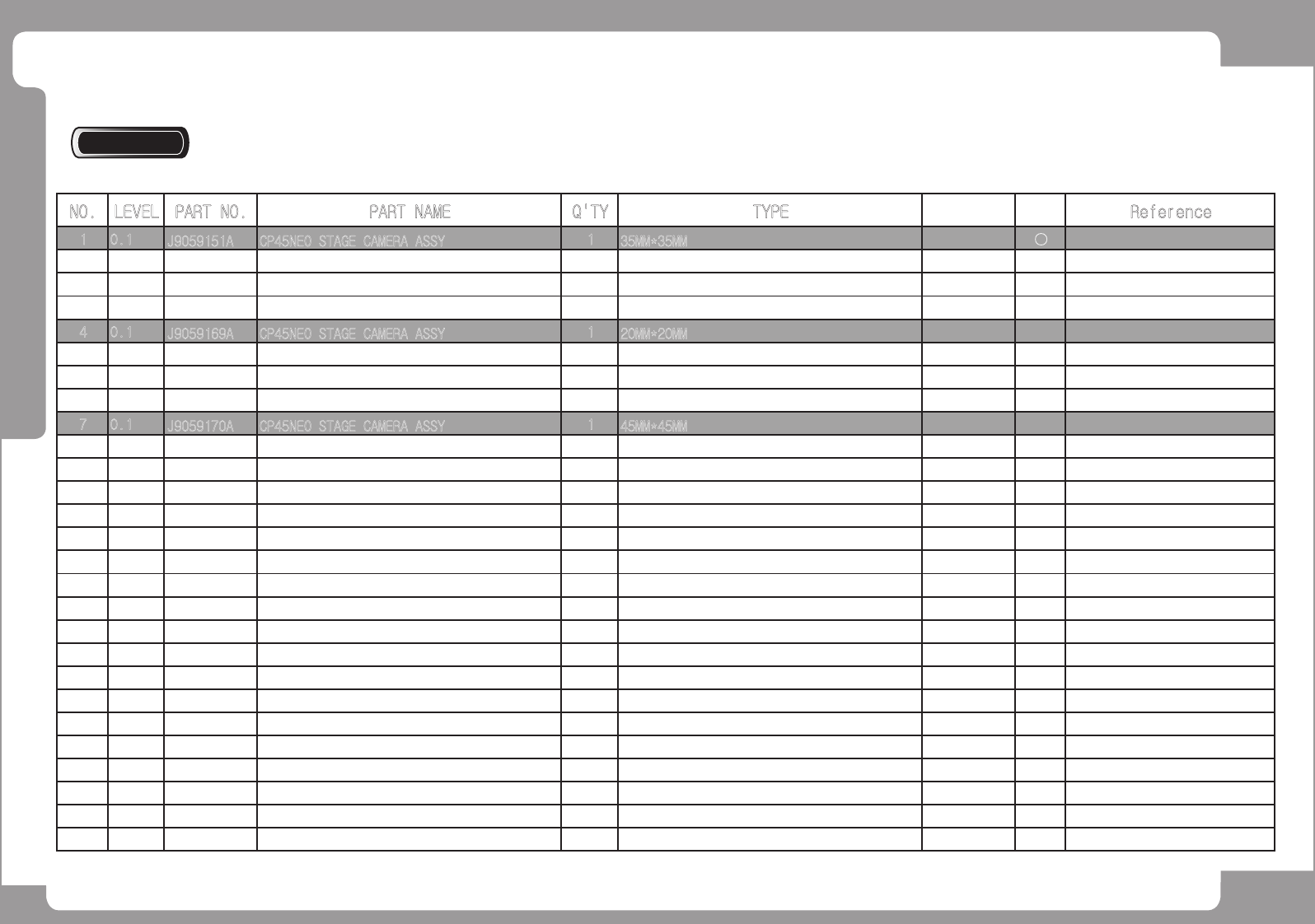

OPTION
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock
Reference
1 0.1
J9059151A CP45NEO STAGE CAMERA ASSY
1
35MM*35MM
○
2 ..2
J9059152E CP45NEO STAGE CAMERA ASSY[35MM*35MM]
1
35MM*35MM
○
3 ..2
J91741052A CAN STAGE ILL BOARD
1
VER 1.1
○
4
0.1
J9059169A CP45NEO STAGE CAMERA ASSY
1
20MM*20MM
5 ..2
J9059171D STAGE CAMERA ASSY[20MM*20MM]
1
20MM*20MM OPTION
6 ...3
J1300965 CLOSE UP RING [T5]
1
T5
○
7
0.1
J9059170A CP45NEO STAGE CAMERA ASSY
1
45MM*45MM
8 ..2
J9059172E CP45NEO STAGE CAMERA ASSY[45MM*45MM]
1
45MM*45MM
○
SAMSUNG TECHWIN
Page
4
CP45NEO
Stage Camera Ass’y

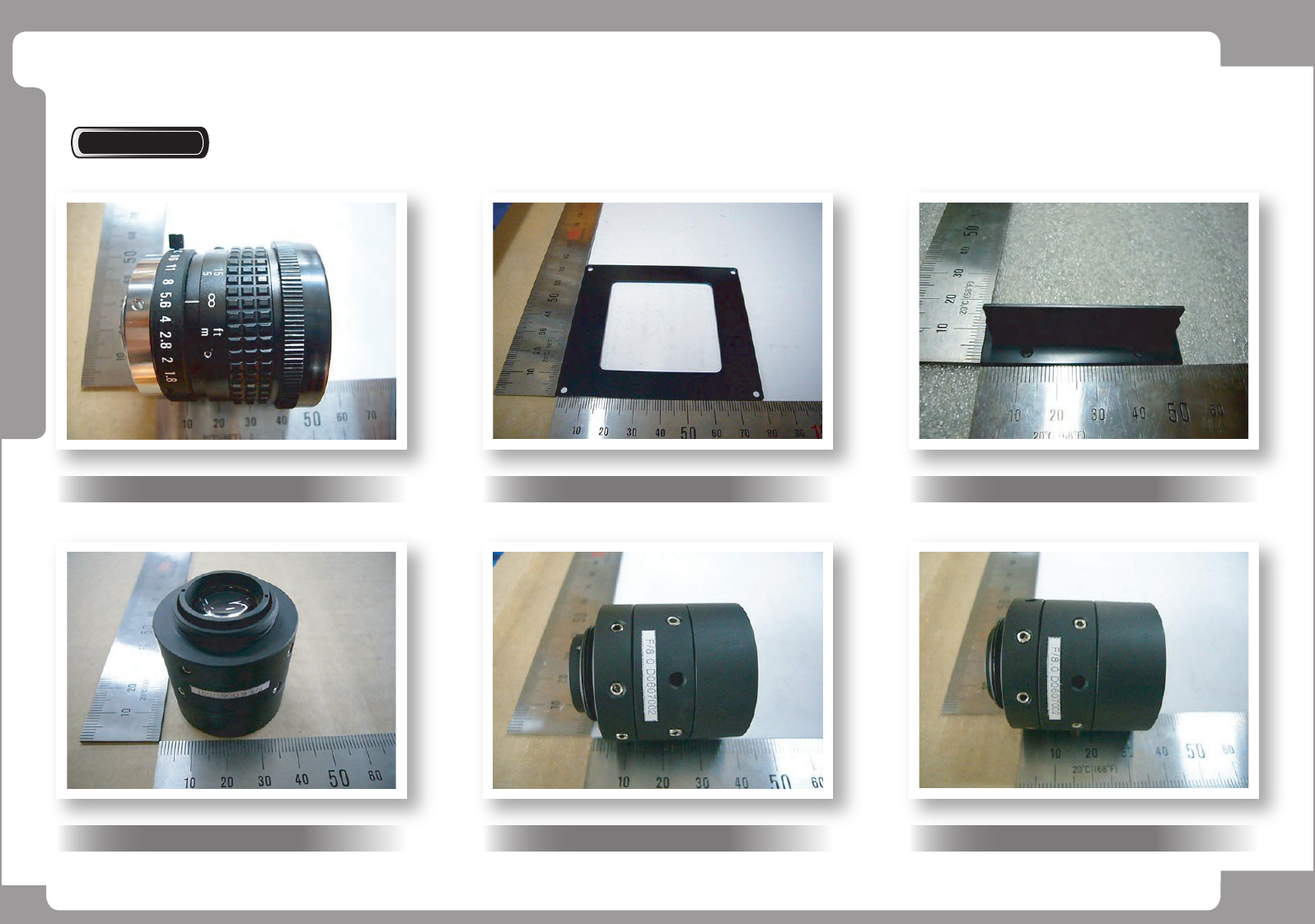

Part Photo
J6739005A LENS [B2518-TS (COSMICAR)]
J9059117A F35-50-ASSY [J9059117A]
J7159121A LIGHT COVER
J9059158A UP-FOV4560 LENS ASSY
J7159160C GLASS PRESS
J9059159A UP-FOV3550 LENS ASSY
