CP45NEO Technical Reference_CS_Ver - 第32页
SAMSUNG TECHWIN Page 32 CP45NEO B ackup T able Ass’y Part Photo J7053221C DOG SENSOR
Part List
SAMSUNG TECHWIN
Page
31
CP45NEO
Backup Table Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock
Reference
1 0.1
J9053137B BUT ASS'Y (Rear Standard/NON-MID CAMERA)
1
J9053137B
2 ..2
J1301053 PHOTO SENSOR [EE-SX670A]
2
EE-SX670A
○
3 ..2
J6601073A BALL BUSH [LMK20UU]
4
LMK20UU
4 ..2
J6701039A AIR CYLINDER [CA1B40*30]
1
CA1B40*30
5 ..2
J7053235A SHAFT [J7053235A]
4
J7053235A
6 ..2
J7053026B BACK UP BAR [J7053026B]
2
J7053026B
7 ..2
J2101756 TOP PLATE [0135-641030]
1
0135-641030
9
0.1
J9053138B BUT ASS'Y (Rear Standard/MID CAMERA)
1
J9053138B
10 ..2
J7053220A BRACKET-SENSOR [J7053220A]
1
J7053220A
11
0.1
J9053284A BACK UP TABLE ASSY(LARGE)[J9053284A]
1
J9053284A
12 ..2
J7053608A TOP- PLATE[J7053608A]
1
J7053608A
SAMSUNG TECHWIN
Page
32
CP45NEO
Backup Table Ass’y

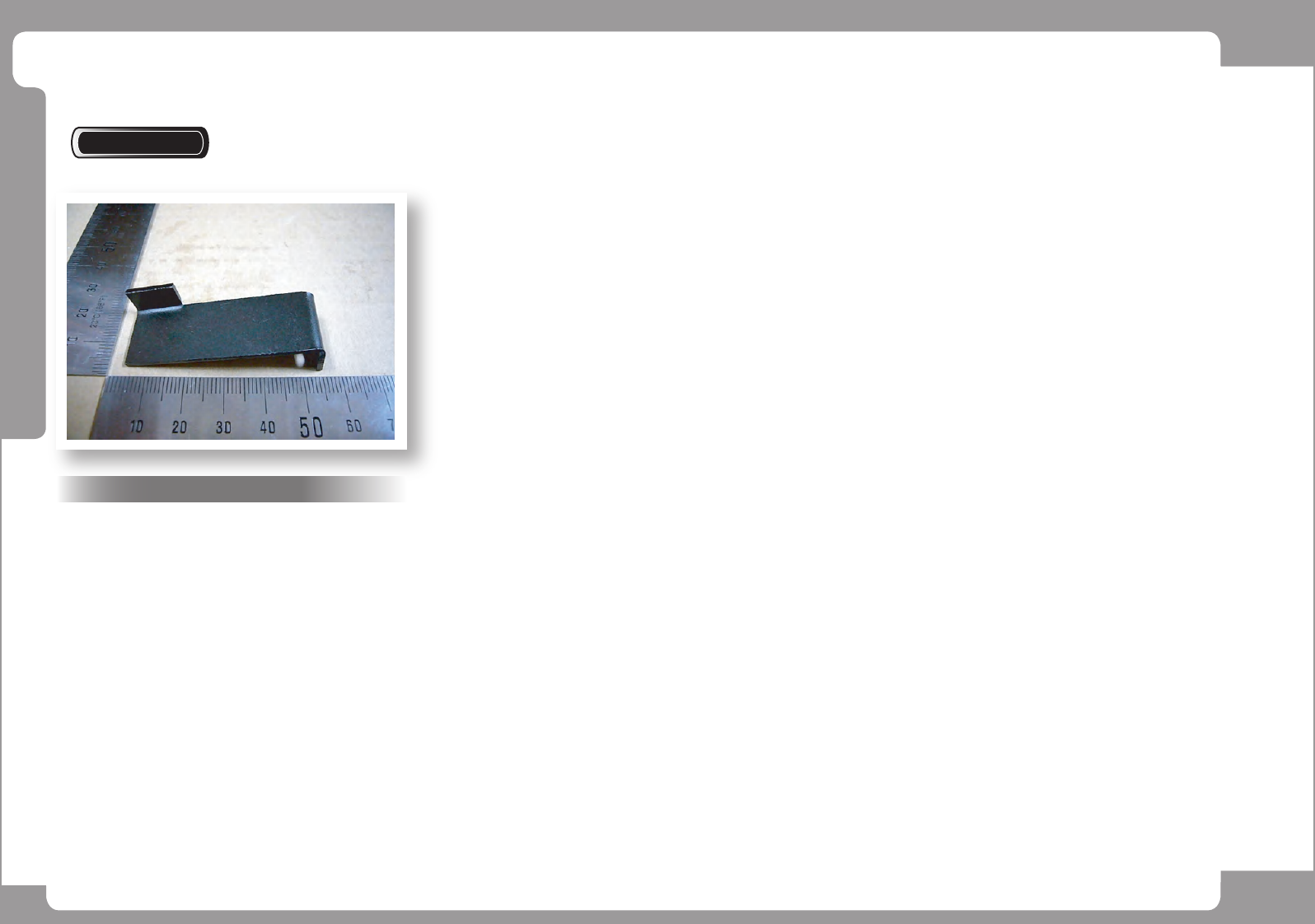

Part Photo
J7053221C DOG SENSOR
SAMSUNG TECHWIN
Page
33
CP45NEO

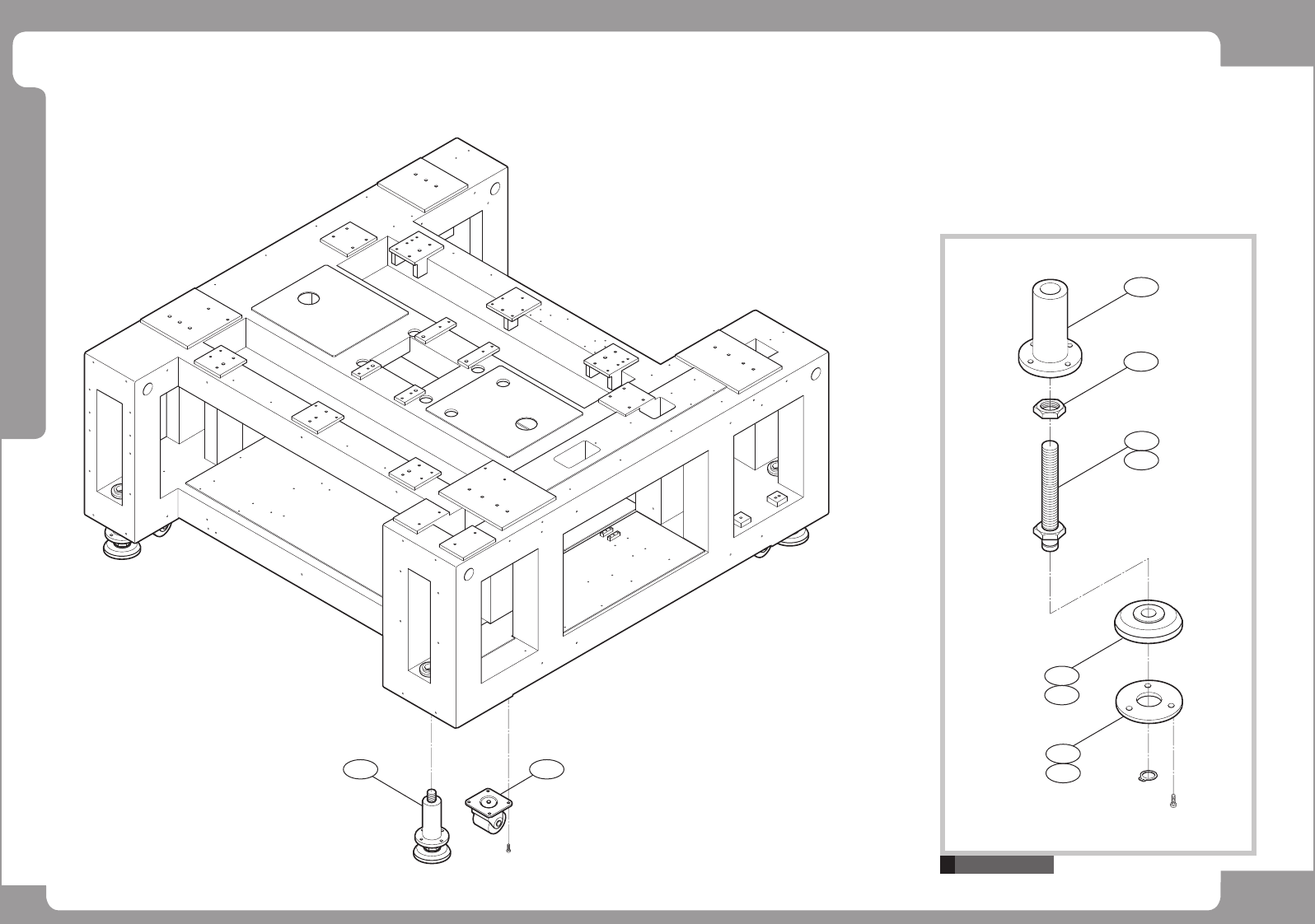

Base Frame Ass’y
4
6
2
7
3
5
11
12
13
1
Foot Ass'y 1
