CP45NEO Technical Reference_CS_Ver - 第33页
SAMSUNG TECHWIN Page 33 CP45NEO B ase Frame Ass’y 4 6 2 7 3 5 11 12 13 1 Foot Ass'y 1
SAMSUNG TECHWIN
Page
32
CP45NEO
Backup Table Ass’y
Part Photo
J7053221C DOG SENSOR
SAMSUNG TECHWIN
Page
33
CP45NEO
Base Frame Ass’y
4
6
2
7
3
5
11
12
13
1
Foot Ass'y 1
Part List
SAMSUNG TECHWIN
Page
34
CP45NEO
Base Frame Ass’y

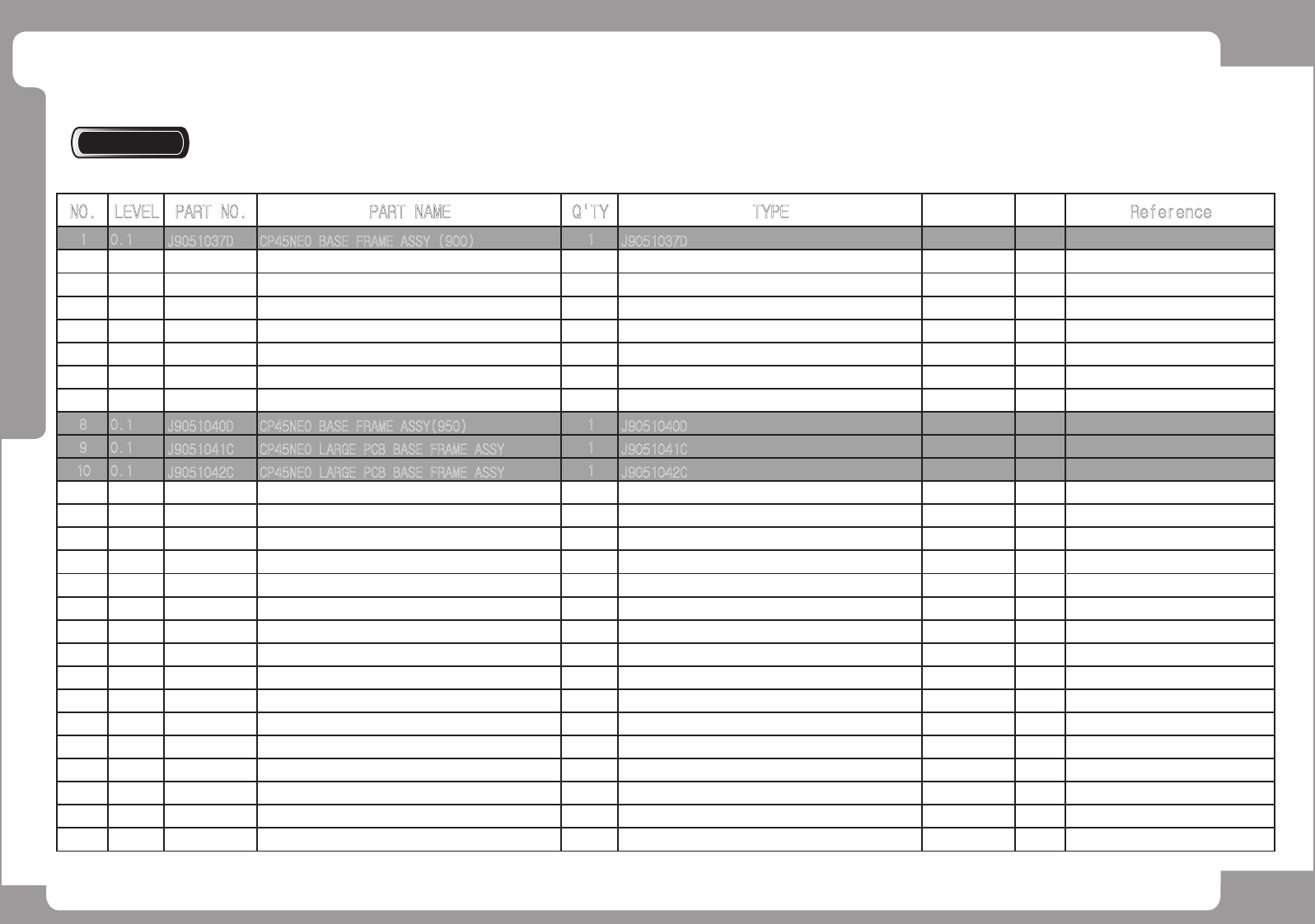

NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock
Reference
1 0.1
J9051037D CP45NEO BASE FRAME ASSY (900)
1
J9051037D
2 ..2
J2100018 NUT FOOT [0131-611026]
4
0131-611026
○
3 ..2
J2101561 CUSHION FOOT
4
0131-611025-P1
4 ..2
J6109001A SWIVEL CASTER [HJ-65U-YN (MURATA)]
4
HJ-65U-YN (MURATA)
5 ..2
J7051008C BASE-FOOT[J7051008C]
4
J7051008C
○
6 ..2
J7051009C BOLT-FOOT[J7051009C]
4
J7051009C
7 ..2
J7051010D HOUSING-FOOT[J7051010D]
4
J7051010D
○
8
0.1
J9051040D CP45NEO BASE FRAME ASSY(950)
1
J9051040D
9 0.1
J9051041C CP45NEO LARGE PCB BASE FRAME ASSY
1
J9051041C
10 0.1
J9051042C CP45NEO LARGE PCB BASE FRAME ASSY
1
J9051042C
11 ..2 J2101561 CUSHION FOOT 4 0131-611025-P1 ○
12 ...3 J7051009C BOLT-FOOT[J7051009C] 4 J7051009C
13 ...3 J7051008C BASE-FOOT[J7051008C] 4 J7051008C ○
