CP45NEO Technical Reference_CS_Ver - 第47页
SAMSUNG TECHWIN Page 47 CP45NEO H ead Ass’y (4/4) 60 62 64 65 73 63 75 76
SAMSUNG TECHWIN
Page
46
CP45NEO
Head Ass’y (3/4)
55
56
SAMSUNG TECHWIN
Page
47

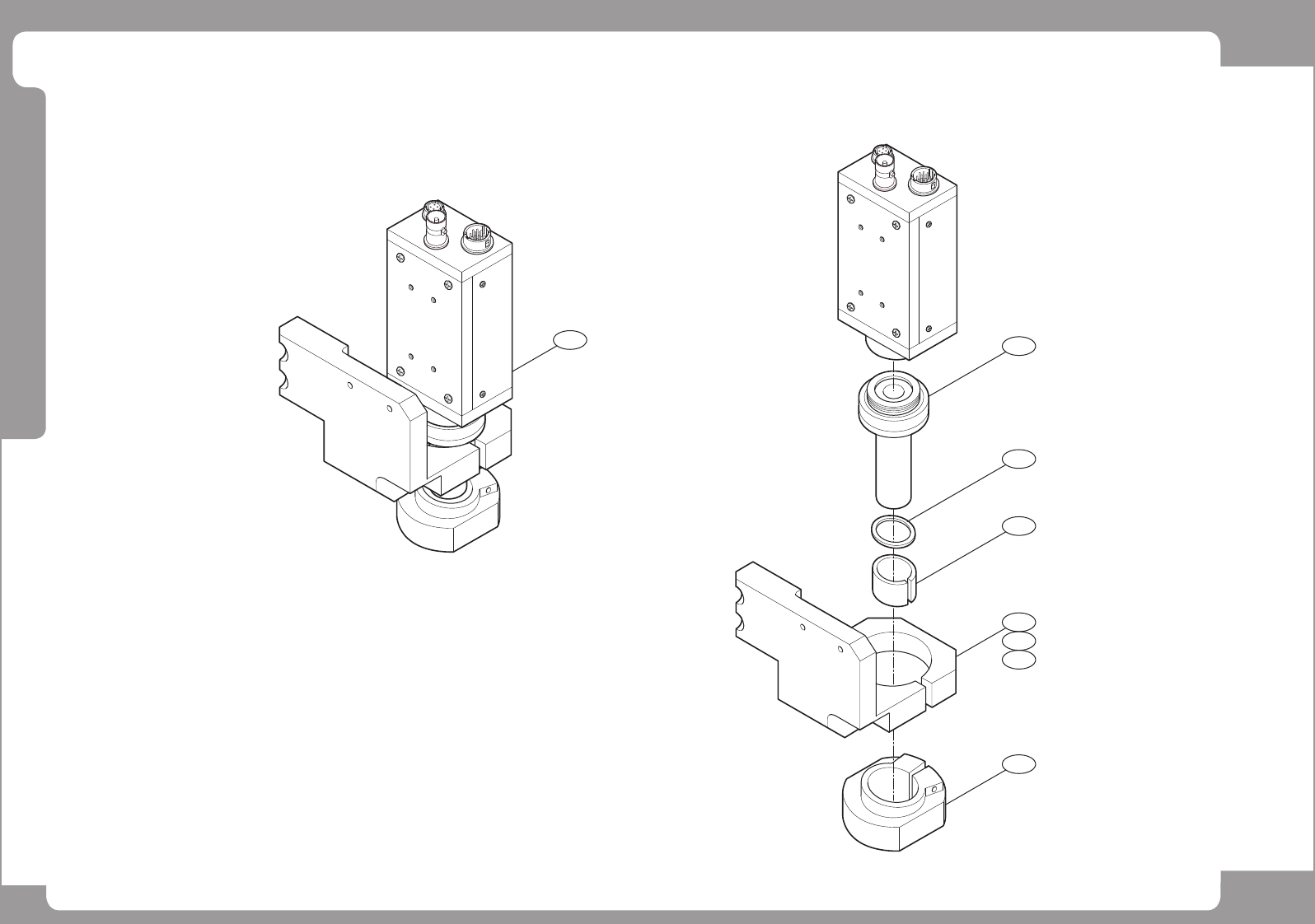

CP45NEO
Head Ass’y (4/4)
60
62
64
65
73
63
75
76
Part List
SAMSUNG TECHWIN
Page
48
CP45NEO
Head Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock
Reference
1 0.1
J90550212D HEAD ASSY #2(CP45NEO) J90550212D
1
J90550212D
J9055212C ○
2 ...3
J1300483 PHOTO SENSOR [EE-SX672]
1
EE-SX672
○
3 ...3
J1300512 BEARING [6802zz]
18
6802ZZ
○
4 ...3
J3104012A STEP MOTOR [KH42JM2-851]
3
KH42JM2-851
○
5 ...3
J6049000550 WASHER WAVY 0.62OD*0.48ID*0.095HGT[SSR-0
6
SSR-0062 S17
○
6 ...3
J6304001A SEAL, V-RONG 0.20ID [V-6A NIT 562]
6
V-6A NIT 562
○
7 ...3
J6304009A O-RING [P5]
2
P5
8 ...3
J6601047A BALL BEARING 6.0mmID*15mmOD*5mm [696zz]
12
696ZZ
○
9 ...3
J6601079A BALL BEARING [695ZZ]
16
695ZZ
○
10 ...3
J6601080A BALL BEARING [MR148ZZ]
4
MR148ZZ
○
11 ...3
J6601081A CAM FOLLOWER [CF3UU-A]
2
CF3UU-A
○
12 ...3
J6602023A TIMING BELT [440-2GT-12]
6
440-2GT-12
○
13 ...3
J6602024A TIMING BELT [208-2GT-4]
3
208-2GT-4
○
14 ...3
J6602034A TIMING BELT [300-3GT-6]
1
300-3GT-6
15 ...3
J6607027A LM GUIDE [LWL 7C1R120BT1H]
6
LWL 7C1R120BT1H
○
16 ...3
J6711149A FITTING PLASTIC STRAIGHT SWIVEL FOR 10-3
6
F-3150-80
○
17 ...3
J6755002A FOLDING MIRROR [J6755002A]
1
J6755002A
○
18 ...3
J7055142A SPLINE CAP [J7055142A]
6
J7055142A
○
19 ...3
J7055144C SENSOR DOG 1(Z AXIS) [J7055144C]
3
J7055144C
○
20 ...3
J7055145C SENSOR DOG 2(Z AXIS) [J7055145C]
3
J7055145C
○
21 ...3
J7055146A BEARING SPACER [J7055146A]
6
J7055146A
○
22 ...3
J7055148A PULLEY PIN [J7055148A]
6
J7055148A
○
23 ...3
J7055149B PULLEY PIN SCREW[J7055149B]
6
J7055149B
○
24 ...3
J7055150D SENSOR BRACKET-THETA[J7055150D]
6
J7055150D
○
25 ...3
J7055158A BELT CLAMP-UNDER [J7055158A]
6
J7055158A
○
26 ...3
J7055159A BELT CLAMP-OVER [J7055159A]
6
J7055159A
○
27 ...3
J7055207B MIRROR SHAFT [J7055207B]
1
J7055207B
○
