Part List SAMSUNG TECHWIN Page 51 CP45NEO H ead Ass’y NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No . Stock Reference 76 ..2 J7155346A FIDUCIAL CAMERA BASE [J7155346A] 1 J7155346A ○
Part List
SAMSUNG TECHWIN
Page
50
CP45NEO
Head Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock
Reference
56 ...3
J6713022B COIL TUBE(POLYURETHANE) [J6713022B]
6
J6713022B
○
57 ...3
J90550210D BALL SPLINE UNIT(WON SHAFT) J90550210D
6
J90550210D
J9055210C
58 ...3 J9080110B Z1 MOTOR CABLE ASS'Y 1 MD10-1
[5] In 133 page
...3 J9080111D Z2 MOTOR CABLE ASS'Y 1 MD10-2P ○
[6] In 133 page
...3 J9080112B Z3 MOTOR CABLE ASS'Y 1 MD10-3
[7] In 134 page
...3 J9080115B Z4 MOTOR CABLE ASS'Y 1 MD13-1
[8] In 134 page
...3 J9080116B Z5 MOTOR CABLE ASS'Y 1 MD13-2
[9] In 135 page
...3 J9080117D Z6 MOTOR CABLE ASS'Y 1 MD13-3
[10] In 135 page
....4
J3108058A SERVO MOTOR[MSMA5AZA5A]
6
MSMA5AZA5A
○
59 ...3
J9080120C S MOTOR CABLE ASSY[MD16]
1
MD16
○
[11] In 132 page
60 ..2
J9059082C NEW FIDUCIAL CAMERA ASSY[J9059082C]
1
J9059082C
61 ...3
J9059083C NEW FIDUCIAL CAMERA BARREL ASSY[J9059083
1
J9059083C
○
62 ....4
J9060141A NEW FIDUCIAL INNEW LED BOARD ASS'Y
1
J9060141A
○
63 ...3
J9060102B NEW FIDUCIAL OUTER LED BOARD ASS'Y
1
J9060102B
○
64 ...3
J6304008A O-RING [G25]
2
G25
○
65 ...3
J7255027A CAMERA ISOLATOR2 [J7255027A]
1
J7255027A
○
66 ..2
J9075542C HEAD CABLE ASSY[J9075542C]
1
J9075542C [33] In 127 page
67 ...3
J9061768C THETA ORG SESNOR CABLE ASSY [J9061768C]
1
J9061768C [34] In 127 page
68 ....4
J3212027A MICRO PHOTO SENSOR[PM-L24]
2
PM-L24
○
69 ...3
J9061212D SIDE ILL U/D SENSOR CABLE ASSY [J9061212
1
HD06 [35] In 127 page
70 ....4
J6701028A AIR CYLINDER [BDAS6*15-CS11T-A2]
1
BDAS6*15-CS11T-A2
○
71 ...3
J9061214C HEAD SENSOR CABLE ASSY [J9061214C]
1
HD07, HD08 [36] In 127 page
72 ...3
J9061208B HEAD VACUUM CABLE ASS'Y [J9061208B]
1
HD02
○
[37] In 126 page
73 ..2
J7155259A FIDUCIAL CAMERA BRACKET [A6061-T6]
1
A6061-T6
○
74
0.1
J90550219C HEAD ASSY #2(CP45NEO)(LARGE)
1
J90550219C
75 ..2
J7155345A FIDUCIAL CAMERA BRACKET [J7155345A]
1
J7155345A
○
Part List
SAMSUNG TECHWIN
Page
51
CP45NEO
Head Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock
Reference
76 ..2
J7155346A FIDUCIAL CAMERA BASE [J7155346A]
1
J7155346A
○
SAMSUNG TECHWIN
Page
52
CP45NEO
Head Ass’y

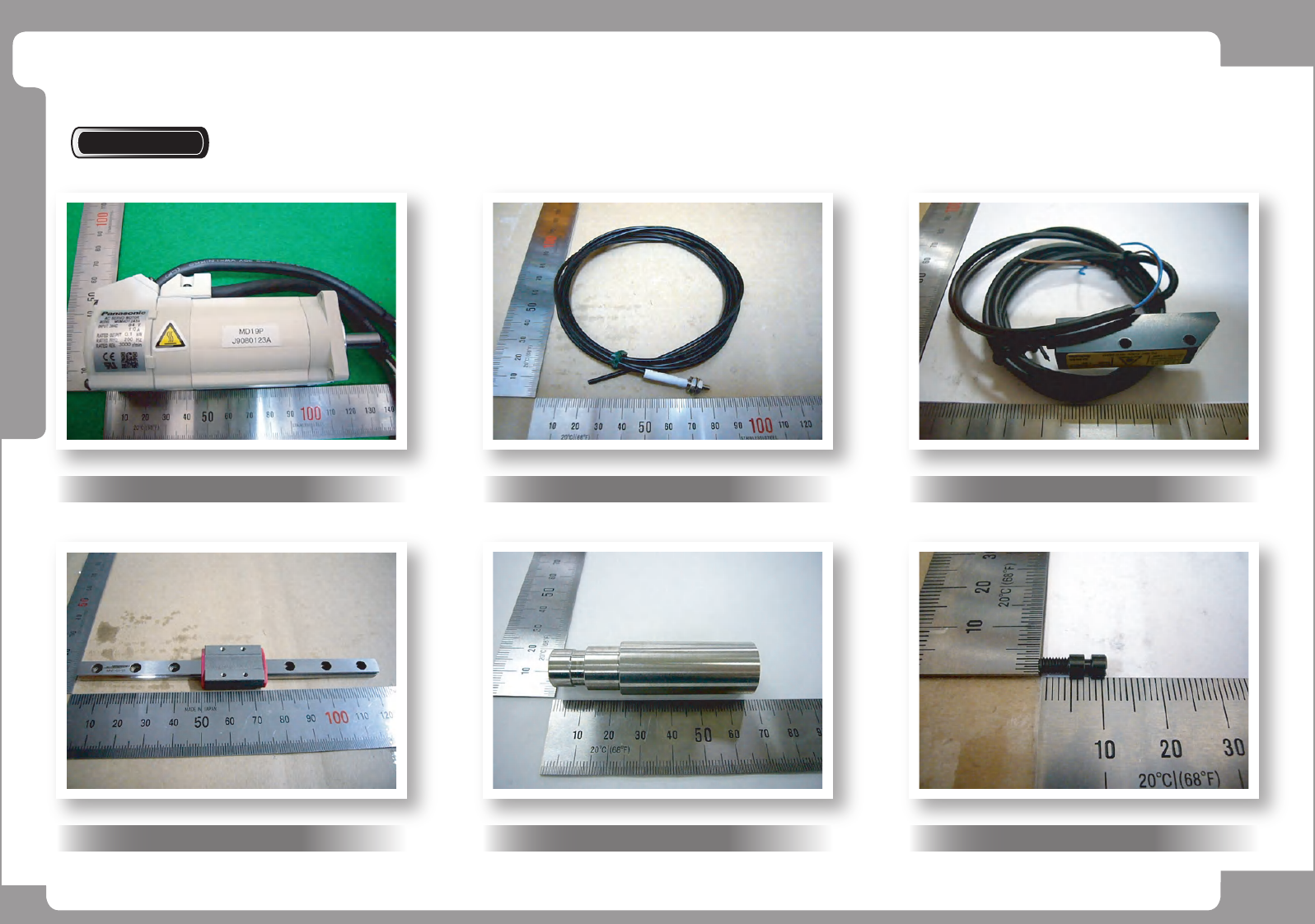

Part Photo
J3108008A SERVO MOTOR [P30B04010DXS00]
J6607051A LM GUIDE
J3211020A FIBER SENSOR [FT-FM2]
J7055141A SPLINE SHAFT
J3211028A TEACHING BEAM LIGHT [LS20-05]
J7055147A PIN
