SAMSUNG TECHWIN Page 60 CP45NEO A ir Ass’y Part Photo J1301187 ELBOW FITTING [KQ2L12PL12-04] J6708016A AIR FILTER [AF40-04BC]
Part List
SAMSUNG TECHWIN
Page
59
CP45NEO
Air Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock
Reference
1 0.1
J9058014C AIR ASS'Y [J9058014C]
1
J9058014C
2 ..2
J6711119A UNION Y FITTING [KQ2U04-06]
1
KQ2U04-06
3 ..2
J6711166A DOUBLE UNION [UWD06-04]
2
UWD06-04
○
4 ..2
J1300620 SPEED CONTROLLER [AS2001F-04/SP100F-04]
1
AS2001F-04/SP100F-04
○
5 ..2
J6713035A AIR TUBE(POLYYRETHANE)[U2-4-4*2.5(BLUE)]
1.5
U2-4-4*2.5(BLUE)
6 ..2
J6713036A AIR TUBE(POLYYRETHANE)[U2-4-4*2.5(YELLOW
1.5
U2-4-4*2.5(YELLOW)
7 ..2
J6713017A AIR TUBE (POLYURETHANE)
8
U2-4-6*4 (BLACK)
8 ..2
J6713034A AIR TUBE(POLYYRETHANE)[U2-4-6*4(YELLOW)]
2
U2-4-6*4(YELLOW)
9 ..2
J6713018A AIR TUBE (POLYURETHANE)
2
U2-4-8*5 (BLACK)
10 ...3
J6707003A VACUUM PUMP [X40F6-KN]
1
X40F6-KN
○
11 ...3
J6711140A STRAIGHT FITTING [SS8-1/8]
1
SS8-1/8
○
12 ...3
J6711139A STRAIGHT FITTING [SS8-1/2]
1
SS8-1/2
○
13 ...3
J6711169A ELBOW FITTING [BTL08-01]
2
BTL08-01
○
14 ...3
J6712008A PLUG [PT 1/8]
3
PT 1/8
15 ...3
J9061897A AIR SOL V/V CABLE ASS'Y [J9061897A]
1
J9061897A
○
16 ....4
J6702021A SOLENOID VALVE [K180-4E1-21-DC24V]
1
K180-4E1-21-DC24V
○
SAMSUNG TECHWIN
Page
60
CP45NEO
Air Ass’y
Part Photo
J1301187 ELBOW FITTING [KQ2L12PL12-04] J6708016A
AIR FILTER [AF40-04BC]
SAMSUNG TECHWIN
Page
61
CP45NEO

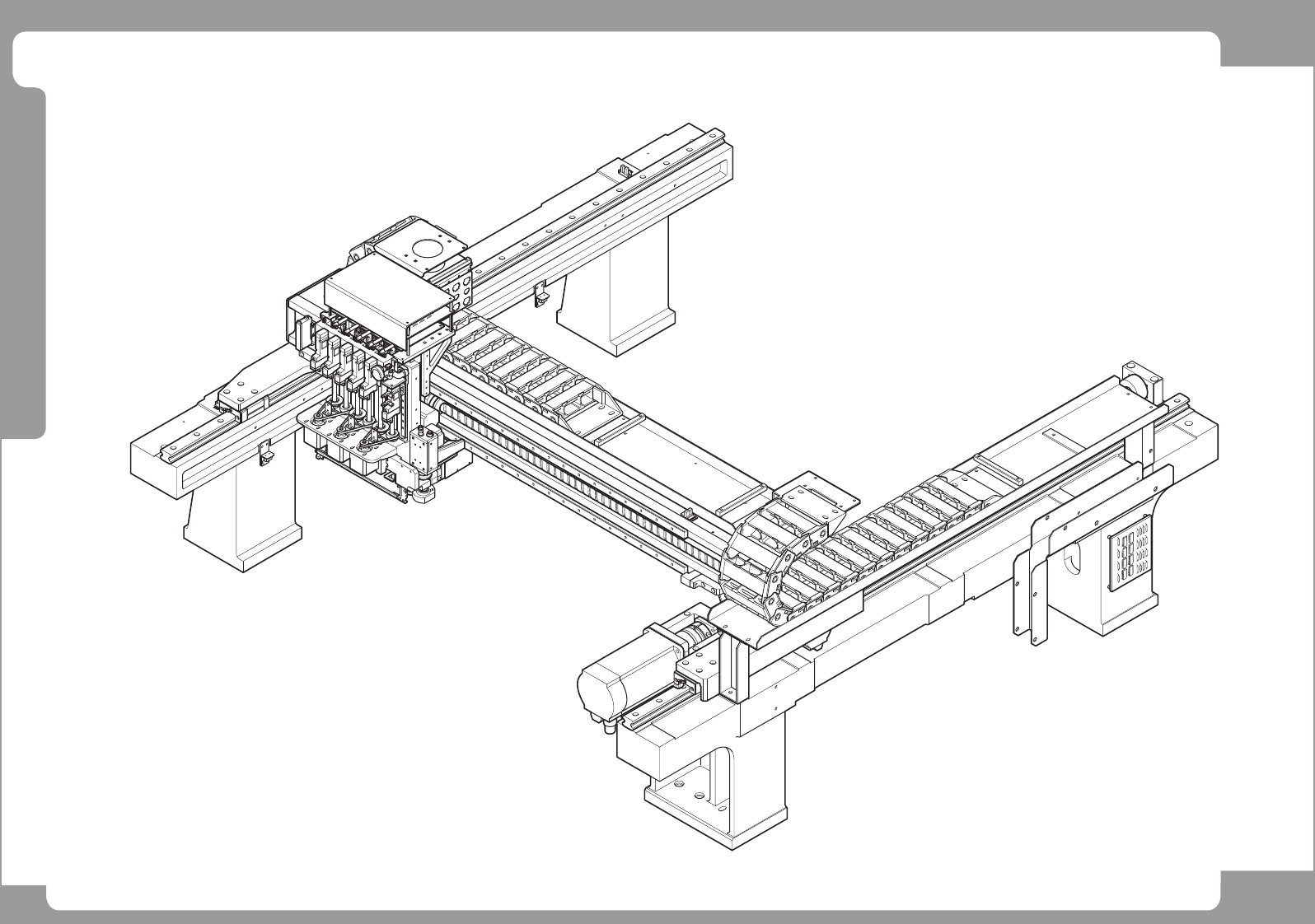

X-Y Frame Ass’y
