CP45NEO Technical Reference_CS_Ver - 第67页

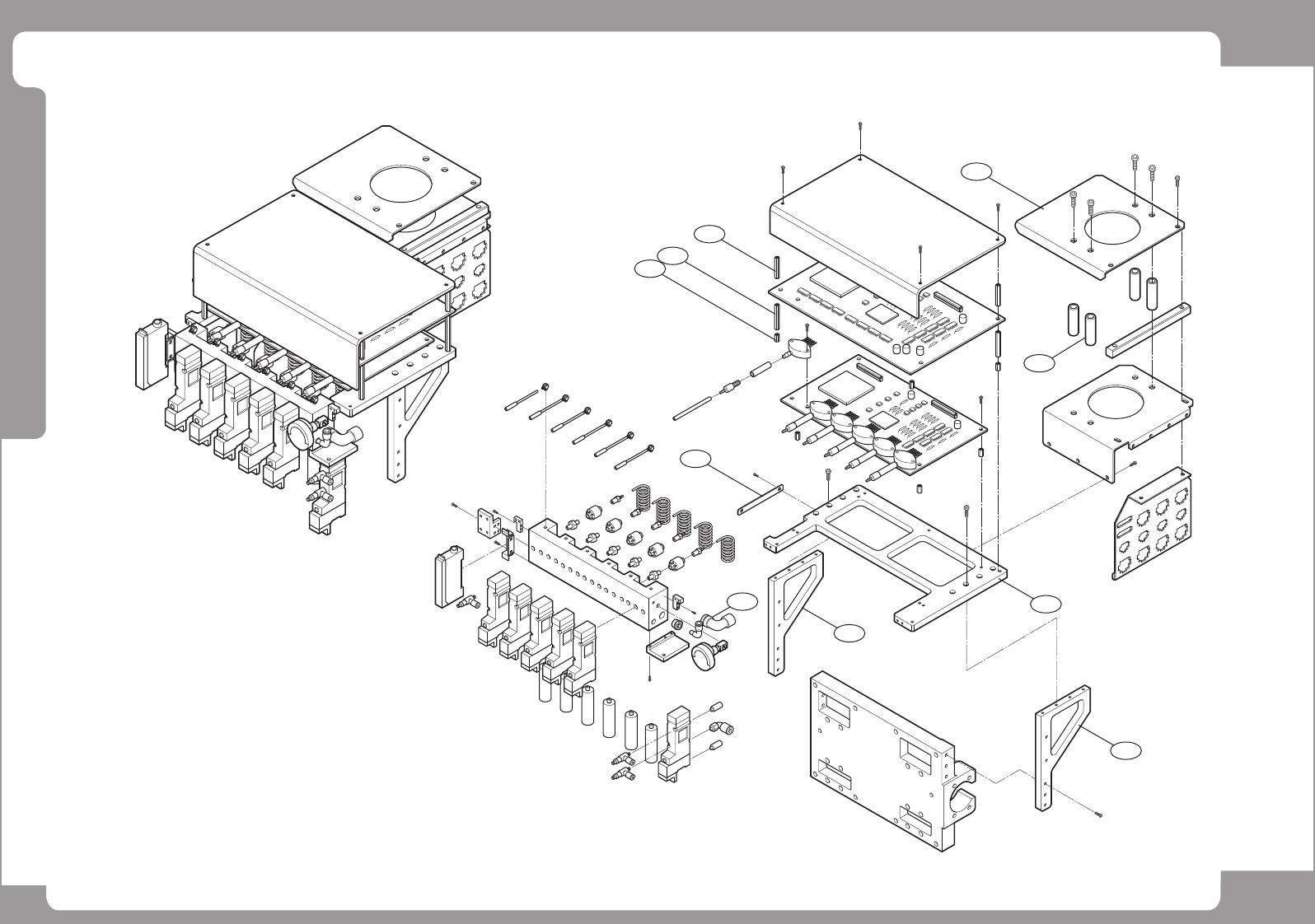

SAMSUNG TECHWIN Page 67 CP45NEO X -Y Frame Ass’y (6/6) 28 26 27 18 23 29 19 21 20 22
SAMSUNG TECHWIN
Page
66
CP45NEO
X-Y Frame Ass’y (5/6)
12
18
SAMSUNG TECHWIN
Page
67
CP45NEO
X-Y Frame Ass’y (6/6)
28
26
27
18
23
29
19
21
20
22
Part List
SAMSUNG TECHWIN
Page
68
CP45NEO
X-Y Frame Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock
Reference
1 0.1
J9054100A X-Y FRAME ASSY(CP45NEO)[J9054100A]
1
J9054100A
2 ...3
J3212022A LIMIT SENSOR [EE-SX674]
3
EE-SX674
○
3 ...3
J6102004A CABLE CHAIN [MP3005-R70-15LINK+8SHELF]
1
MP3005-R70-15LINK+8SHELF
○
4 ...3
J6601138A SUPPORT UNIT[FK12 MP5]
1
FK12 MP5
○
5 ...3
J6606014A BALL SCREW [GH1632QS-HEZR-931X850-C5F]
1
GH1632QS-HEZR-931X850-C5F
○
6 ...3
J6607028A LM GUIDE [LWL 15C2R0880BT1P]
2
LWL 15C2R0880BT1P
○
8 ...3
J7154109B CABLE TIE-DOWN[J7154109B]
3
J7154109B
○
9 ...3
J7154123B BRACKET CUSHION-X [J7154123B]
1
J7154123B
○
10 ...3
J7254007C CUSHION-Y[J7254007C]
1
J7254007C
○
11 ...3
J9080103A X MOTOR CABLE ASSY[MD03]
1
MD03
○
[12] In 131 page
12 ...3
J1300484 SENSOR [EE-SX671]
3
EE-SX671
○
14 ...3
J1301708 SUPPORT UNIT [FK15S1]
1
FK15S1
15 ...3
J3108040A SERVO MOTOR[MSMA152A1C]
1
MSMA152A1C
○
16 ...3
J6102005A CABLE CHAIN [MP3005-R70-17LINK+9SHELF]
1
MP3005-R70-17LINK+9SHELF
○
17 ...3
J6606043A BALL SCREW[HG2040QS-HEZR-1160X1058-C5Z]
1
HG2040QS-HEZR-1160X1058-C5Z
○
18 ...3
J66070029B LM_GUIDE[HSR25R2SSC1+1420LP-II]
2
HSR25R2SSC1+1420LP-II
J6607029A
19 ...3
J7154103B CABLEVEYOR UPPER PLATE [J7154103B]
1
J7154103B
○
20 ...3
J1201038 HEX SUPPORT [M3*25 (BOLT-NUT)]
4
M3*25 (BOLT-NUT)
○
21 ...3
J1301248 HEX SUPP0RT [M3*30 (BOLT-NUT)]
5
M3*30 (BOLT-NUT)
○
22 ...3
J6103010A HEX SUPPORT [M3*7 (BOLT-NUT)]
5
M3*7 (BOLT-NUT)
○
23 ...3
J7054106A CABLEVEYOR-X SUPPORT [J7054106A]
4
J7054106A
○
26 ...3
J7154098B HARNESS PLATE-X [J7154098B]
1
J7154098B
○
27 ...3
J7154099B RIGHT SIDE PLATE [HARNESS-HEAD002]
1
HARNESS-HEAD002
○
28 ...3
J7154100B LEFT SIDE PLATE [J7154100B]
1
J7154100B
○
29 ...3
J7154105A SIDE CABLE TIE [HARNESS-HEAD013]
1
HARNESS-HEAD013
○
