SAMSUNG TECHWIN Page 71 CP45NEO X -Y Frame Ass’y Part Photo J6612011A COUPLING [SFC050WD-12B22B] J7054099C BRACKET-FEEDER SENSOR J6612020A COUPLING [SFC-040DA(A TYPE)] J7054100A BRACKET2-FEEDER SENSOR J7052352A POWER BAS…
SAMSUNG TECHWIN
Page
70
CP45NEO

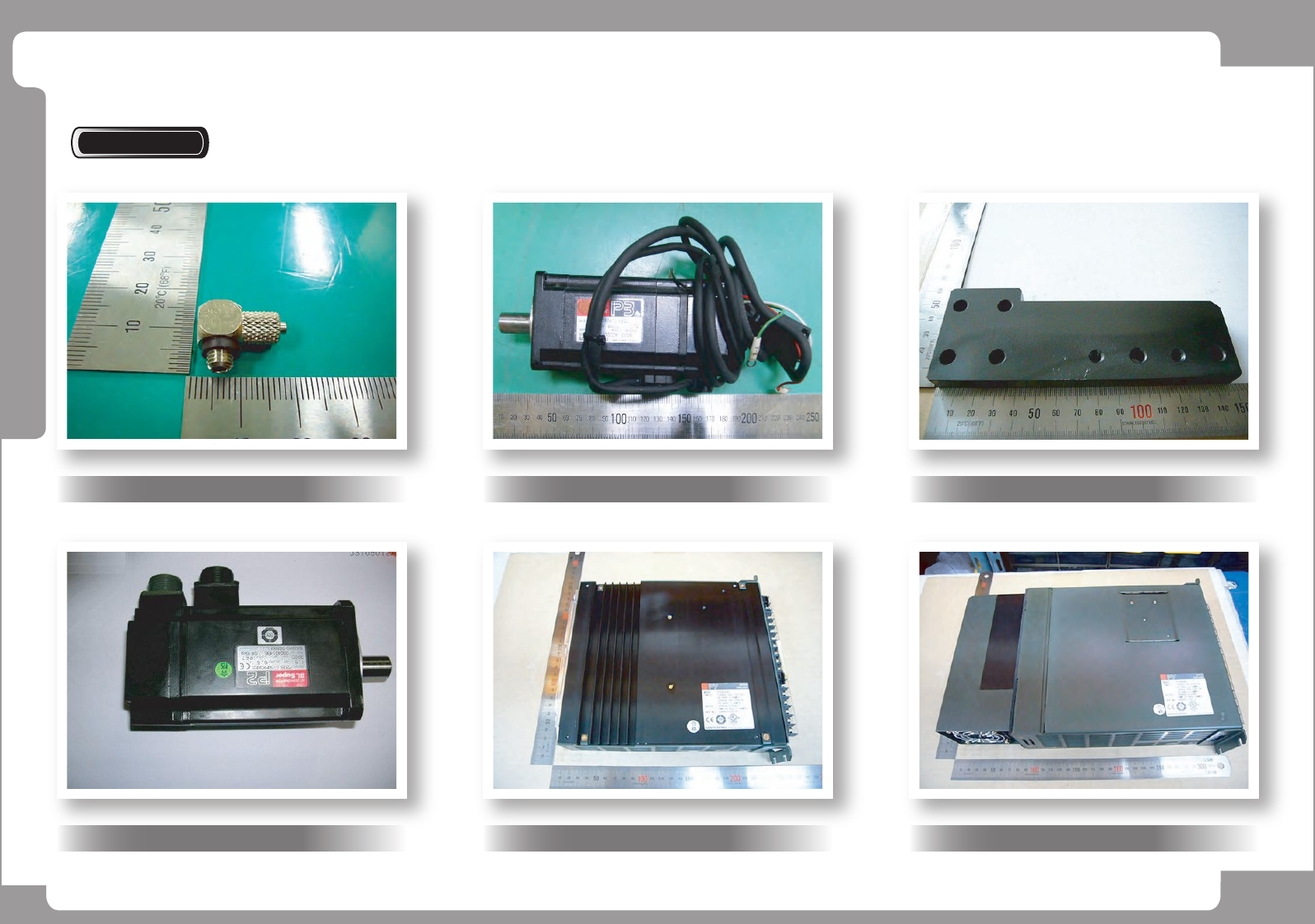

X-Y Frame Ass’y
Part Photo
J1300120 FITTING [M-5HL-4]
J3108012A SERVO MOTOR [P20B10150HXS0E]
J1301358 SERVO MOTOR-X
J3153025A SERVO DRIVER [PY0A030A1]
J2101863 ADPTER-CYLINDER BLOCK [0135-661011]
J3153026A
SERVO DRIVER [PY0A050A1]
SAMSUNG TECHWIN
Page
71
CP45NEO
X-Y Frame Ass’y
Part Photo
J6612011A COUPLING [SFC050WD-12B22B]
J7054099C
BRACKET-FEEDER SENSOR
J6612020A COUPLING [SFC-040DA(A TYPE)]
J7054100A
BRACKET2-FEEDER SENSOR
J7052352A POWER BASE
J7054101D CONNECTOR PANNEL
SAMSUNG TECHWIN
Page
72
CP45NEO
X-Y Frame Ass’y
Part Photo
J7054105G CABLEVEYOR BRACKET
J7154095A END PLATE-X
J7054137A SENSOR PLATE 4
J7254010B CUSHOIN CABLE CHAIN-Y
J7054139A SENSOR PLATE 2
J9061226A Y MOTOR POWER CABLE ASS'Y [MK-MD04]
