CP45NEO Technical Reference_CS_Ver - 第8页

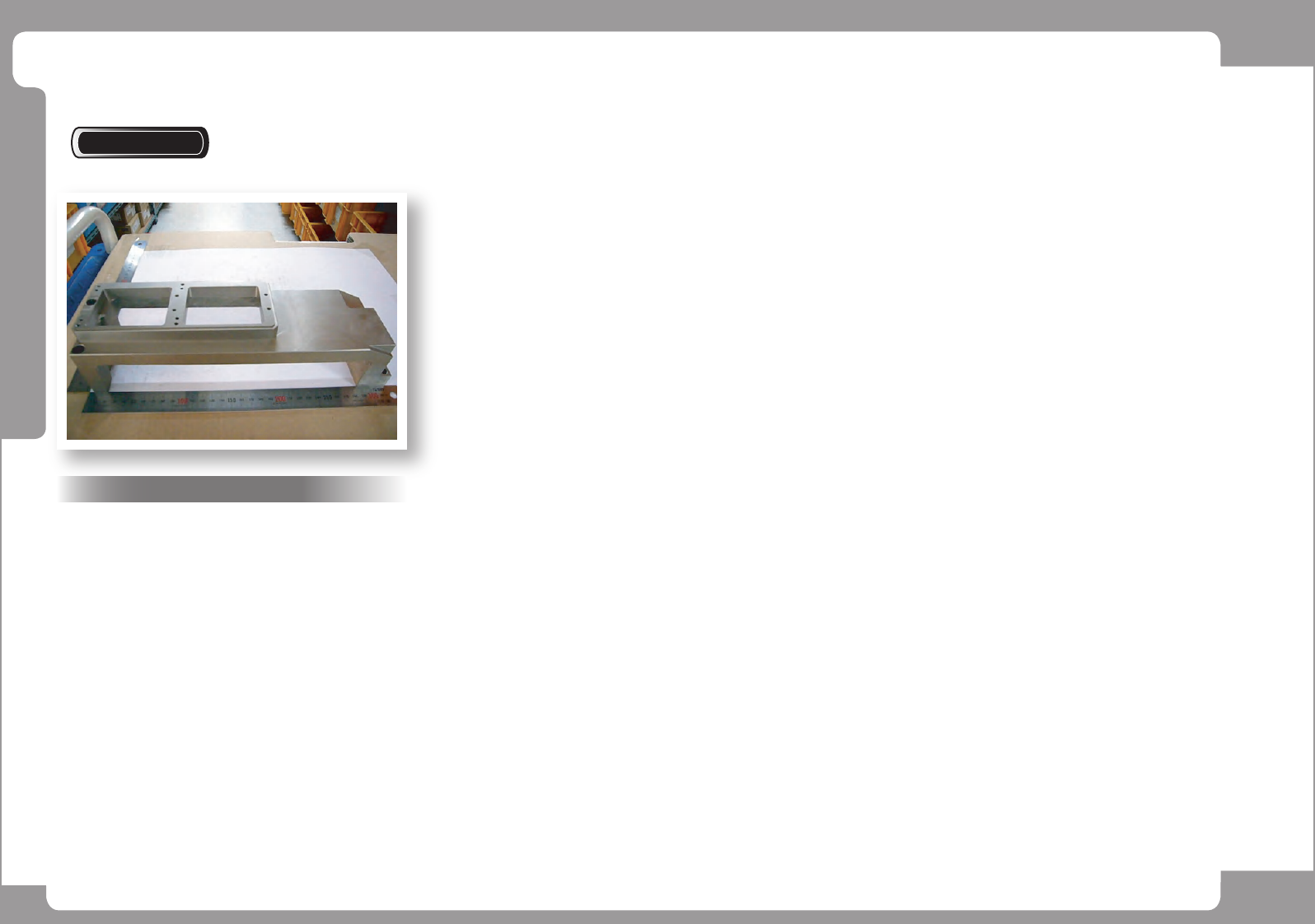

J7051032B CAMERA SUPPORT-R SAMSUNG TECHWIN Page 8 CP45NEO F eeder Base Ass’y Part Photo
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock
Reference
1 0.1
J9057090B FEEDER-ST ASSY(13-FRONT CYLINDER)
1
J9057090B
2 ....4
J6713016A AIR TUBE (POLYURETHANE)
19
U2-4-4*2.5 (BLACK)
○
3 ....4
J9057035C CINDER ASSY
1
J9057035C
J9057128C ○
4 .....5
J6711141A STRAIGHT FITTING [M-5AU-4]
14
M-5AU-4
5 .....5
J7057020B BRACKET SPEED CONTROLLER [J7057020B]
2
J7057020B
○
6 .....5
J7157012B SUPPORT SPEED CONTROLLER [J7157012B]
1
J7157012B
○
7 ....4
J9058081A FEEDER FITTING ASSY(#12)[J9058081A]
1
J9058081A
8 ...3
J7157035C CAP-CAMERA [J7157035C]
2
J7157035C
○
9 ...3
J9057010E FEEDER BASE ASSY[J9057010E]
1
J9057010E
○
10
0.1
J9057092B FEEDER-ST ASSY(26-DUAL CYLINDER)
1
J9057092B
11 ..2
J7157084A NUMBER PLATE(REAR) [J7157084A]
1
J7157084A
○
12 ....4
J9058100A FEEDER FITTING ASSY(#14-R)
1
J9058100A
13 .....5
J7157013C SUPPORT SPEED CONTROLLER [J7157013C]
1
J7157013C
14 ...3
J9057184A FRONT MULTI-CYLINDER ASSY(OPTION)[J90571
1
J9057184A
15 ....4
J9058082A FEEDER FITTING ASSY(#14)[J9058082A]
1
J9058082A
16
0.1
J9057158A CP45NEO FEEDER-ST ASSY (24-DUAL CYL
1
J9057158A
17 ..2
J9057145A 24-DUAL CYLINDER ASS'Y (CP45 OPTION)[J90
1
J9057145A OPTION
18 ...3
J9057044A 26-FEEDER STATION ASS'Y(OPTION)[J9057044
1
J9057044A OPTION
19 ...3
J9057185A REAR MULTI-CYLINDER ASSY(OPTION)[J905718
1
J9057185A OPTION
20 ....4
J9057128C MULTI-CYLINDER ASSY
1
J9057128C
J9057035C
OPTION
Part List
SAMSUNG TECHWIN
Page
7
CP45NEO

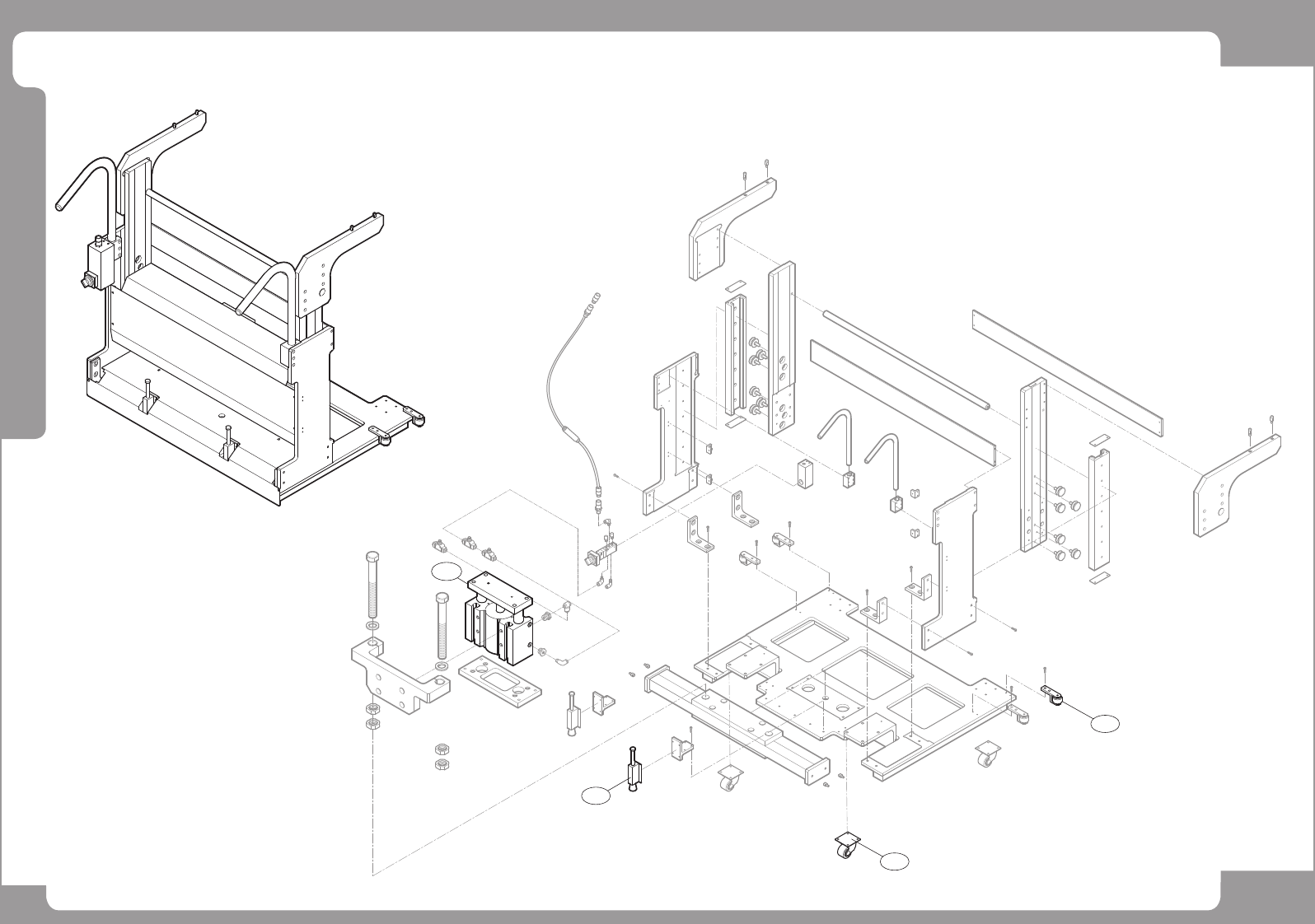

Feeder Base Ass’y
J7051032B CAMERA SUPPORT-R
SAMSUNG TECHWIN
Page
8
CP45NEO
Feeder Base Ass’y
Part Photo
SAMSUNG TECHWIN
Page
9
CP45NEO
Docking Cart Ass’y
4
3
5
2
