CP45NEO Technical Reference_CS_Ver - 第80页
SAMSUNG TECHWIN Page 80 CP45NEO C over Ass’y (1/4) 16 7 23 4 22 17 8 3 5 6 15 29 30 31

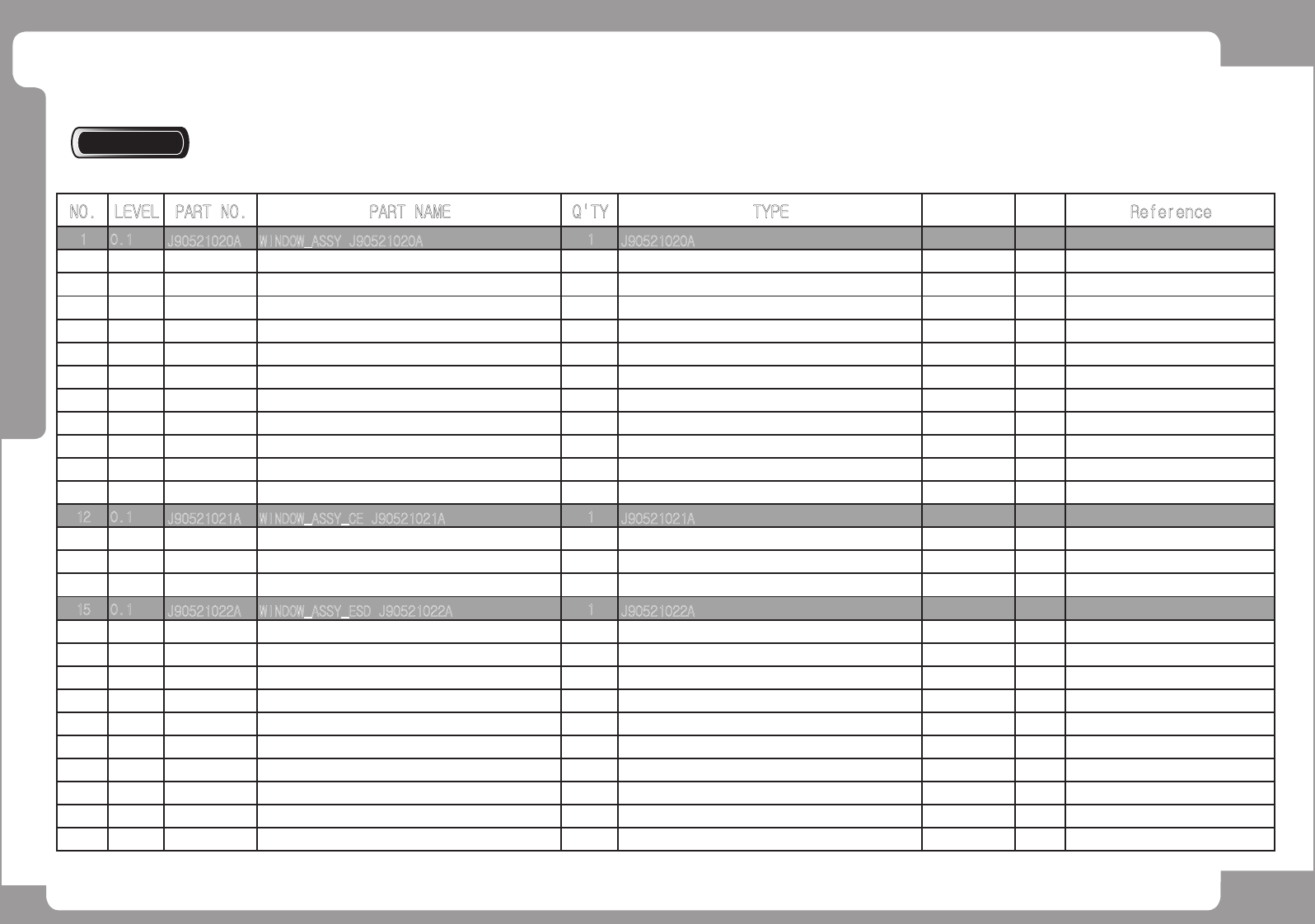

Part List
SAMSUNG TECHWIN
Page
79
CP45NEO
Window Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock
Reference
1 0.1
J90521020A WINDOW_ASSY J90521020A
1
J90521020A
2 ..2
J9052241B FRONT WINDOW ASSY[J9052241B]
1
J9052241B
3 ...3
J6119051A HANDLE[AP-2 BLACK]
1
AP-2 BLACK
○
4 ..2
J9052242B REAR WINDOW ASSY[J9052242B]
1
J9052242B
○
5 ...3
J1301639 HINGE [E6-10-301-10]
4
E6-10-301-10
○
6 ...3
J7070049A REAR WINDOW BRACKET[J7070049A]
2
J7070049A
○
7 ...3
J7070050A REAR WINDOW PLATE[J7070050A]
2
J7070050A
○
8 ...3
J7070121A WINDOW STOPPER[J7070121A]
4
J7070121A
○
9 ...3
J7252096A REAR WINDOW-M[J7252096A]
1
J7252096A
○
10 ...3
J7252097A REAR WINDOW-L[J7252097A]
1
J7252097A
○
11 ...3
J7252098A REAR WINDOW-R[J7252098A]
1
J7252098A
○
12
0.1
J90521021A WINDOW_ASSY_CE J90521021A
1
J90521021A
13 ..2
J9052243B CE FRONT WINDOW ASSY[J9052243B]
1
J9052243B
14 ..2
J9052244B CE REAR WINDOW ASSY[J9052244B]
1
J9052244B
15
0.1
J90521022A WINDOW_ASSY_ESD J90521022A
1
J90521022A
16 ..2
J9052294A FRONT WINDOW ASSY(ESD)[J9052294A(SESK)]
1
J9052294A(SESK)
○
17 ..2
J9052295A
OPTION
OPTION
OPTION
OPTION REAR WINDOW ASSY(ESD)[J9052295A]
1
J9052295A
○
18
19
20
21
22
23
24
25
SAMSUNG TECHWIN
Page
80
CP45NEO

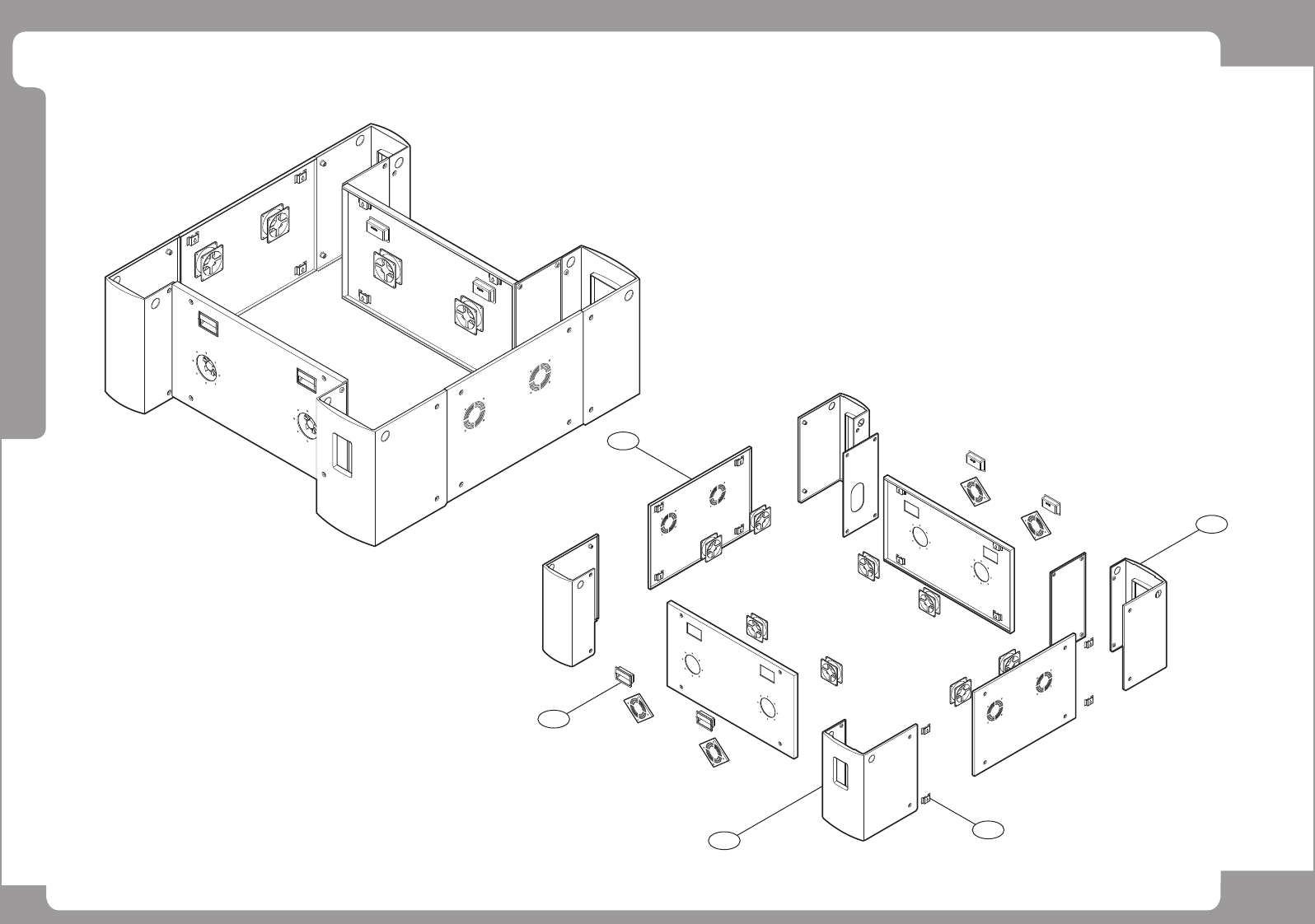

Cover Ass’y (1/4)
16
7
23
4
22
17
8
3
5
6
15
29
30
31
SAMSUNG TECHWIN
Page
81
CP45NEO
Cover Ass’y (2/4)
18
11
2
27
21
