SAMSUNG TECHWIN Page 93 CP45NEO C ontrol Rack Ass’y Part Photo J1201240 VME J2 BACK PLANE 3SLOT [KVME-3J2] J5102007A FDD [MPF920-E] J4401014A POWER SUPPLY [EWS15-12] J90600405B X7043(M) BOARD J4401016A POWER SUPPLY [EWS3…
Part List
SAMSUNG TECHWIN
Page
92
CP45NEO
Control Rack Ass’y
Reference NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock
1 0.1
J90601024A CP45 RACK ASSY J90700049A
1
J90601024A
2 ...3
J4809052A PBPI-6SA
1
PBPI-6SA
○
3 ...3
J4901014A CPU
1
INTEL CELERON 1.2GHZ
○
4 ...3
J5101026A HARD DISK DRIVE[HDS728080PLAT20]
1
HDS728080PLAT20
○
5 ...3
J5001009A MODULE RAM[168PIN 128M (PC133)]
1
168PIN 128M (PC133)
○
6 ...3
J9060132A PC ISA I/F CARD ASS'Y [CP-45FV REV 1.0]
1
CP-45FV REV 1.0
○
7
8
...3
J4809054A VME BACKPLANE
1
DSOVME-12J1(REV.C)
J1201601
J9060232A
9
...3
J1202286
POWER SUPPLY
1
MR KOR4-H
10
...3
J4401036A
POWER SUPPLY
1
TG420-U01(STW)
○
○
11 ..2
J91741058A VISION BOARD CP45 ASSY
1
VISION BOARD CP45 ASSY
..2
J2901007A NOISE FILTER
1
SUP-2030-SS
○
12 ..2
J90600418B MVME3100
1
J90600418B
○
○
13 ..2
J91741063A PMC NVRAM BOARD
1
VER 1.2
○
16 ..2
J91741047A CAN MASTER BOARD CP45
1
VER 1.1
○
14 ..2
J90600405B X7043(M) BOARD
1
J90600405B
○
..2
J90600406B X7043(D) BOARD
1
J90600406B
○
15 ..2
J90600405B X7043(M) BOARD
1
J90600405B
○
..2
J90600405B X7043(D) BOARD
1
J90600405B
○
○
SAMSUNG TECHWIN
Page
93
CP45NEO
Control Rack Ass’y

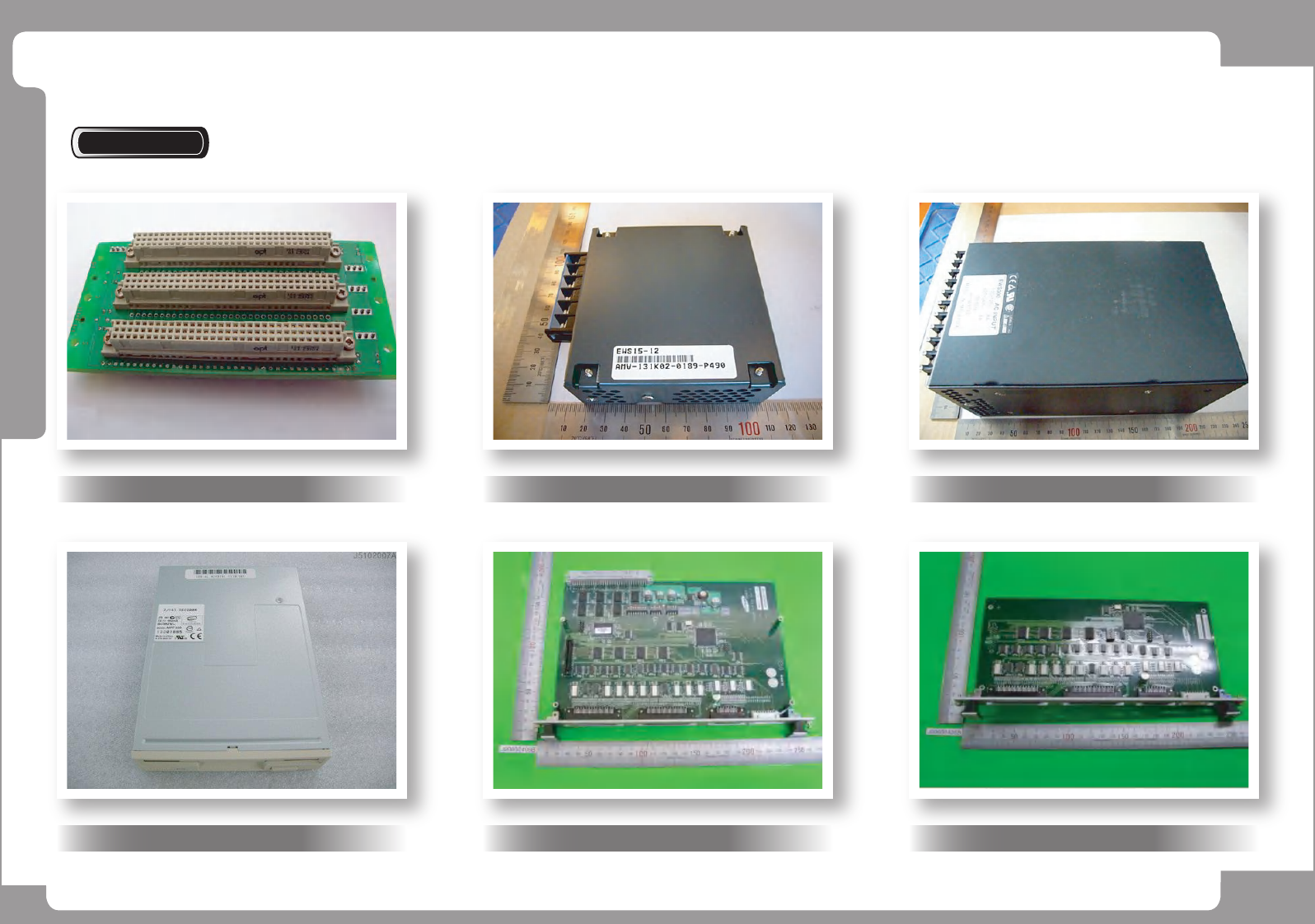

Part Photo
J1201240 VME J2 BACK PLANE 3SLOT [KVME-3J2]
J5102007A FDD [MPF920-E]
J4401014A
POWER SUPPLY [EWS15-12]
J90600405B X7043(M) BOARD
J4401016A
POWER SUPPLY [EWS300-5]
J90600406B X7043(D) BOARD
SAMSUNG TECHWIN
Page
94
CP45NEO

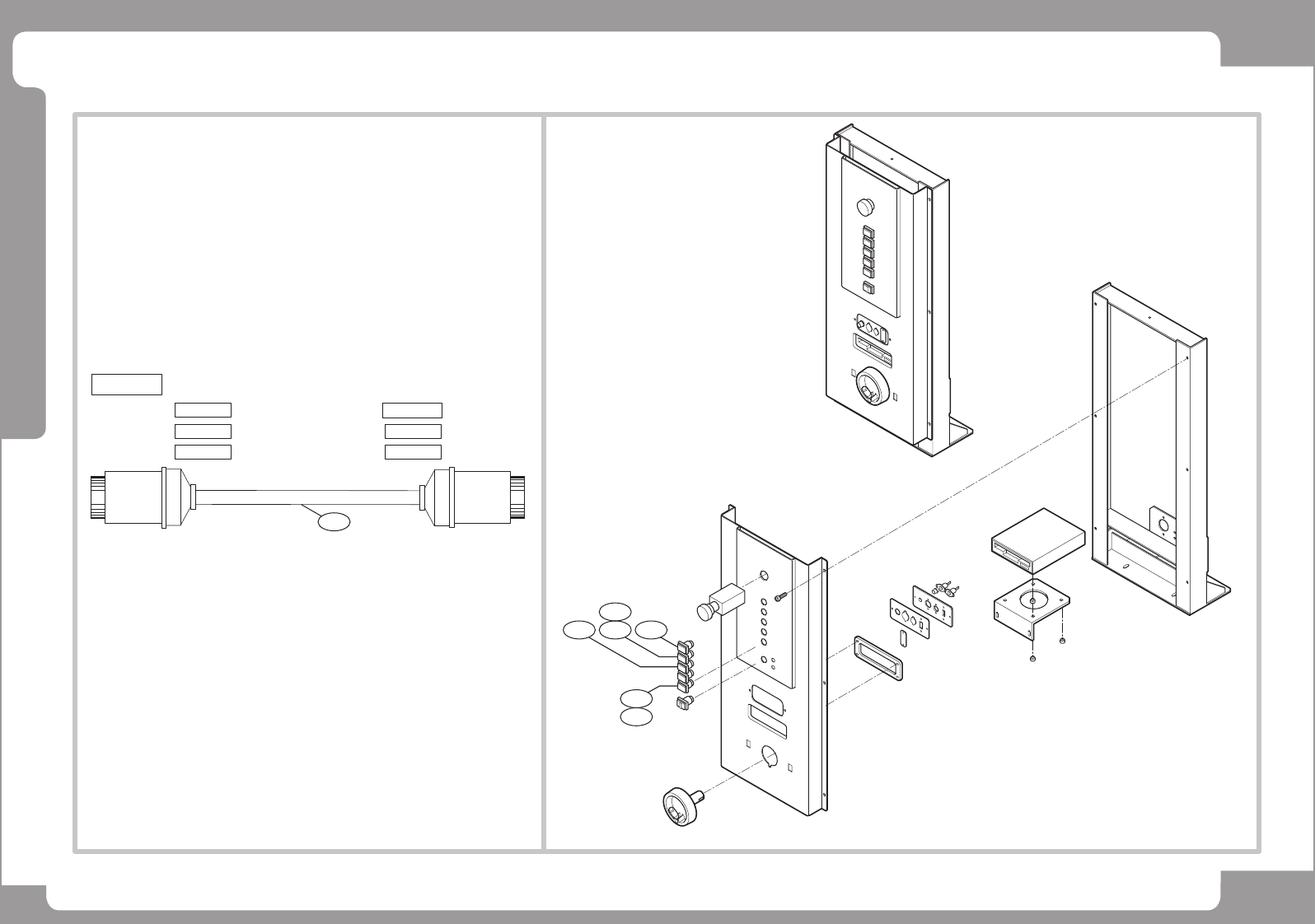

Cable Ass’y
206044-1 206044-1
INLINE-IN
MK-CV25
CABLE CLAMP
SHRINK TUBE SHRINK TUBE
CABLE CLAMP
OUTLOUTE-OUT
14
9
1213
14
11
11
