CP45NEO Technical Reference_CS_Ver - 第97页
SAMSUNG TECHWIN Page 97 CP45NEO C able Ass’y Part Photo J3712004A CONTACTOR [66332-7 (MALE)] J9061201A FEEDER PUSHER CABLE ASS'Y [MK-FD03] J6702017A SOLENOID VALVE [040-4E1-75-PLL-24] J9061202A FEEDER PUSHER CABLE A…
SAMSUNG TECHWIN
Page
96
CP45NEO
Cable Ass’y
Part Photo

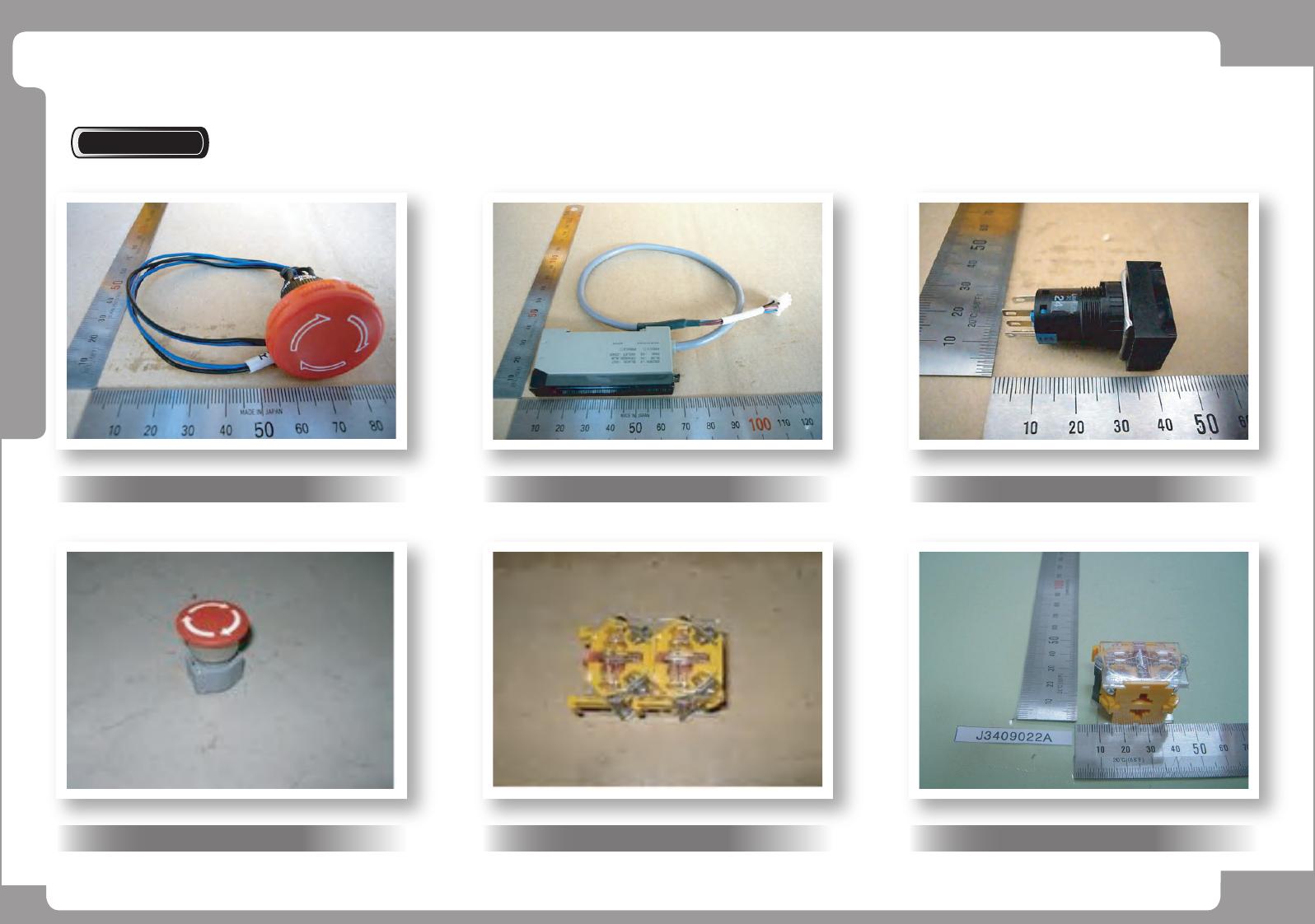

J1201001 SWITCH [AH165-VR02]
J3409020A EMERGENCY SW [704.075.2]
J3211019A
FIBER SENSOR AMP [FX-75]
J3409021A EM SW 접점(2B) [704.900.4]
J3403025A PUSH BUTTON SWITCH [AL6-M (BLACK)]
J3409022A EM SW 접점(1B) [704.900.2]
SAMSUNG TECHWIN
Page
97
CP45NEO
Cable Ass’y
Part Photo

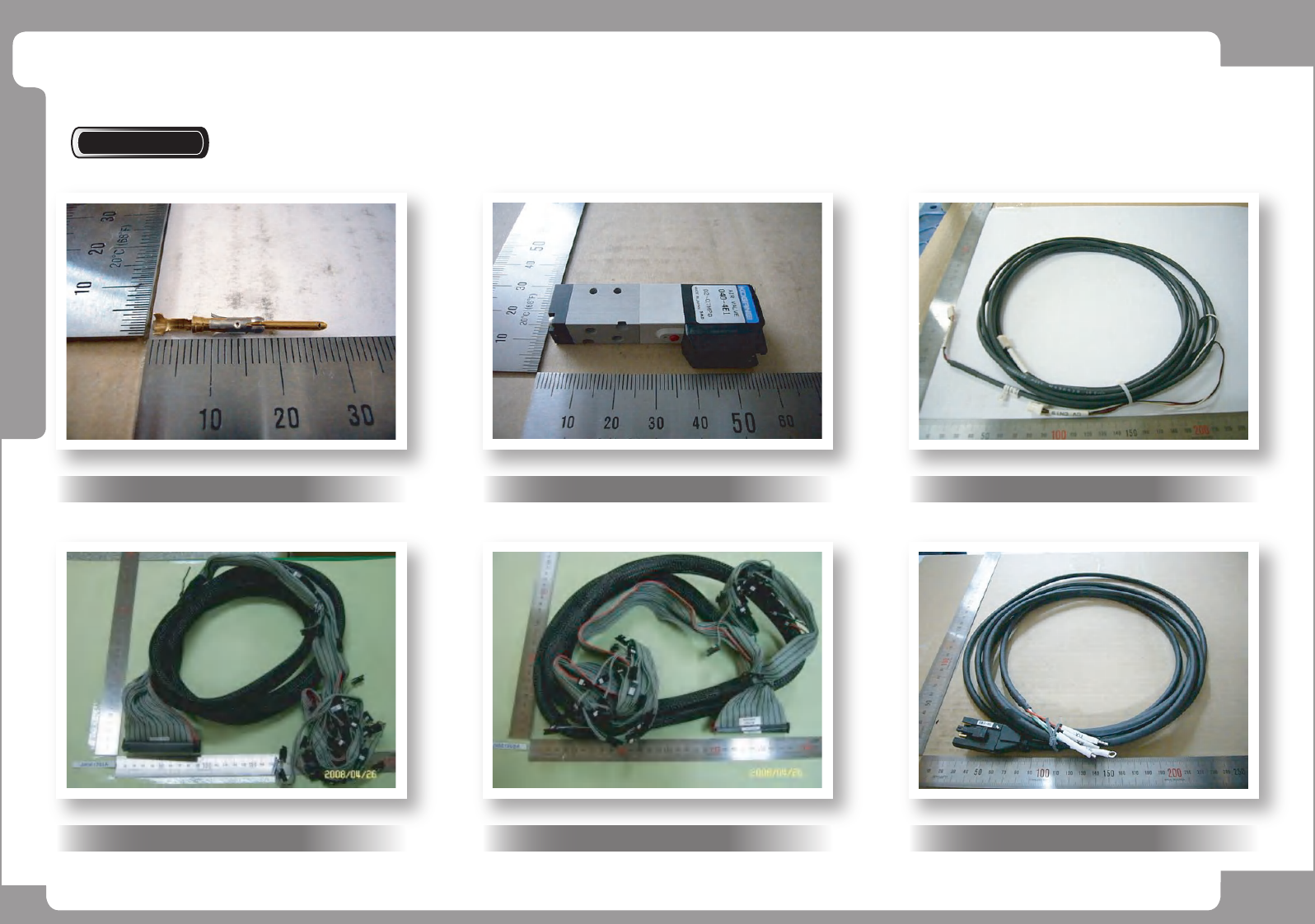

J3712004A
CONTACTOR [66332-7 (MALE)]
J9061201A FEEDER PUSHER CABLE ASS'Y [MK-FD03]
J6702017A SOLENOID VALVE [040-4E1-75-PLL-24]
J9061202A FEEDER PUSHER CABLE ASS'Y [MK-FD04]
J9061187A FEEDER UNLOCK CABLE ASS'Y [MK-CV21]
J9061223C
X MOTOR POWER CABLE ASS'Y
SAMSUNG TECHWIN
Page
98
CP45NEO
Cable Ass’y
Part Photo

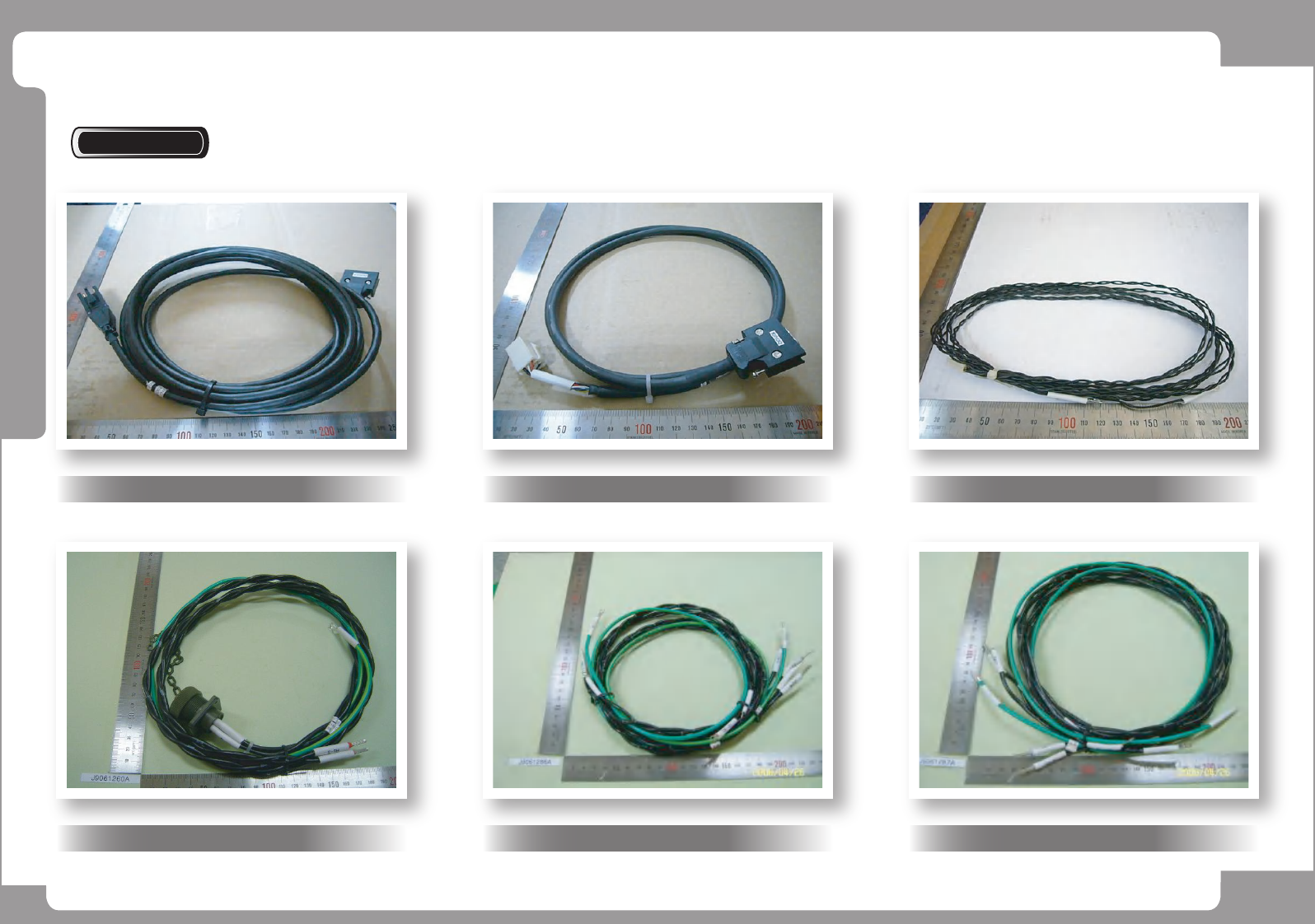

J9061224C
X MOTOR ENC CABLE ASS'Y
J9061260A MAIN POWER INPUT CABLE ASS'Y [MK-PW01
J9061240A WIDTH MOTOR ENC CABLE ASS'Y [MK-MD18]
J9061286A SERVO POWER CABLE ASS'Y [MK-PW27]
J9061245A R DRIVER POWER CABLE ASS'Y [MK-MD23]
J9061287A SERVO POWER CABLE ASS'Y [MK-PW28]
