Installation Installing the Interior Lighting 42 Interior Lighting Innenraumbeleuchtu ng 3.2 3 . 2 I n s t a llin g t h e I n t e r io r L ig h t in g Installing the Interior Lighting Overview Installation location using…
Installation
Preparatory Steps
Interior Lighting Innenraumbeleuchtung 41
3
3 Installation
Installation
3.1
3.1 Preparatory Steps
Preparatory Steps
► If the interior light is not pre-assembled on the mounting rail, fix the two brackets of the interior light
onto the mounting rail using two M4 x 5 screws (with a short head).
► Snap the interior light onto the brackets.
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 32].
► Move the component trolley out of the machine.
Fixing the cable
► Fix the cable of the interior light to the mounting rail
using a cable tie (1).
Additionally securing the interior light
► Additionally secure the interior light on the other side
using a cable tie (1).
Installation
Installing the Interior Lighting
42 Interior Lighting Innenraumbeleuchtung
3.2
3.2 Installing the Interior Lighting
Installing the Interior Lighting
Overview
Installation location using the example of an SX2
1. Location 1
2. Distributor in sector 2
3. Installation location for the interior lighting
One interior lighting per machine is possible that you in-
stall on the output side.
Routing the cable
1. to the side
2. over the machine frame
3. along the ceiling of the machine interior
4. down along the machine frame
5. to the distributor
Installation
Installing the Interior Lighting
Interior Lighting Innenraumbeleuchtung 43
Installation
► Open the cover.

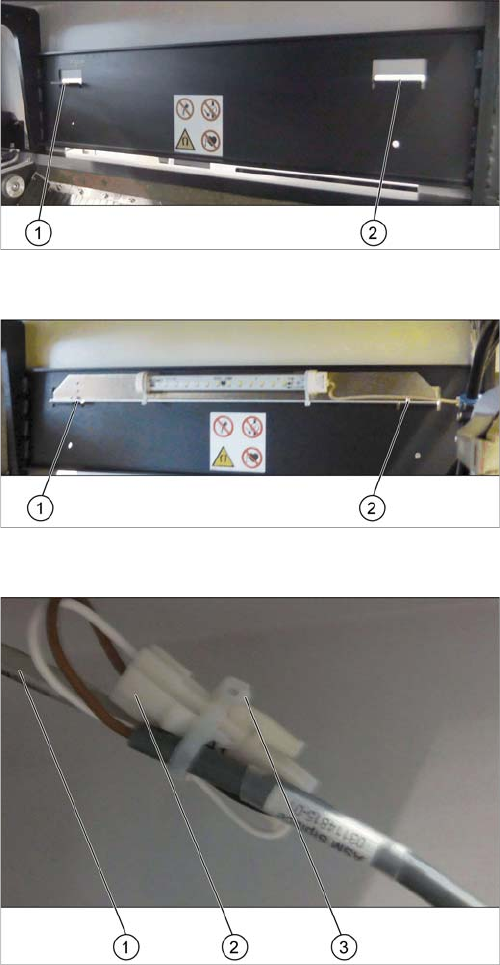

Fixture points
Installation location for the interior lighting on the output
side
1. Fixture point left
2. Fixture point right
Fixing the interior lighting
► Fix the interior lighting at the two fixture points (1)
and (2).
Use the two M4 x 8 screws and the washers from the
retrofit kit.
► Secure the screws with Loctite 243.
Connecting and securing the extension cable
► Connect the extension cable (2) to the cable of the in-
terior light (1).
► Secure the connectors and the cable using a cable
tie (3).
