3.3
3.3 Final Work
Final Work
► Close all covers.
► Switch on the machine
► Move the component trolley into the machine.
► Close the cover.
The station software automatically detects that the interior lighting is installed and controls its function
accordingly:
▪ The interior lighting is switched on if the safety circuit is opened, for example if the cover is opened.
▪ The interior lighting is switched off if the machine is in production mode.
Connecting the extension cable to the distributor
► Open the distributor door in sector 2 of location 1.

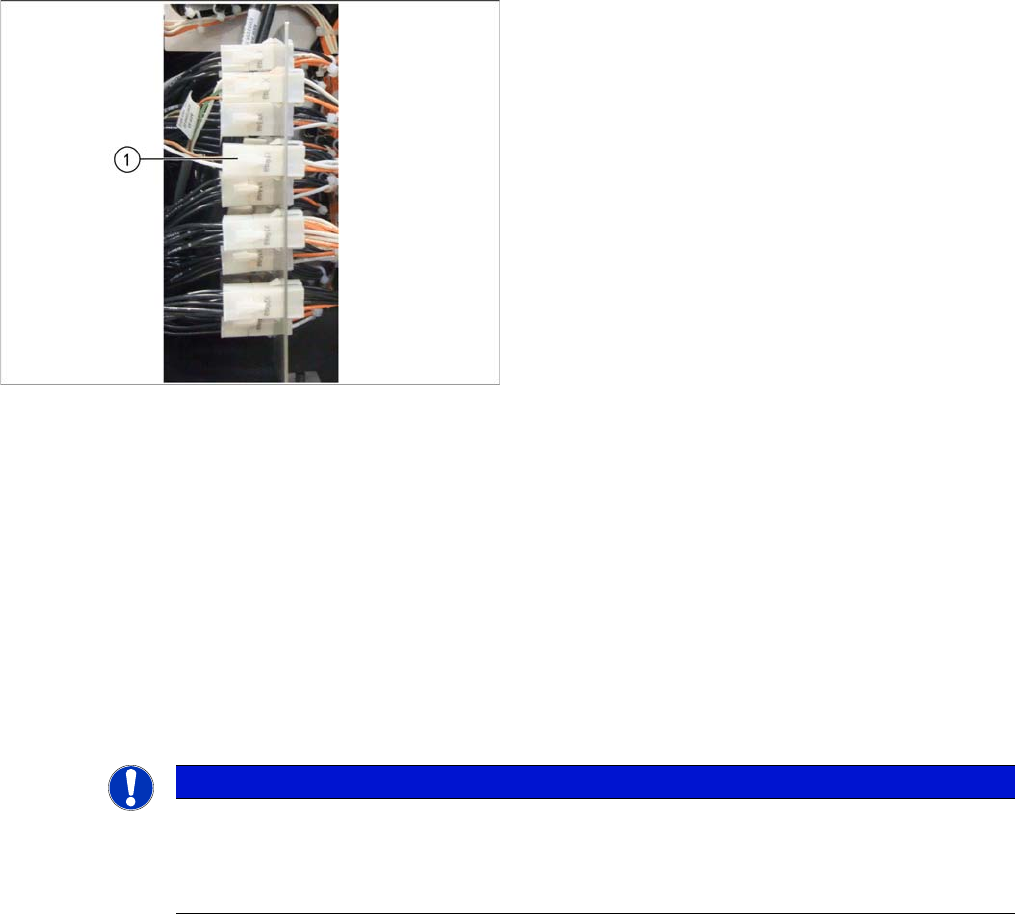

► Find the connector X18qa.
► Connect the extension cable to connector X18qa (1).
► Close the distributor door.
NOTICE
Function test
► For testing the function, you can switch on the interior lighting via the I/O functions. Make
sure to switch it of before starting a production as the placement accuracy may be ham-
pered by external light.
