NPM-W 2 EJM7DE-MB-02 O-00 Individu- al prepara- tion R eplacing the no zzle 2 Replacing nozzles 2-5-2 -3 4 ENABLING (Based on the data, nozzle s in the nozzle ch anger are attached to the head ) 5 ENABLING ● If the atta …

100%1 / 714

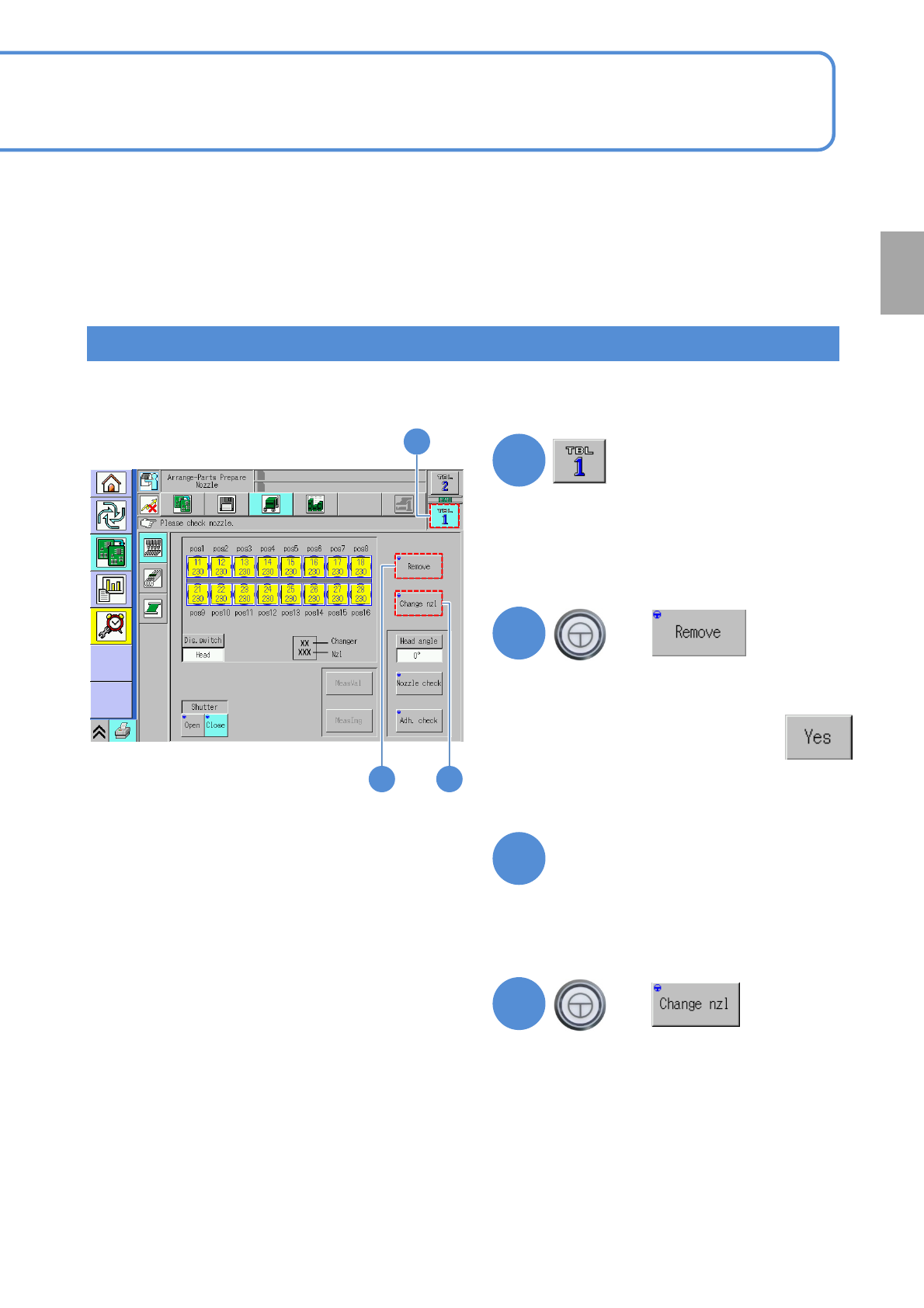

NPM-W2 EJM7DE-MB-02O-00
2-5-2-2
Preparation
How to replace the nozzles attached to the head
The procedure for replacing the nozzles attached to the head when loading different production data
2
1
(If the nozzles attached to the head are
not in agreement with the nozzles set
based on the production data, the
nozzles displayed on the screen turn
yellow)
●Upon confirming the message,
3
●Remove the nozzle changer, and check
/ correct the nozzles. (→P.2-5-1)
●Attach the nozzle changer.
(All nozzles are returned to the nozzle
changer)
Check on the nozzles
4
(The nozzles within the nozzle changer
are installed to the head.)
●In the presence of any nozzle within
the nozzle changer, the nozzles cannot
be removed.
1
2 4
+
+

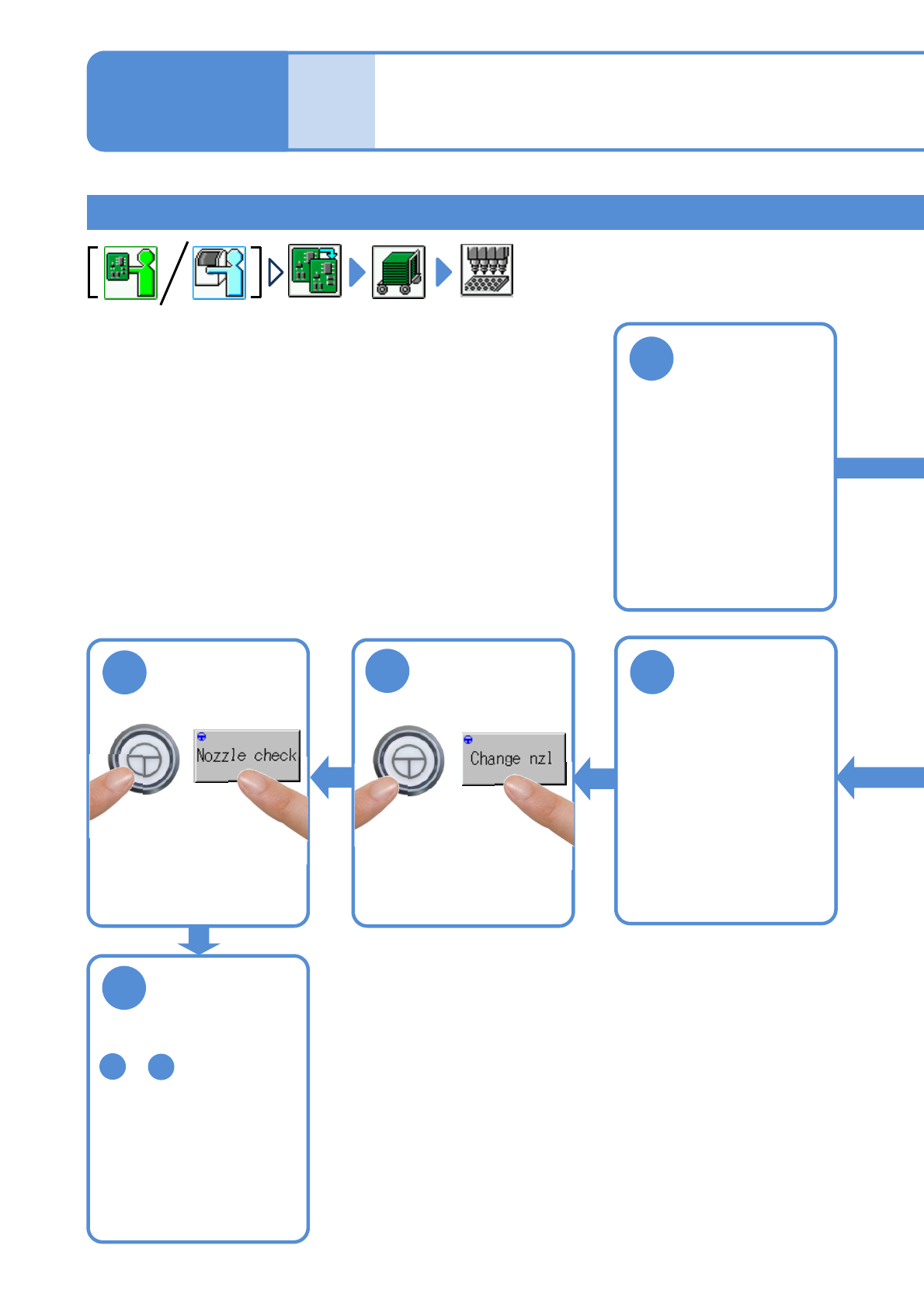

NPM-W2 EJM7DE-MB-02O-00
Individu-
al
prepara-
tion
Replacing the nozzle 2
Replacing nozzles
2-5-2-3
4
ENABLING
(Based on the data, nozzles
in the nozzle changer are
attached to the head)
5
ENABLING
●If the attached nozzles are
improper, the warning
message appears.
Change them out for
correct ones.
6
Repeat the steps from
to and replace
desired nozzles
1
5
Remove the
nozzle changer
3
Attach the
nozzle changer
(→P.2-5-1)
(→P.2-5-1)
Operating procedure
2-5-2
1

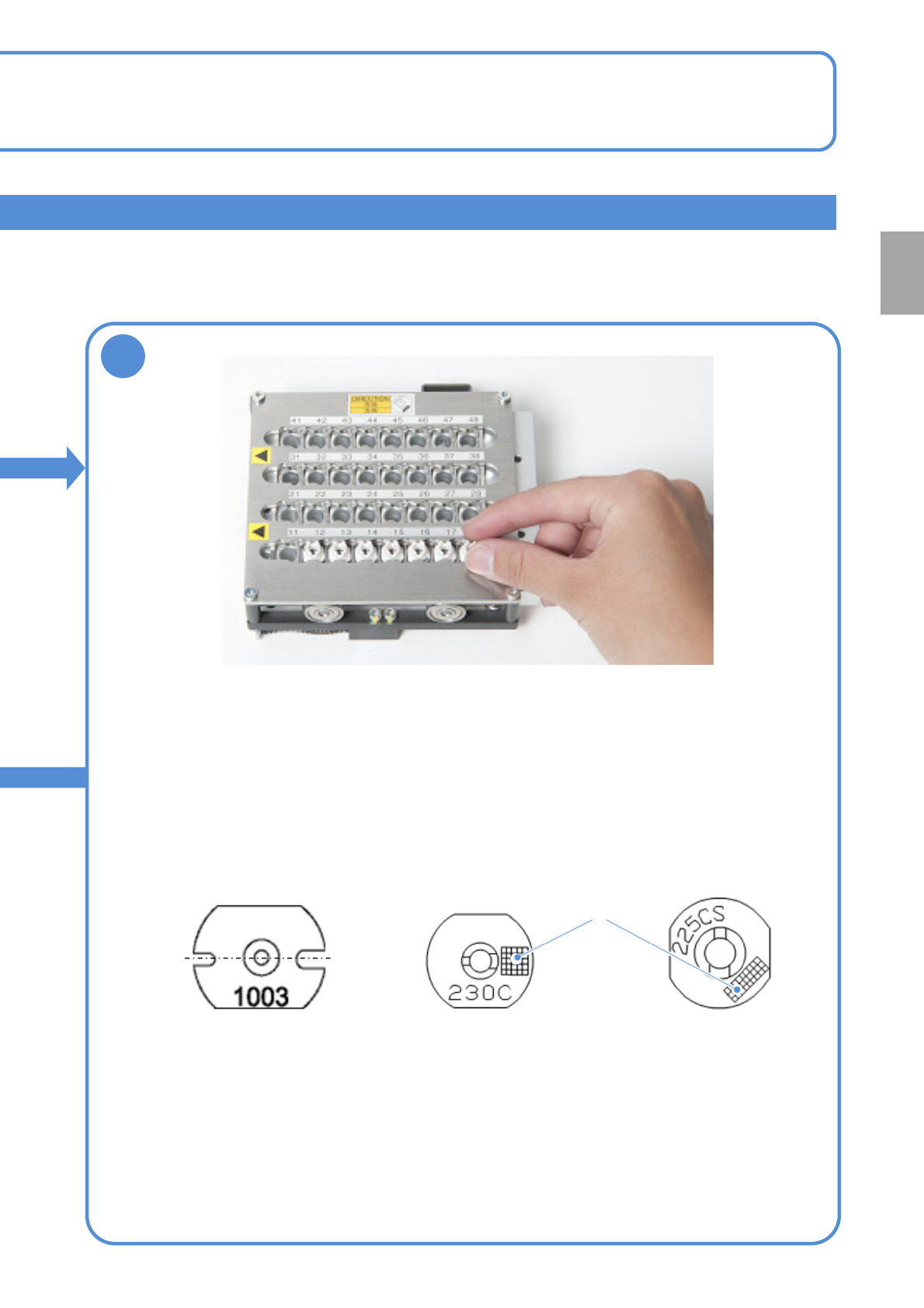

NPM-W2 EJM7DE-MB-02O-00
2
●As far as the nozzles for the 3-
nozzle head use are concerned, be
careful of the right and left grooves
orientation.
Narrow
groove
Wide
groove
Feeder table side
2-5-2-4
●Place the 8-/12-/light weight16-nozzle head use nozzles, on
which 2D barcodes are marked, in the direction as shown in the
following figures.
●Option settings can detect nozzle types by 2D barcodes and
thus help prevent the nozzles from being placed in the wrong
places.
(for information on how to set, see P.7-1-1)
●Nozzles for AM100 are not available.
Feeder table side
Feeder table side
<Nozzle for 8-nozzle head>
<Nozzle for 12-/light weight16-
nozzle head>
<Nozzle for 3-nozzle head>
2D barcodes
Replace nozzles
Preparation
