NPM-W 2 EJM7DE-MB-02O-0 0 2-5-8 -12 Preparatio n ■ Dual conveyor ● S size PCB 2 nd position Placement: when turned to ON ● S size PCB 2 nd position Placement : when turned to OFF
NPM-W2 EJM7DE-MB-02O-00
Operating procedure
2-5-8
Individu-
al
prepara-
tion
Installing support pins
(for automatic change) 6
2-5-8-11
PCB size and the number of pins that can be retracted
The machine determines the number of pins to be retracted according to the size of the PCB used, and the pins not
used in production can be automatically retracted within the limits of the number specified by the following table.
When setting support pins to the home position, make sure to set the correct number of the support pins based on
the number of the pins that are arranged in the production data and also the number of the ones that can be
retracted.
(The more the number of the pins that can be retracted, the longer the time to change pins)

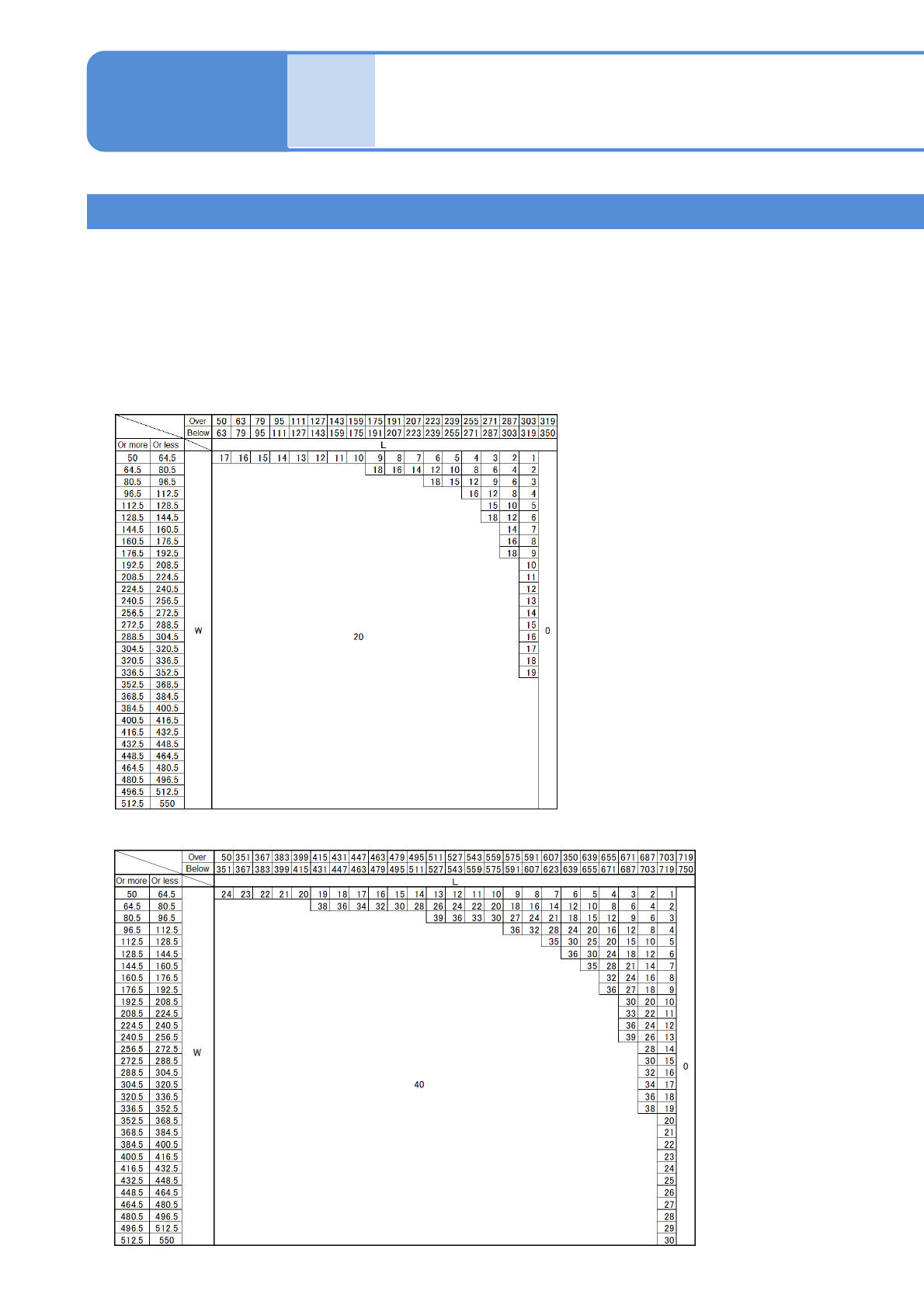

■Single conveyor
●S size PCB 2
nd
position Placement: when turned to ON
●S size PCB 2
nd
position Placement : when turned to OFF
NPM-W2 EJM7DE-MB-02O-00
2-5-8-12
Preparation

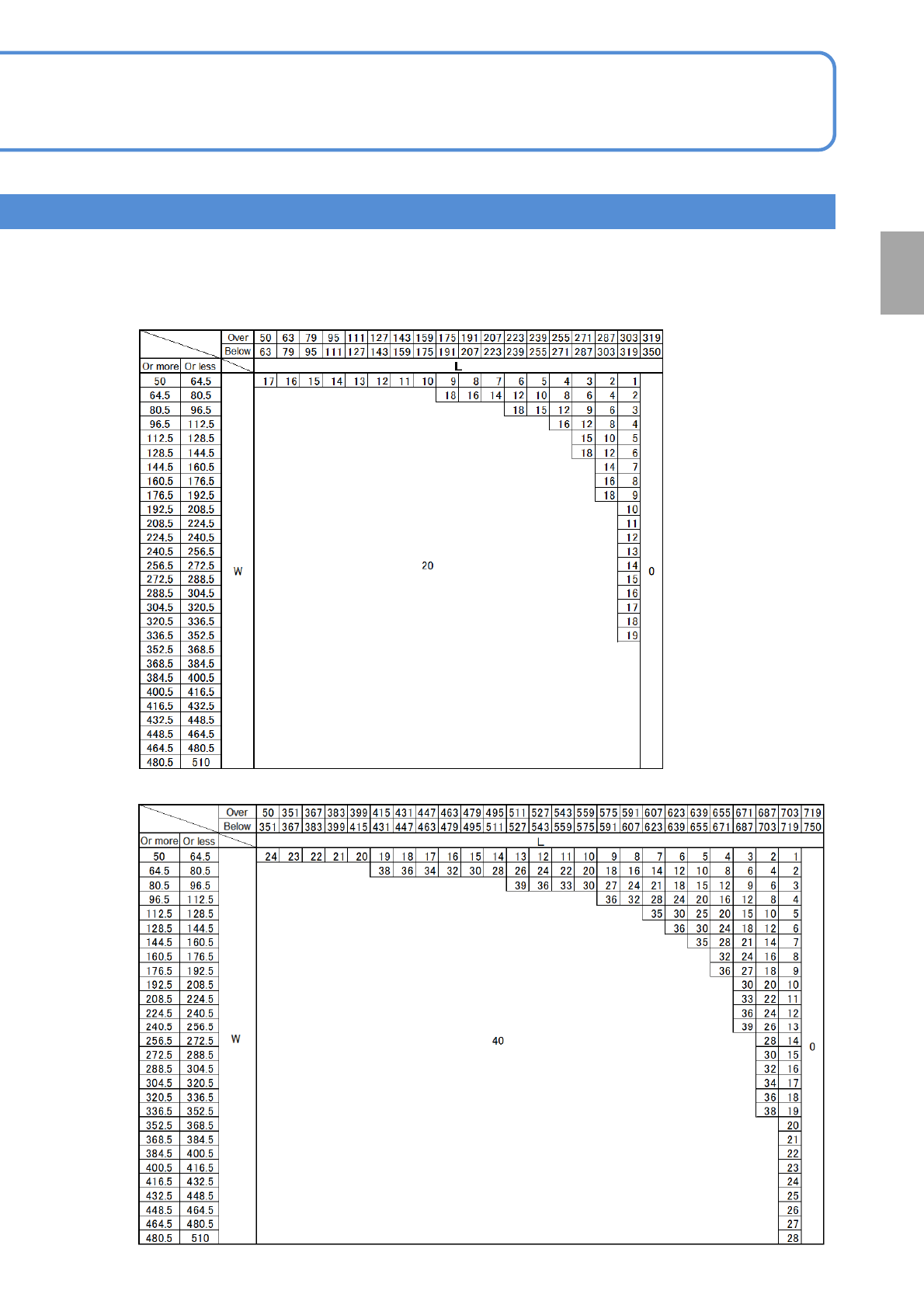

■Dual conveyor
●S size PCB 2
nd
position Placement: when turned to ON
●S size PCB 2
nd
position Placement : when turned to OFF
NPM-W2 EJM7DE-MB-02O-00
How to view screen
2-6-1
F
H
l
A
E
B
C
D
Task name Descriptions Reference page
File op.
Loads or saves production data during production
changeover.
P.2-3-2 to 2-3-6
Change nzl Exchanges or cleans nozzles. P.2-5-2
Supply parts Attach feeders. P.2-4-1 to 2-4-5
Exchange
holder
Replace the holder. P.2-5-3
PCB transfer Tests the transfer of PCBs. P.2-5-5
■Descriptions of each task
Continuous
preparations
Operating procedure
2-6
Running day
Work start date.
User Name
Operator’s name.
Lot name
The name of the lot of loading production
data or history data.
Work descriptions
Descriptions of the work to be executed.
Work condition
: planned
: done
Operating time
Time required for each preparation.
G
Total
Total time required for preparation.
Next work arrow
Descriptions of an upcoming work.
Work log: History of continuous
preparations
: the most recent history
: the past history
AB C
D GE I FH
