NPM-W 2 EJM7DE-MB-03O-0 0 Production 3-2-1 -4
NPM-W2 EJM7DE-MB-03O-00
Produc-
tion
informa-
tion
How to check the screen in
production, when stationary
2
How to check the screen in production 2
Operating procedure
3-2-1
O
O
Lane selection
■Placement head (independent mode)
: To start production in front
and rear lanes
: To start production only in lane 1
: To start production only in lane 2
P
■Dispensing head
■Inspection head
P
Current dispensed points/Total
dispensing points.
(including multiple dispensing points)
Q R
Q
Currently inspected points/total
inspection points.
R
Displays the inspection result (OK/NG).
DspPoints
Num Isp view
Inspection result
3-2-1-3
NPM-W2 EJM7DE-MB-03O-00
Production
3-2-1-4
NPM-W2 EJM7DE-MB-03O-00

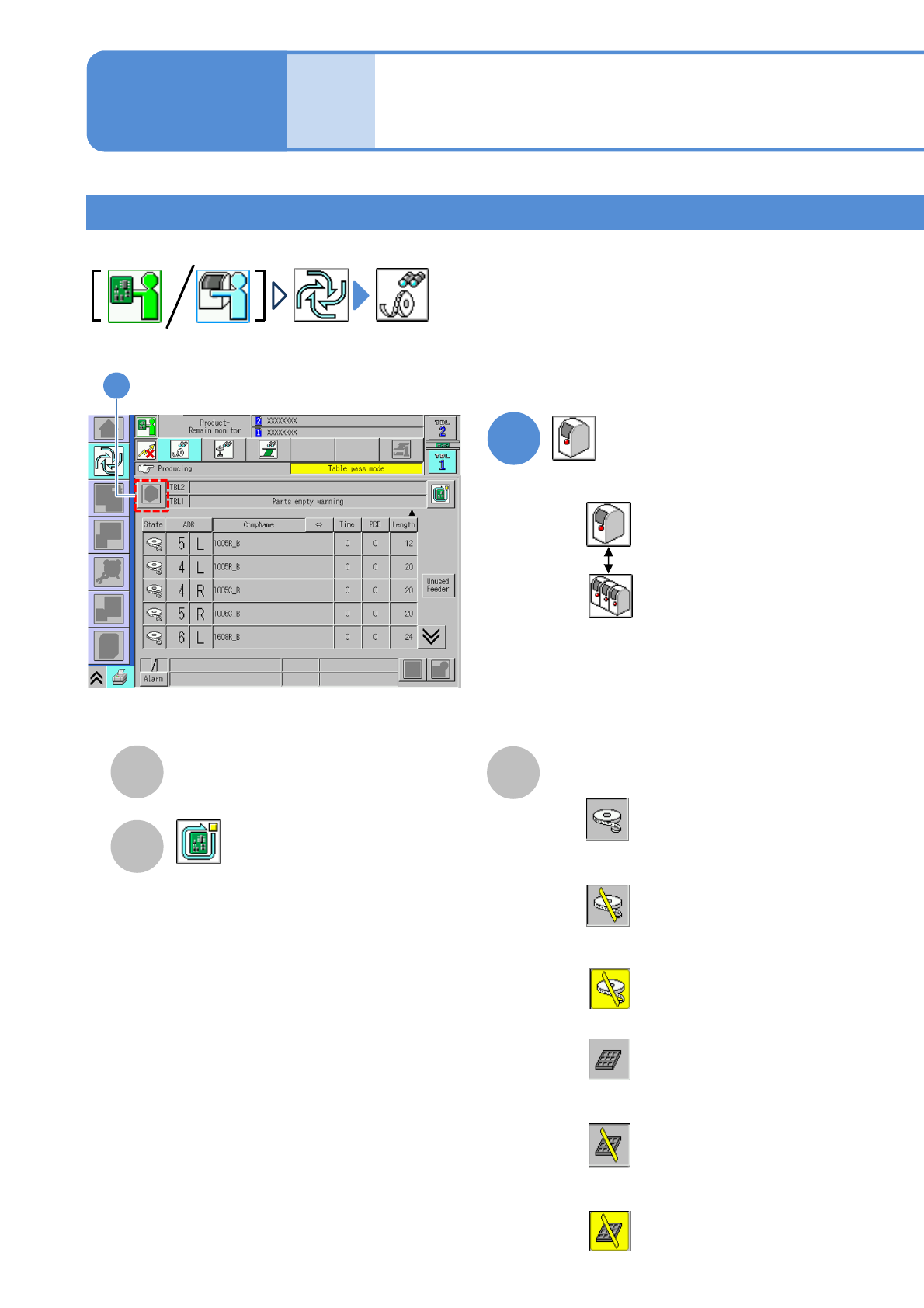

Remaining components
You can check remaining components per machine or line during production.
1
Operating procedure
3-2-1
3-2-1-5
Produc-
tion
informa-
tion
1
Choose either by machine or by line
: By machine
: By line
A
B
TBL (table)
Table to be referred.
Stop production after producing the
current PCB. (→P.3-1-2)
C
How to check the screen in
production, when stationary
3
Status
■When the feeder is out of components
■When the feeder is out of components
but components are in stock
■When the feeder is out of components
and components are also out of stock
■When the tray is out of components
■When the tray is out of components but
components are in stock
■When the tray is out of components and
components are also out of stock
Feeder: White
BG color: Grey
Feeder: White
BG color: Grey, Slash: Yellow
Feeder: White
BG color: Yellow, Slash: Yellow
Tray color: Grey
BG color: Grey
Tray color: Grey
BG color: Grey, Slash: Yellow
Tray color: Grey
BG color: Yellow , Slash: Yellow
