NPM-W2 EJM7DE-MB-03O-00
3-2-9-1
C
A
B
D
E
F
G
Produc-
tion
informa-
tion
Operating procedure
3-2-9
No
Data number.
Head
The nozzle position number at which
error occurred in the transfer head.
H
I
Date/Time
TBL (table)
The table on which the error occurred.
Error kind
Nzl
The nozzle number at which error
occurred.
Deletes all the error histories.
Shows the previous or next table.
Vacuum sensor error
history
You can check up to 50 records of vacuum sensor error information, that occurred during automatic
production, in reverse chronological order.
HB I
DC E F GA
1
ADR (address)
Feeder address.
(→P.3-2-3
-1)

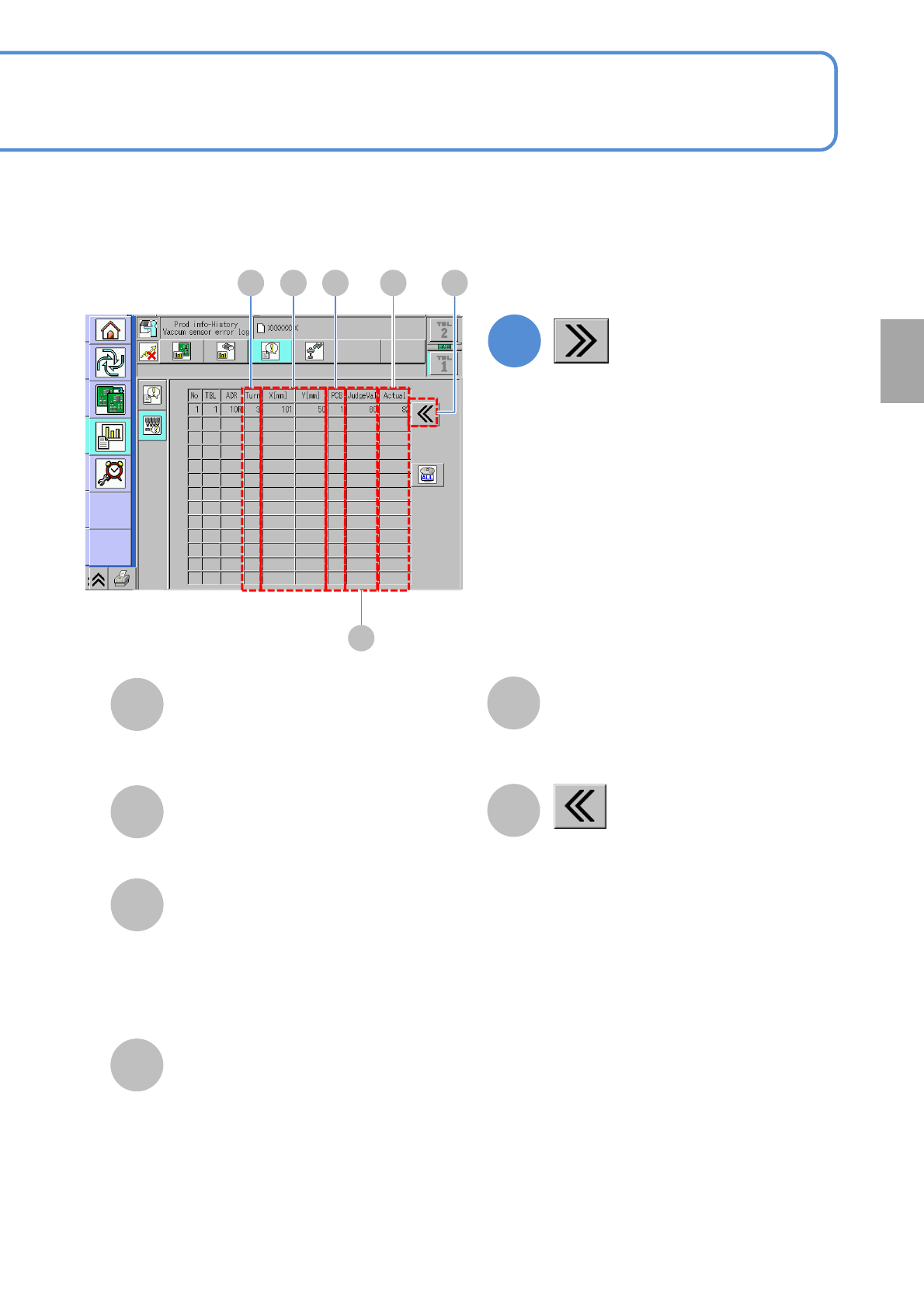

NPM-W2 EJM7DE-MB-03O-00
3-2-9-2
C
A
B
D
Returns to the previous screen.
X [mm]/Y [mm]
The coordinates on which the error
Occurred.
E
F
Turn
The turn between a feeder and a PCB
when error occurred.
PCB
The placement order in the turn in
which the error occurred.
●For one PCB,
0 is displayed.
●For two PCBs,
0: first PCB, 1: 2nd PCB.
JudgeVal
Vacuum error judgment value.
(8-bit tones display)
Actual
Vacuum actual value.
(8-bit tones display)
1
D
B C E FA
(Error detail information is displayed)
Production
NPM-W2 EJM7DE-MB-03O-00
3-2-10-1
C
A
B
D
E
F
G
Produc-
tion
informa-
tion
No
Data number.
Head
Displays the head with error.
I
J
Date/Time
TBL (table)
The table on which the error occurred.
ANS
Displays the recognition error code.
Clears all the dummy dispensing
recognition error histories.
Transitions to the image data
save screen
Dummy dispensing
recognition error history
(dispensing head)
IB J
DC E GA
1
Pattern
Displays the dummy dispensing pattern.
The latest fifty records of dummy dispensing recognition errors that occurred in automatic operation mode are
displayed.
F H
Nozzle
Nozzle number with error.
H
SUB
Displays the recognition error sub-code.
Operating procedure
3-2-10
