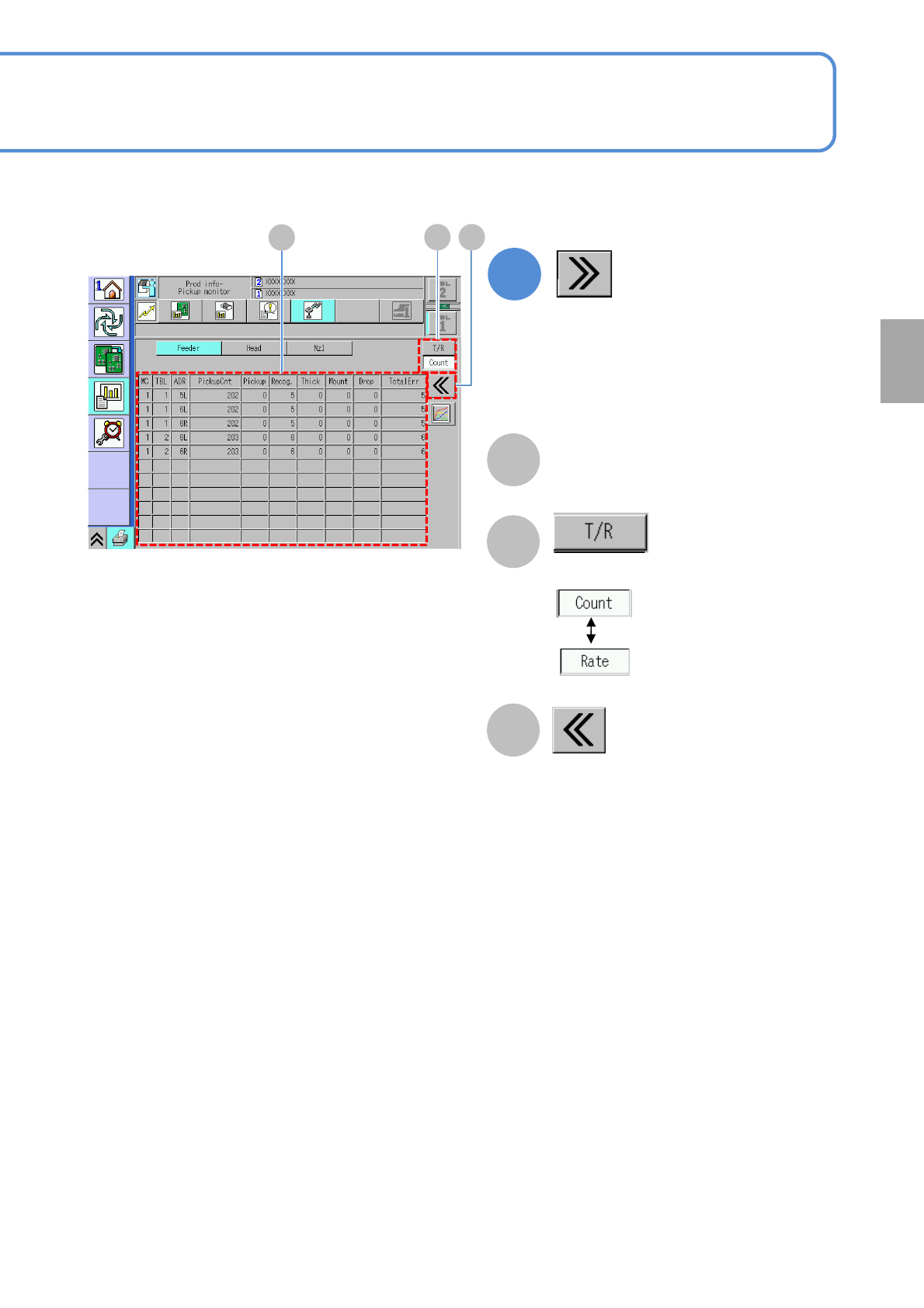

NPM-W2 EJM7DE-MB-03O-00
3-2-11-2
A
B
Returns to the previous screen.
C
Pickup information per feeder
(→P.3-2-1-8)
Choose the display type.
2
(Detailed error information is displayed)
Production
A
B C
NPM-W2 EJM7DE-MB-03O-00
Produc-
tion
informa-
tion
Head pickup monitor
3-2-12-1
You can check component pickup information of a nozzle, per nozzle.
1
B
(Displays component error count in a
graph)
A
LeadTo
Displays increase or decrease tendency
of the error rate.
●
●
●
●
●
: Ultra up tendency
: Up tendency
: Constant tendency
: Ultra down tendency
: Down tendency
Pickup information per head
(→P.3-2-1-10)
Shows the previous or next table.
C
●Error count of the selecting head
per hour is displayed on the graph.
Vertical axis: Error count
Horizontal axis: Time
●Choosing the total error or an error
item can change the display of the
graph
D
Total error and error item
(→ P.3-2-4-2)
D
Operating procedure
3-2-12
1
2
B
C
A
NPM-W2 EJM7DE-MB-03O-00
3-2-12-2
A
B
Returns to the previous screen.
C
Choose the display type.
2
(Detailed error information is displayed)
Pickup information per head
(→P.3-2-1-10)
Production
A
B C
